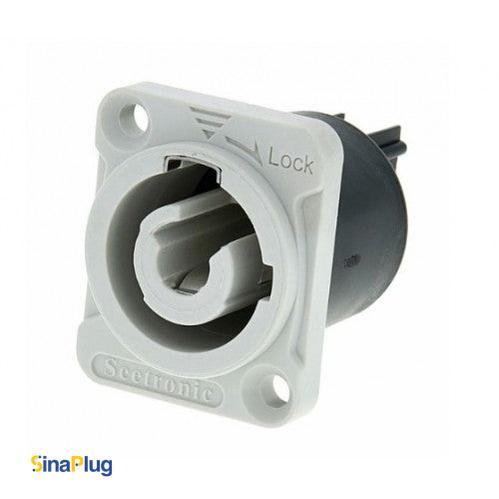

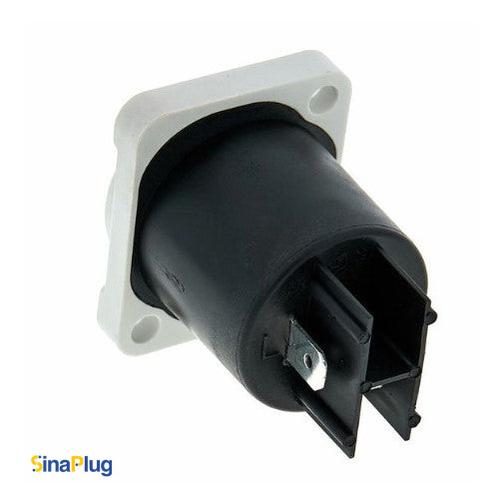

Seetronic SAC3MPB Power-Out Socket (Female Connector of SAC3FCB Plug)

$7.79

Buy at discounted prices

Minimum Qty Maximum Qty Discount
10 49 7% off
50 99 12% off
100 + 15% off

Documents

Datasheet_Seetronic_SAC3MPB_V1

The SAC3MPB (offered by Azar Pixel) is a high-quality chassis mount, lockable three-core power-out socket connector (Female connector of SAC3FCB), designed for reliable and safe AC power connections up to 20A at 250V AC. This wonderful socket connector, which comes with standards such as UL1977, IEC61984, IEC60320-1, and GB/T 34989, consists of stability and longevity, making it ideal for application in harsh environments with temperatures ranging from -30°C to +80°C.

This lockable three-core AC connector, with 23.8mm of inner radius, is engineered to provide robust performance in demanding applications, featuring a quick and easy locking system to ensure secure connections for line (L), neutral (N), and pre-adapted safety grounding (PE).

As a trusted brand specializing in high-quality electronic connectors, Seetronic is renowned for its emphasis on durability, reliability, and precision engineering, with a strong focus on safety and performance.

Key Features of SAC3MPB

Electrical Specifications

  • Number of Contacts: 3 (Line, Neutral, PE)
  • Rated Current: 20A
  • Rated Voltage: 250V AC
  • Maximum Contact Resistance: 5 mΩ
  • Dielectric Strength: 4000V DC
  • Insulation Resistance: over 1000 MΩ
  • Certifications: UL: E359036, VDE: 40044166, TUV: N8A1083360006, CQC: CQC23003410678
  • Standards: UL1977, IEC61984, IEC60320-1, GB/T 34989

Mechanical Specifications

  • Service Life: Over 1000 mating cycles
  • Cable Size: 2.5 mm² (12AWG)
  • Terminal Type: Soldering / plugging 4.5x0.5 terminals

Material Parameters

  • Housing Material: PA (Polyamide)
  • Contact Material: Copper (Cu) alloy with Silver-plated (Ag) surface

Environmental Parameters

  • Flame Retardant Rating: UL94-V0
  • Temperature Range: -30°C to +80°C

Advanced Features

  • Quick and easy locking system for secure connections
  • Lockable three-core power-out socket (Female connector)
  • High rated power capacity up to 20A at 250V AC (UL certified)

Dimensions (L*W*H)

  • 37.3mm * 31mm * 26mm
