Seetronic  |  SKU: PCN-SET-SAC3FCBxxx-0

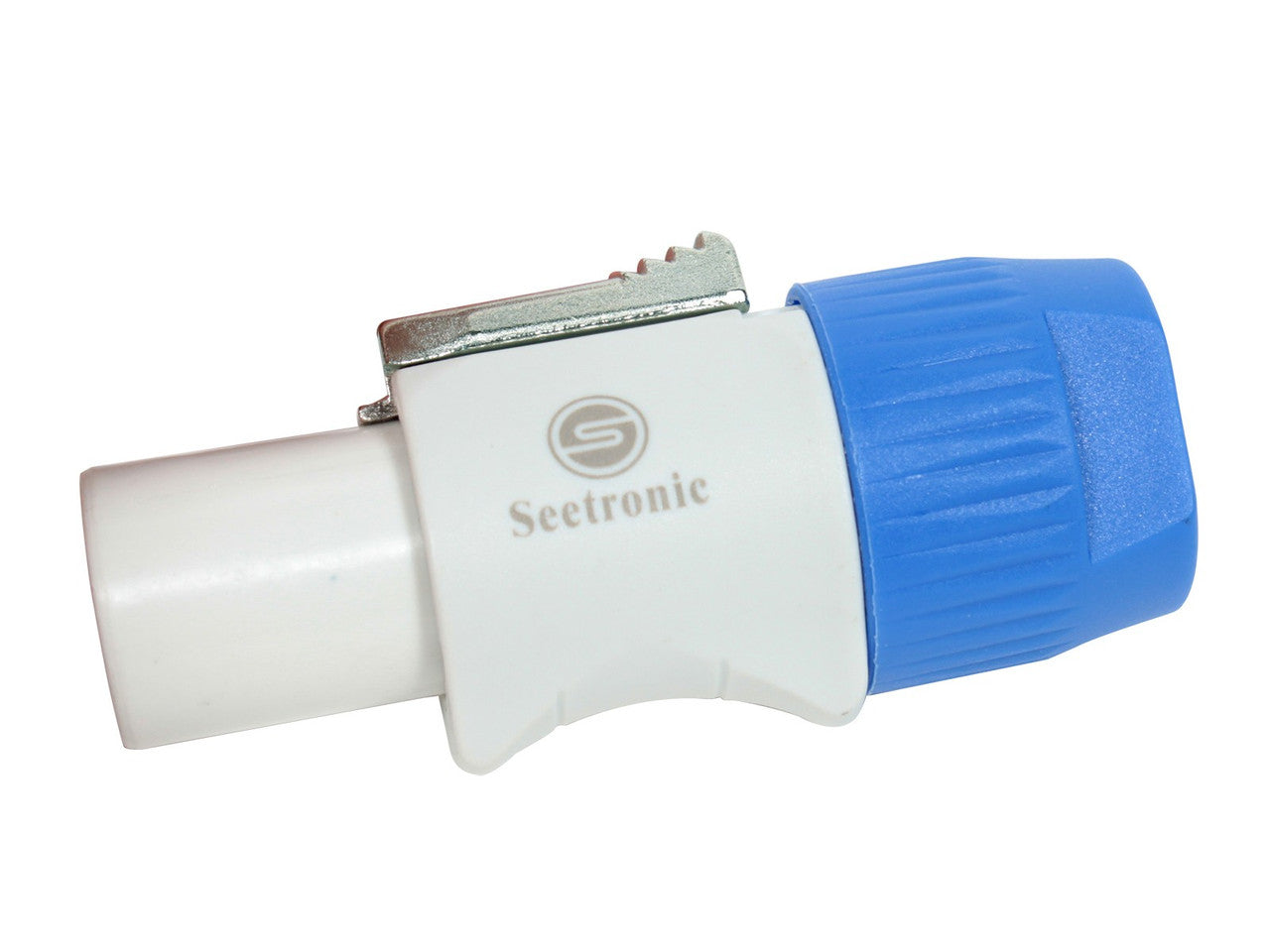

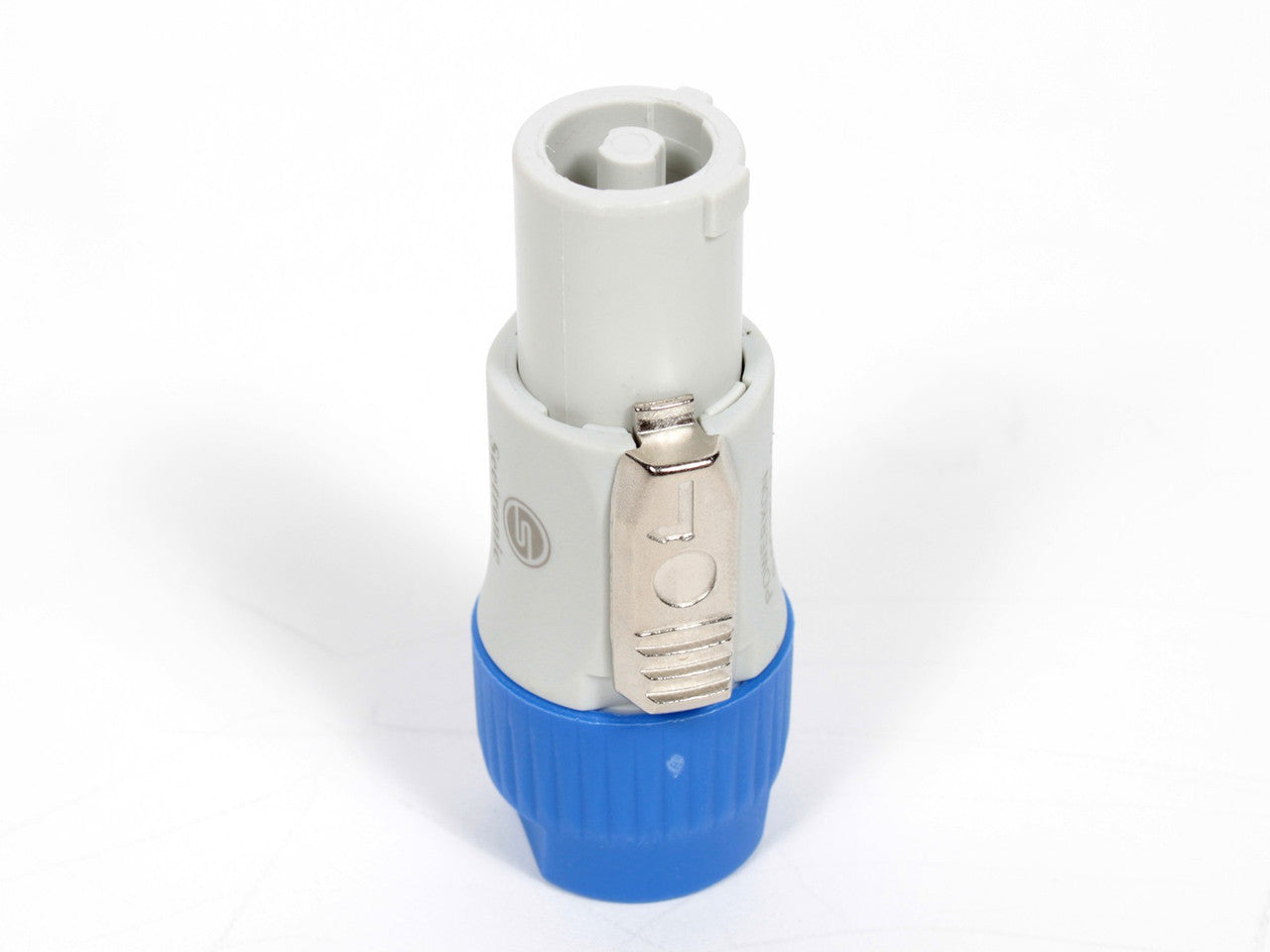

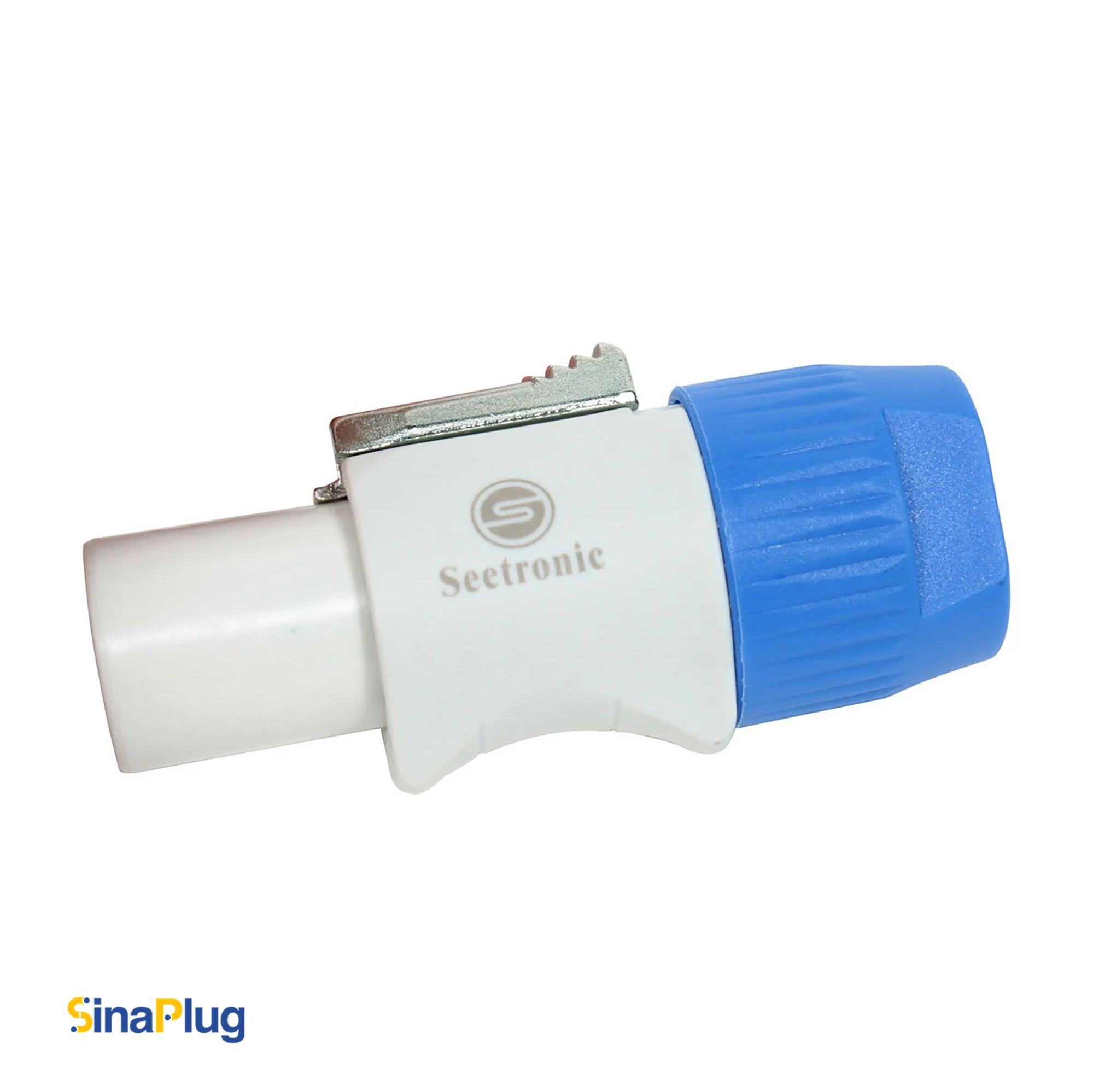

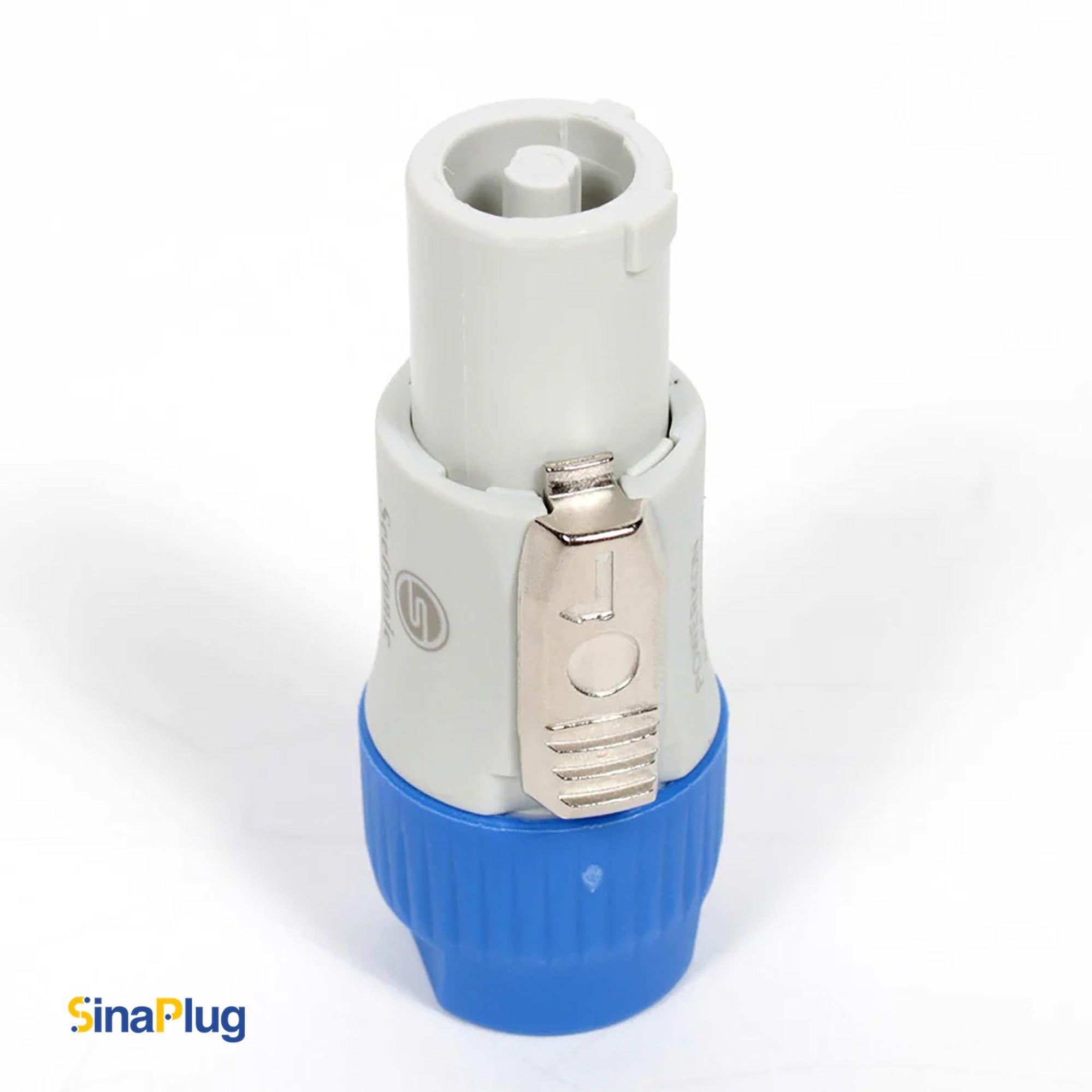

Seetronic SAC3FCB Power-Out Plug (Male Connector of SAC3MPB Socket)

$7.79

Buy at discounted prices

Minimum Qty Maximum Qty Discount
10 49 7% off
50 99 12% off
100 + 15% off

Documents

Datasheet_Seetronic_SAC3FCB_V1

The lockable Seetronic SAC3FCB, represented by Azar Pixel, supports up to 20A at 250V AC, is a remarkable, dependable choice for indoor power connections. This power-out cable connector features a secure, lockable three-pole power cable connector ensures a stable connection for line (L), neutral (N), and pre-adapted safety ground (PE).

This connector meets UL197, IEC61984, IEC60320-1, and GB/T 34989 standards, providing reliable performance and long-term durability in harsh environments (-30°C to +80°C). With an inner diameter of 17.5 mm and outer diameter of 27.1 mm, it is compatible with Seetronic SAC3MCB plugs, SAC3MPB/SAC3MPB-M sockets, and replaces legacy models like the Neutrik NAC3FCB. Perfect for LED controllers, stage lights, sound consoles, and other A/V systems.

Key Features of SAC3FCB

Electrical Specifications

  • Number of Contacts: 3 (Line, Neutral, PE)
  • Rated Current: 20A
  • Rated Voltage: 250V AC
  • Maximum Contact Resistance: ≤ 5 mΩ
  • Dielectric Strength: 4000V DC
  • Insulation Resistance: over 1000 MΩ
  • Certifications: UL: E359036, VDE: 40044166, TUV: N8A1083360006, CQC: CQC23003410678
  • Standards: UL1977, IEC61984, IEC60320-1, GB/T 34989

Mechanical Specifications

  • Service Life: Over 1000 mating cycles
  • Cable Size: 2.5 mm² (12AWG)
  • Terminal Type: Screw type terminals

Material Parameters

  • Housing Material: PA (Polyamide)
  • Contact Material: Crafted from copper alloy with a silver plating for optimal conductivity

Environmental Parameters

  • Flame Retardant Rating: UL94-V0
  • Temperature Range: -30°C to +80°C

Advanced Features

  • Quick and easy to lock by featuring a firm latch to prevent accidental disconnections
  • Lockable three-core power-out plug (Male connector)
  • Compatibility with SAC3MCB plugs and other socket models (SAC3MPB, SAC3MPB-M)
  • High rated power capacity up to 20A at 250V AC (UL certified)

Dimensions (L*W*H)

  • 69.8mm * 31.4mm * 27.1mm
