Seetronic  |  SKU: PCN-SET-SAC3MPAxxx-0

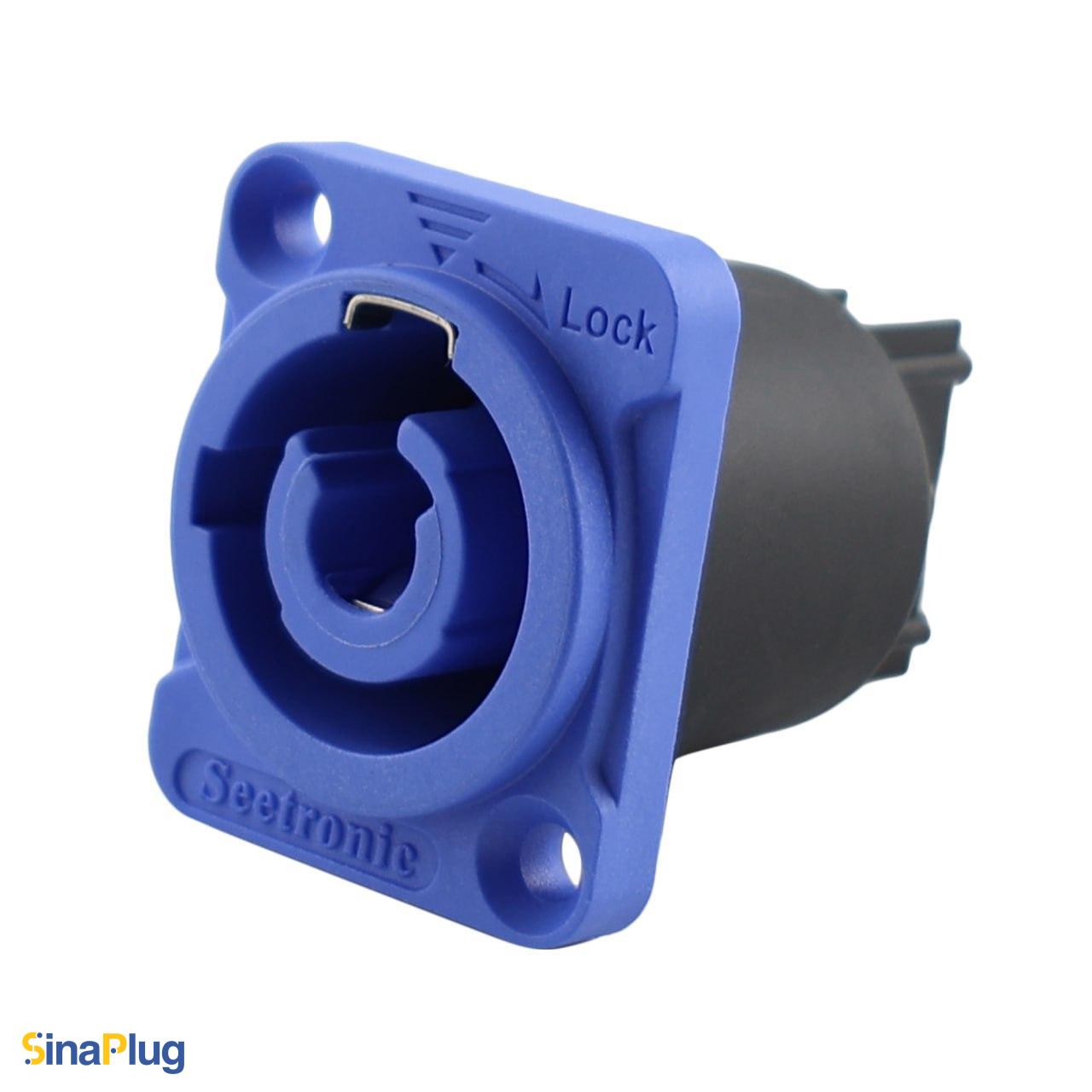

Seetronic SAC3MPA Power-In Socket (Female Connector of SAC3FCA Plug)

$7.79

Buy at discounted prices

Minimum Qty Maximum Qty Discount
10 49 7% off
50 99 12% off
100 + 15% off

Documents

Datasheet_Seetronic_SAC3MPA_V1

The Seetronic SAC3MPA is a lockable chassis mount power-in socket (Female connector of SAC3FCA), sourced by Azar Pixel and connector designed to handle up to 20A of electricity at 250V AC and ensures safety, durability, and ease of use for indoor industrial and commercial power distribution applications.

The connector's length measures roughly 37.3 mm, and its inner radius diameter measures around 23.8 mm, and provides secure line, neutral, and pre-adapted safety grounding connections for power supply equipment.

Aside from its various standards, including UL1977, IEC61984, IEC60320-1, and GB/T 34989, this connector is the most suitable choice for professionals seeking a durable power connection capable of supporting temperatures between -30°C and +80°C. It features a quick and easy locking system for reliable connections.

Key Features of SAC3MPA

Electrical Specifications

  • Number of Contacts: 3 (Line, Neutral, PE)
  • Rated Current: 20A
  • Rated Voltage: 250V AC
  • Maximum Contact Resistance: 5 mΩ
  • Dielectric Strength: 4000V DC
  • Insulation Resistance: over 1000 MΩ
  • Certifications: UL: E359036, VDE: 40044166, TUV: N8A1083360006, CQC: CQC23003410678
  • Standards: UL1977, IEC61984, IEC60320-1, GB/T 34989

Mechanical Specifications

  • Service Life: Over 1000 mating cycles
  • Cable Size: 2.5 mm² (12 AWG)
  • Terminal Type: Soldering / plugging 4.5x0.5 terminals

Material Parameters

  • Housing Material: PA (Polyamide)
  • Contact Material: Crafted from copper (Cu) alloy with silver (Ag) plating

Environmental Parameters

  • Flame Retardant Rating: UL94-V0
  • Temperature Range: -30°C to +80°C

Advanced Features

  • Indoor Lockable three-core power-in socket (Female connector)
  • High rated power capacity up to 20A at 250V AC (UL certified)
  • Quick and easy locking system for reliable connections

Dimensions (L*W*H)

  • 37.3mm * 31mm * 26mm
