Seetronic  |  SKU: PCN-SET-SAC3MPXxxx-0

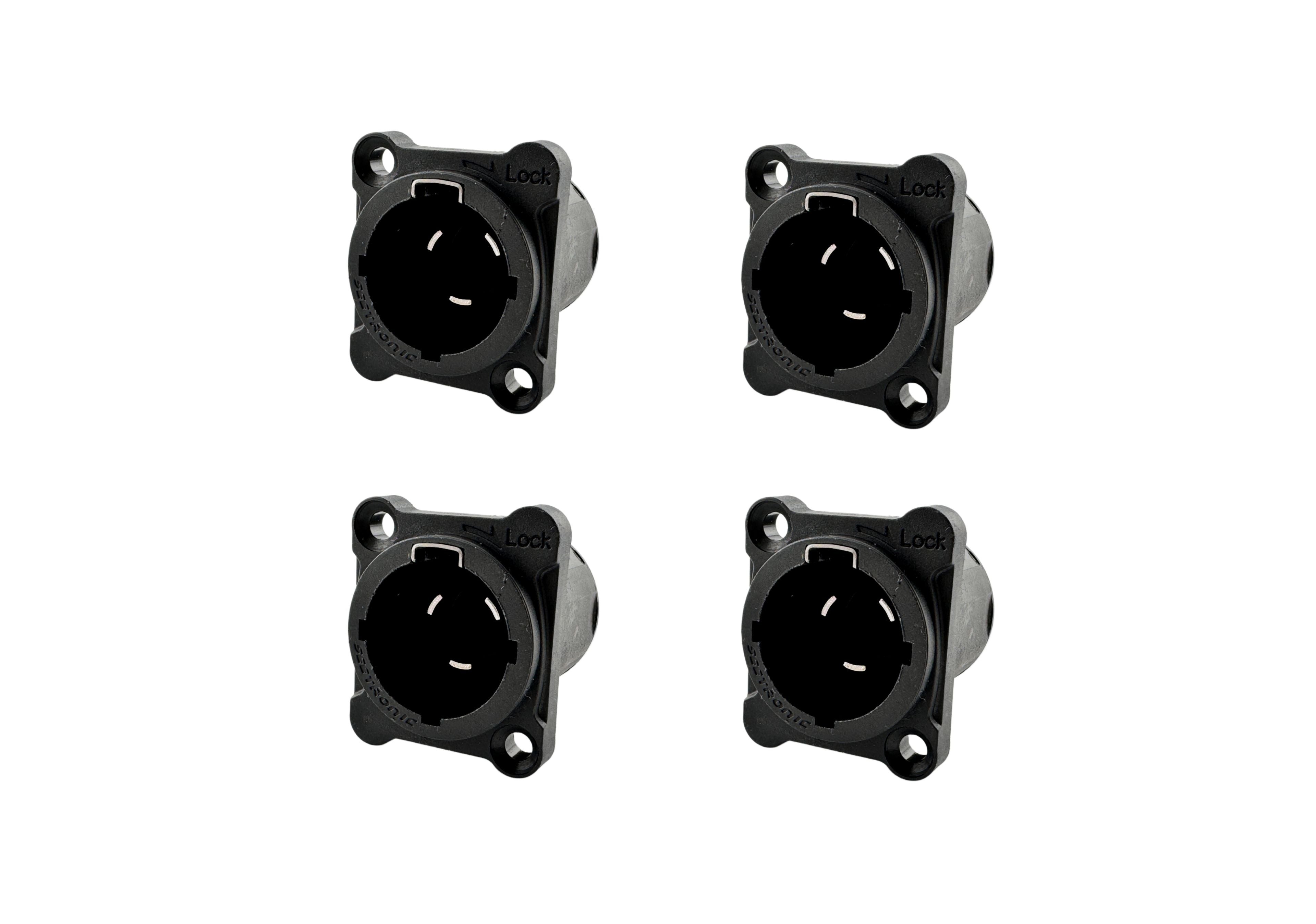

Seetronic SAC3MPX Power-Out Socket (Male Connector of SAC3FX Plug) with CNAC-MPX Waterproof Cover

$8.45

Buy at discounted prices

Minimum Qty Maximum Qty Discount
10 49 7% off
50 99 12% off
100 + 15% off
Size

Documents

Datasheet_Seetronic_SAC3MPX_V1

Azar Pixel is your trusted supplier for The Seetronic SAC3MPX. A chassis mount power-out socket connector offers exceptional performance for indoor and outdoor power applications. It is designed to connect to SAC3FX plugs easily and safely, while it can handle up to 20A of electricity at 300V AC.

Supplied and included with an additional CNAC-MPX Seetronic waterproof cover, guaranteeing IP65 rated protection level against dirt and moisture.

This compact, durable and dependable three-core, lockable connector (approximate dimensions; length: 40mm; outer diameter: 24mm) is a common choice for providing secure line, neutral, and safety grounding connections in various audio/video equipment such as LED panels and processors, power amplifiers, and stage lights.

In addition to its broad range of standards, including UL498, UL50E, IEC61984, IEC60320-1, and GB/T 34989, this connector is the ideal option for professionals looking for a long-lasting, water-resistant power connection solution that can withstand temperatures ranging from -30°C to +80°C



Key Features of SAC3MPX

  • Electrical Specifications:

Number of Contacts: 3 (Line, Neutral, PE)

Rated Current: 20A

Rated Voltage: 300V AC

Maximum Contact Resistance: 5 mΩ

Dielectric Strength: 4000V DC (1600V/min AC UL)

Insulation Resistance: over 1000 MΩ

Certifications: E356932, VDE40044166, TUVN8A1083360004, CQC23003410681

  • Mechanical Specifications:

Service Life: Over 1000 mating cycles

Cable Size: 2.5 mm² (12 AWG)

Terminal Type: 6.3x0.8 terminals

Terminal Connection: Soldering / plugging

Socket Installation: with 2x M3 Screws

  • Material Parameters:

Housing Material: PA (Polyamide)

Contact Material: Crafted from copper alloy with silver plating

Flame Retardant Rating: UL94-V0

  • Environmental Parameters:

Temperature Range: -30°C to +80°C

Protection class: IP65

  • Advanced Features:

Lockable three-core power-out connector with CNAC-MPX protective cover

Compatibility with SAC3FX plug

High rated power capacity up to 20A at 300V AC (UL certified)

  • Dimensions (L*W*H): 39.6mm * 31mm * 26mm
