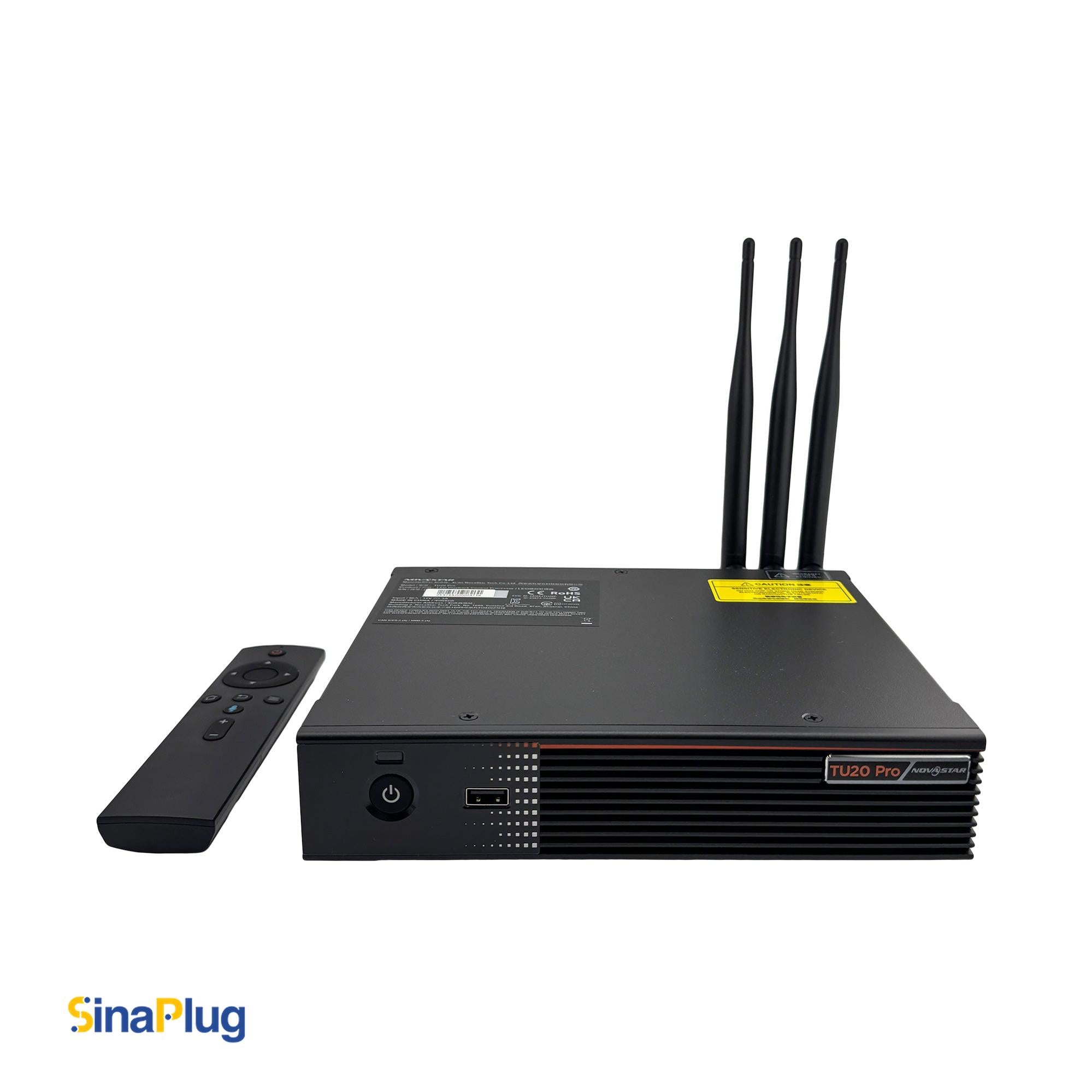

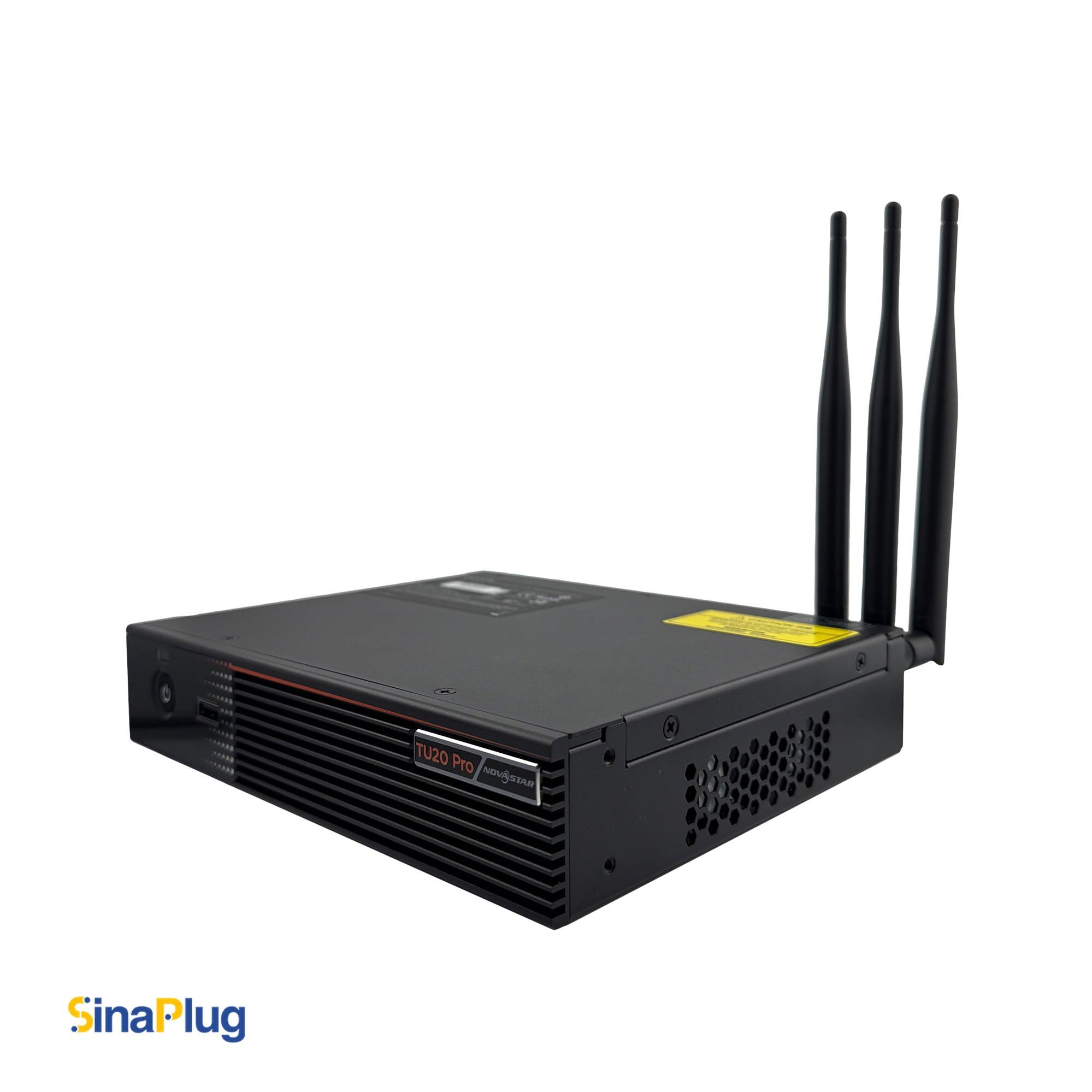

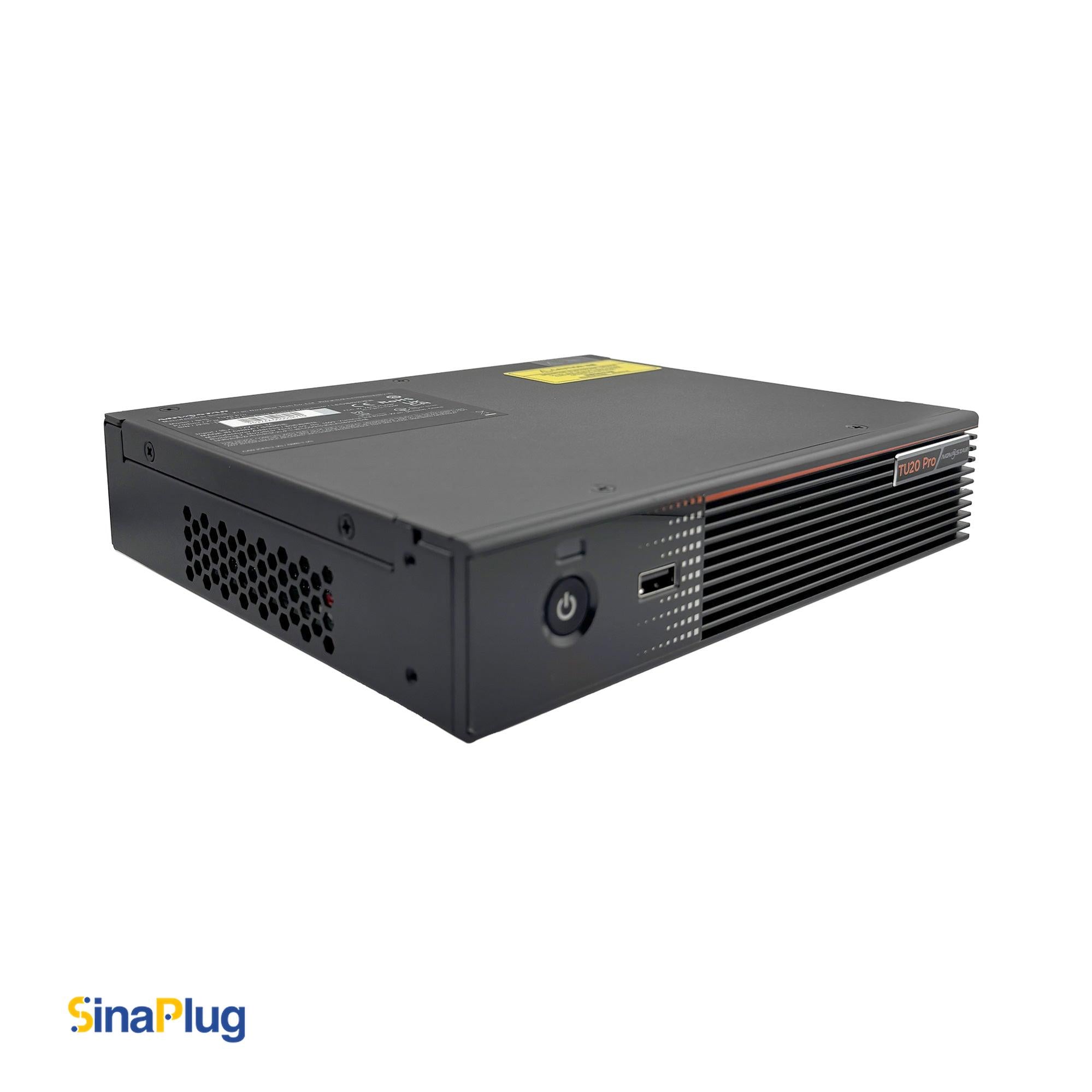

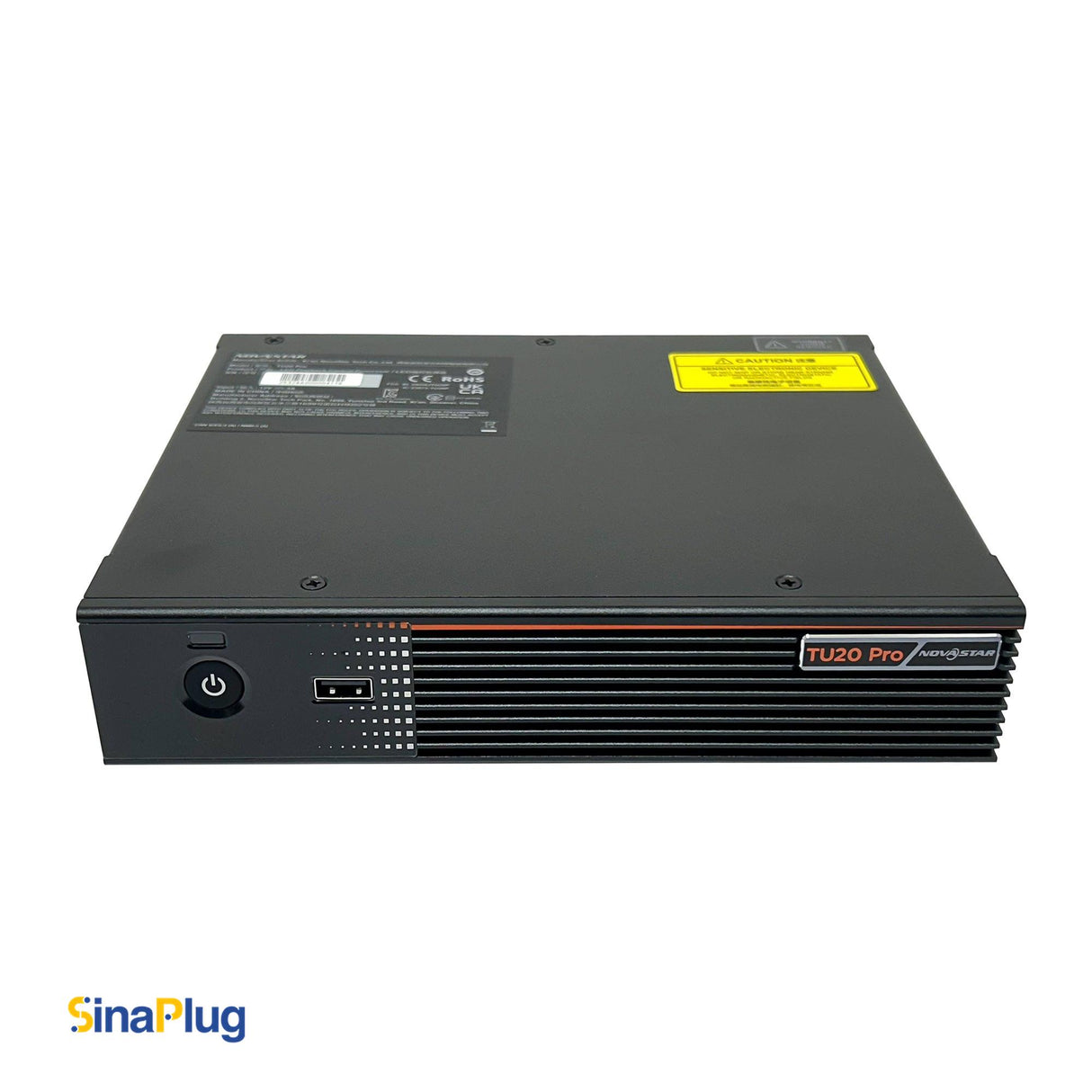

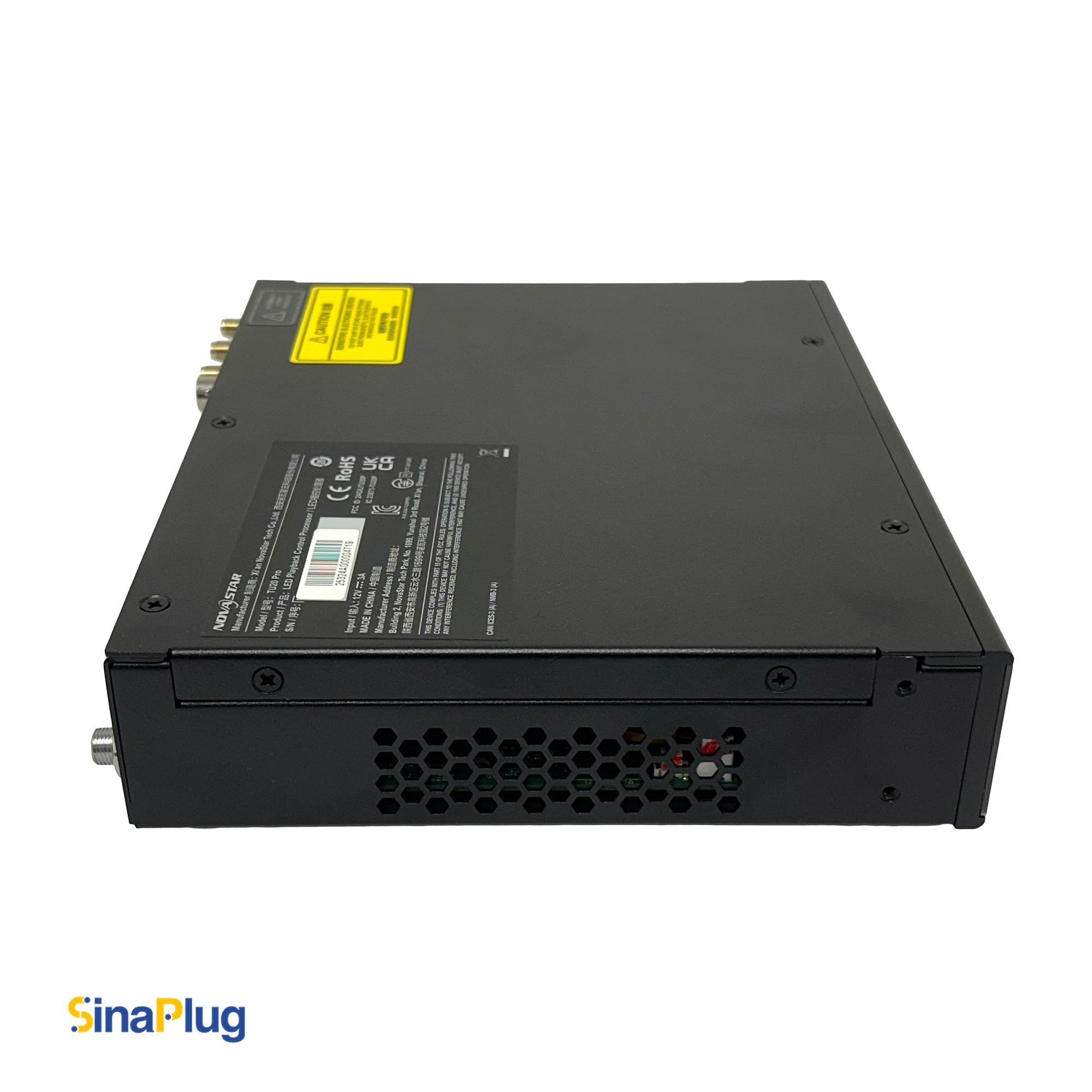

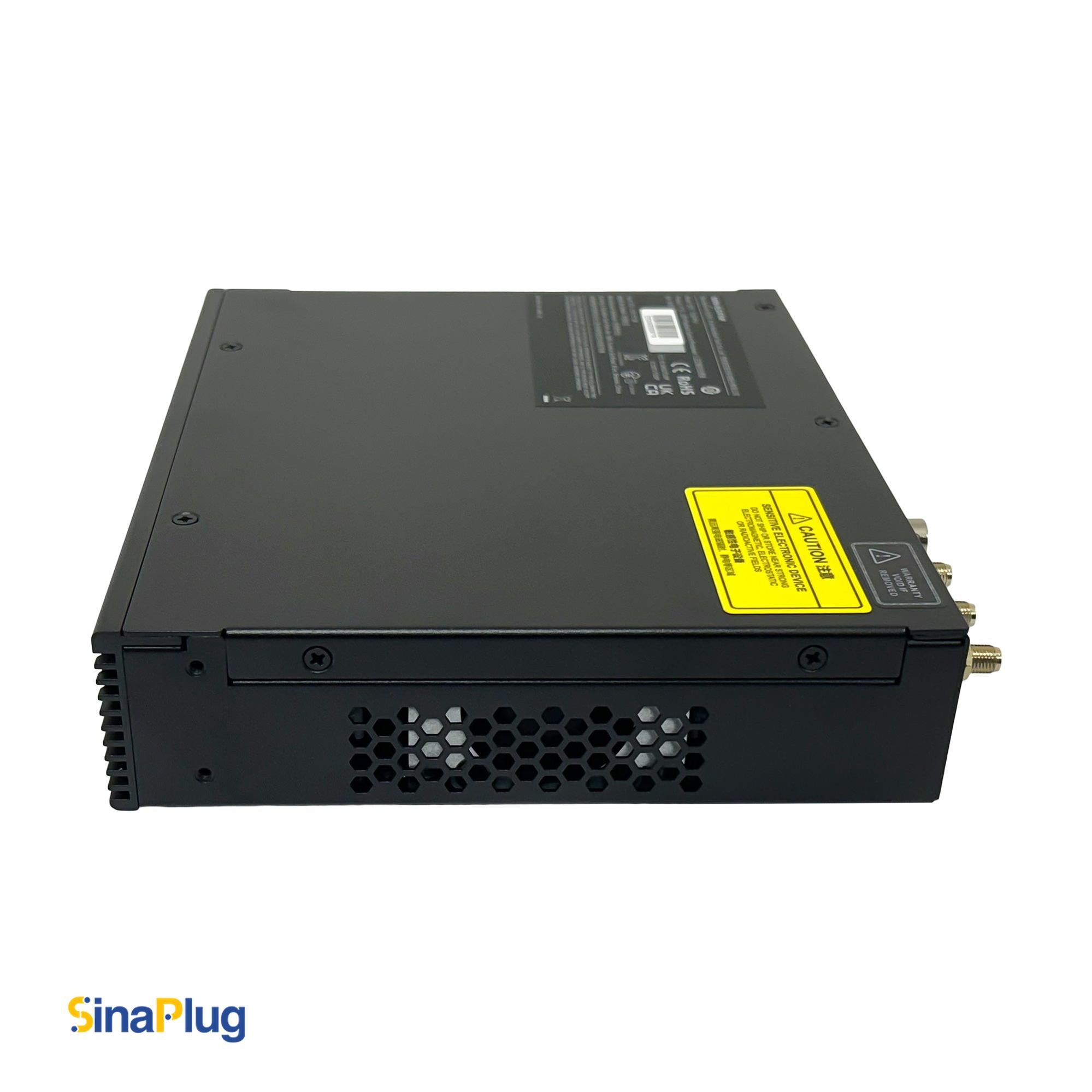

TU20 Pro LED Playback Control Processor

Designed by NovaStar, it supports up to 3.9 million pixels of output and delivers flexible image scaling with a width range of 64–4096 pixels and a height range of 64–1920 pixels. It features two HDMI 1.3 inputs (up to 2048×1152@60Hz), three USB 2.0 ports for media (images and videos) and peripherals (mouse and keyboard), and six Gigabit Ethernet outputs for driving large, high-resolution LED displays.

Thanks to its 32 GB internal storage and with built-in Android 11 OS, the TU20 Pro allows third-party app installation, wireless screen mirroring (providing the option of screen drawing and commenting) from Windows, macOS, iOS, and Android devices, as well as remote control via Bluetooth and mobile apps. This 4K player also suggests a powerful dual-mode (AP & STA) wireless connectivity solution at the same time.

Four display modes (standard, meeting, vivid, and skin) and advanced image enhancement functions ensure optimal visual performance for presentations, video playback, and live meetings.

This versatile device offers convenient installation options, including wall mounting and desktop placement, and supports a wide range of applications such as corporate exhibition halls, conference rooms, educational venues, and hotel lobbies. Its sturdy construction, compliance with CE, FCC, IC, SRRC, MIC, KC, CB, and RoHS certifications, along with an operating temperature range of -20°C to +50°C when powered by a 12VDC (3A) adapter, make it a dependable option for challenging professional settings.

Key Features of NovaStar TU20 Pro

      up to 3,900,000

      Maximum width: 4096 pixels

      Maximum height: 1920 pixels

      2x HDMI 1.3

      3× USB 2.0

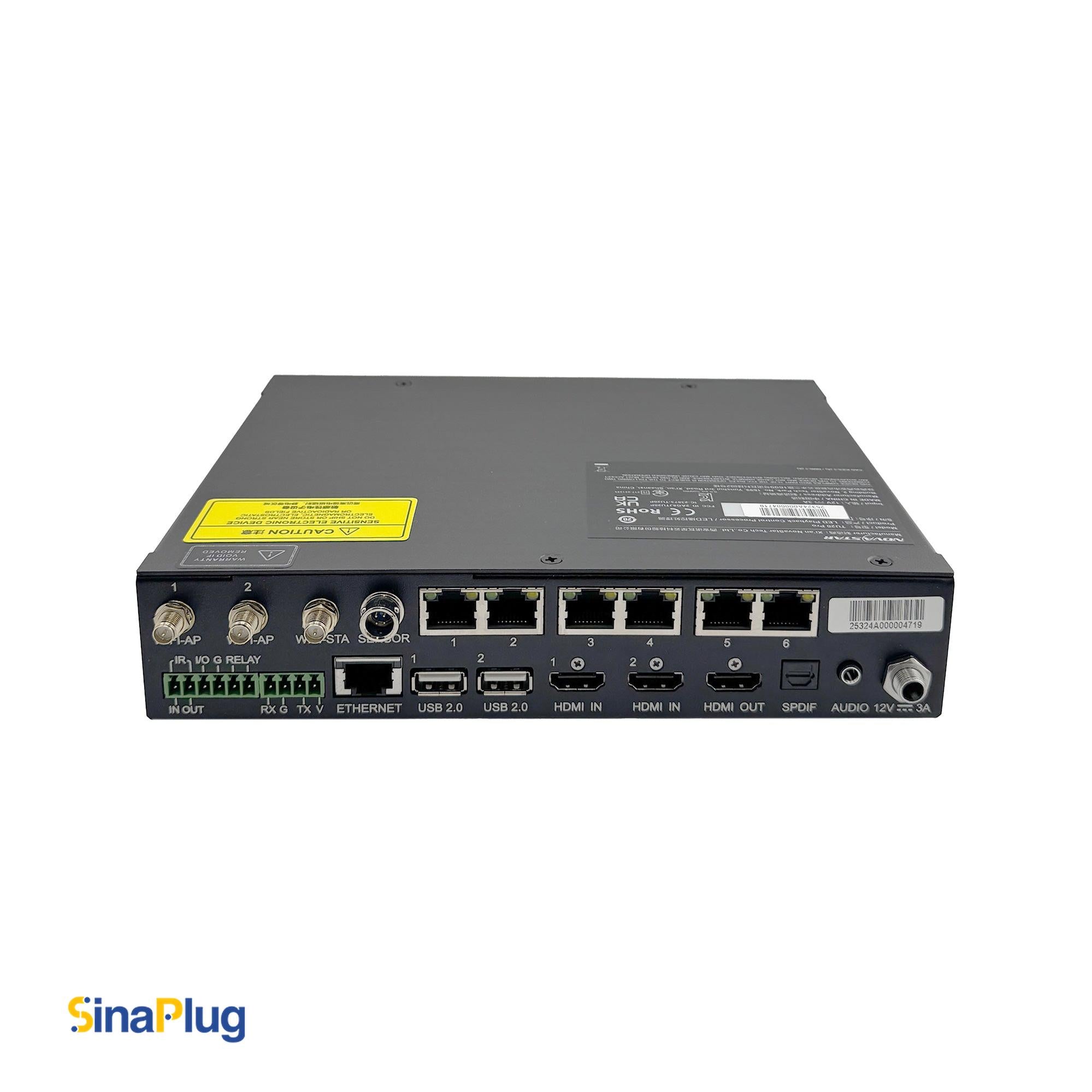

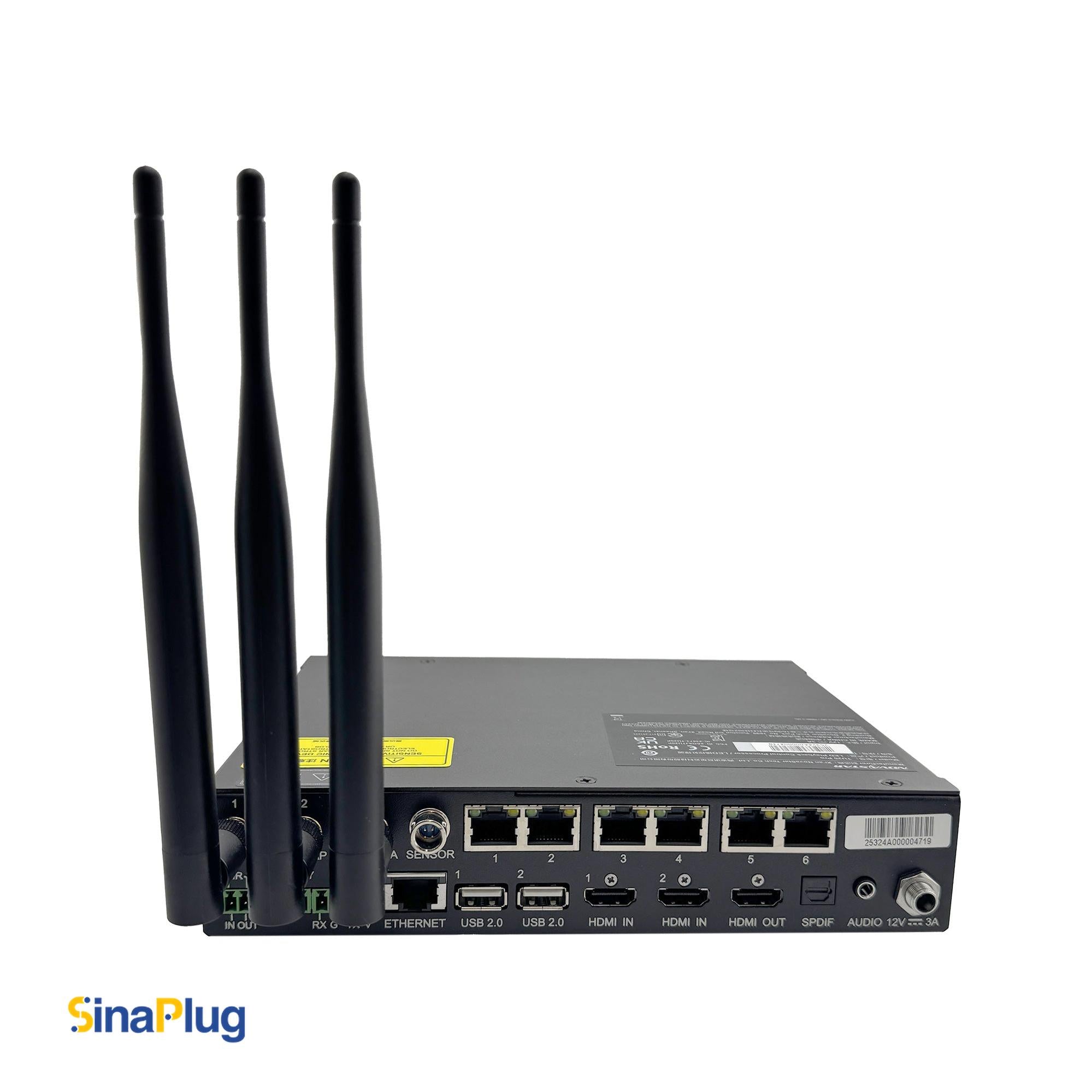

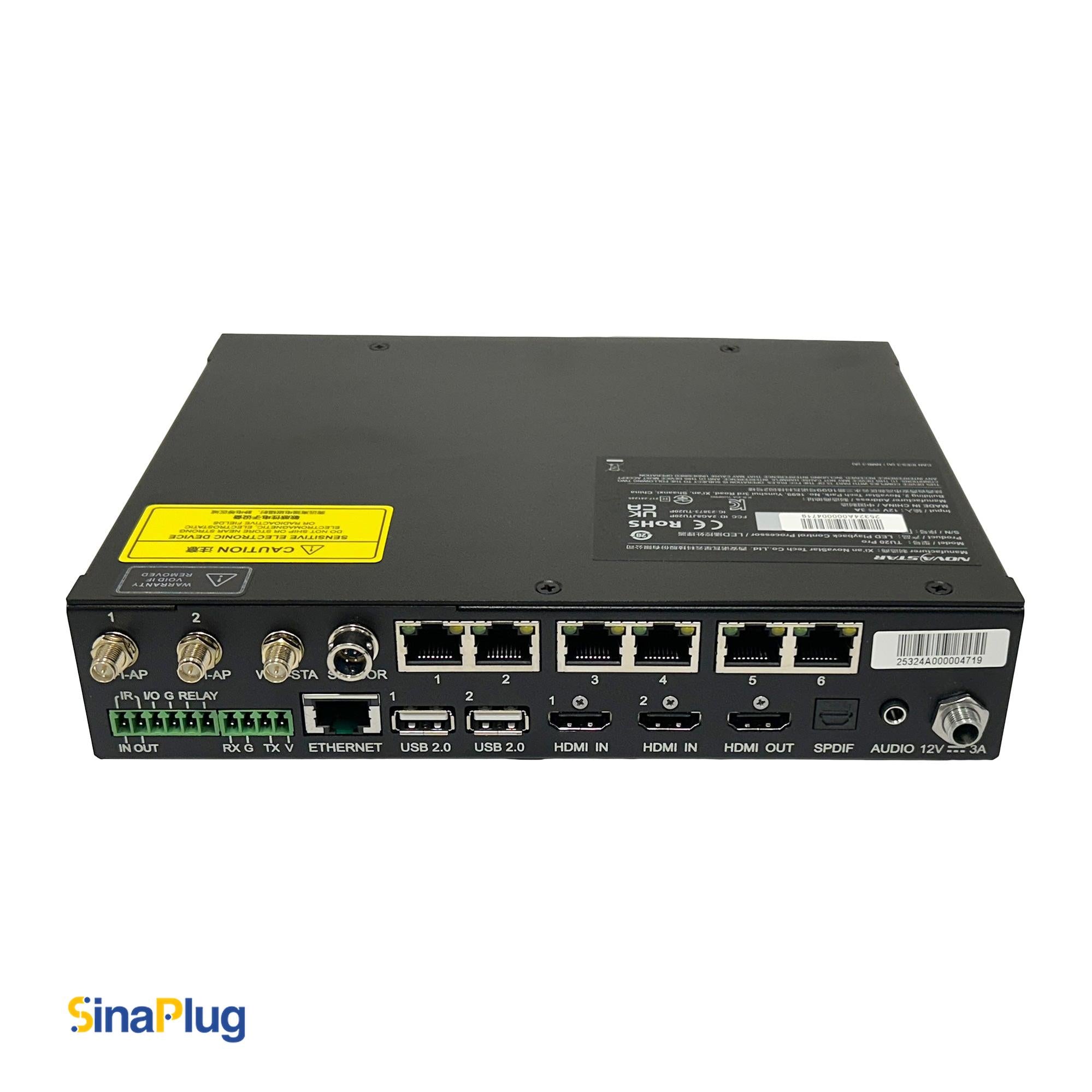

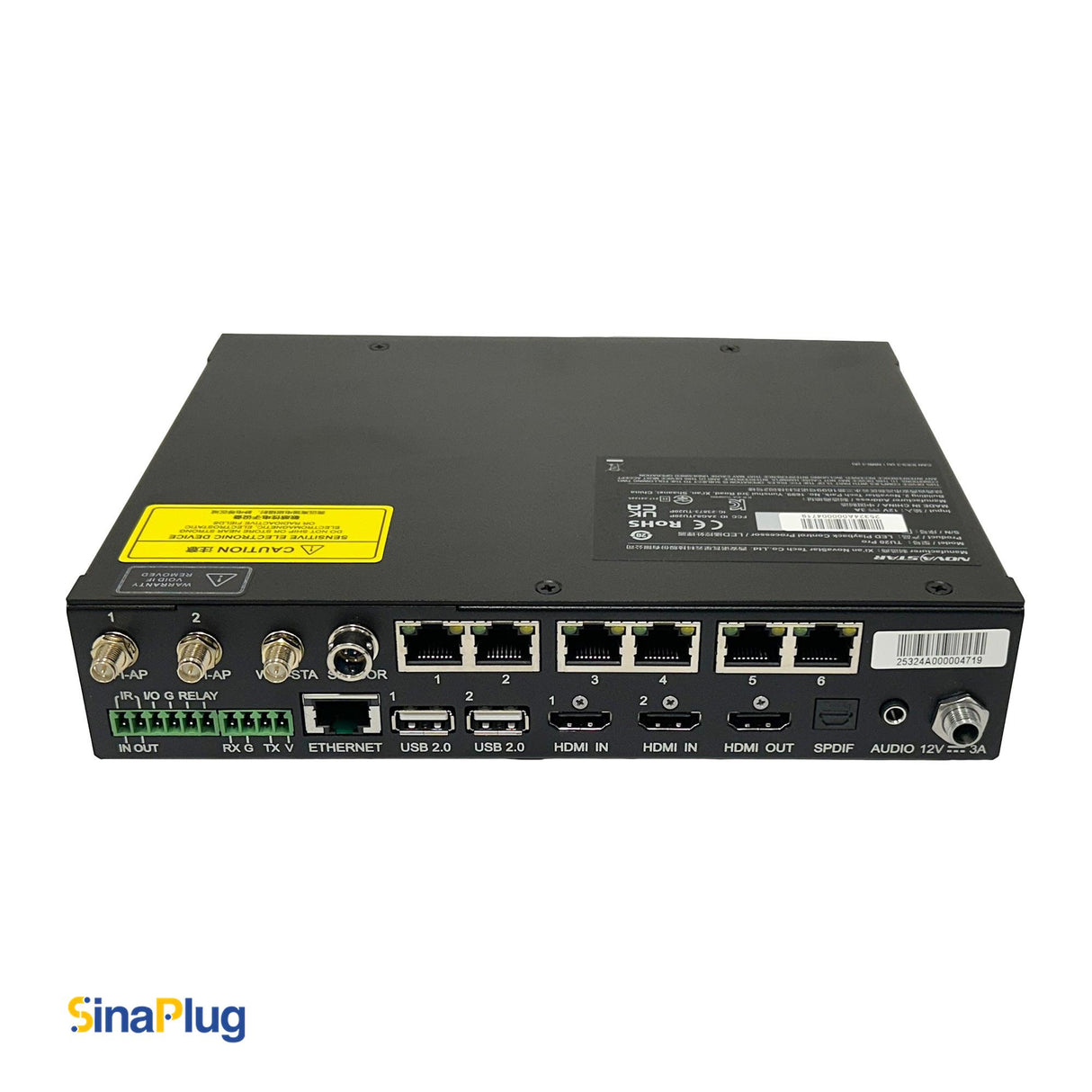

      Output:

      6× Gigabit Ethernet ports

      1× HDMI OUT (1080p video output)

      1× 3.5mm audio output

      1× SPDIF fiber optic audio output

      1× Gigabit Ethernet port (Network and PC)

      Bluetooth 5.1 (supports Bluetooth voice remote, mouse, keyboard, sound system)

      Wi-Fi dual mode (AP and STA)

      Mobile app control (ViPlex Handy, VNNOX Care)

      1x 4-pin Phoenix connector (RS232)

      1x 6-pin Phoenix connector (Relay)

      Processor: Quad-core 1.8 GHz ARM A55

      Internal storage: 32 GB

      RAM: 4GB

      1× Sensor connector (light, temperature, or humidity)

      2x AP Wi-Fi & Bluetooth antenna

      1x STA Wi-Fi antenna

      Android 11 OS with third-party app support

      Intelligent control via mobile app (by VNNOX Care and ViPlex Handy)

      Wireless screen mirroring (Windows, macOS, iOS, Android)

      Multi-stream media playback (supports 4K@60Hz H.264/H.265 decoding)

      Output image scaling and enhancement (contrast, detail, color)

      Four display modes (standard, meeting, vivid, skin)

      Eye comfort mode

      Screen drawing and annotation

      Temperature, humidity, and light sensor support

      Low-power standby mode (<0.5W)

      Multiple installation options (wall mount, desktop)

      Specific peripherals support (such as mouse, keyboard, camera, sound system and infrared touch frame)

      CE, FCC, IC, SRRC, MIC, KC, CB, RoHS certified
