YOU-YI  |  SKU: PSU-YYD200VX-01

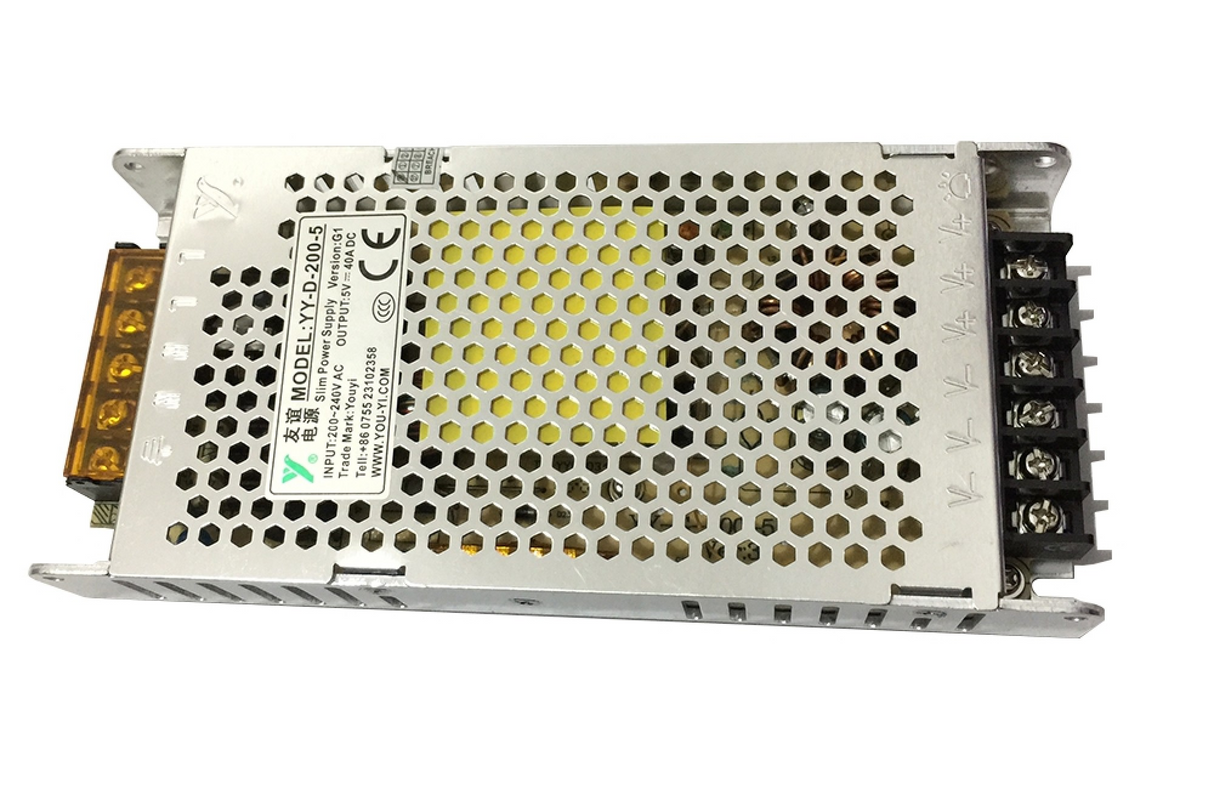

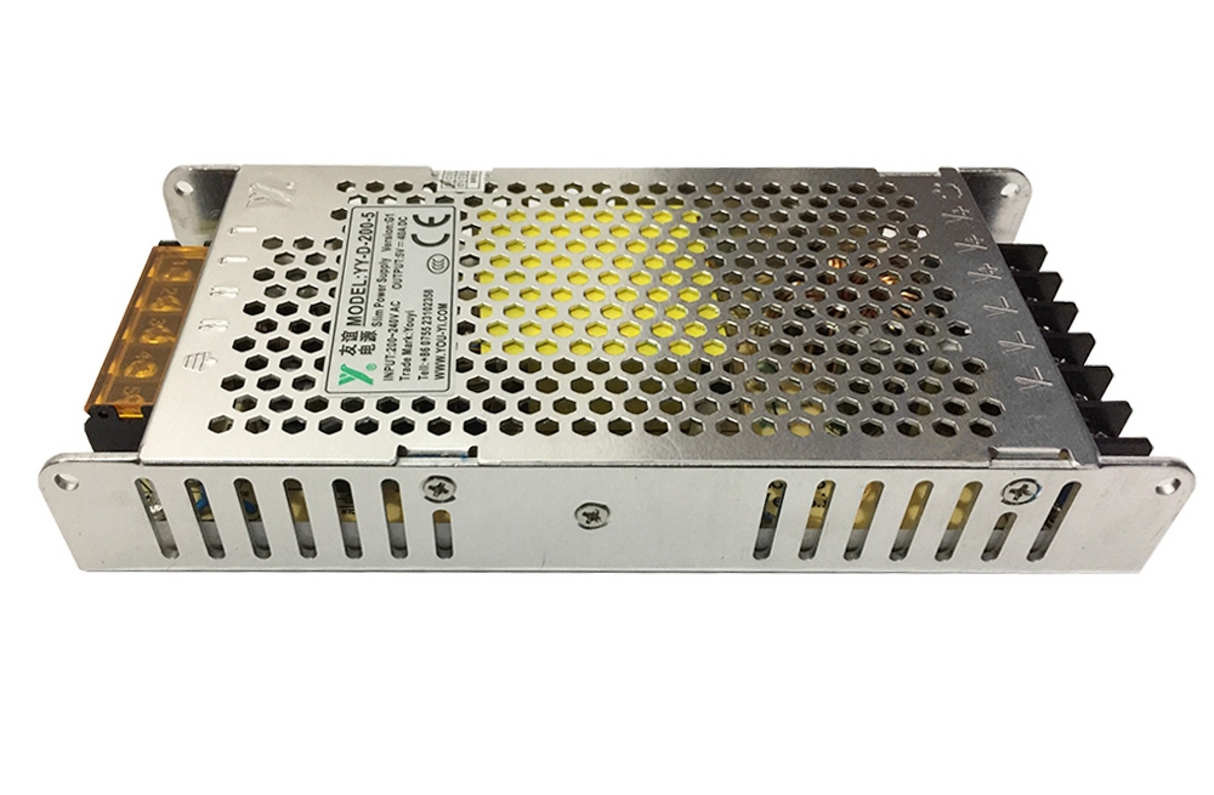

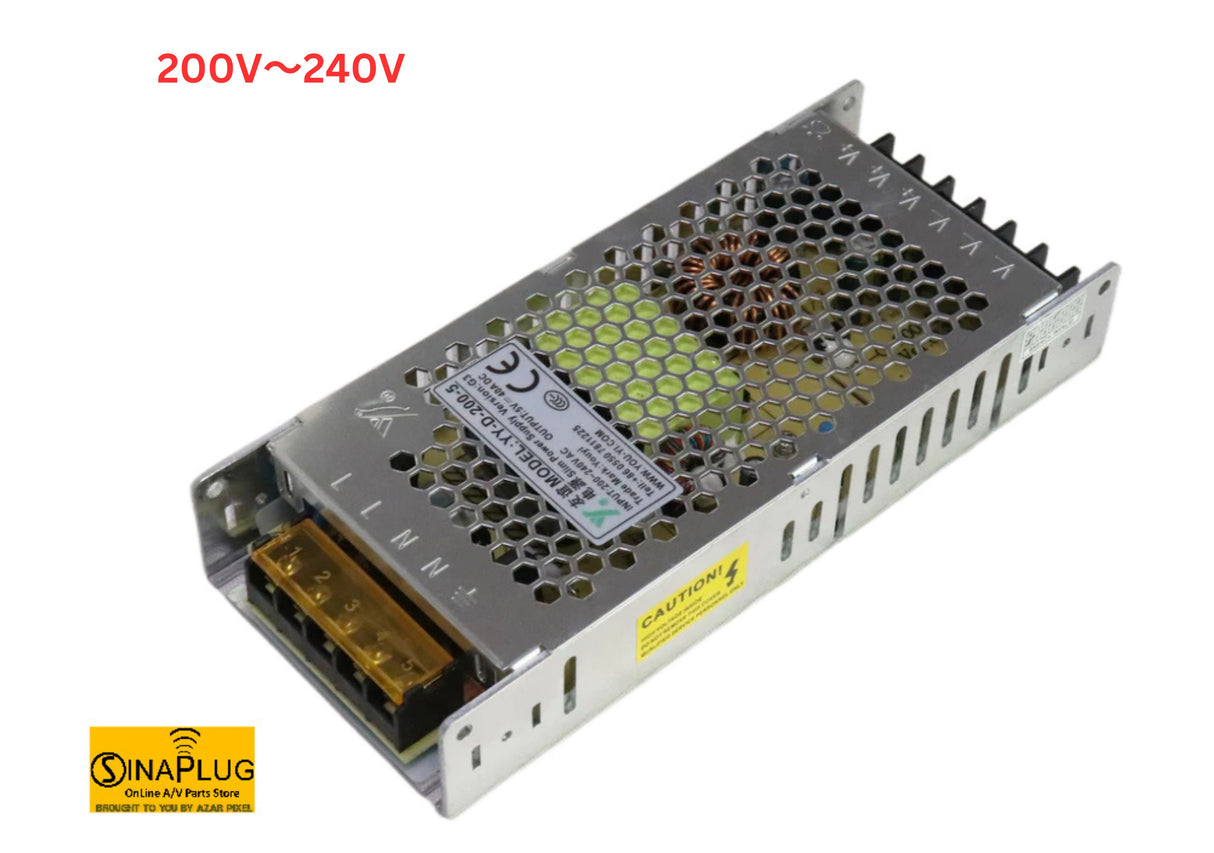

YOU-YI YY-D-200-5 5V 40A 200W LED Power Supply (200V～240V)

$25.00

Documents

No files available.

Using MOSFET install in power supply instead of Schottky Diode and the low resistance characteristic of MOSFET can improve efficiency greatly,reducing power loss and heat,and extending the life of power supply.


  The power supply provide over voltage protection,over current protection,short circuit protection, overload protection.When the protection function is triggered, the power supply will be turned off automatically and after malfuction(cause the protection function) solved, the power supply will restart.



Youyi YY-D-200-5 5V40A 200W LED Power Supply Parameter:

Model

YY-D-200-5

Output

Output Voltage

5V

Max Current

40A

Current Range

0～40A

Max Power

200W

Ripple and noise

≤100mV

Voltage adjustment range

±1%

Voltage tolerance

±1%

Linear adjustment rate

±0.5%

Load regulation

±2.0%

Start Time

50mS

Hold time

20mS

Input

voltage range

 200V～240V

Frequency Range

47Hz～63Hz

Effectiveness

88%

Inrush current

≤40A

Leakage current

≤2.0mA

Protection

Input undervoltage

150V～170V

Input overvoltage

270V～280V

Input overcurrent

4A

Output overvoltage

5.75V～7.5V(Self - recovery）

Output current limit

61A～70A

Over temperature

105℃±5℃

Cooling mode

Fan forced cooling

Enviroment

Operating temperature

—30℃～+60℃

Working humidity

20～90%RH,No condensation

Storage temperature, humidity

—40℃～+80℃,10～95%RH

Temperature Coefficient

±0.03%/℃（0～50℃）

Resistant to vibration

10-300MHz,1G,10Minute / period,

X.Y.Z axis for 60 minutes each.

Safity

Safety Standard

Accord to GB4943、UL60950、EN60950

EMC Standard

Accord to GB9254、EN55022A

Pressure resistance

I/P-O/P:3KVAC/3mA/1min

I/P-FG:1.5KVAC/3mA/1min

O/P-FG:0.5KVAC/3mA/1min

Isolation resistance

I/P-O/P:100MΩmin/500VDC

Certified

CQC/ CE/ CB/ ROHS/CCC

Other

Dimensions

210*62*31mm

  • US Stock

    One day shipping or store pick up

  • Reliability

    Reliable A/V part checked by AzarPixel

  • Easy Returns

    No question 30 days return

  • Tech Support

    Free technical assistance
