NovaStar H2 Video Wall Processor: Full Guide

NovaStar H2 Video Wall Processor/Splicer, offered and stocked in the US by AzarPixel, is a user-configurable professional video wall processor, controller, and splicer. It is designed for those who care about how their content really looks on a big LED canvas, ensuring smooth motion, accurate color, and flexible layouts that are easy to manage in the real world.

This blog walks you through what the H2 actually does, who it’s designed for, and how to think about it when you’re planning or upgrading a video wall, with SinaPlug as your go‑to source for NovaStar processors and LED components.

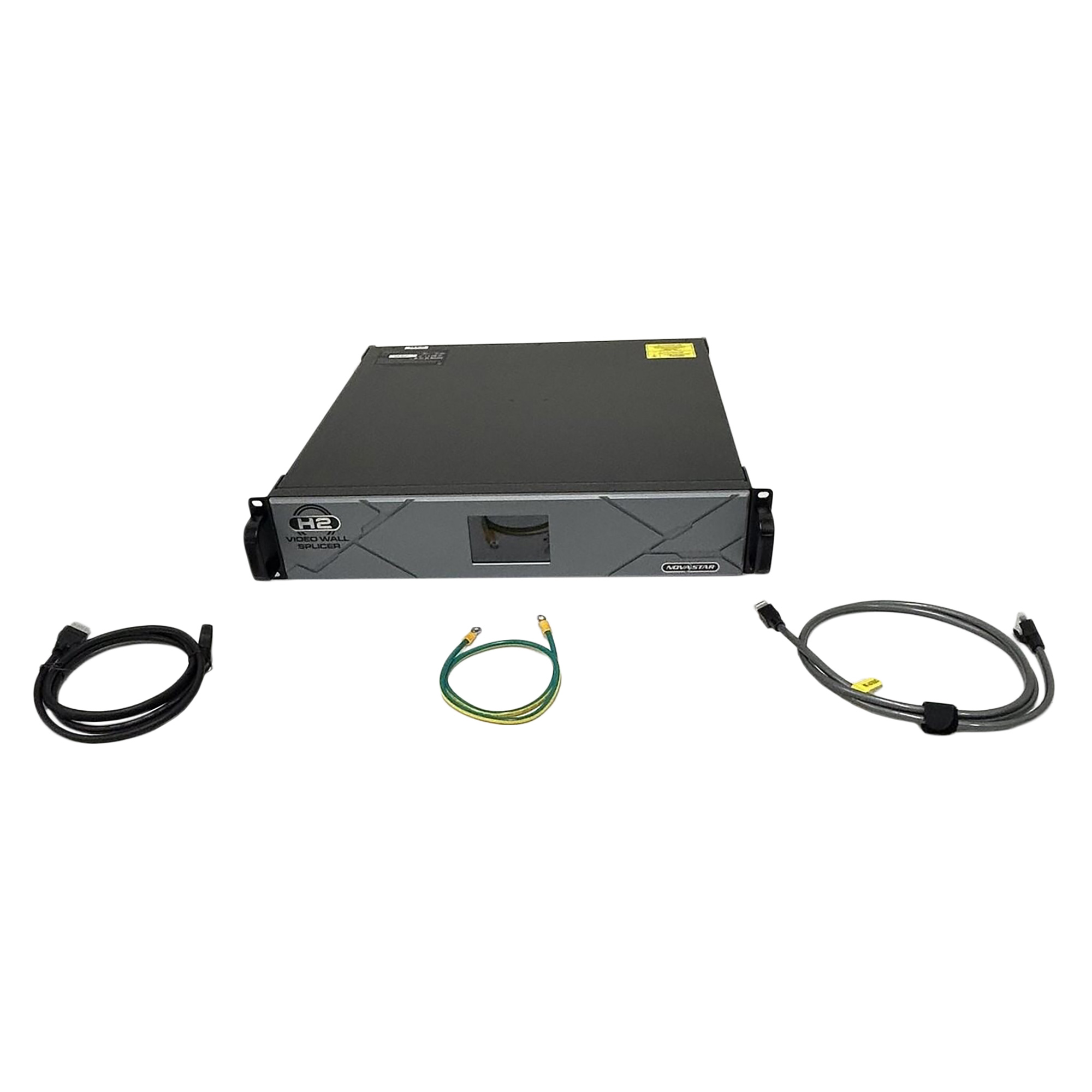

About the NovaStar H2 Video Wall Processor

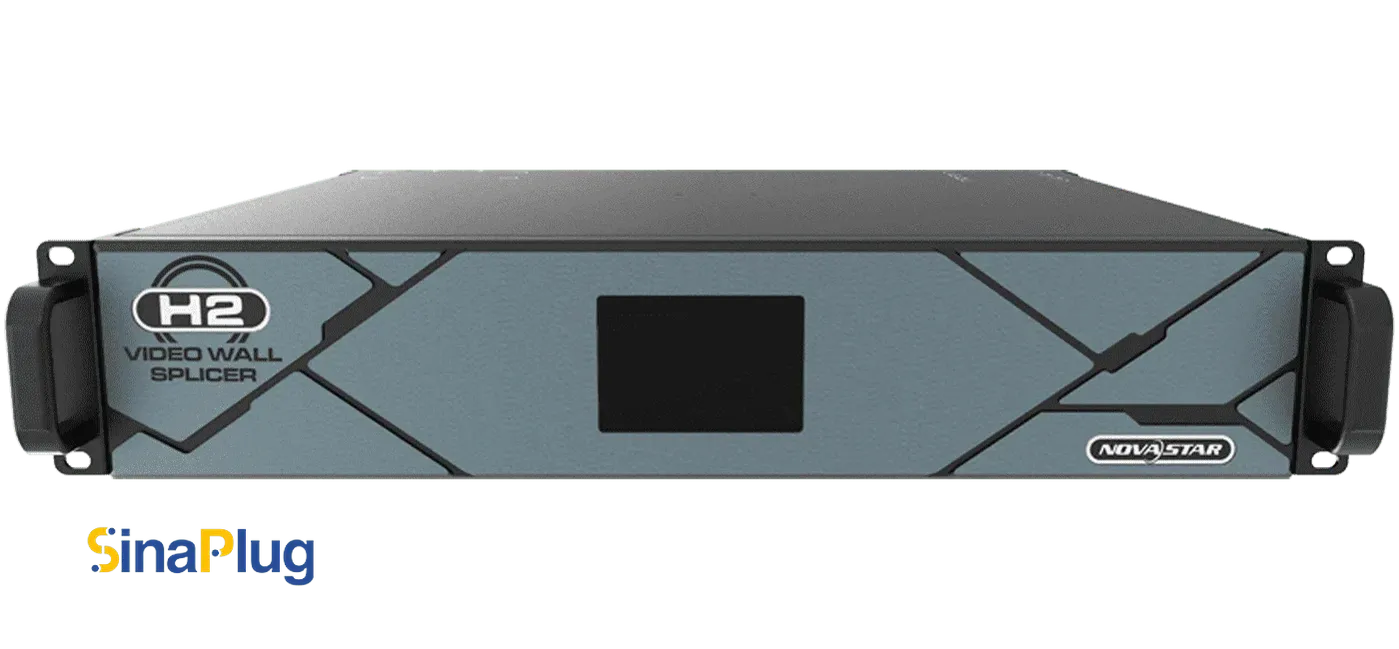

The NovaStar H2 is a modular video wall splicer and processor designed especially for fine‑pitch LED video walls and high‑end display setups. It combines two roles in one chassis:

• A powerful video processor that handles input scaling, color processing, and multi‑layer compositing.
• A video control unit (sender) that drives LED cabinets directly or works as a pure splicer feeding an external sending system.

H2 sits in the middle of the H Series lineup with a compact 2U chassis but still supports up to 26 million pixels—more than enough for most control rooms, broadcast sets, corporate lobbies, and premium retail walls.

Key Features in Simple Terms

Focusing on the key features without delving into technical details, here’s what you need to consider about NovaStar H2:

• Up to 4 input cards and 2 output cards, all hot‑swappable for easy expansion and maintenance.
• Total loading capacity of up to 26,000,000 pixels, with each output card able to handle up to 16 layers and the system supporting up to 32 layers total.
• Support for virtually all standard input types: HDMI, DVI, DisplayPort, VGA, SDI, CVBS, and IP streams, including 4K sources and 10‑bit HDR10/HLG workflows.
• FPGA‑based pure hardware architecture for low latency, high stability, and 24/7 mission‑critical use.
• Control via NovaLCT, web interface, and NovaStar V‑Can software for layout editing, presets, and monitoring.

In short: the H2 is “the brain” that takes multiple video sources, organizes them into layers and windows, and sends a clean, synchronized output to your LED wall with very little delay.

H2 Modular Design: Build What You Need

One of the Novastar H2’s biggest strengths is its modular, plug‑in card design. Instead of buying a fixed configuration, you pick the input and output cards that match your project:

• Input cards: combinations like 4×HDMI, 4×DVI, SDI cards for broadcast cameras, mixed VGA/CVBS for legacy gear, or an IP card that can take in hundreds of camera streams.
• Output cards: LED sending cards with RJ45 ports, fiber sending cards for long runs, and HDMI/DVI outputs for preview or feeding other processors.

This approach makes H2 great when:

• Your system will grow over time.
• You need to mix old and new gear (SDI cameras + HDMI laptops + IP streams).
• You want easier servicing—swap a card instead of pulling the whole processor.

Image Quality and Why It Matters

Fine‑pitch LED walls are highly sensitive, making any weakness in processing easily visible. The Novastar H2 is built to keep the picture clean and consistent:

• 10‑bit processing plus HDR10/HLG support help maintain smooth gradients and deep contrast, especially on newer HDR‑capable LED panels.
• 4K input and output support lets you feed high‑resolution content without excessive downscaling.
• Up to 32 layers means you can overlay multiple sources: camera feeds, graphics, live data, logos, on the same wall without external compositing hardware.
• Genlock support keeps the LED wall in sync with the rest of your system, reducing visual artifacts in multi‑screen environments.

For control rooms, live productions, or corporate settings, this combination results in sharper, more stable images and smoother transitions.

Everyday Use: What It’s Like to Work with NovaStar H2

From an operator’s perspective, the H2 is about flexibility and repeatability.

Presets

Store up to 2,000 layout presets and recall them instantly, which is ideal for recurring events or scheduled content changes.

Windows and layers

Quickly reposition windows, resize content, and create split‑screen or picture‑in‑picture layouts without disturbing the entire wall.

Web/UI control

Adjust routing and layouts from a laptop via browser, or deeper configuration via NovaLCT and V‑Can.

Permissions

Role‑based management lets admins restrict what operators can change, preventing accidental misconfigurations during live operation.

If you’ve used simpler LED controllers, the H2 feels like moving from a basic mixer to a fully‑featured switcher and compositor that still fits into your rack and workflow.

When is NovaStar H2 a Good Choice?

The NovaStar H2 is a strong choice if:

• Your LED wall is fine‑pitch, high‑resolution, and used for premium content (broadcast, command/control, high‑end retail, corporate lobbies).
• You need multiple inputs live at once, such as cameras, presentations, signage, and dashboards, arranged in flexible layouts.
• You need more inputs, more outputs, or higher resolutions in the future.
• Stability matters as much as features; you need hardware that can run all day, every day, with minimal downtime.

If your application is very small and simple, such as a single full‑screen feed on a modest LED wall, an H2 might be more than you need. But when you care about multi‑source control, scaling, and polish, it becomes a long‑term investment.

How SinaPlug Fits into Your H2 Project

SinaPlug focuses on giving installers and end‑users the parts and support they need to build reliable LED systems, from power supplies and receiving cards to controllers like NovaStar’s H series. When you source an H2 through SinaPlug, you also gain:

• Access to curated NovaStar video processors chosen for real‑world reliability and compatibility with popular LED modules.
• US‑based stock with fast shipping or store pickup options, which helps keep projects on schedule.
• Free technical assistance to help you match the right controller to your wall size, resolution, and input needs.
• The confidence that our parts are checked and supported by AzarPixel, a specialist repair and service center for LED and AV equipment.

This means that when you choose us, you’re not just buying a box—you’re plugging into a support ecosystem that understands LED hardware from both the sales and service side.

If you’re planning or upgrading a video wall and want fine control, high‑end image quality, and room to grow, the NovaStar H2 is a processor worth serious consideration. And when you’re ready to move from research to reality, SinaPlug can help you choose the right configuration and supporting parts, so your H2‑powered wall performs exactly the way you expect.
