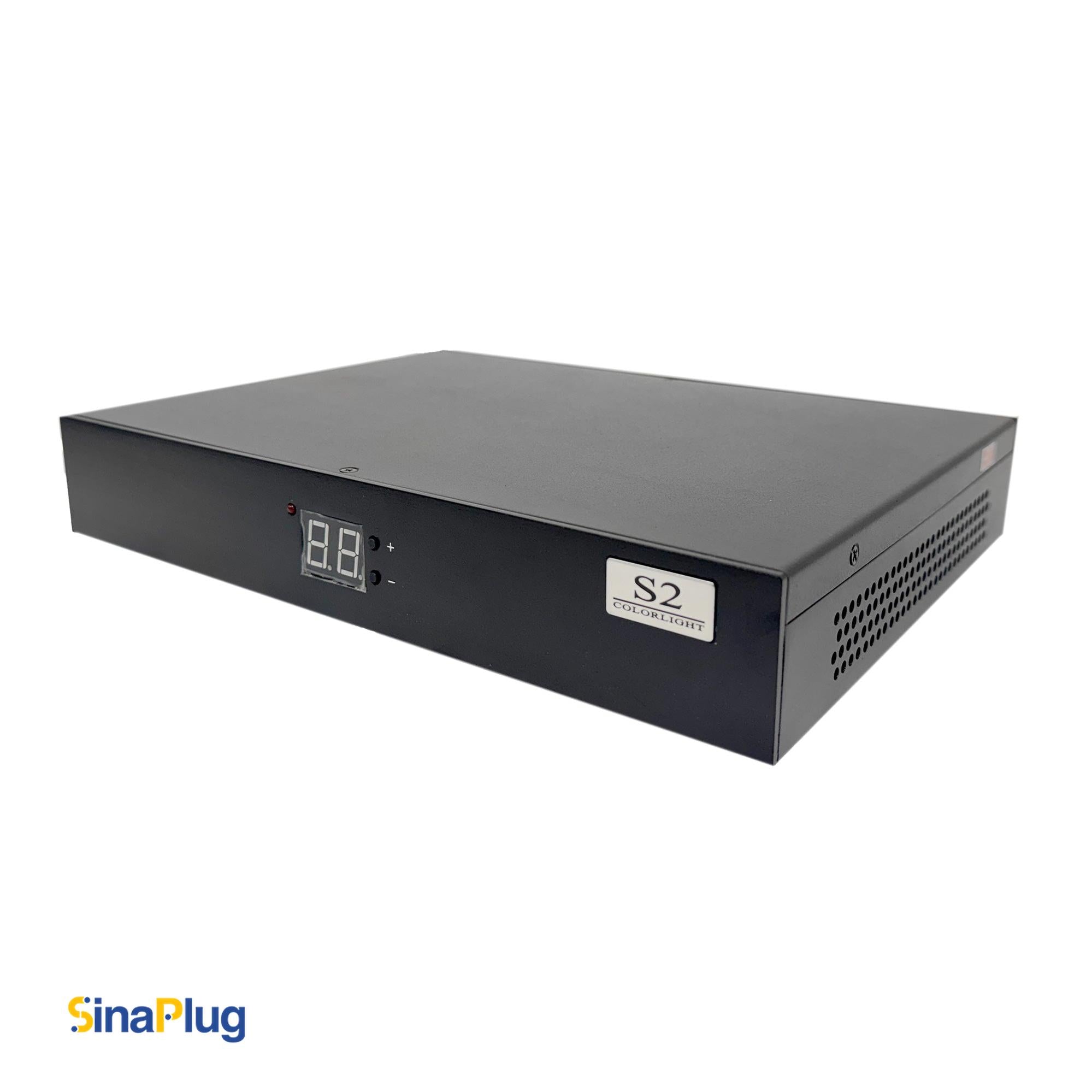

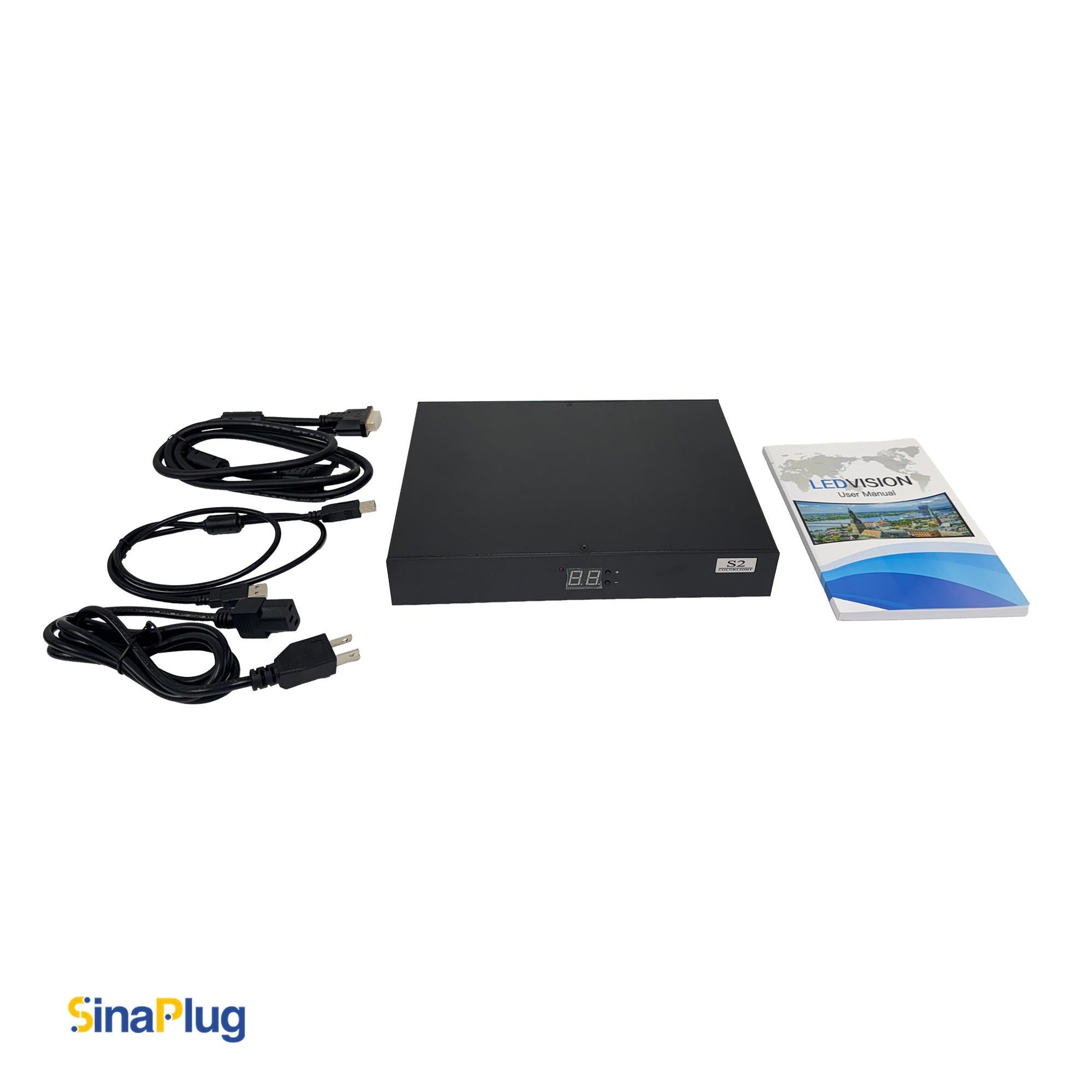

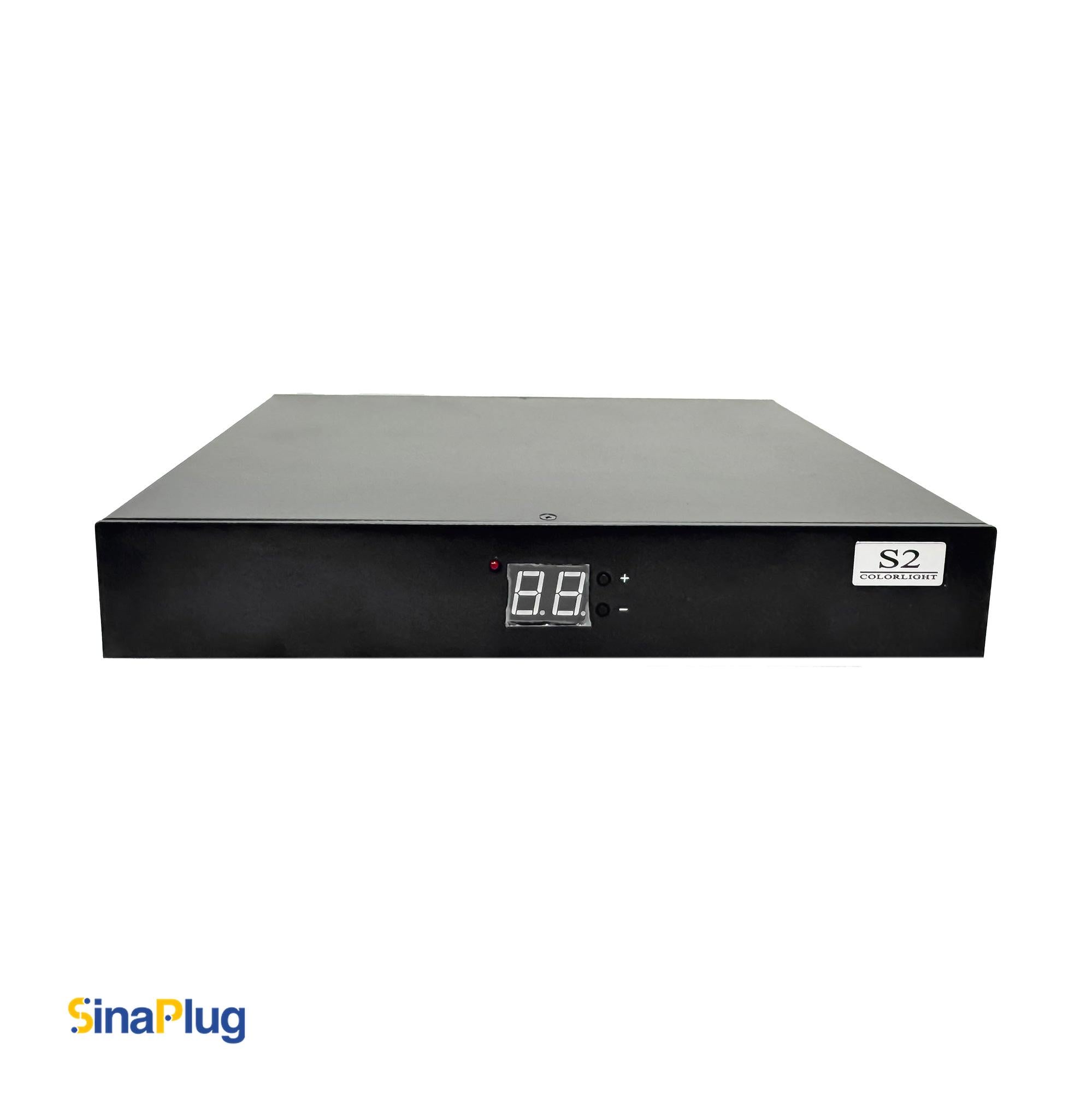

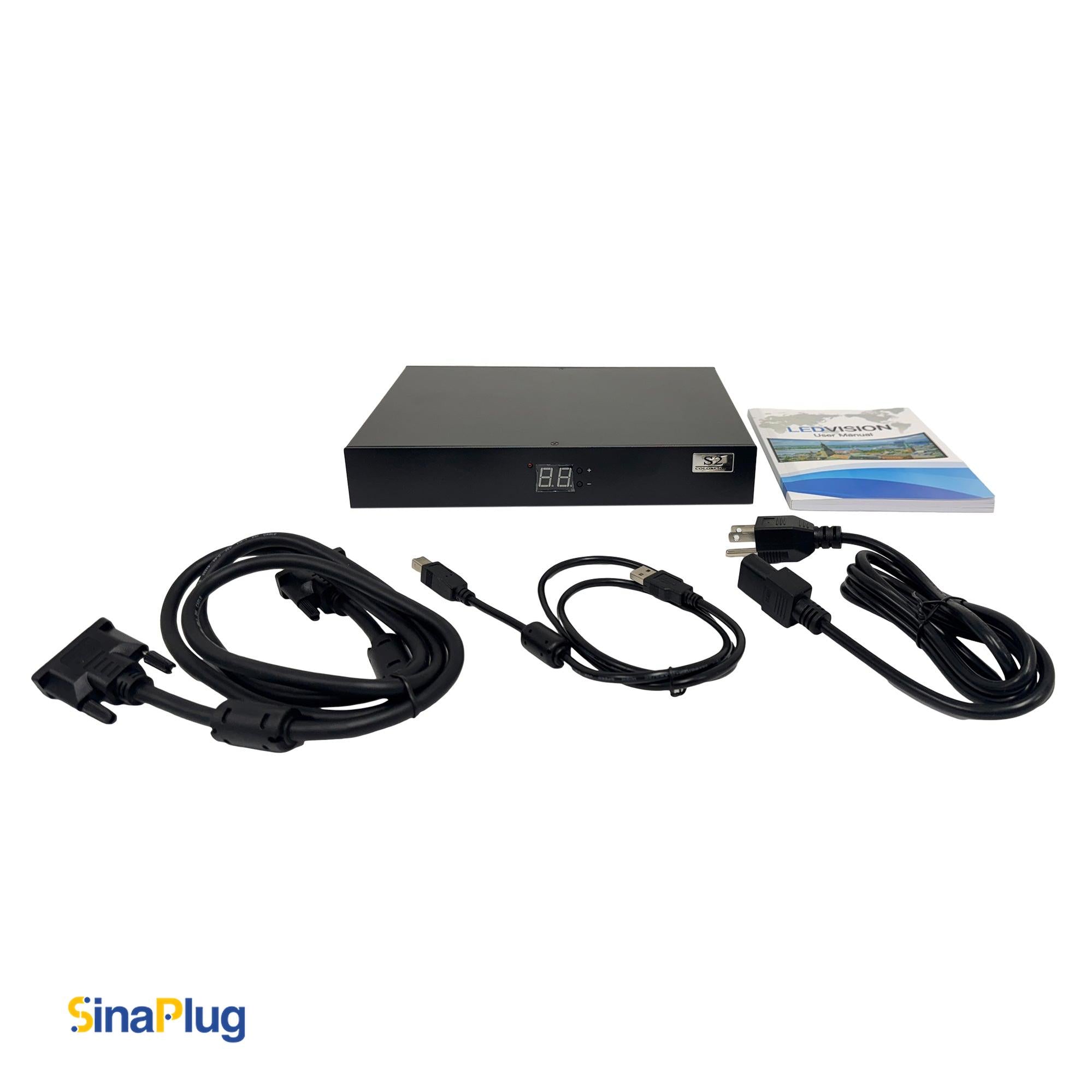

Colorlight S2 LED Video Controller

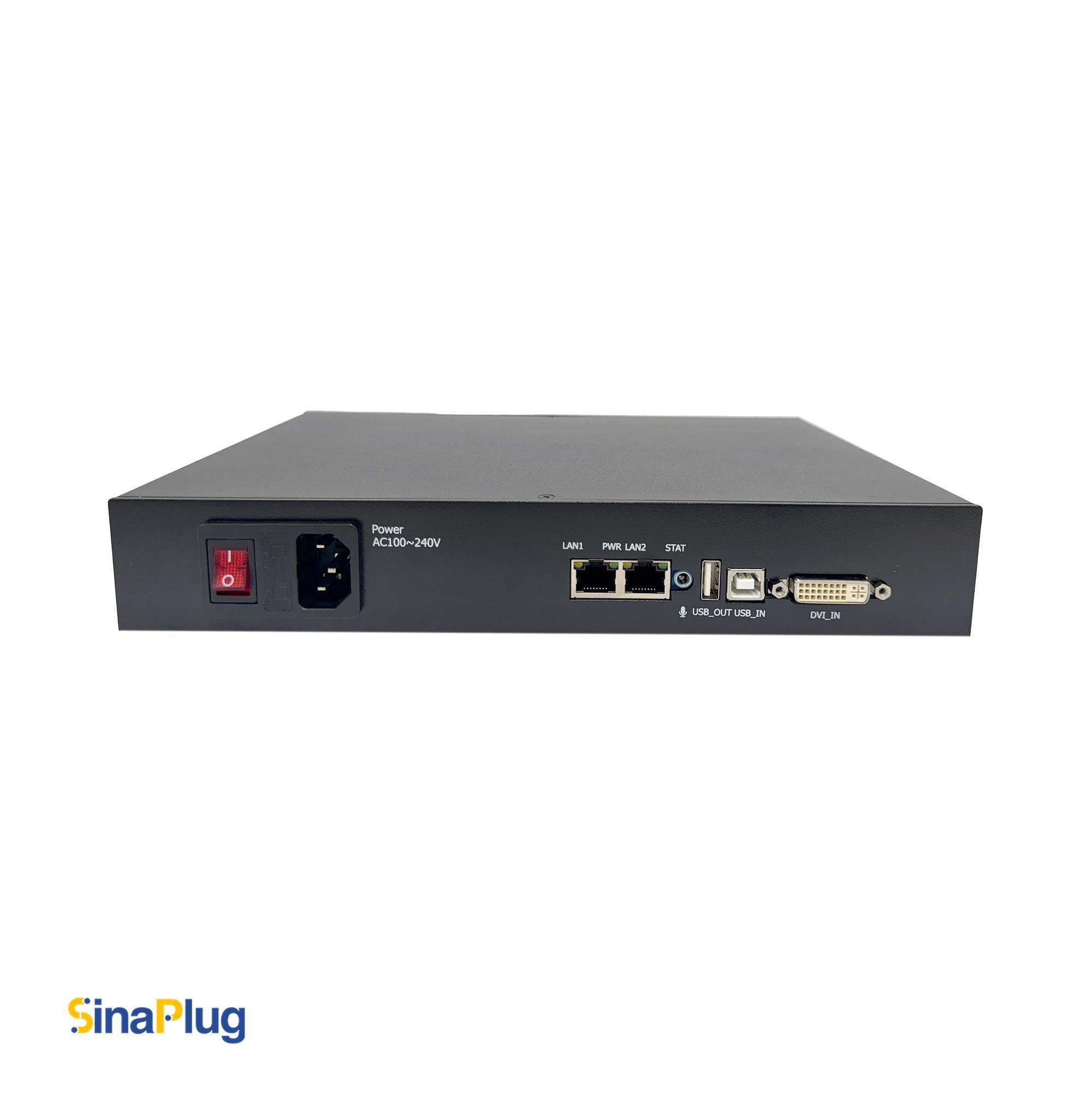

AzarPixel features the Colorlight S2: an LED display controller with a large loading capacity, making it an excellent match for rental and fixed installation applications, such as storefront window displays, conferences, and workshops. Even though a single unit of this controller is an acceptable device for small or medium setups, it can connect to multiple other controllers (with USB OUT/IN ports for cascading or connecting to a control PC for configuration), which is necessary to manage a larger LED display configuration.

This compact controller has a DVI interface that supports resolutions of up to 1920×1200 at 60Hz, and delivers up to 1.3 million pixels with a maximum output of 2560 pixels in width or height from two Ethernet outputs. This elegant controller offers the ideal visual experience with features including screen splicing, enhanced gray level performance at low light, brightness, and color temperature adjustments, and BER detection.

The S2 controller is an affordable choice that operates with a 100-240VAC input voltage and 15W of low power consumption without losing performance. It can be used with a variety of receiving cards, such as the E120, E320, 5A-75B, and 5A-75E. Additionally, it is compatible with all Colorlight's optical fiber transceivers, gigabit switches, and multifunctional cards, allowing for dependable long-distance data transfer and expanding the display installation options.

Key Featuresof S2
