Colorlight S2 Sending Card
$122.20
1 in stock
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

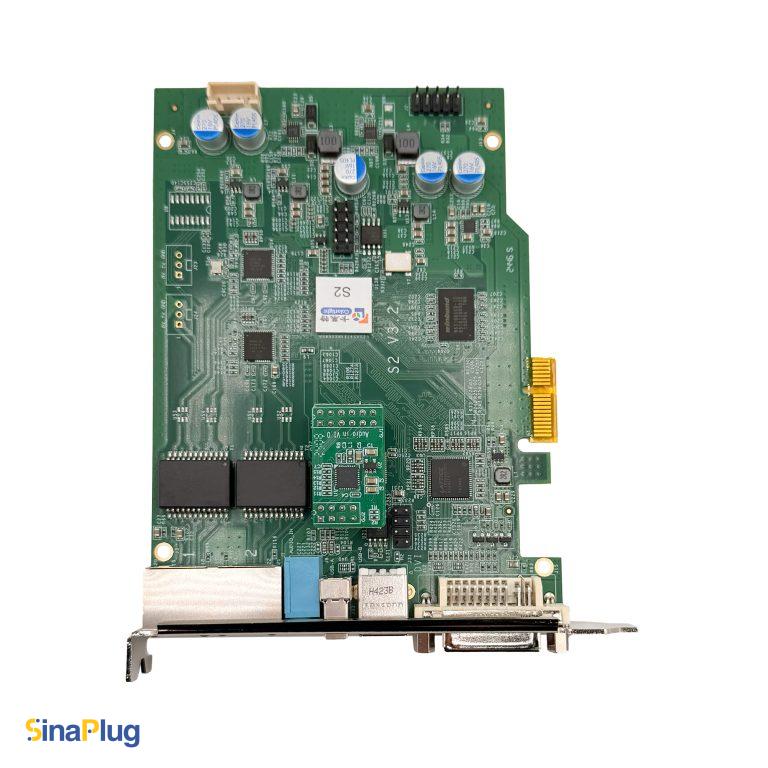

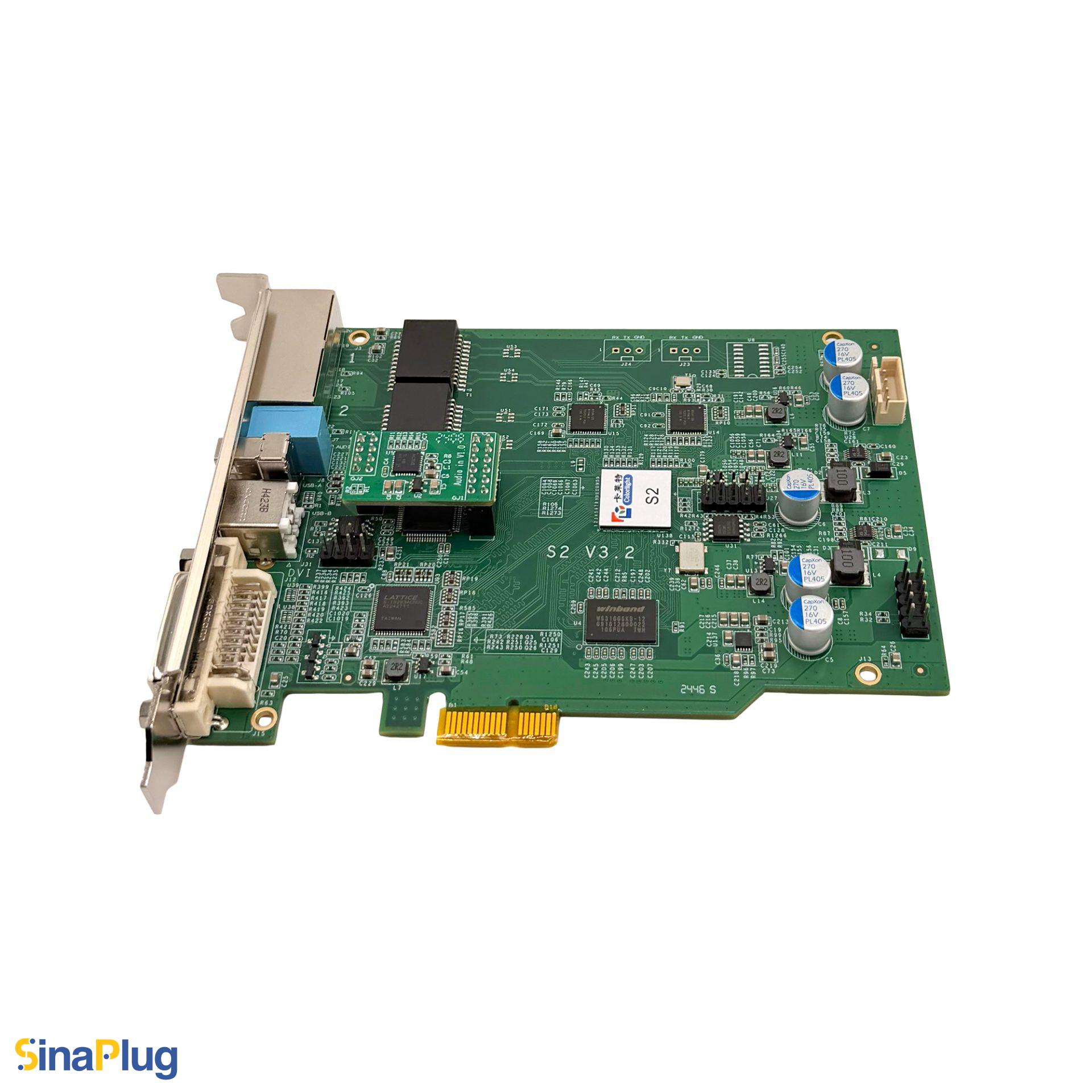

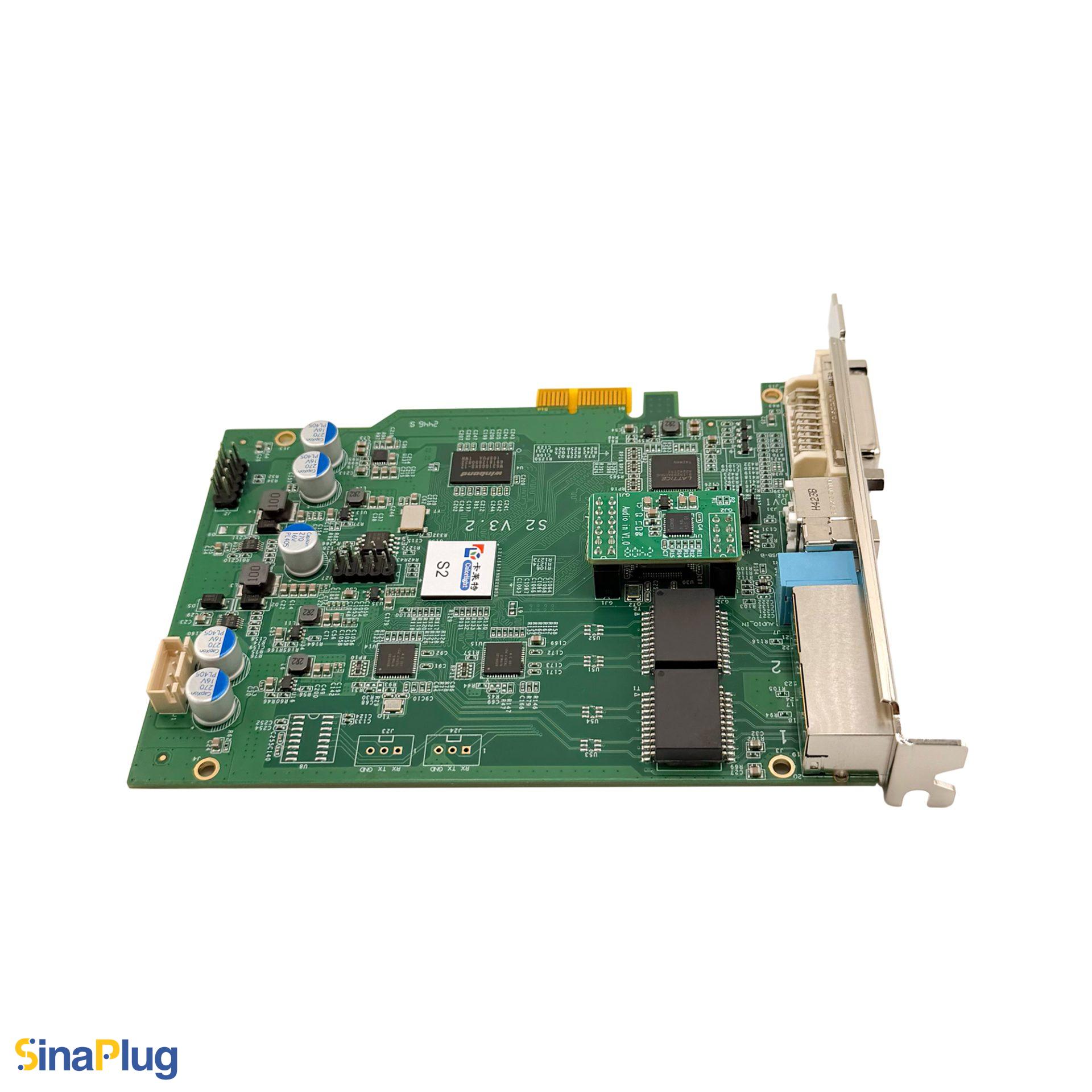

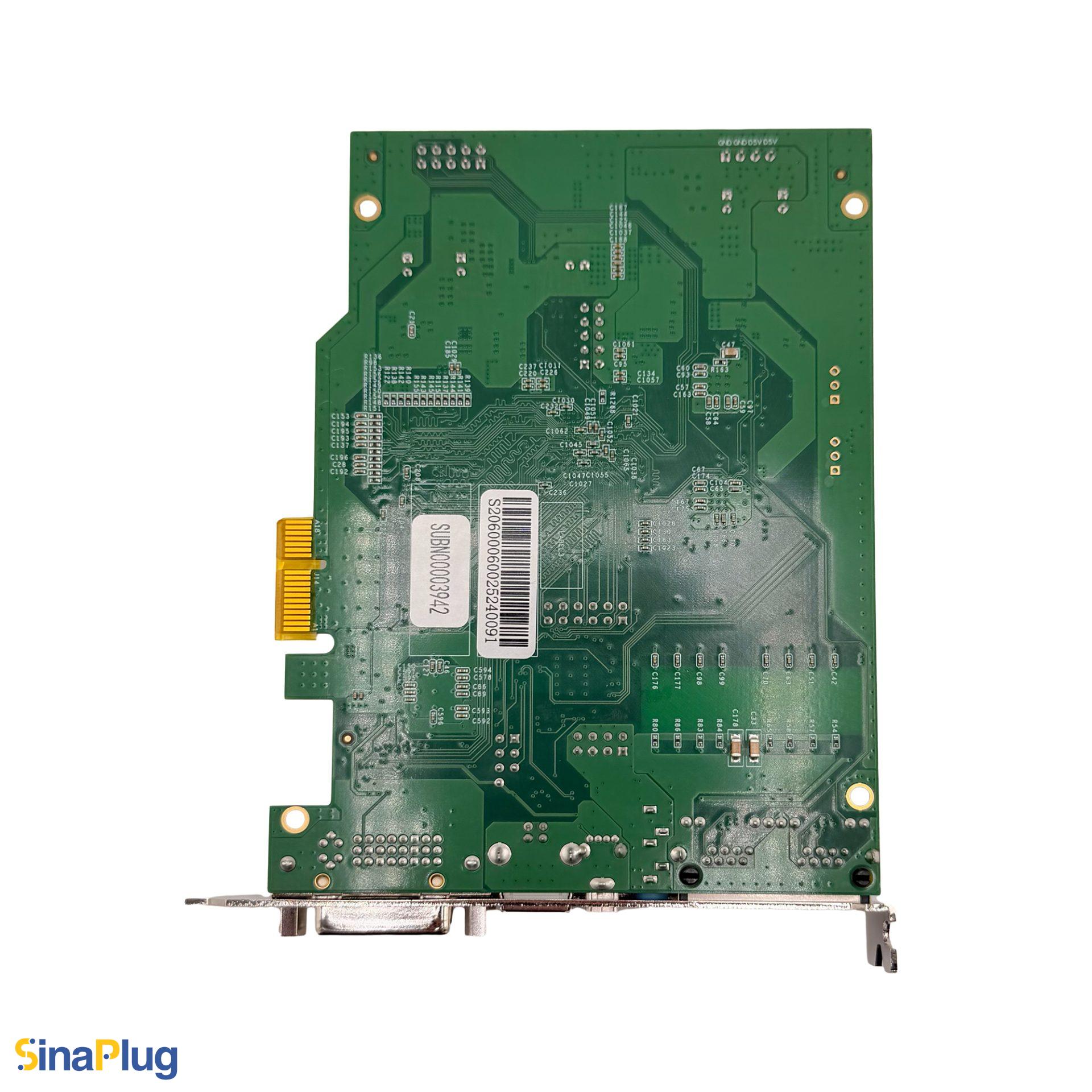

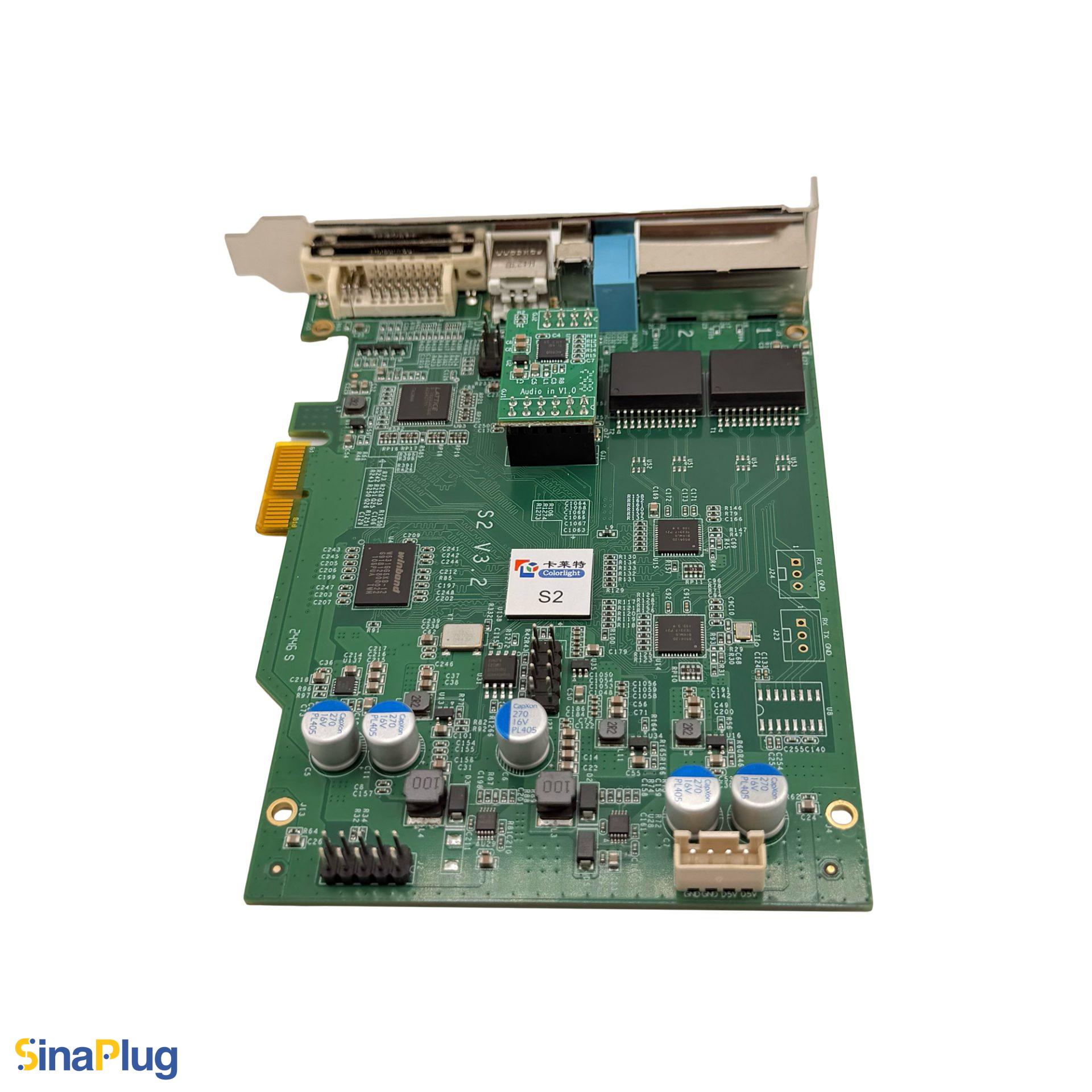

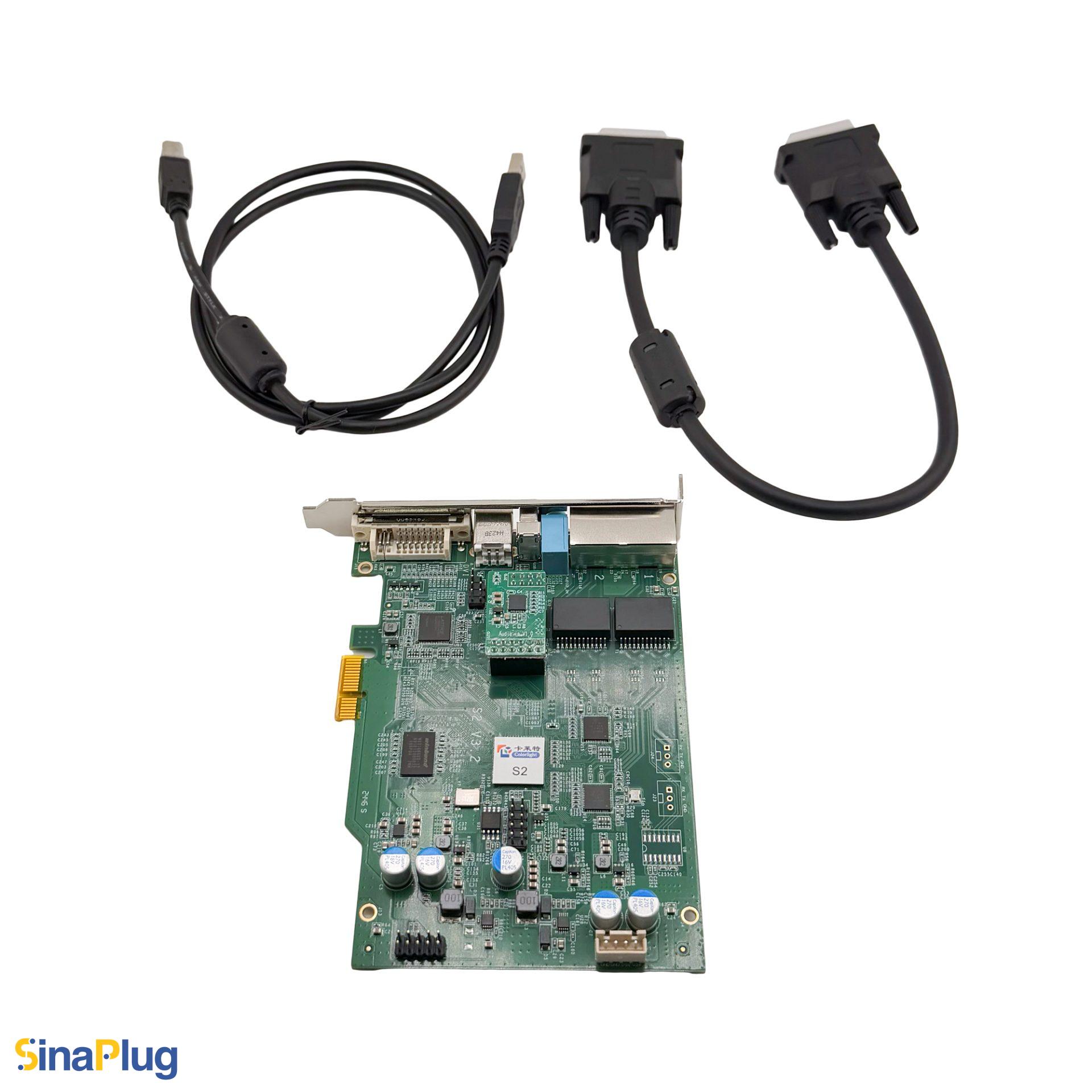

AzarPixel features the Colorlight S2 Sending Card, a compact LED display sending card designed for flexible control of indoor and outdoor LED screen systems. Unlike the S2 controller, this version is a bare sending card without a case.

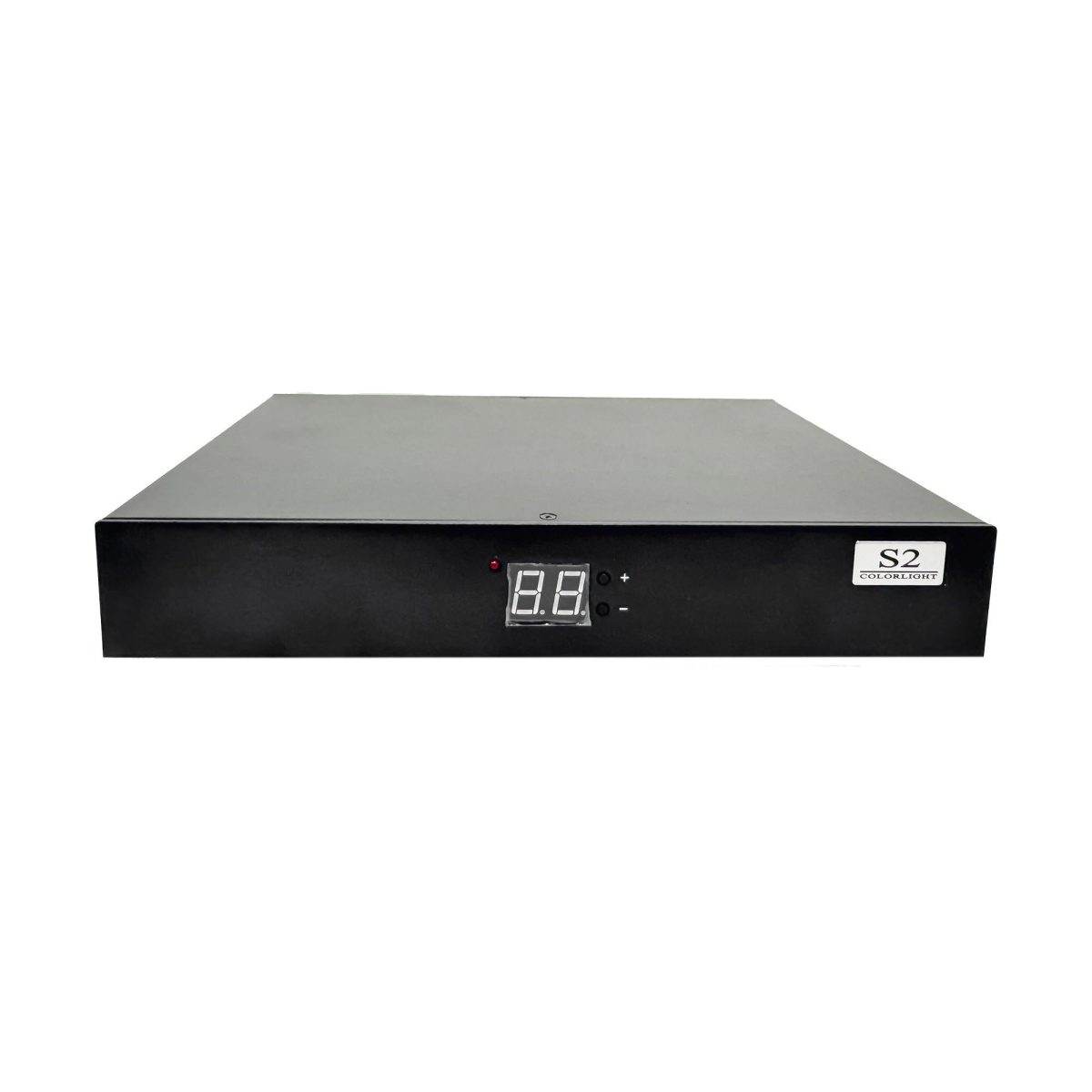

The main difference is that the S2 Sending Card is an internal card-style device without an enclosure, while the S2 controller comes in a case/box and is better suited as a standalone external unit. Functionally, both are used for LED display control, but the sending card is designed for direct integration into a PC or system chassis via PCI-E 1X, whereas the boxed controller is more convenient for external desktop-style deployment and field use.
With a DVI signal input supporting resolutions up to 1920 × 1200 pixels at 60Hz, the S2 Sending Card delivers a loading capacity of up to 1.31 million pixels through its two Gigabit Ethernet outputs. It supports screen splicing, multi-screen control, and user-defined cascading in up/down or left/right directions, making it suitable for rental displays, fixed installations, and multi-screen LED applications.
This sending card also provides better gray performance at low brightness, brightness and color temperature adjustment, real-time configuration through USB, and Bit error detection for monitoring Ethernet cable quality and potential signal issues.
We are an independent reseller of genuine Colorlight products. We are not affiliated with, endorsed by, or sponsored by Colorlight Cloud Tech Ltd. The Colorlight name and logo are trademarks of their respective owner and are used solely to identify the genuine products offered for sale.
Key Features of S2 Sending Card
Loading Capacity
- Up to 1,310,000 pixels (max width 2560 pixels or max height 2560 pixels)
Input
- 1x DVI (maximum resolution: 1920×1200@60Hz)
- 1x Audio input

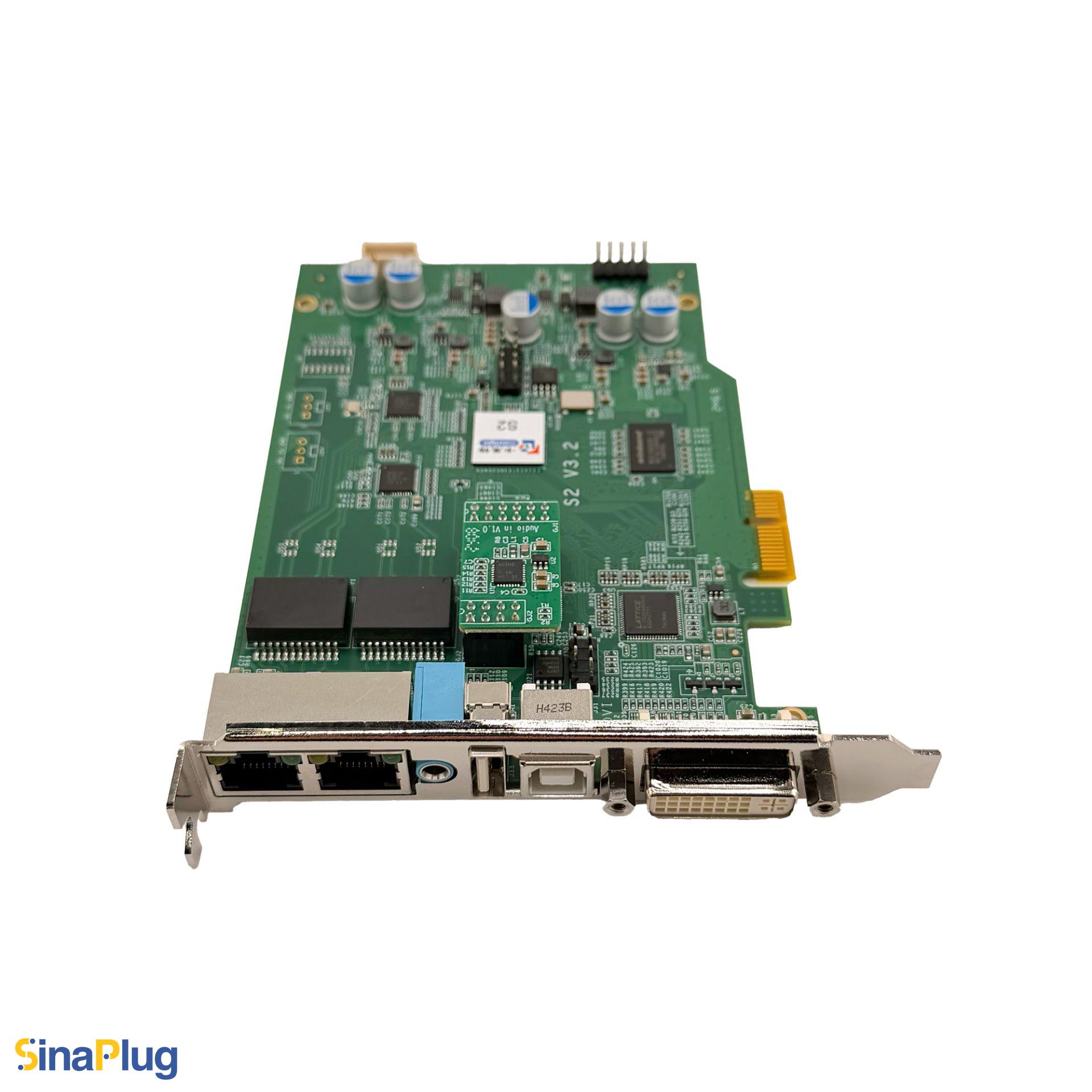

Output
- 2x Gigabit Ethernet ports with a maximum loading capacity of up to 1,310,000 pixels
Control
- 1x USB IN Type-B port (connecting to a PC for configuration)
- 1x USB OUT Type-A port (for cascading)
Advanced Features
- Multiple screens of varying sizes can be controlled at the same time
- Supports adjustment of brightness, and color temperature
- Improved gray-scale performance at low brightness
- Cascading (via USB interfaces)
- Screen Splicing among Ethernet port outputs
- BER Detection (Bit Error Detection)
Dimensions (L*W*H)
- 135mm * 102mm *20mm
| Weight | 5.81 lbs |
|---|---|
| Dimensions | 14.88 × 12.6 × 4.13 in |
| Ethernet Port | 2 |
| Max Pixel Capacity | 1,310,000 |
| Supported Resolutions For Input | 1920×1080@60Hz |
| DVI In | 1 |
| USB Port Type B | 1 |
| Cascading | Supported |
| Bit Error Detection | Supported |
| Input Voltage Range | 3.8-5.5VDC |
| Max Power Consumption | 6W |
| Others | BER Detection (Bit Error Detection), Cascading (via USB interfaces), Improved gray-scale performance at low brightness, Multiple screens of varying sizes can be controlled at the same time, Screen Splicing among Ethernet port outputs, Supports adjustment of brightness, and color temperature |
