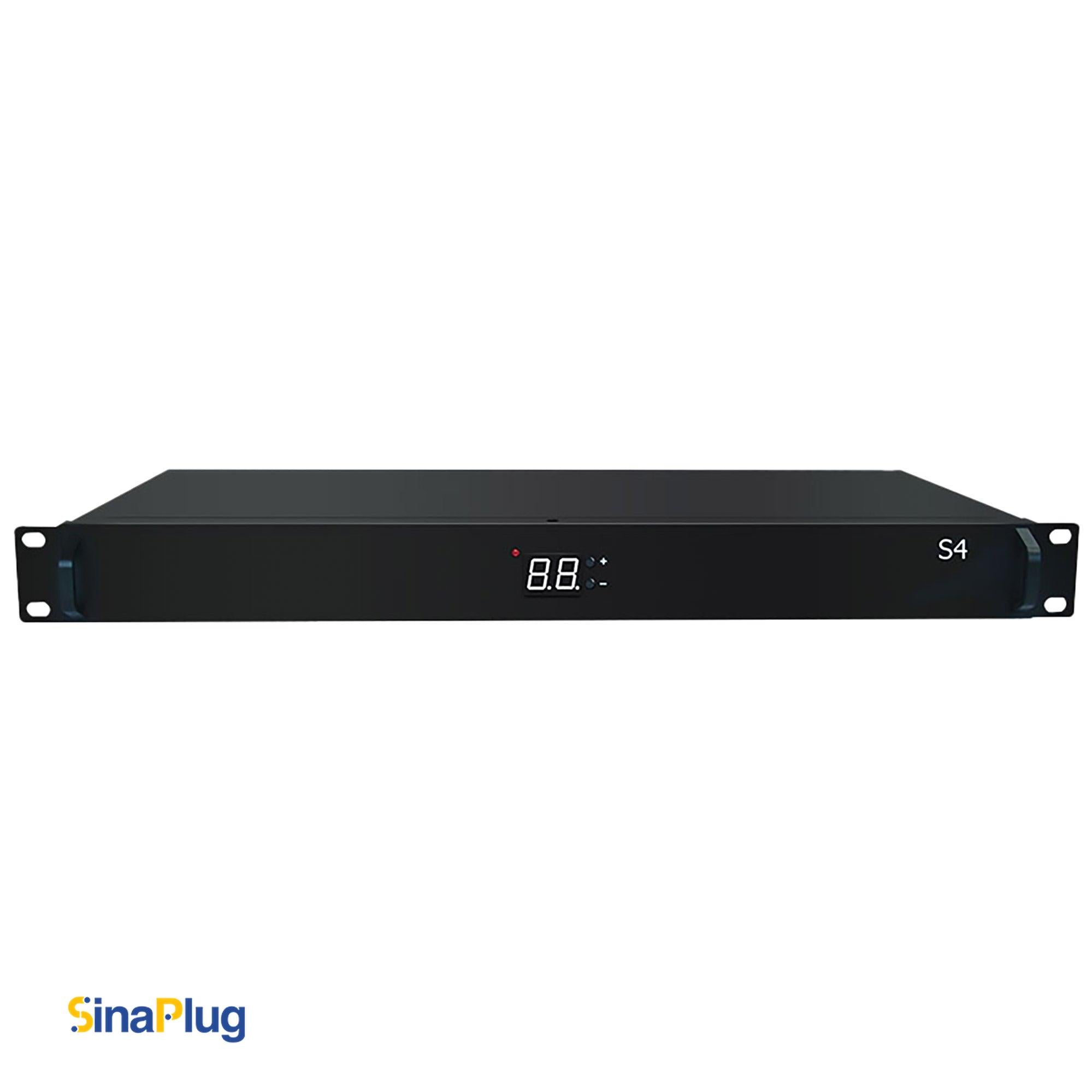

Colorlight S4 LED Video Controller

Discover the Colorlight S4, available on SinaPlug. This LED display controller offers a high loading capacity and is an excellent option where a discreet yet powerful solution is needed. It supports HDMI and DVI signal interfaces with HDCP compliance for secure playback of protected digital content, supporting resolutions up to 1920×1200@60Hz, and can drive up to 2.3 million pixels with a maximum output width of 4096 pixels or 2560 pixels in height through four Ethernet outputs, making it a cost-effective asset for small to medium digital signage applications.

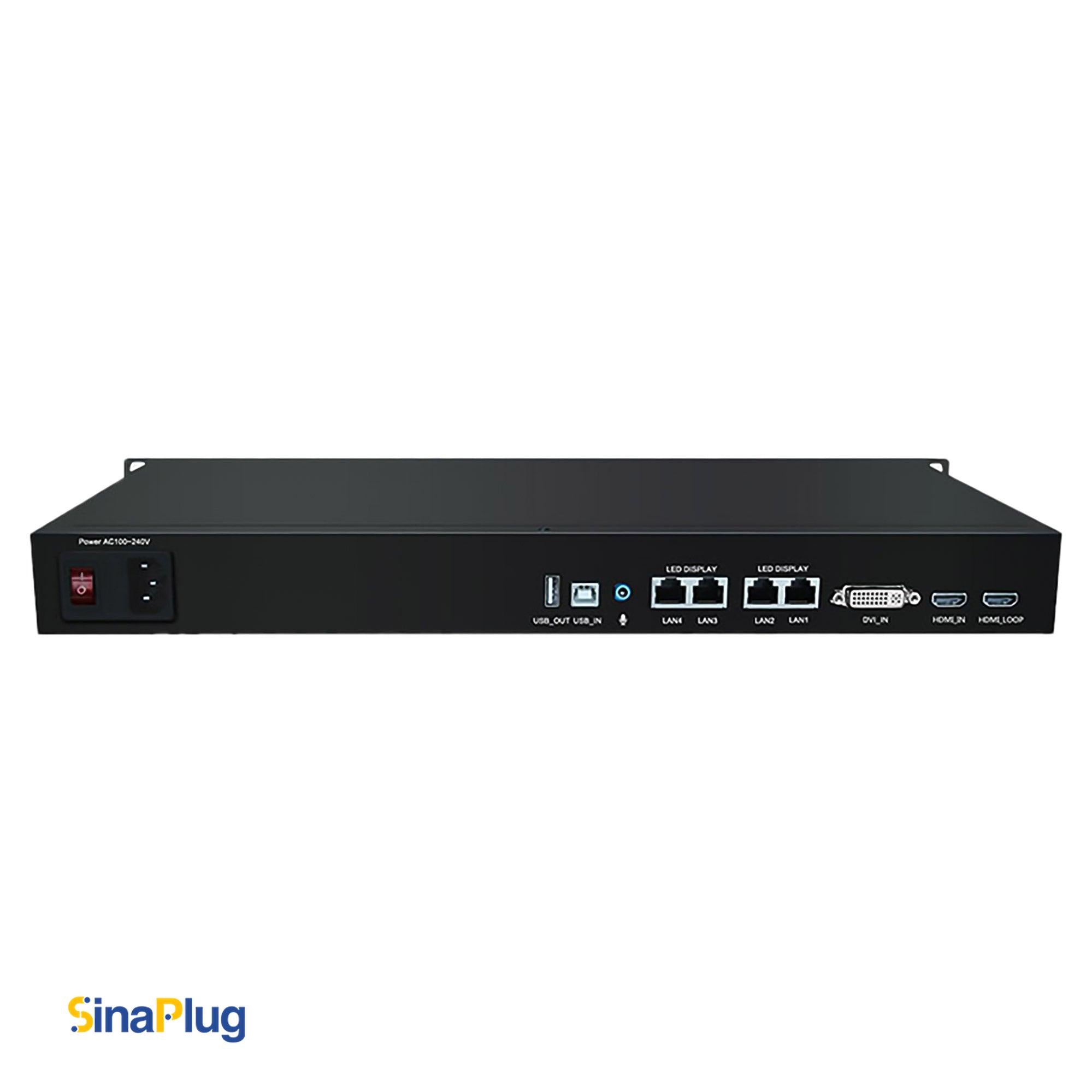

The 3.5mm audio input enables the controller to connect external audio sources, such as microphones or other audio devices, directly to the controller, and the HDMI loop port enables connecting and monitoring the content to other controllers.

Features like screen splicing, improved gray level at low brightness, brightness and color temperature adjustments, and BER detection make this a powerful controller provides an ultimate visual experience. It can be used with all of Colorlight’s receiving cards, such as the E120, E320, 5A-75B, and 5A-75E. allowing for dependable data transfer and expanding display installation options.

To provide flexibility in controlling and connecting complex displays, this controller features USB OUT/IN ports for cascading and access to the control PC for configuration. It consumes a maximum power of 20W at 100-240VAC input voltage.

The S4 is stable, reliable, powerful, and dedicated to providing users with an ultimate visual experience. It can be mainly used in rental and fixed installation applications, such as concerts, live performances, storefront window displays, conferences and workshops, various sports centers, traffic and parking guidance systems, and more.

Key Featuresof S4
