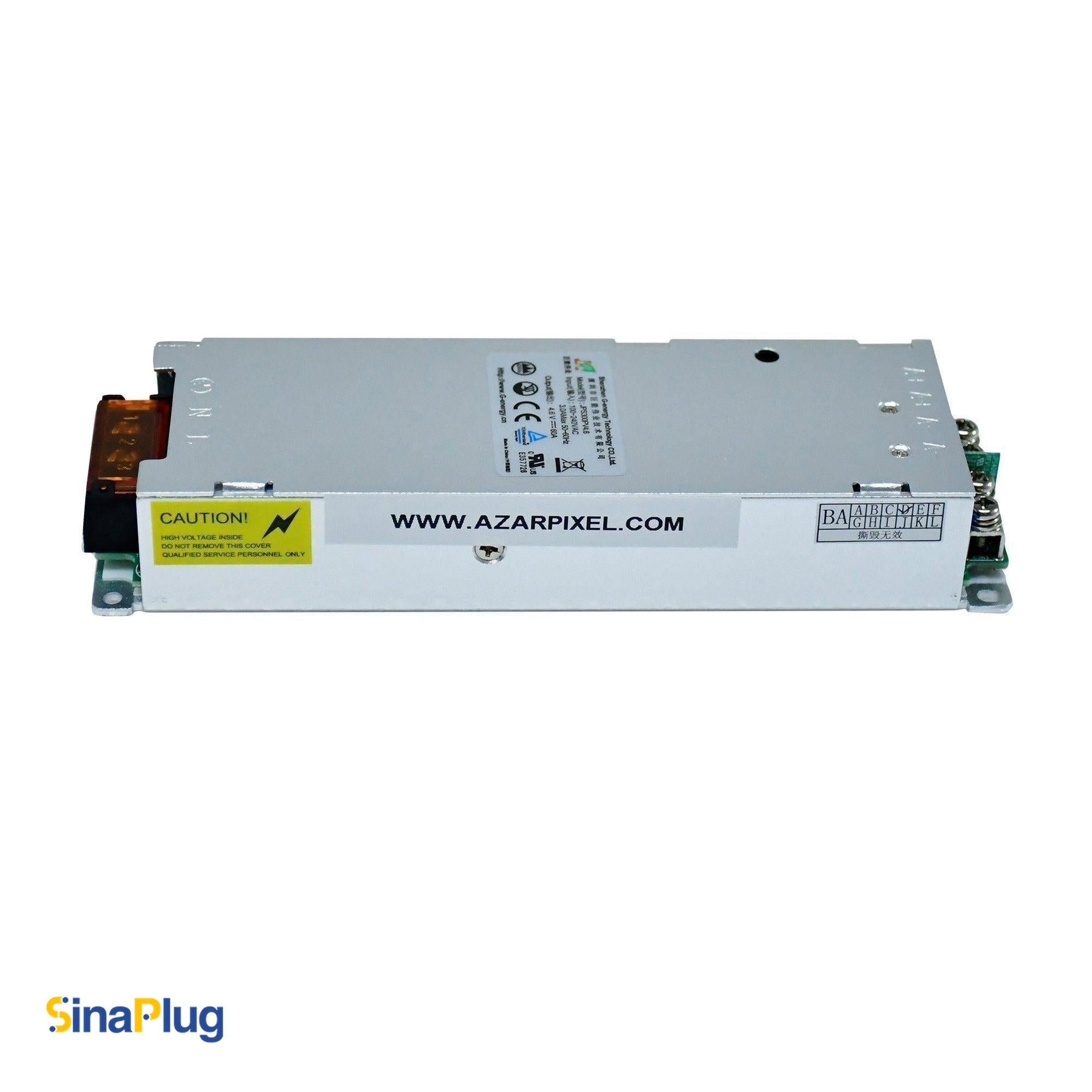

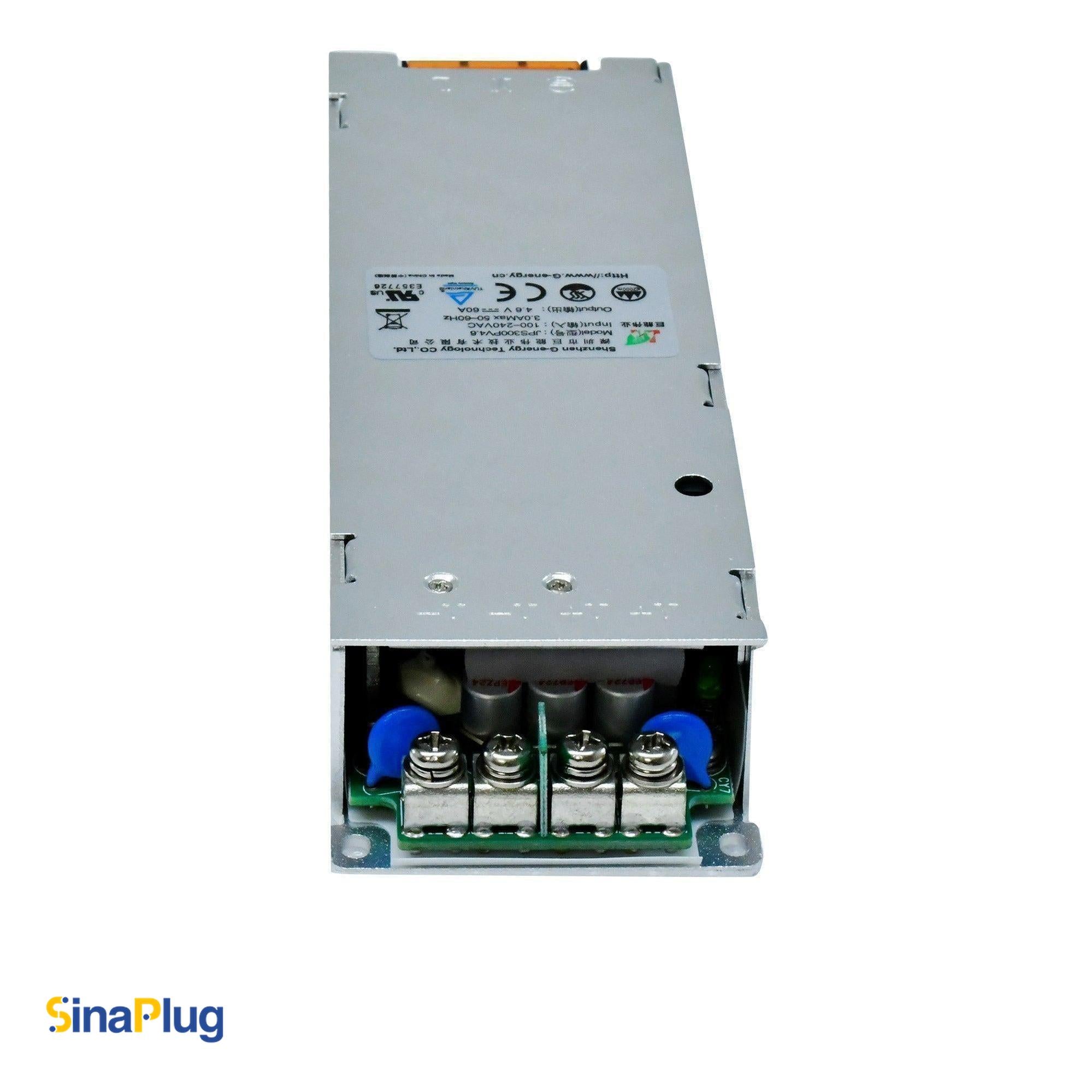

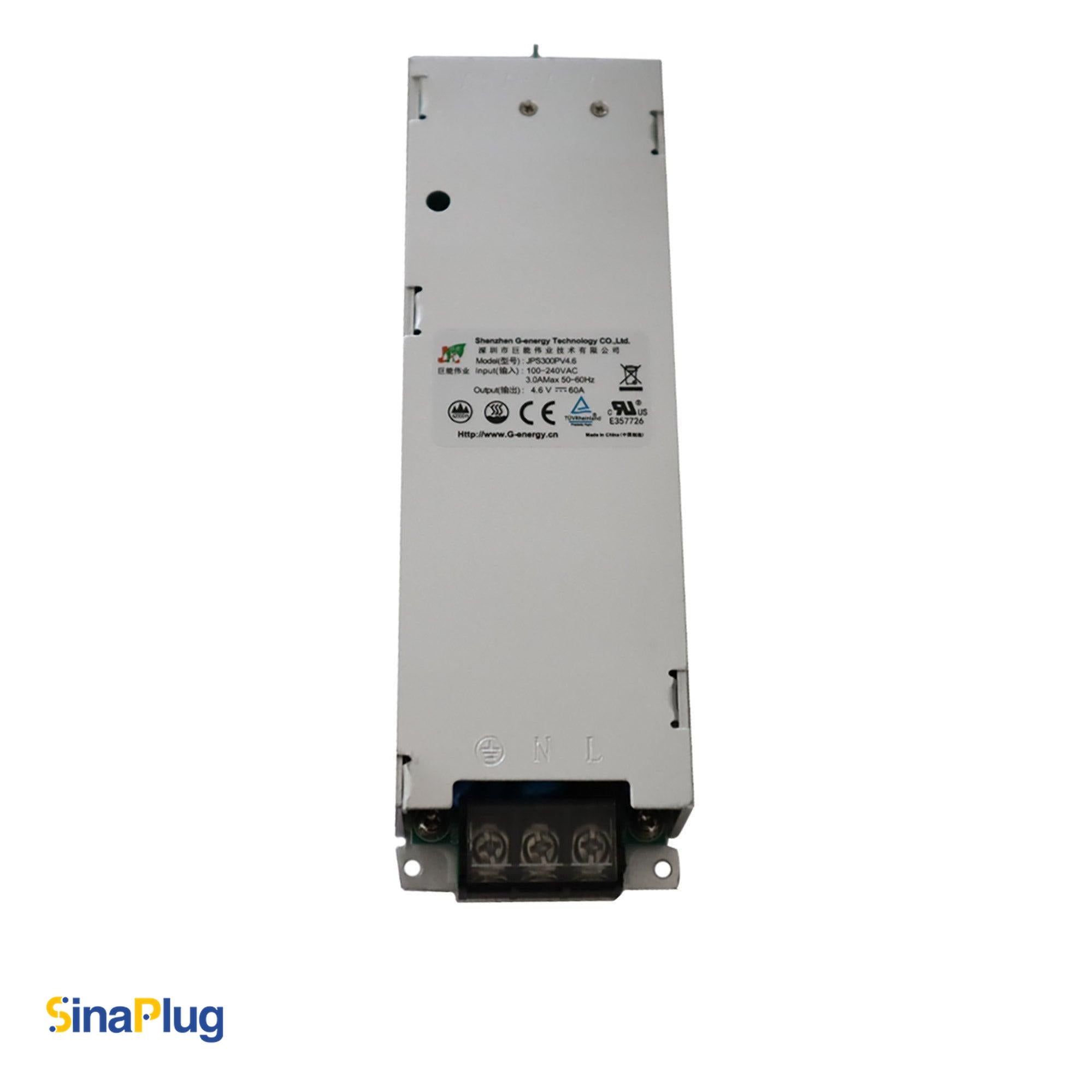

G-ENERGY JPS300PV4.6 Switching Power Supply (4.6V, 60A)
$60.60
| Minimum Qty | Discount |
|---|---|
| 15 - 29 | 3% |
| 30 - 44 | 5% |
| 45 + | 7% |
Can't find what you need or is it out of stock? Contact us!
We'll source whatever you need according to your timeline and provide our most competitive offer.
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The G-energy JPS300PV4.6 (Also known as: JPS300P 4.6V and JPS300P 300W) is a renowned, enclosed power supply ideal for A/V and LED equipment, and industrial applications demanding a stable dependable performance.
This AC/DC, compact JPS300PV4.6 converts wide-range 100-240 VAC inputs, to consistent output channels at 4.6V, delivering up to 60A. It provides a rated 276W output power with an outstanding 90% efficiency for optimal performance.
This compact power supply ensures long-term operation in demanding situations by natural air convection and performs smoothly in adverse ambient temperatures ranging from -30°C to +60°C.
In addition to the completed protections such as over temperature, overload (self-recovery), under-voltage, and short circuit (self-recovery) protections, it is certified by GB4943, EN60950, GB9254, EN55022, and GB8898 allows the equipment to meet the worldwide energy requirement
Key Features of G-ENERGY JPS300PV4.6 Power Supply
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100 – 240VAC
- Adjustable Output Voltage: No
- Output Voltage: 4.6V
- Output Rated Current: 60A
- Output Rated Power: 276W
- Protections: Over Temperature, under Voltage, Over Current Protection, Short Circuit Protection
- Dimensions (L*W*H): 180mm * 55mm * 30mm
| Weight | 0.9 lbs |
|---|---|
| Dimensions | 7.09 × 2.17 × 1.18 in |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤3A |
| Efficiency | 90% |
| Output Voltage | 4.6V |
| Adjustable Output Voltage | No |
| Output Rated Current | 60A |
| Output Rated Power | 276W |
| Output Voltage Tolerance | 2% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Over Current Protection | Yes |
| Over Voltage Protection | No |
| Under Voltage Protection | Yes |
| Working Temperature Range | -30 to +60 °C |
| Working Humidity Range | 10-90% |
| Storage Temperature Range | -40 to +85 °C |
| Standard Certification | EN55022A, EN60950, GB4943, GB8898, GB9254 |
