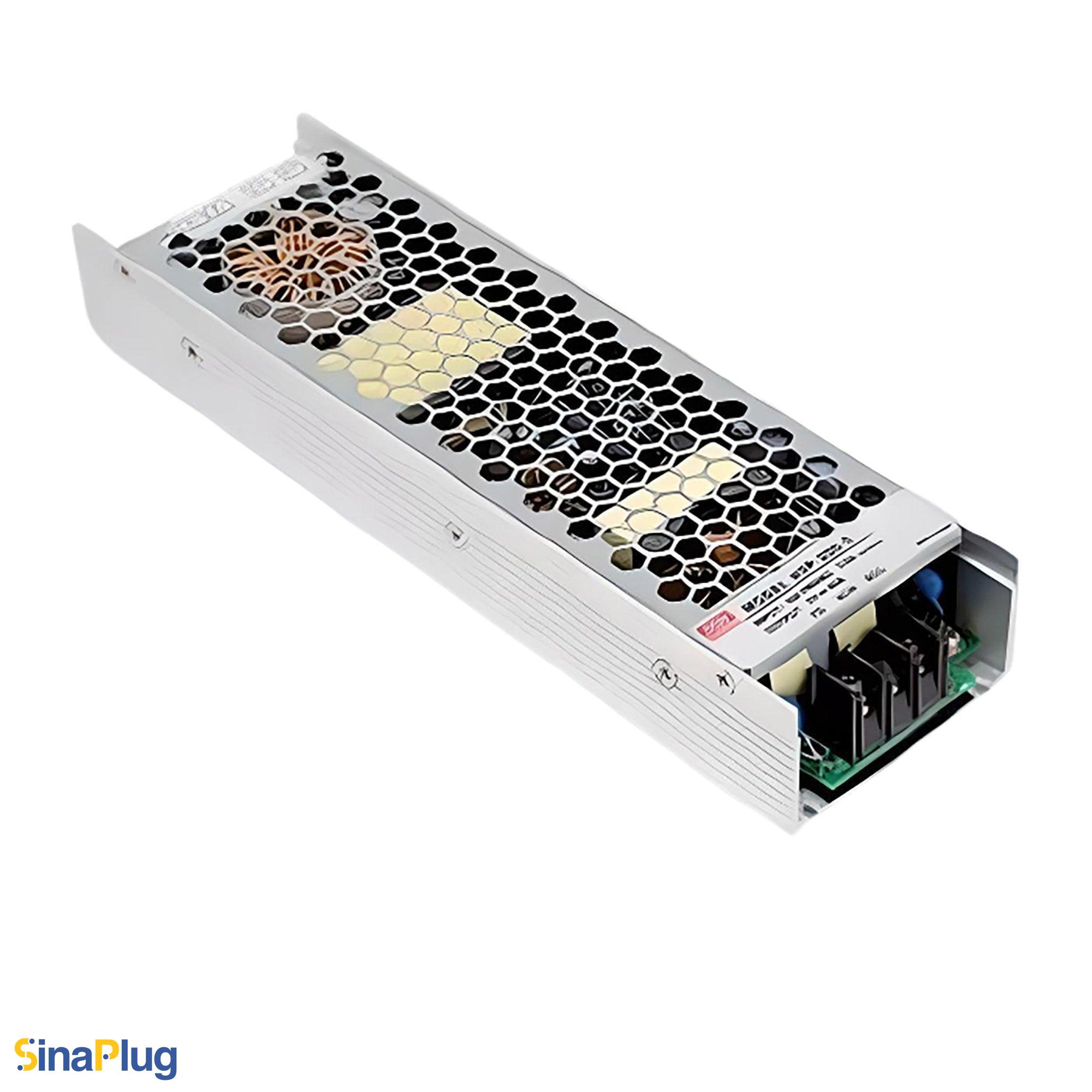

MEAN WELL HSP-200-4.2 Switching Power Supply (4.2V, 40A)
Original price was: $78.88.$55.20Current price is: $55.20.
4 in stock
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The MEAN WELL HSP-200-4.2 is a highly qualified, enclosed power supply ideal for LED equipment, especially industrial control systems that require consistent processes, thanks to its power factor correction and ±1% load regulation.
This AC/DC, compact MEAN WELL HSP-200-4.2 provides a 4.2V with an adjustable 3.6-4.4V range, at 40A, delivering 168W of power from wide-range 100-240 VAC inputs. It contains a PFC function that enhances the overall efficiency (up to 88%) and minimizes harmonic distortion.
Their high reliability and stable operation due to their small and space-saving design, long lifespan, and 2G anti-vibration capability (range of 10-500Hz), ensuring consistent performance in challenging conditions, are the most significant advantages that make Meanwell’s AC/DC power supplies a leading brand considering all at an affordable price.
The small-sized MEAN WELL HSP-200-4.2 series ensures long-term operation in demanding situations due to the design of a metallic mesh case that improves heat dissipation (by preserving at least 5cm installation distance surrounding) and performs smoothly in adverse ambient temperatures ranging from -30°C to +70°C.
In addition to the advanced protections such as overload, over temperature, over-voltage, and short circuit protections (all with automatic recovery), it is certified by Safety Standards: UL60950-1, EN62368-1, and EMC Standards; EN55032, GB17625.1, EN61000-3-2, EN61000-4-2, EN55035 and more that allow it to meet the worldwide energy requirement.
Key Features of Mean Well HSP-200-4.2 Power Supply
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100 – 240VAC
- Adjustable Output Voltage: Yes (3.6 – 4.4V)
- Output Voltage: 4.2V
- Output Rated Current: 40A
- Output Rated Power: 168W
- Protections: Over Temperature, Over Voltage, Over Current Protection, Short Circuit Protection
- Dimensions (L*W*H): 210mm * 62mm * 31mm
| Weight | 1.15 lbs |
|---|---|
| Dimensions | 8.27 × 2.44 × 1.22 in |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤2A |
| Efficiency | 88% |
| Output Voltage | 4.2V |
| Adjustable Output Voltage | Yes |
| Output Rated Current | 40A |
| Output Rated Power | 168W |
| Max Ripple And Noise | 150 mVp-p |
| Output Voltage Tolerance | 2% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | No |
| Working Temperature Range | -30 to +70 °C |
| Working Humidity Range | 20-90% |
| Storage Temperature Range | -40 to +85 °C |
| Standard Certification | EN 55032, EN 55035, EN 61000-3-2, EN 61000-4-2, EN 62368-1, GB17625.1, UL60950-1 |
Ethan Brown –
The MEAN WELL HSP-200-4.2 provides a stable 4.2V output, ideal for my custom circuit board. It’s efficient and quiet, exceeding expectations.
