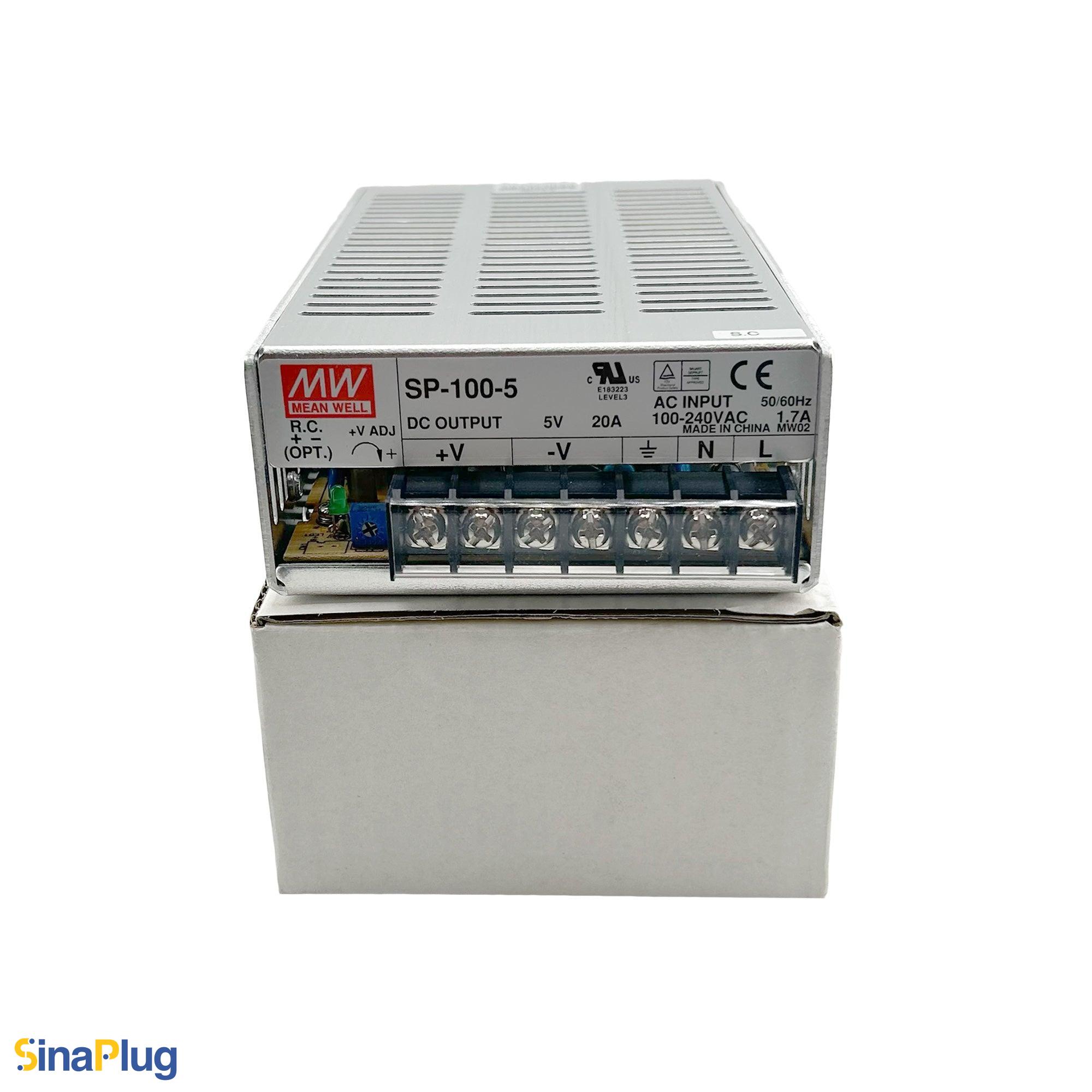

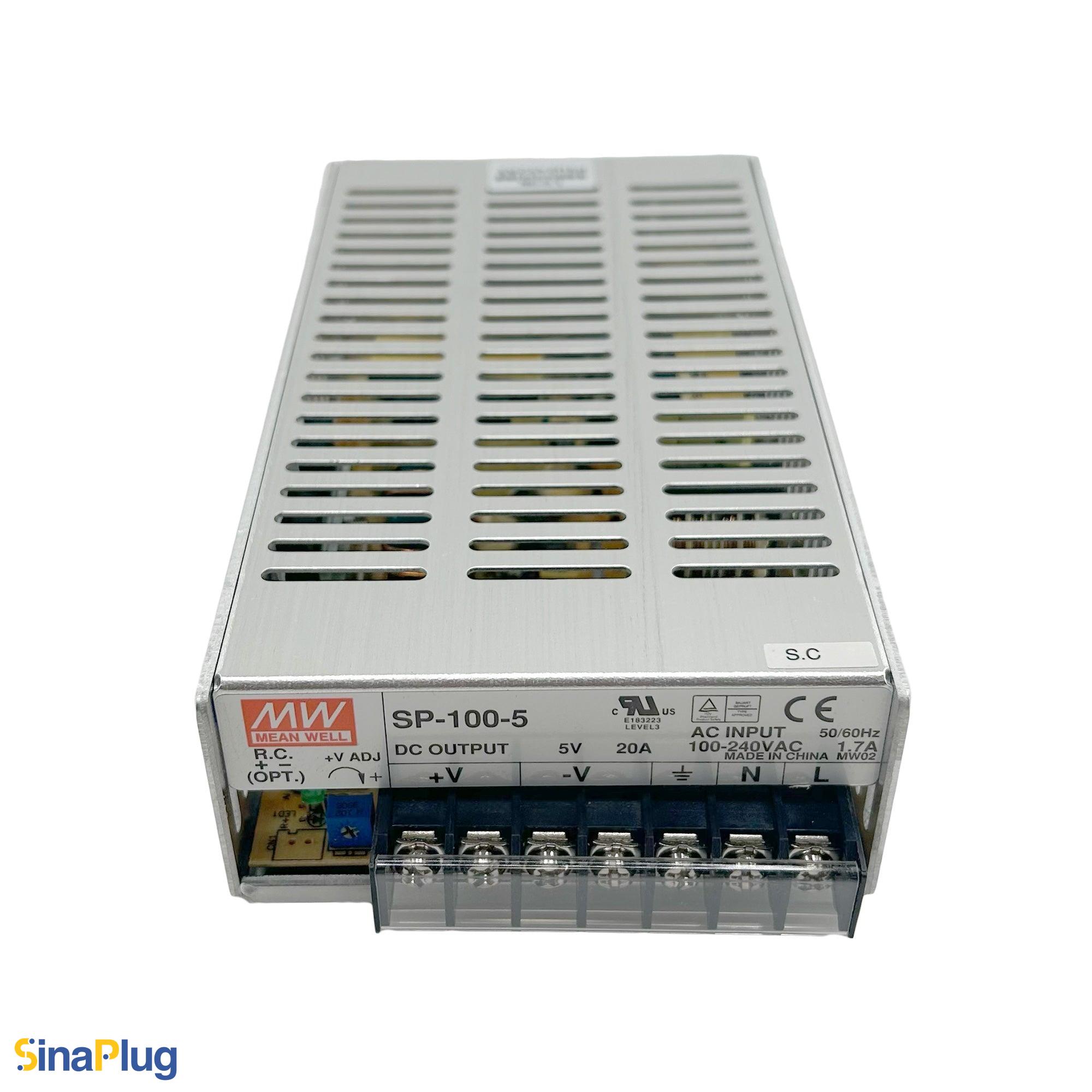

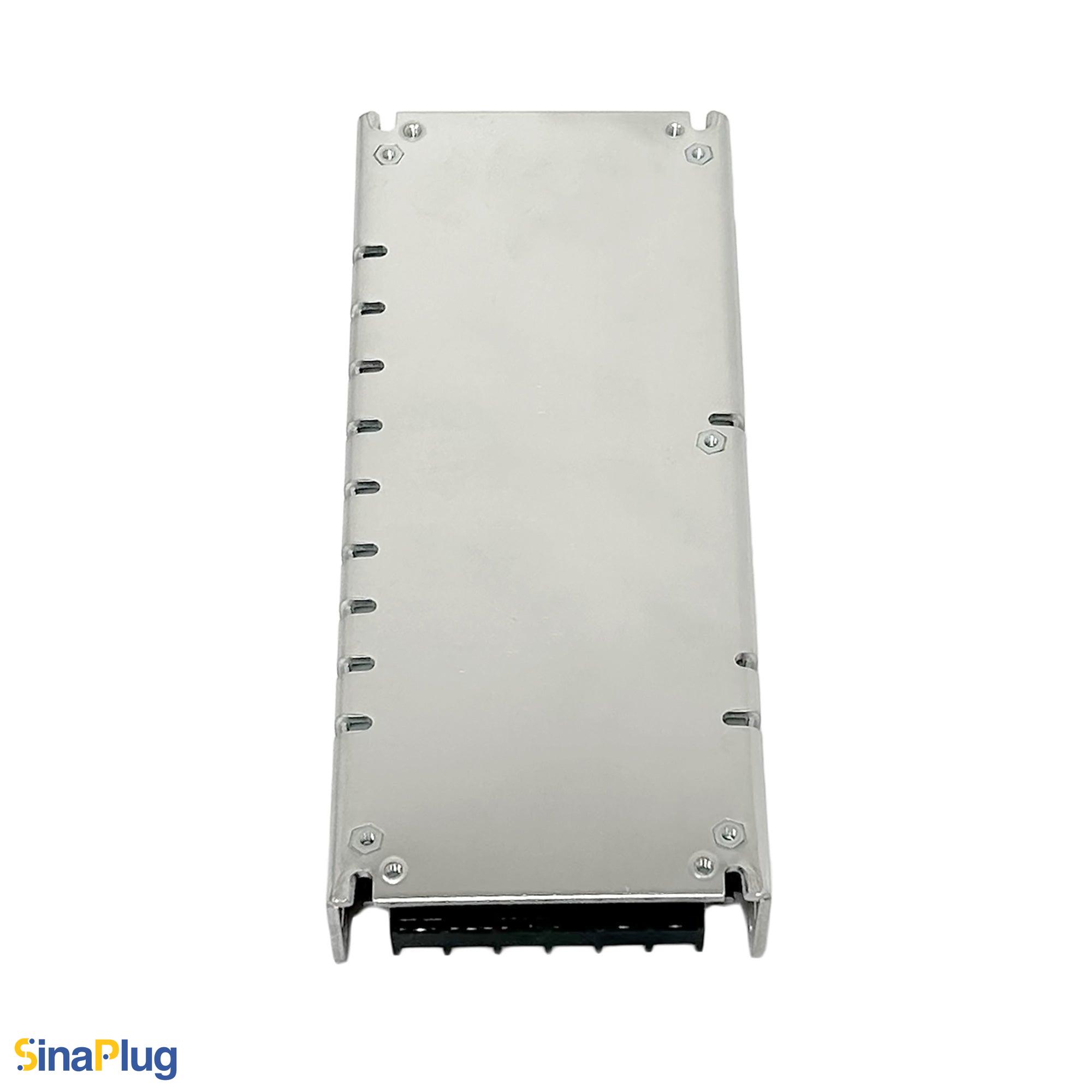

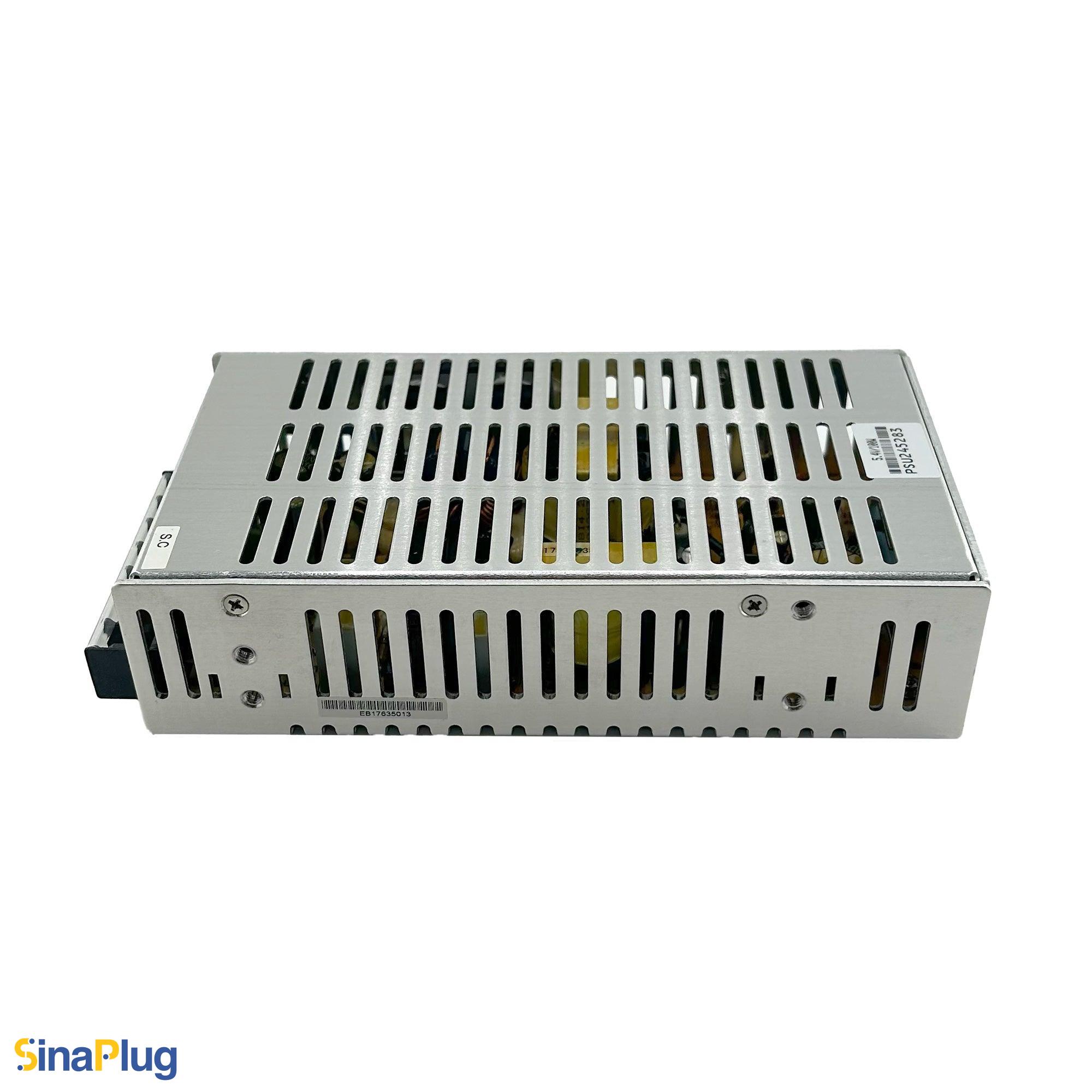

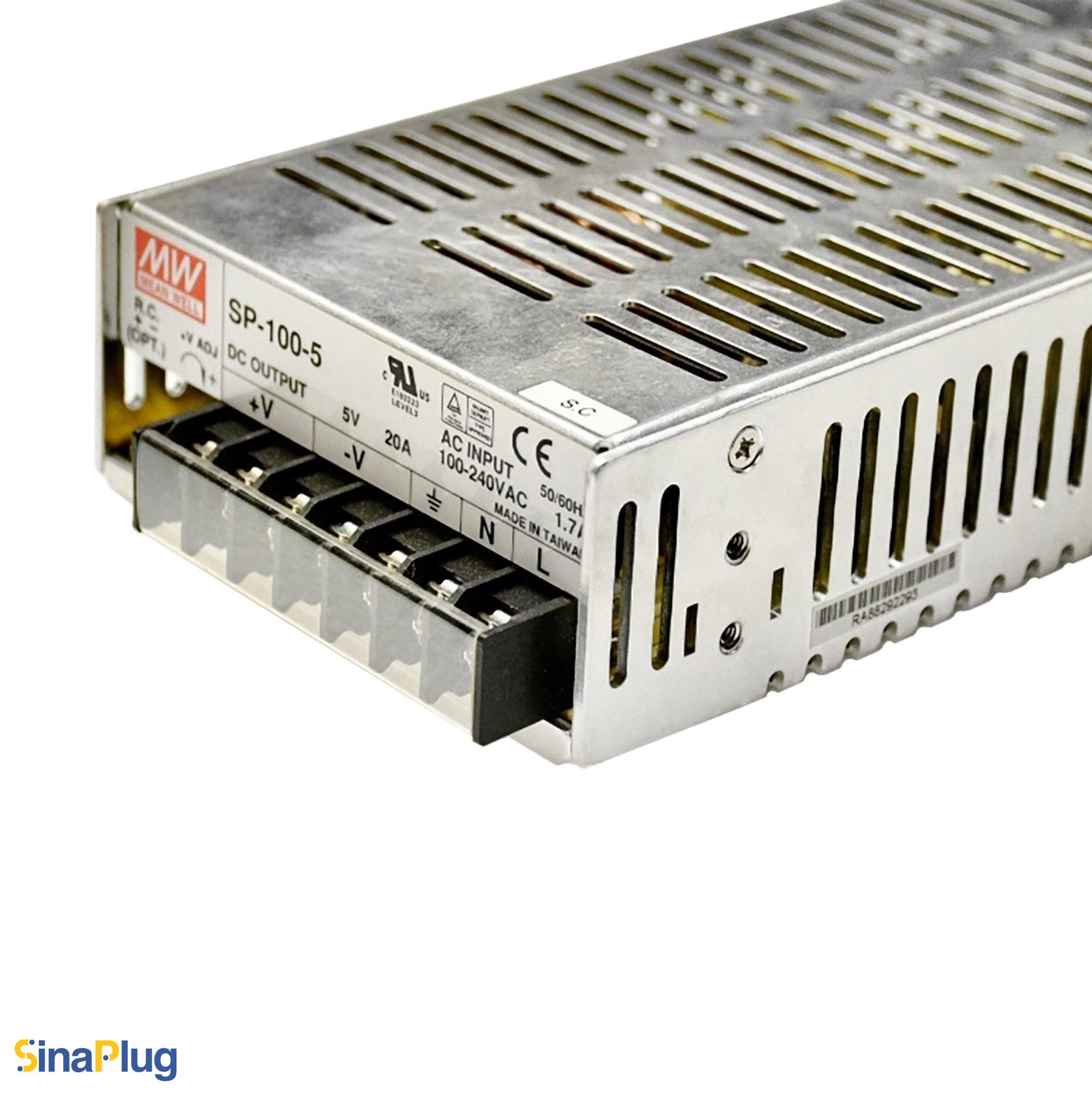

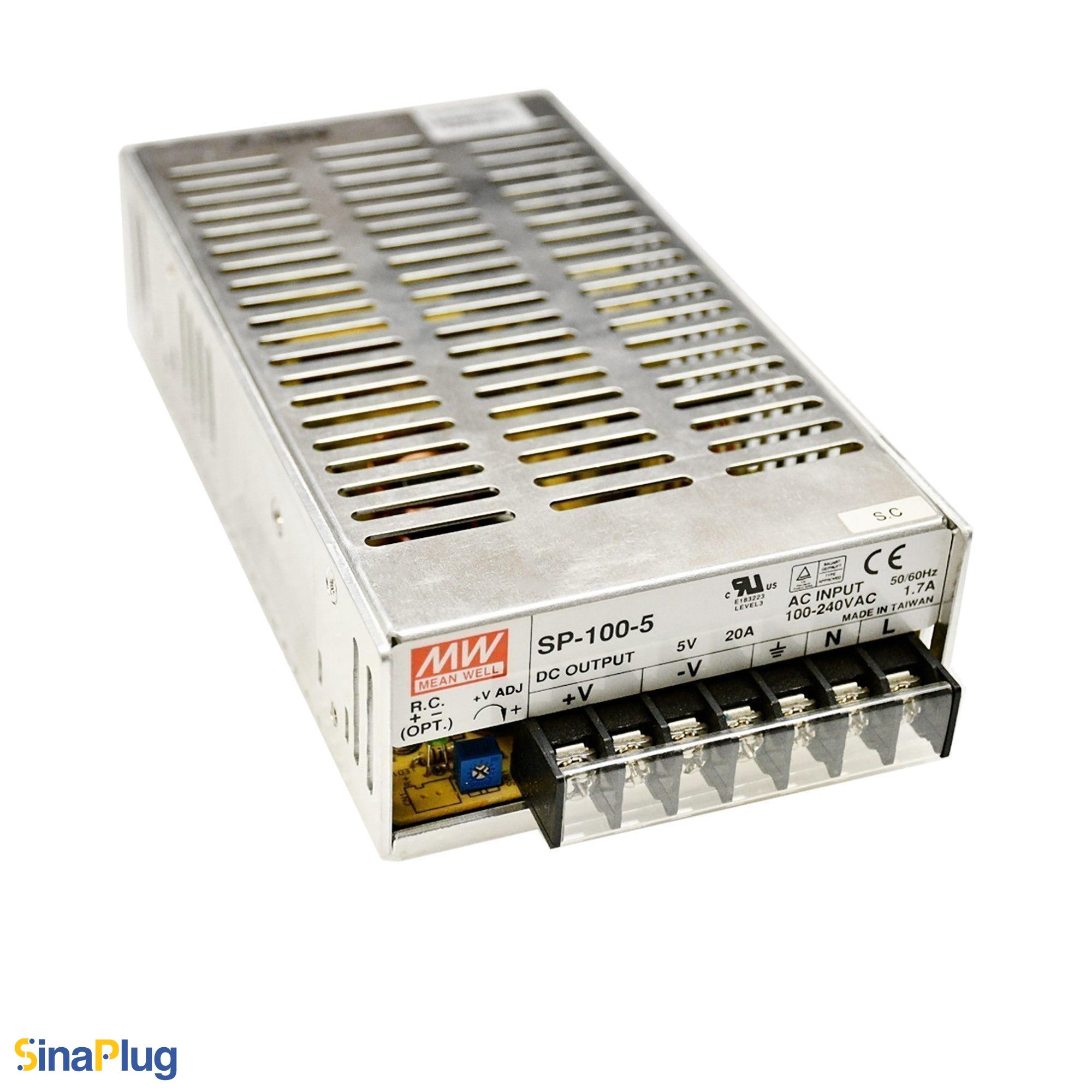

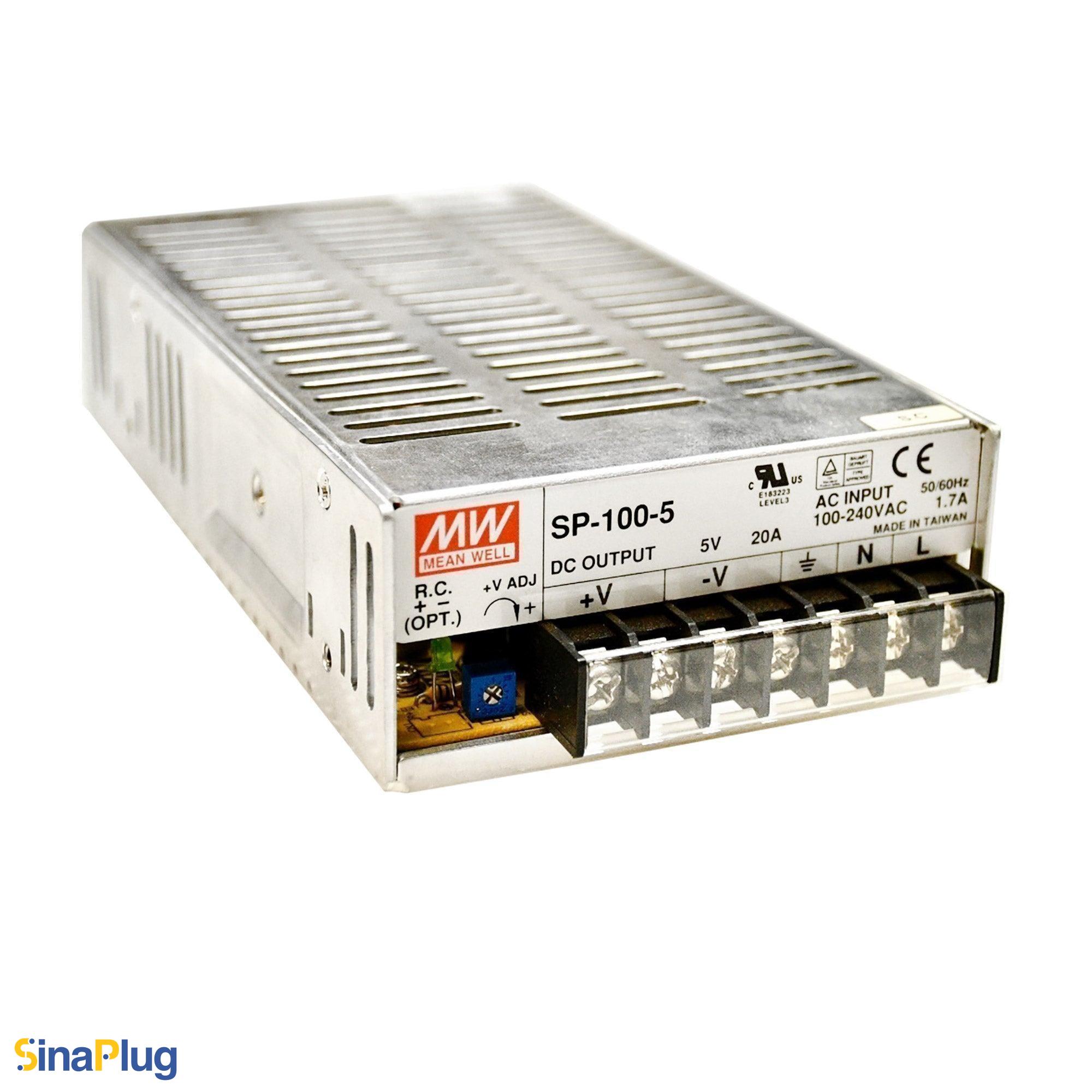

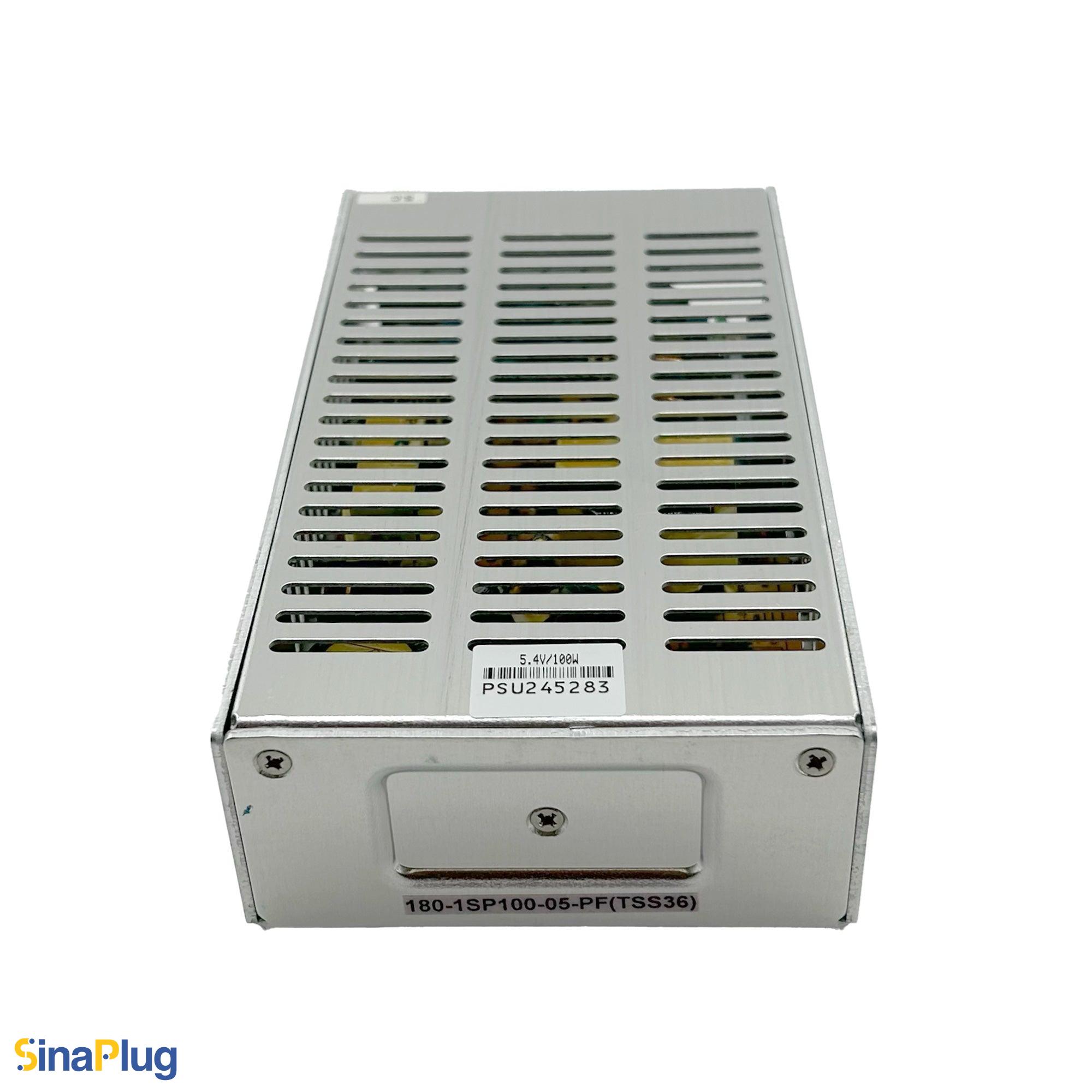

MEAN WELL SP-100-5 Switching Power Supply (5V, 20A)
$33.50
35 in stock
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The MEAN WELL SP-100-5 is a leading-manufactured, enclosed power supply that can be utilized in A/V and LED equipment, industrial applications, and electronics instruments demanding a stable dependable performance, thanks to its great ±1% load regulation.
The SP-100-5 converts full-range 100-240 VAC inputs, to output channels at 5V with an adjustable 4.75-5.5V range, delivering up to 20A. It provides a rated 100W output power with 79% efficiency. This small-sized SP-100 5 ensures sustained operation by natural convection for cooling in various ambient temperatures ranging from -10°C to +55°C.
Meanwell AC/DC power supplies are commonly used due to their great reliability and consistent performance. Their long lifespan, compact and space-saving design, and 2G anti-vibration capability (ranging from 10-500Hz) throughout all three axes provide constant performance in a variety of situations, all at a low price.
The SP-100 series is certified by UL60950-1, EN55032, EN61000-3-2, EN61000-4-2, and EN55024 standards, in addition to its complete protections like over-voltage, and short circuit protections, and overload (with automatic recovery) protection which promote it to meet international energy standards.
Key Features of SP-100-5
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100–240VAC
- Adjustable Output Voltage: Yes (4.75 – 5.5V)
- Output Voltage: 5V
- Output Rated Current: 20A
- Output Rated Power: 100W· Protections: Over Voltage Protection, Over Current Protection, Short Circuit Protection
- Dimensions (L*W*H): 179mm * 99mm * 45mm
| Weight | 1.46 lbs |
|---|---|
| Dimensions | 7.05 × 3.9 × 1.77 in |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤1.7A |
| Efficiency | 79% |
| Output Voltage | 5V |
| Adjustable Output Voltage | Yes |
| Output Rated Power | 100W |
| Max Ripple And Noise | 100 mVp-p |
| Output Voltage Tolerance | 2% |
| Short Circuit Protection | Yes |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | No |
| Working Temperature Range | -10 to +55°C |
| Working Humidity Range | 20-90% |
| Storage Temperature Range | -20 to +85 °C |
| Standard Certification | EN 55024, EN 61000-3-2, EN 61000-4-2, EN55032, UL60950-1 |
