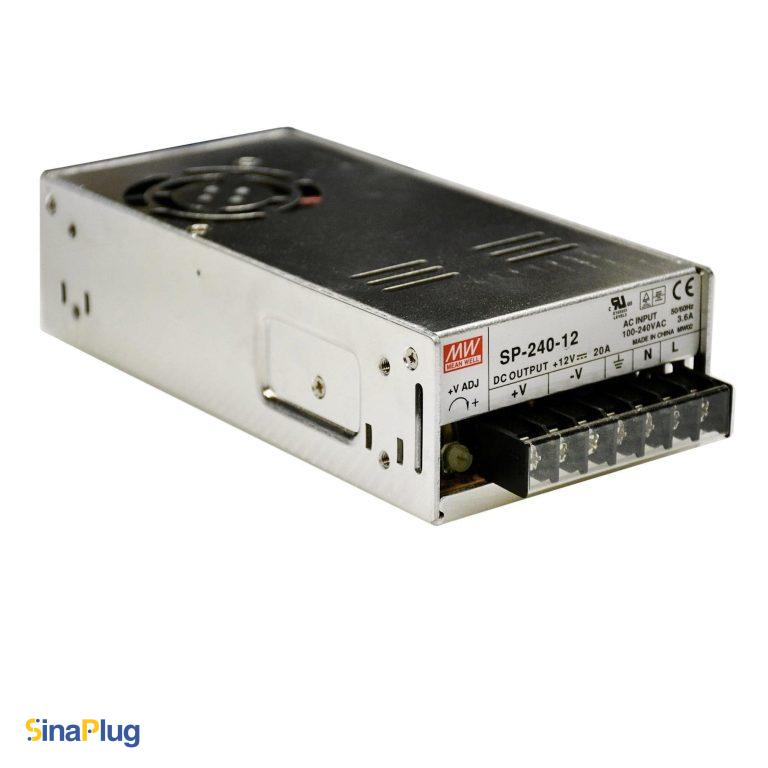

MEAN WELL SP-240-12 Switching Power Supply (12V, 20A)
$33.00
Out of stock
Can't find what you need or is it out of stock? Contact us!
We'll source whatever you need according to your timeline and provide our most competitive offer.
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The MEAN WELL SP-240-12 is a high-qualified, enclosed power supply that provides a 12V, at 20A with an adjustable 10-14V range, delivering 240W of power from wide-range 100-240VAC inputs. It is an excellent option for industrial applications, as well as LED and A/V equipment.
The SP-240-12 regulates output voltage with a constant duty cycle and decreases load regulation to an impressive ±0.5% thanks to its high switching frequency (90KHz). Additionally, it offers a PFC function that boosts overall efficiency (up to 86%) and reduces harmonic distortion.
Meanwell’s AC/DC power supplies are a leading brand thanks to their high reliability and stable operation due to their complete protection functions, long lifespan, small and space-saving design, and 2G anti-vibration capability (range of 10-500Hz) along all three axes, which ensures compatible performance in expected conditions, all at an affordable price.
The standard-sized SP-240 series guarantees long-term performance in demanding situations. Its built-in fan activates when the temperature reaches 40°C and turns off when the temperature drops below 35°C, which makes it work perfectly in unusual ambient temperatures ranging from -20°C through +70°C.
In addition to the advanced protections such as overload and over temperature protections (with automatic recovery), and over-voltage and short circuit protections, it is certified by UL60950-1, EN55032, EN61000-3-2, EN61000-4-2, EN55024, that allow it to meet the worldwide energy requirement.
Key Features of SP-240-12
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100 – 240VAC
- Adjustable Output Voltage: Yes (10 – 14V)
- Output Voltage: 12V
- Output Rated Current: 20A
- Output Rated Power: 240W
- Protections: Over Temperature Protection, Over Voltage Protection, Over Current Protection, Short Circuit Protection
- Dimensions (L*W*H): 190mm * 93mm * 50mm
| Weight | 1.76 lbs |
|---|---|
| Dimensions | 7.48 × 3.66 × 1.97 in |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤3.6A |
| Efficiency | 86% |
| Output Voltage | 12V |
| Adjustable Output Voltage | Yes |
| Output Rated Current | 20A |
| Output Rated Power | 240W |
| Max Ripple And Noise | 150 mVp-p |
| Output Voltage Tolerance | 1% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | No |
| Working Temperature Range | -20 to +70 °C |
| Working Humidity Range | 20-90% |
| Storage Temperature Range | -40 to +85 °C |
| Standard Certification | EN55024, EN55032, EN61000-3-2, EN61000-4-2, UL60950-1 |
