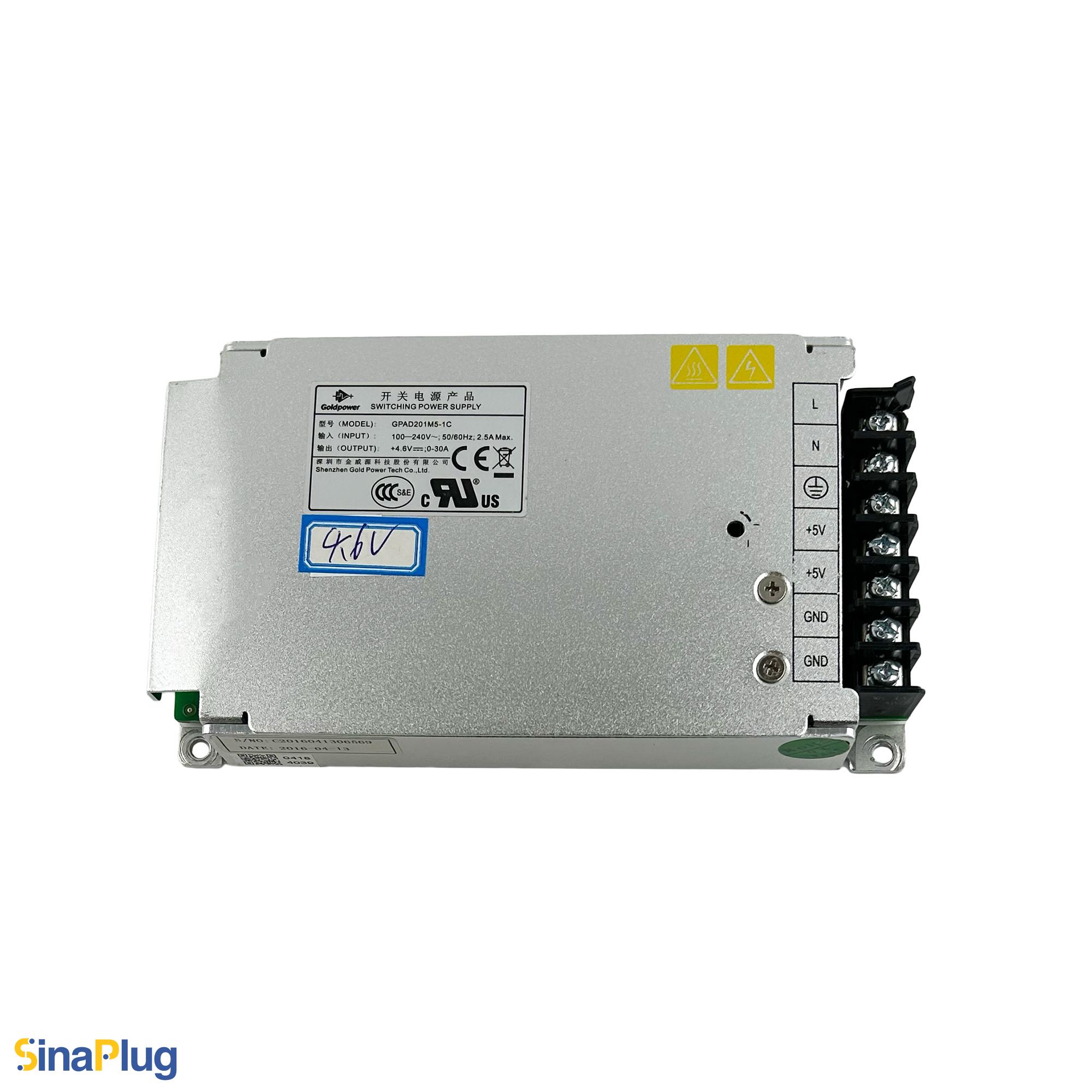

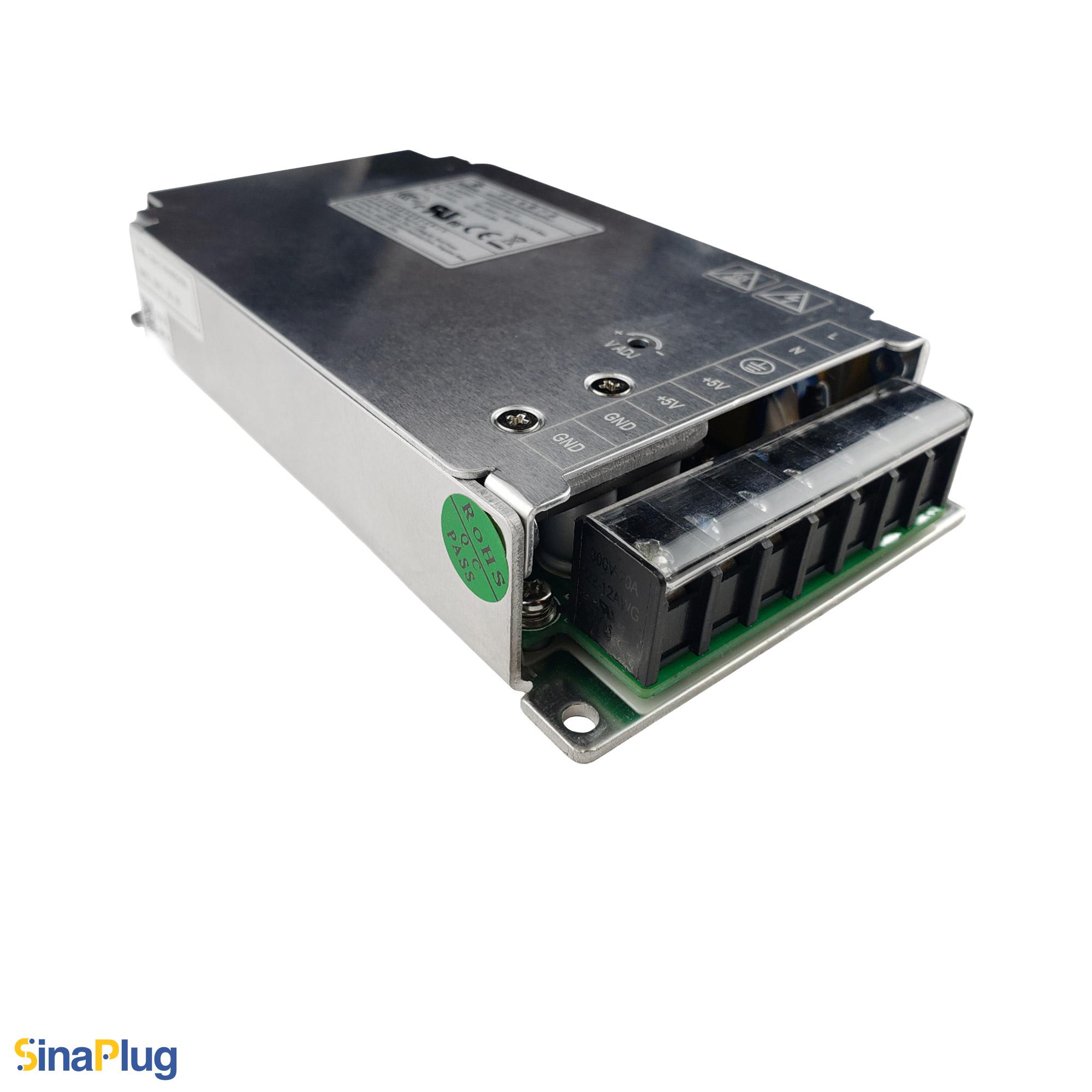

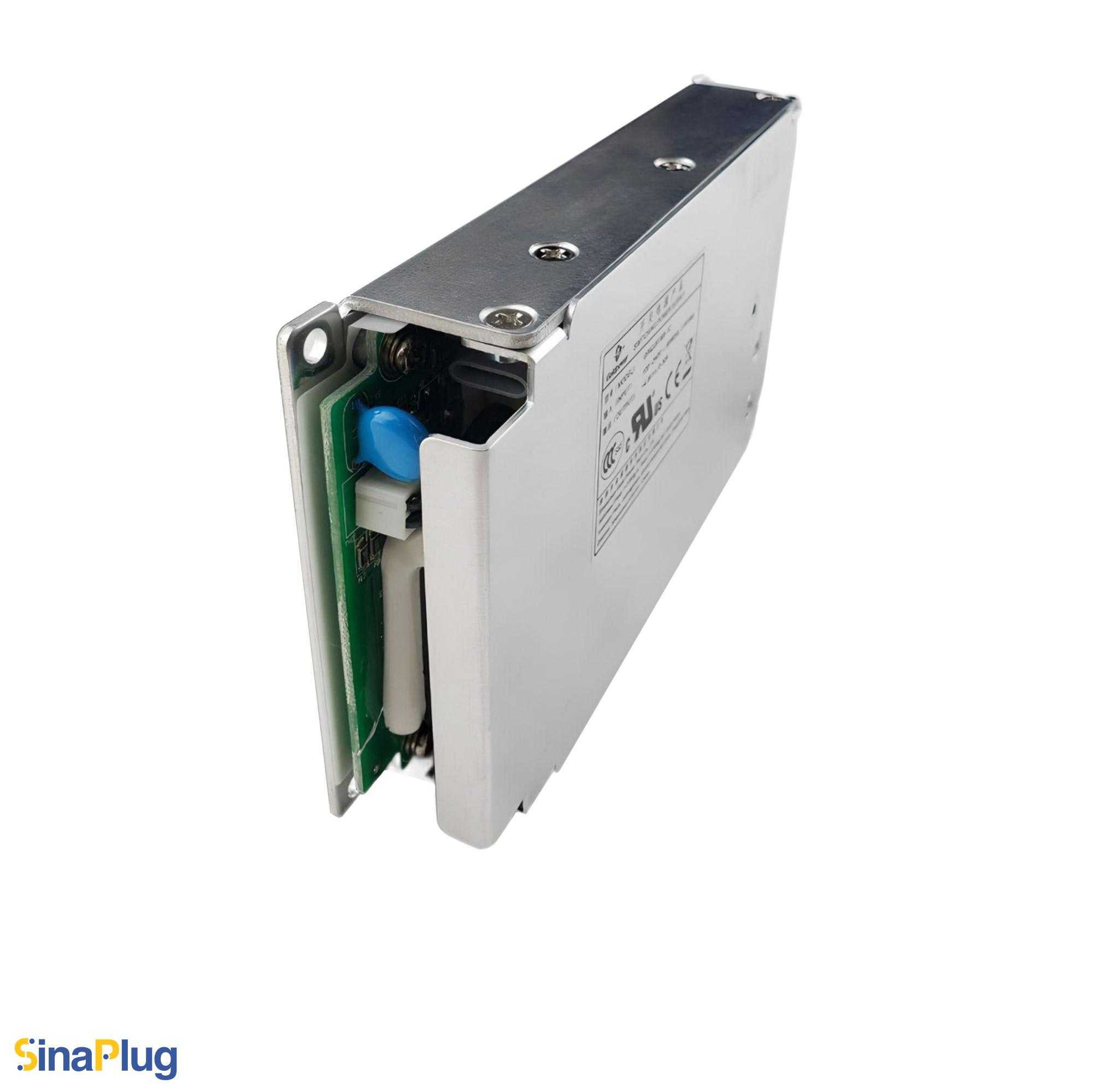

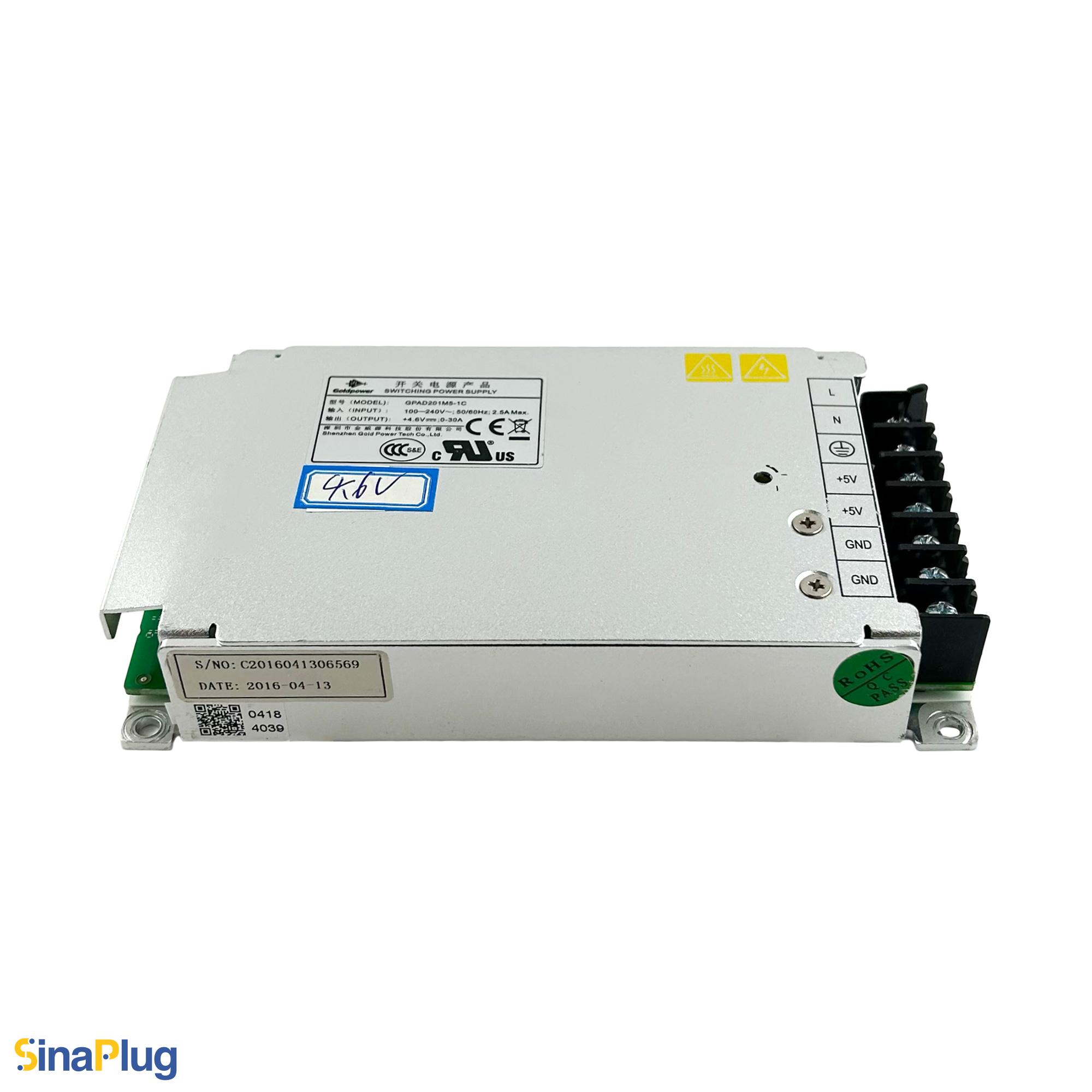

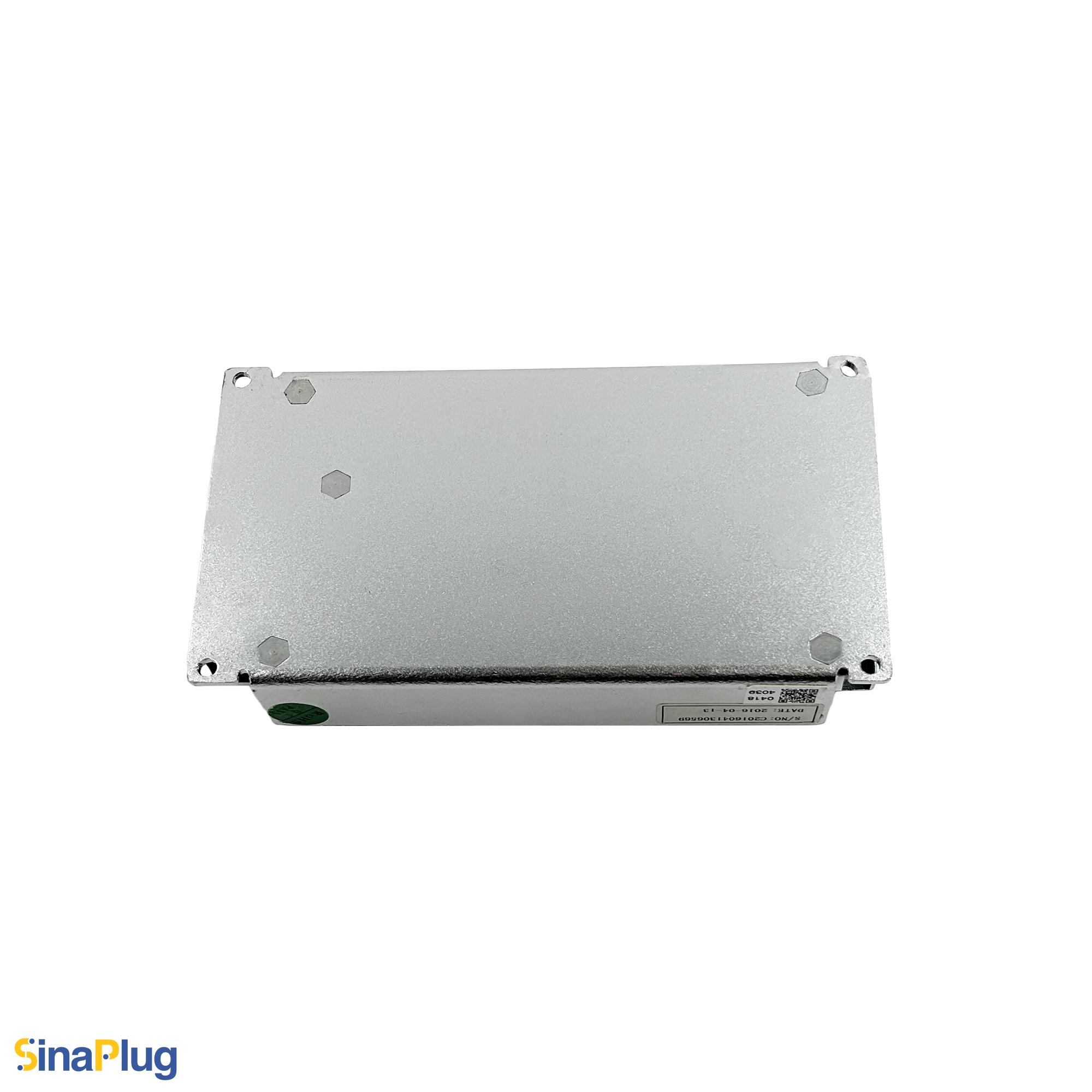

GOLDPOWER GPAD201M5-1C Switching Power Supply (4.6V, 30A)
$63.00
22 in stock
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The Gold Power GPAD201M5-1C (also known as: GPAD201M5 1C) enclosed power supply is ideal for industrial applications, radio equipment, A/V and LED equipment that require constant and dependable performance, thanks to its excellent ±1% load regulation.
This AC/DC, compact GPAD201M5-1C converts wide-ranging 100-240 VAC inputs to 4.6V output channels with an adjustable 4.2-5V range, delivering up to 30A. It provides a rated 200W output power with a 0.95 Power Factor that reduces the impact on the electrical grid and improves efficiency for optimal performance.
The Gold Power GPAD201M5-1C’s 88% efficiency ensures low thermal production, an impressive 200K hours MTBF, and long-term operation in significant situations. It will operate on natural air convection without a cooling fan at temperatures ranging from -25°C to +80°C.
It is certified by UL60950, IEC 61000-4, GB 4943, IEC60529, and EN 55022, along with other advanced features including overload and short circuit protections (with automatic recovery), over-voltage protections, and over-temperature protections, enabling it to meet international standards.
Key Features of GOLDPOWER GPAD201M5-1C Power Supply
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100 – 240VAC
- Adjustable Output Voltage: Yes (4.2 – 5V)
- Output Voltage: 4.6V
- Output Rated Current: 30A
- Output Rated Power: 200W
- Protections: Over Temperature Protection, Over Voltage Protection, Over Current Protection, Short Circuit Protection
- Dimensions (L*W*H): 145mm * 78mm * 26mm
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 5.71 × 3.07 × 1.02 in |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤2.5A |
| Efficiency | 88% |
| Output Voltage | 4.6V |
| Adjustable Output Voltage | Yes |
| Output Rated Current | 30A |
| Output Rated Power | 138W |
| Max Ripple And Noise | 200 mVp-p |
| Output Voltage Tolerance | 5% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | No |
| Working Temperature Range | -25 to +80 °C |
| Working Humidity Range | 5-95% |
| Storage Temperature Range | -25 to +100 °C |
| Standard Certification | EN 55022, GB 4943, IEC 60529, IEC 61000-3-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, UL60950 |
