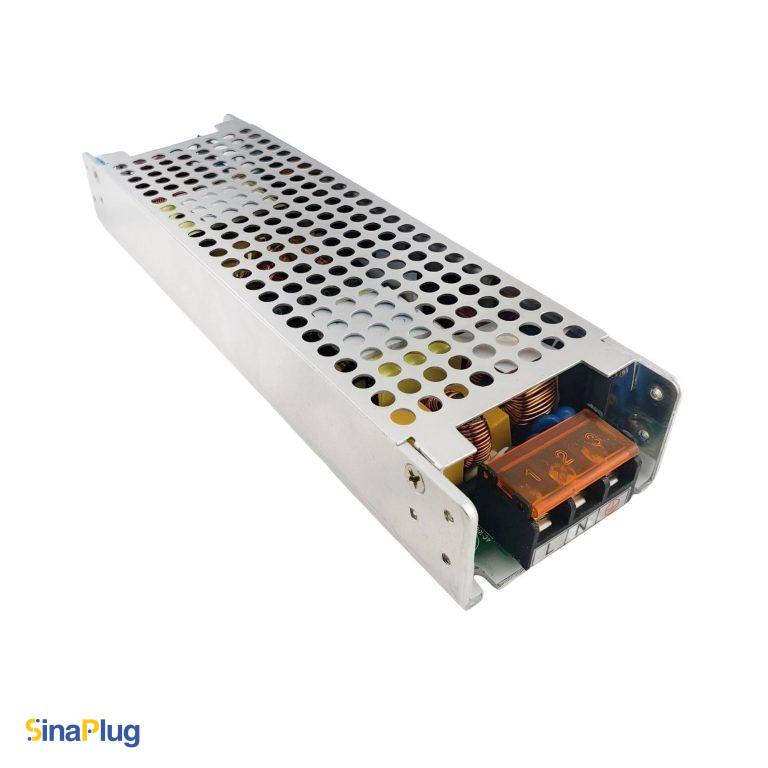

G-ENERGY JPS200P(5.0V) Switching Power Supply (5V, 40A)
$60.00
17 in stock
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The G-energy JPS200P(5.0V) (also known as JPS200P (5.0V) or JPS200P 5V 40A) is a remarkable, enclosed power supply that converts full-range 100-240 VAC inputs, to consistent output channels at 5V with an adjustable 4.85-5.15V, delivering up to 40A. It provides a rated 200W output power with an excellent 89% efficiency for optimal performance.
The compact JPS200P(5.0V) is suitable for use in A/V and LED equipment, as well as industrial applications requiring consistent and dependable performance. It enables long-term operation by natural air convection (suggested to be mounted on a heatsink) and operates smoothly at temperatures ranging from -30°C to +60°C.
In addition to the advanced protections such as overload, short circuit (with auto recovery), and under-voltage protections, it is certified by GB4943, IEC 61000-3-2/3, EN55024, and EN55022 allows the equipment to meet the worldwide energy requirement.
Key Features of JPS200P(5.0V)
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100 – 240VAC
- Adjustable Output Voltage: Yes (4.85 – 5.15V)
- Output Voltage: 5V
- Output Rated Current: 40A
- Output Rated Power: 200W
- Protections: Under Voltage Protection, Over Current Protection, Short Circuit Protection
- Dimensions (L*W*H): 208mm * 60mm * 31mm
| Weight | 1.32 lbs |
|---|---|
| Dimensions | 8.19 × 2.36 × 1.22 in |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤2.5A |
| Efficiency | 89% |
| Output Voltage | 5V |
| Adjustable Output Voltage | Yes |
| Output Rated Current | 40A |
| Output Rated Power | 200W |
| Max Ripple And Noise | 150 mVp-p |
| Output Voltage Tolerance | 2% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | No |
| Over Current Protection | Yes |
| Over Voltage Protection | No |
| Under Voltage Protection | Yes |
| Working Temperature Range | -30 to +60 °C |
| Working Humidity Range | 10-60% |
| Storage Temperature Range | -40 to +80 °C |
| Standard Certification | EN 55022, EN 55024, GB/T2423.22, GB4943, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-29, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 |
