G-Energy  |  SKU: PSU-GEN-JPS200P5Vx-0

G-ENERGY JPS200P(5.0V) Switching Power Supply (5V, 40A)

$60.00 $70.00

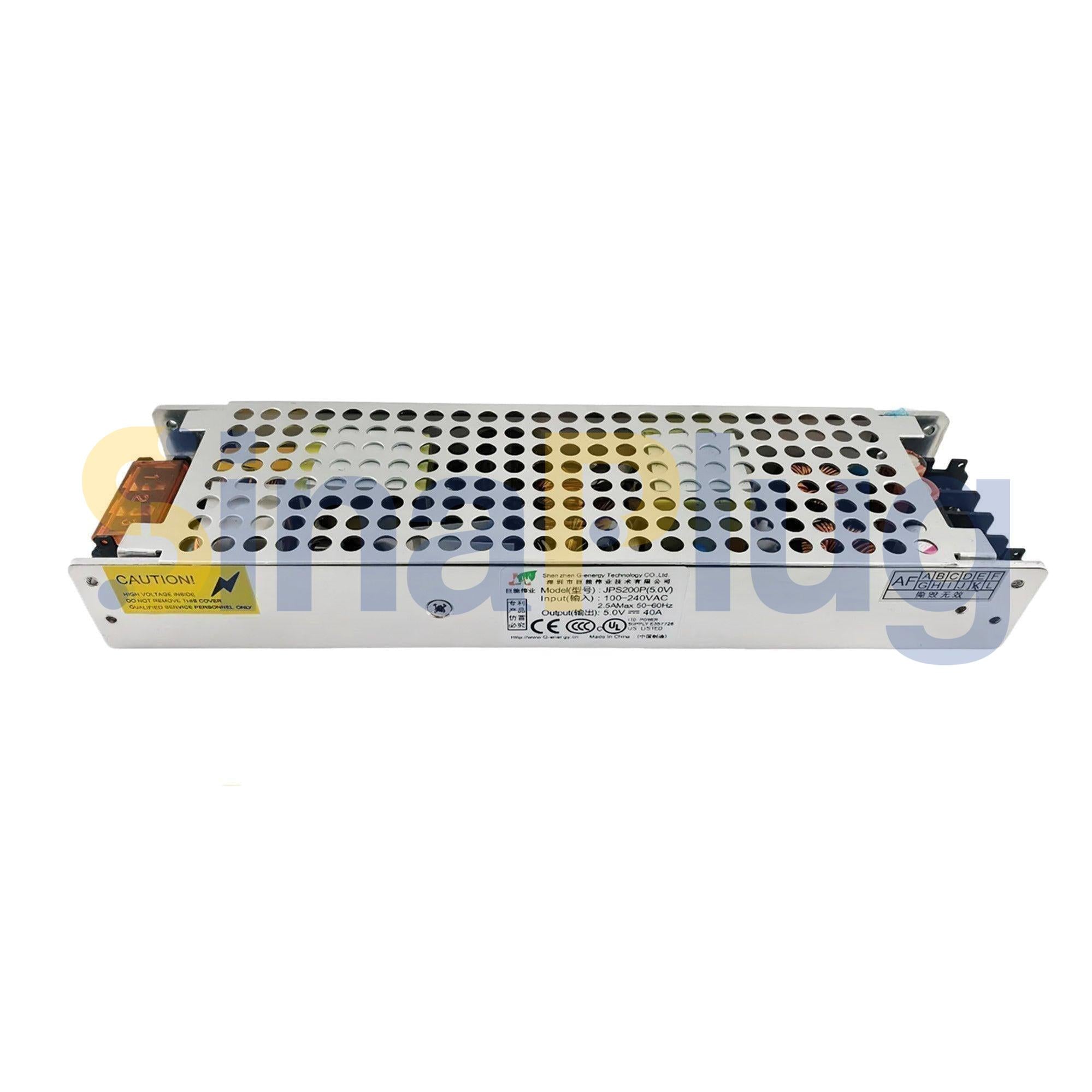

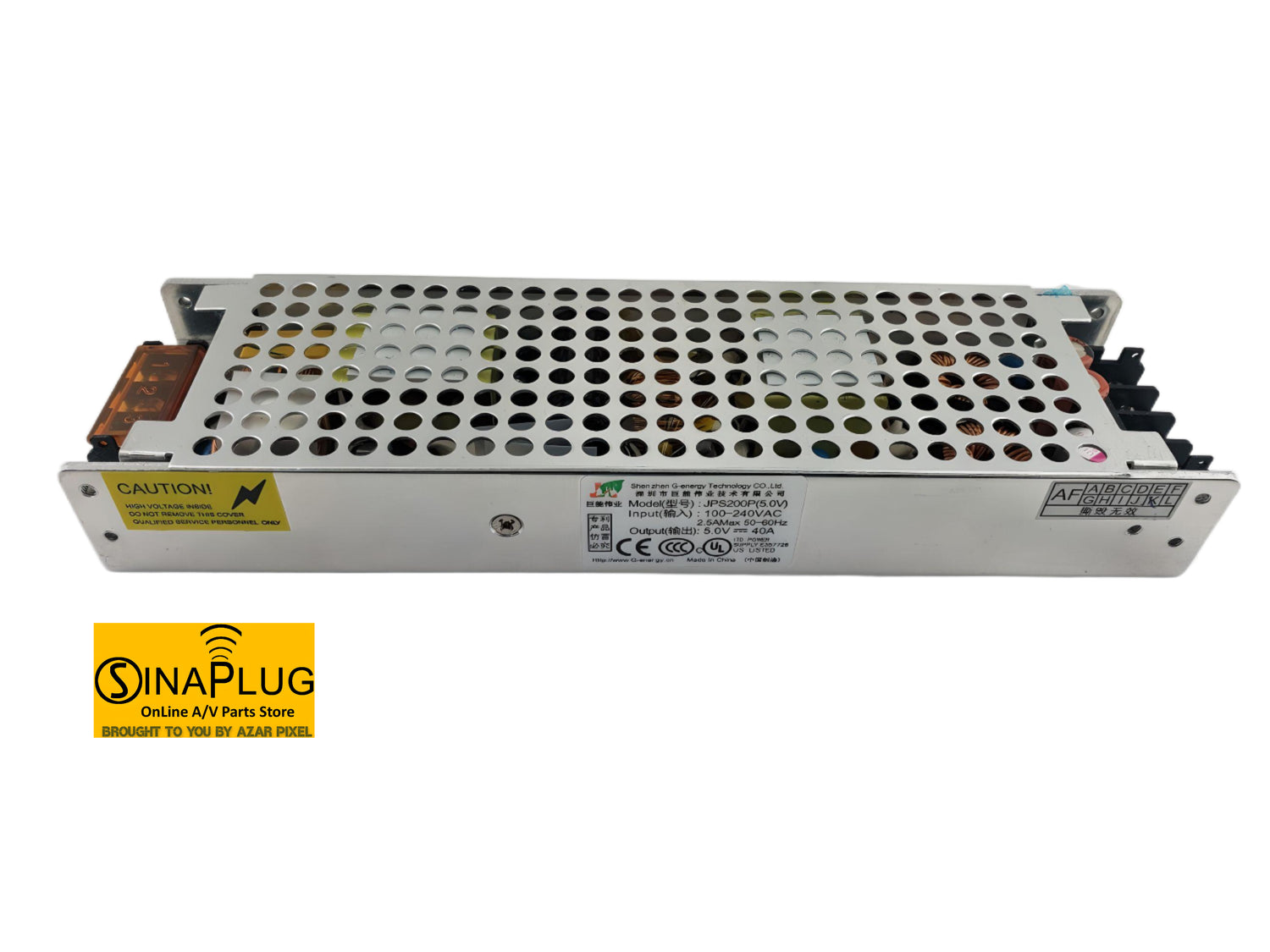

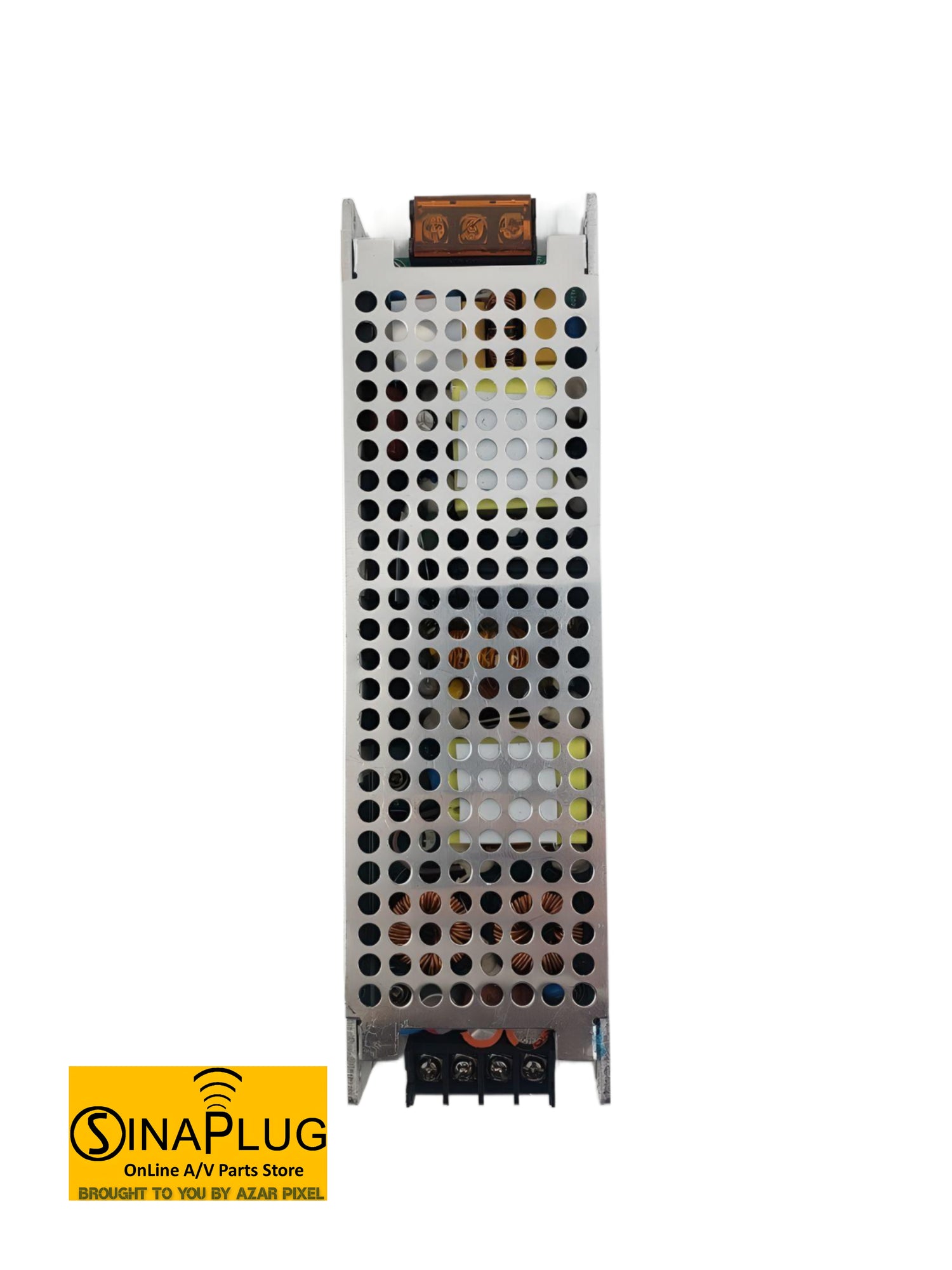

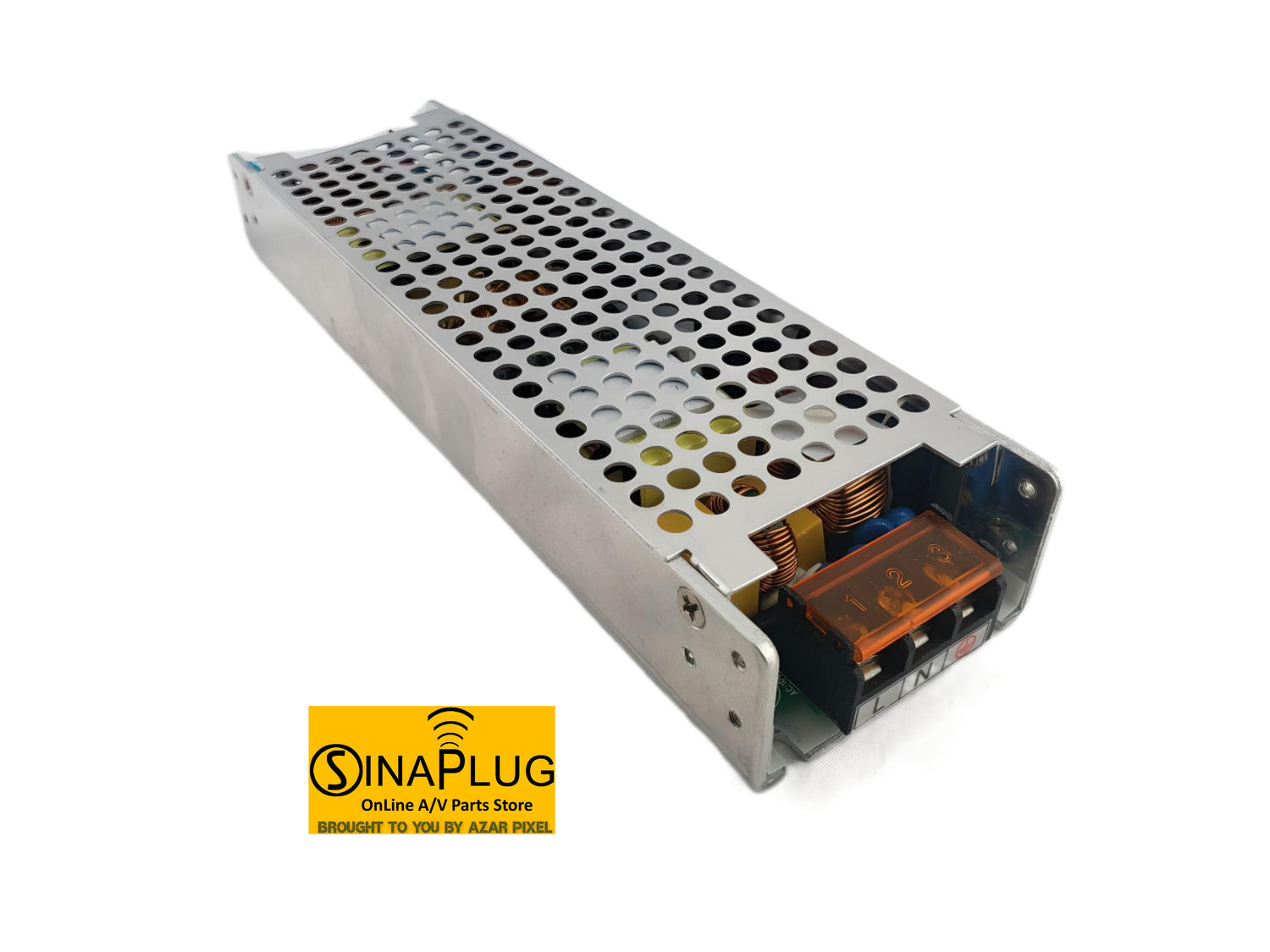

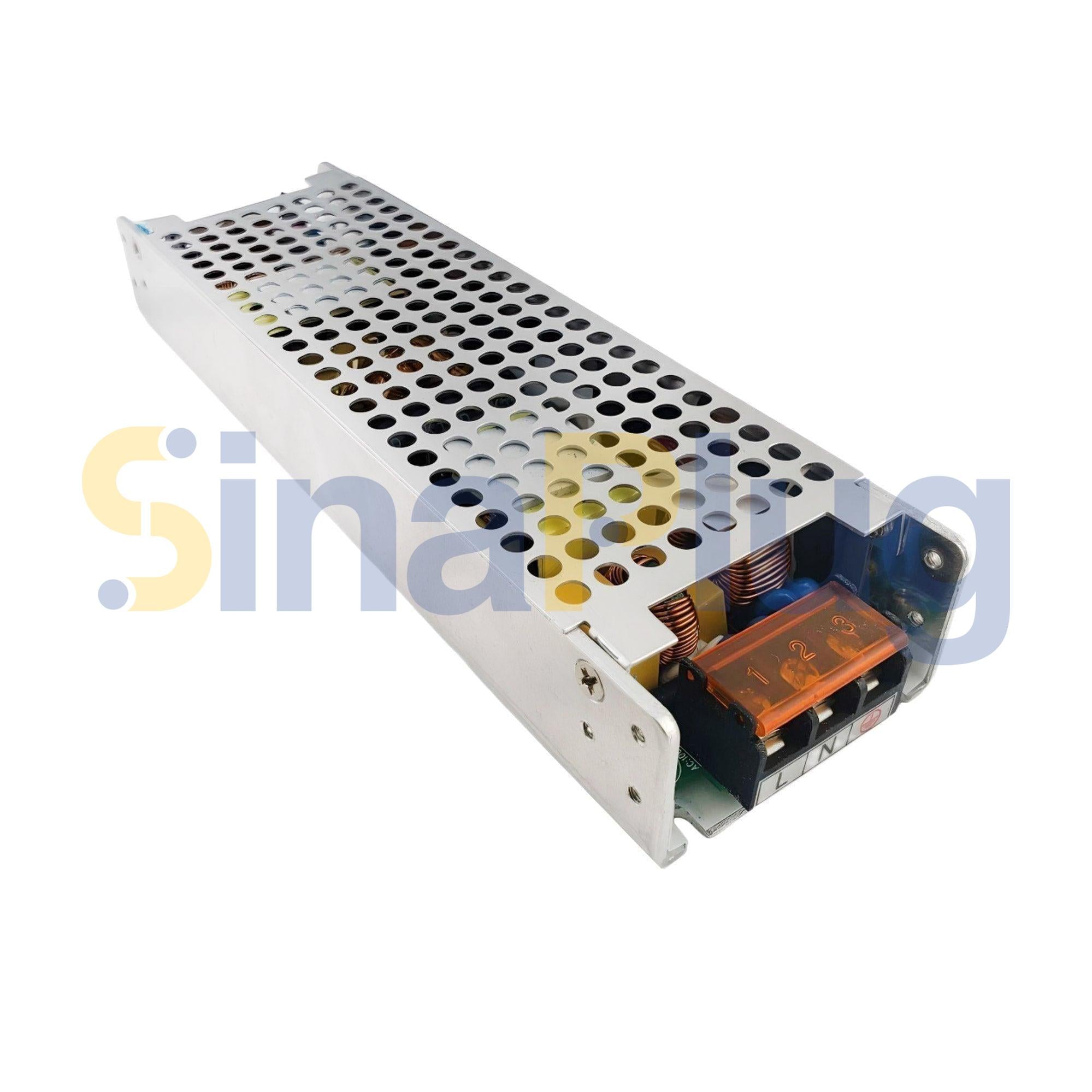

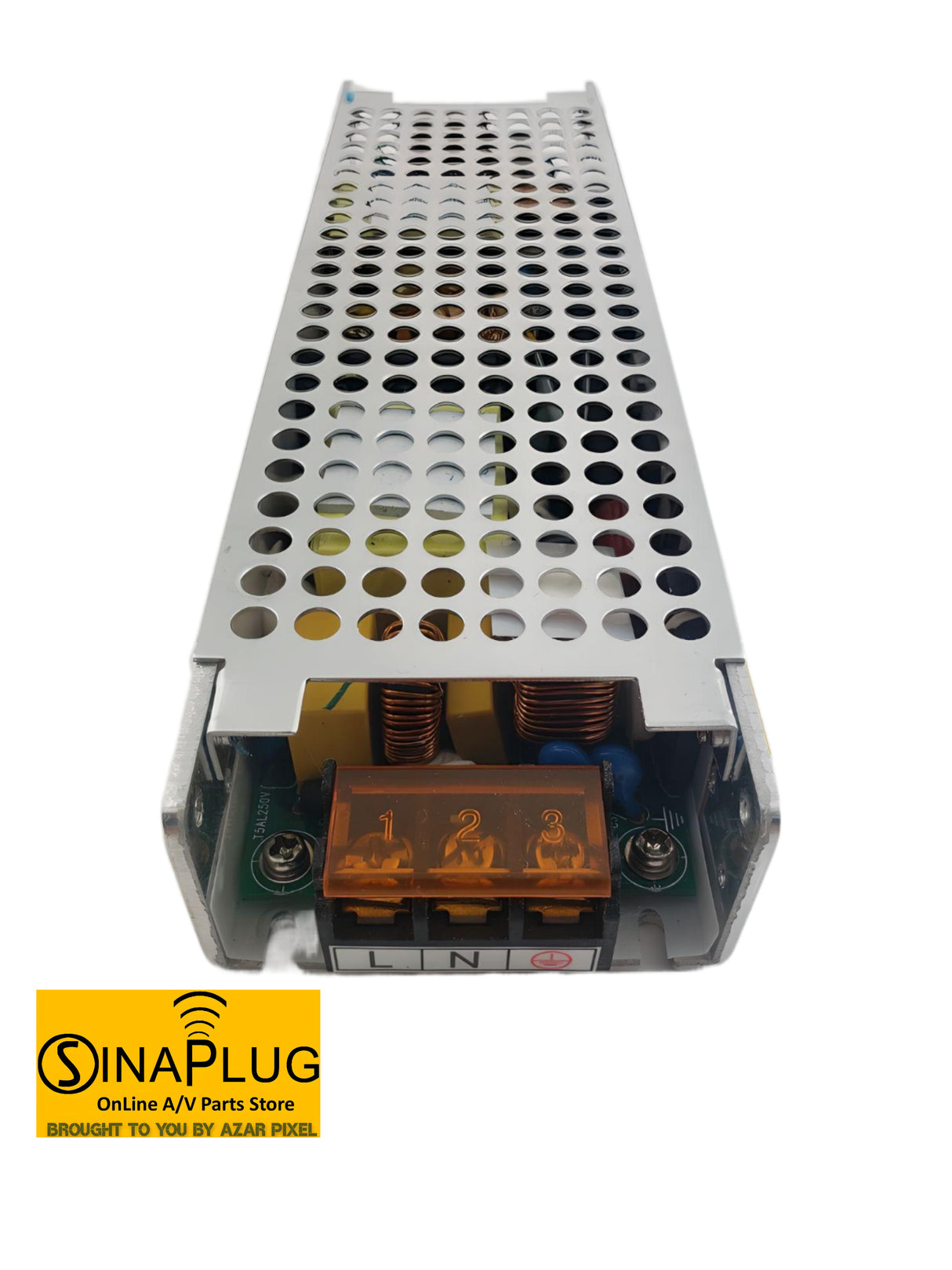

The G-energy JPS200P(5.0V) (also known as JPS200P (5.0V) or JPS200P 5V 40A) is a remarkable, enclosed power supply that converts full-range 100-240 VAC inputs, to consistent output channels at 5V with an adjustable 4.85-5.15V, delivering up to 40A. It provides a rated 200W output power with an excellent 89% efficiency for optimal performance.

The compact JPS200P(5.0V) is suitable for use in A/V and LED equipment, as well as industrial applications requiring consistent and dependable performance. It enables long-term operation by natural air convection (suggested to be mounted on a heatsink) and operates smoothly at temperatures ranging from -30°C to +60°C.

In addition to the advanced protections such as overload, short circuit (with auto recovery), and under-voltage protections, it is certified by GB4943, IEC 61000-3-2/3, EN55024, and EN55022 allows the equipment to meet the worldwide energy requirement.

Key Features of JPS200P(5.0V)

  • Type of Power Supply: AC to DC
  • Packaging: Enclosed
  • Input Voltage Range: 100 – 240VAC
  • Adjustable Output Voltage: Yes (4.85 - 5.15V)
  • Output Voltage: 5V
  • Output Rated Current: 40A
  • Output Rated Power: 200W
  • Protections: Under Voltage Protection, Over Current Protection, Short Circuit Protection
  • Dimensions (L*W*H): 208mm * 60mm * 31mm
