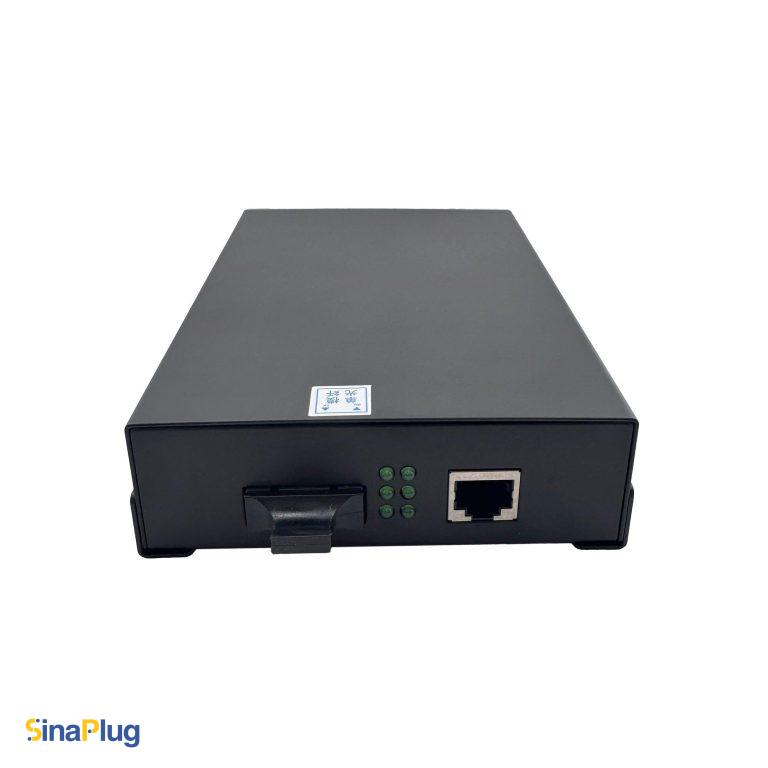

Linsn SC801 Single Mode Optical Fiber Converter

A popular and widely used solution, the Linsn SC801 Single Mode Optical Fiber Converter, supplied by Azar Pixel, provides reliable and convenient long-distance data transmission for LED display systems over fiber optic media with high-speed signal transfer rates.

This compact converter supports high-bandwidth single-mode data transmission up to 20 kilometers (10 km on 9/125 µm fiber, 20 km on 5/125 µm fiber) using 1310 nm wavelength light beams, ensuring seamless noise-free communication for LED screens. With gigabit-level bandwidth (≥1 Gbps), it delivers stable performance, which is vital for high-resolution remote displays.

Whether managing a large LED video wall, a small display, or working with any kind of controller unit (such as sending cards, media players, processors, etc.) from any brand (NovaStar, Colorlight, Linsn, etc.), thanks to its international standard connections, the SC801 pair guarantees easy, high-rated data transmission over fiber optic cables from the control unit to the target receiving card of the panel, and an SC fiber connector and RJ45 Ethernet port ensure compatibility with standard LED systems.

This plug-and-play accessory is an updated version of Linsn SC801 multi-Mode (which only supports up to 500m transmission distance) and benefits from electromagnetic isolation for stable transmission in industrial environments.

Please Note: Regarding its operating scenario, each user requires two of these converters to establish a single connection line (one acting as the local converter and the other functioning as the remote adapter). Therefore, it is highly recommended to place orders in pairs.
