Linsn X100 Video Processor
$175.50
Out of stock
Can't find what you need or is it out of stock? Contact us!
We'll source whatever you need according to your timeline and provide our most competitive offer.
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

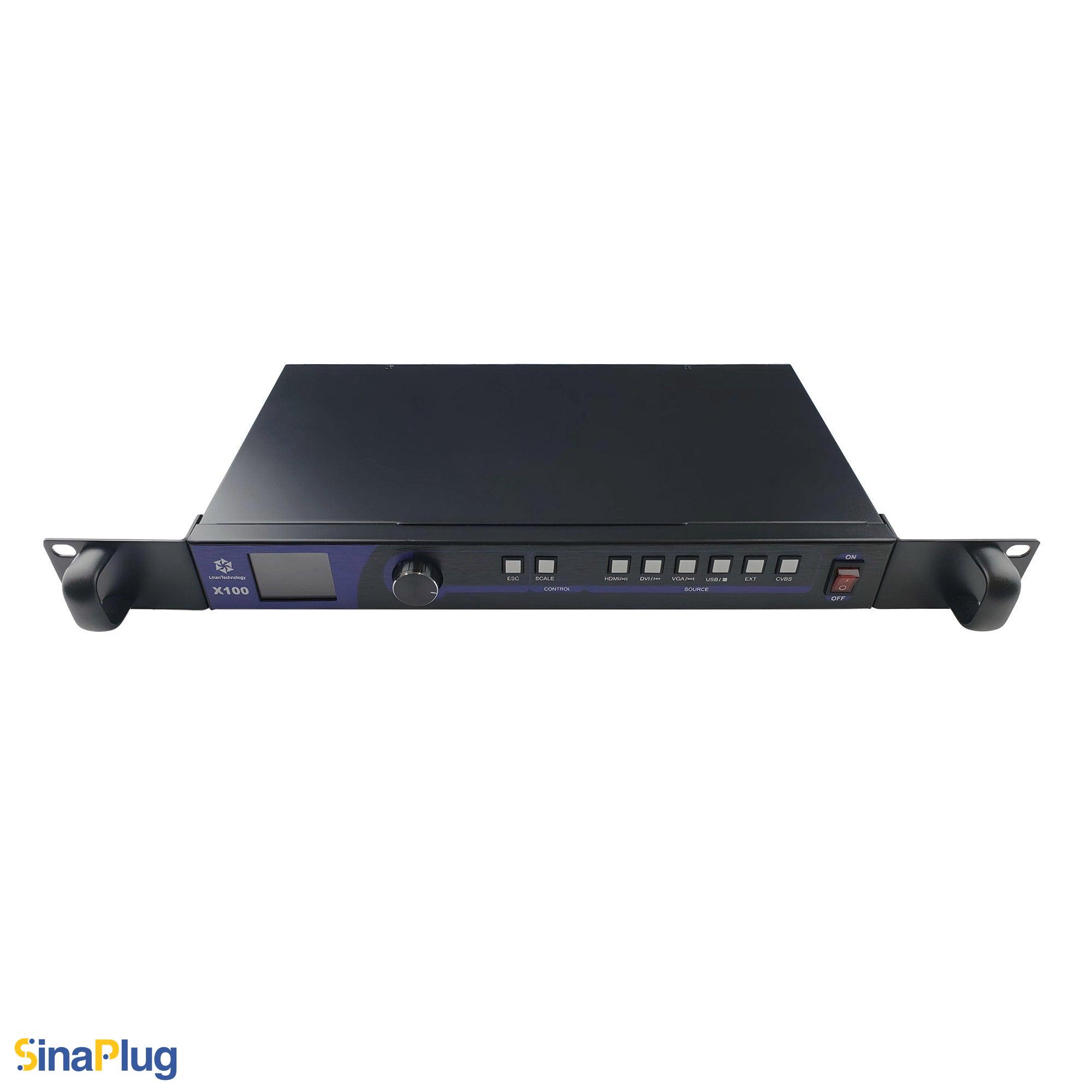

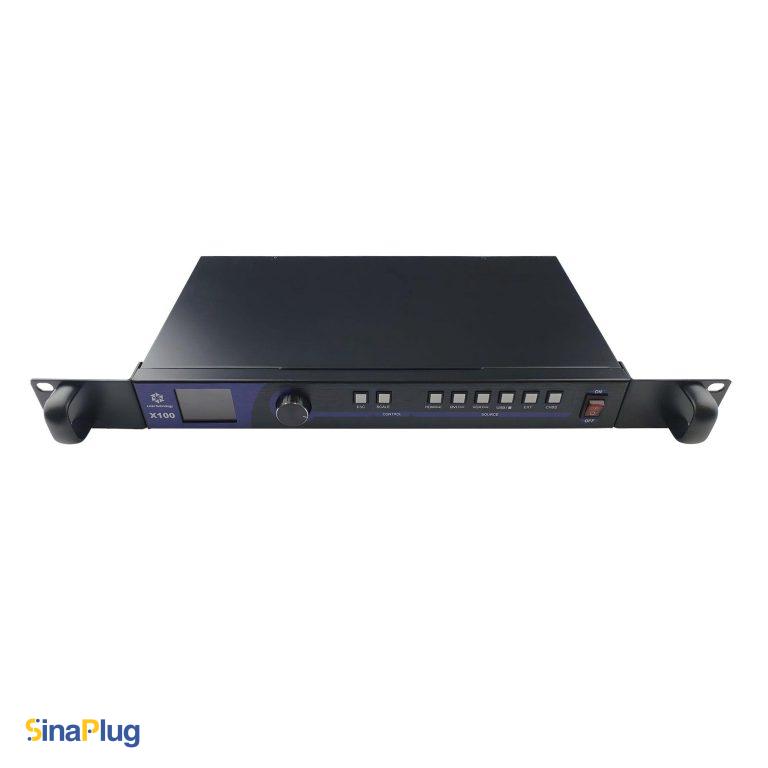

The Linsn X100 is an All-in-one LED display controller and video processor listed on SinaPlug. with support of USB drive plug and play, it stands as a proper solution for LED display applications. It supports various signal interfaces and many practical functions, and it can be utilized quickly and easily to configure small to medium-sized fixed LED displays.

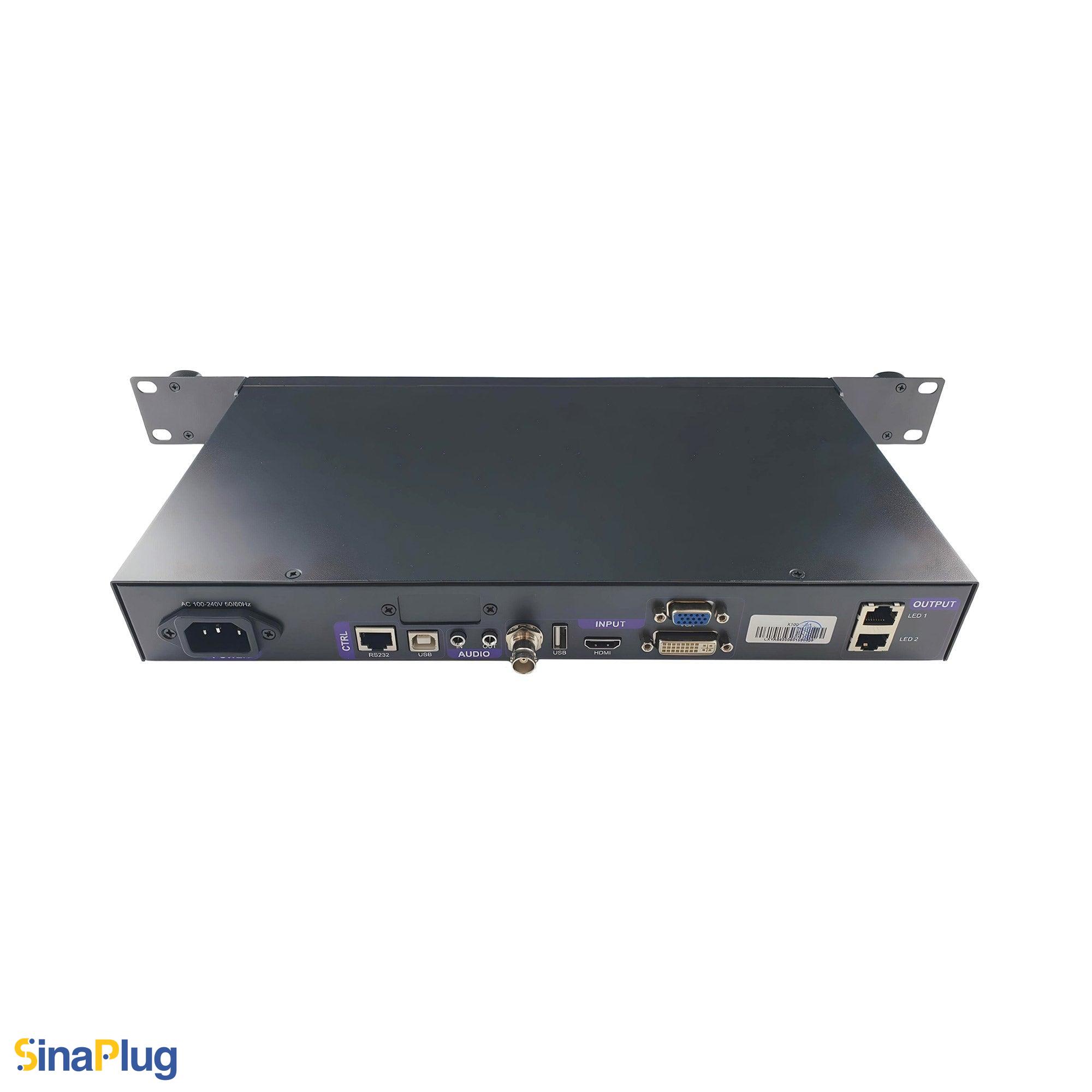

Apart from a USB flash drive interface that supports quick video playback, it provides secure content transmission through VGA, DVI, CVBS, and HDMI 1.3 interfaces with a maximum input resolution of 1920×1080@60Hz. This controller has a USB Type-B and RS232 interface that connects to the control PC and allows it to communicate with LEDSET software for setup and upgrade, making it easier to handle complicated LED displays.
The X100 is a great choice since it features two LED outputs with a maximum loading capacity of 1,300,000 pixels, which creates an amazing visual experience. It operates properly in aggressive ambient temperatures between -20°C and +70°C when provided by a 100-240VAC input voltage, consuming maximum power of 15W.
An LED display system can incorporate audio impulses thanks to the audio input, additionally, the controller can supply audio signals to external audio systems, including speakers or amplifiers, thanks to the audio output interface
While the X100 is a cost-effective and practical solution, the newer Linsn X102 offers enhanced features such as dual HDMI inputs for greater flexibility, a USB Type-C port and 100Mbps network interface for easier configuration, video source hot-backup, brightness adjustment, and the ability to save up to 100 user-defined scenes. These improvements make the X102 a better investment for users seeking more advanced functionality and simplified management.
Key Features of X100
Loading Capacity
- Up to 1,300,000 pixels
Input
- 1x USB flash drive Plug-and-Play (For video playback)
- 1x HDMI 1.3 (maximum resolution: 1920×1080@60Hz)
- 1x DVI (maximum resolution: 1920×1080@60Hz)
- 1x VGA (maximum resolution: 1920×1080@60Hz)
- 1x CVBS supporting PAL/NTSC video input
- 1x Audio input
Output
- 2x RJ45 LED outputs
- 1x 3.5mm Audio output
Control
- 1x RS232 port (connecting to PC)
- 1x USB Type-B port (connecting to PC for configuration or firmware update)
Decoding
- Supports following file formats by involving USB playback function:
- Image: JPG, JPEG, BMP, PNG
- Video: MP4, MPG, AVI, MOV, RMVB
Advanced Features
- Full-screen, and Pixel-to-Pixel Scaling
- Support to create user scenes and called after saving
- USB flash drive plug and play
- Audio input and output
Dimensions (L*W*H)
- 483mm * 241mm * 44.5mm
| Weight | 7.029 lbs |
|---|---|
| Dimensions | 19.88 × 14.17 × 5.51 in |
| Max Input Resolution | 1920×1080@60Hz |
| Supported Resolutions For Input | 1920×1080@60Hz |
| Pixel Capacity | 1.300.000 |
| Max Width Resolution | 1920 |
| Max Height Resolution | 1080 |
| DVI In | 1 |
| HDMI In | 1 |
| VGA In | 1 |
| CVBS | 1 |
| Ethernet LED Out | 2 |
| RS232 | 1 |
| Control USB Port | 1 |
| Audio In | 1 |
| Audio Out | 1 |
| Cascading | No |
| Net Weight Kg | 2.1 |
| Input Voltage Range | 100-240VAC |
| Max Power Consumption | 15W |
| Working Temperature Range | -20 to +70 °C |
| USB Playback | Supported |
| Image Decoding | JPG, JPEG, BMP, PNG |
| Video Decoding | MP4, MPG, AVI, MOV, RMVB |
| Others | Audio Input, Audio Output, Full-Screen Scaling, Pixel-to-Pixel Scaling, U-Disk Playback |
