Linsn  |  SKU: SEN-TS802DXX-01

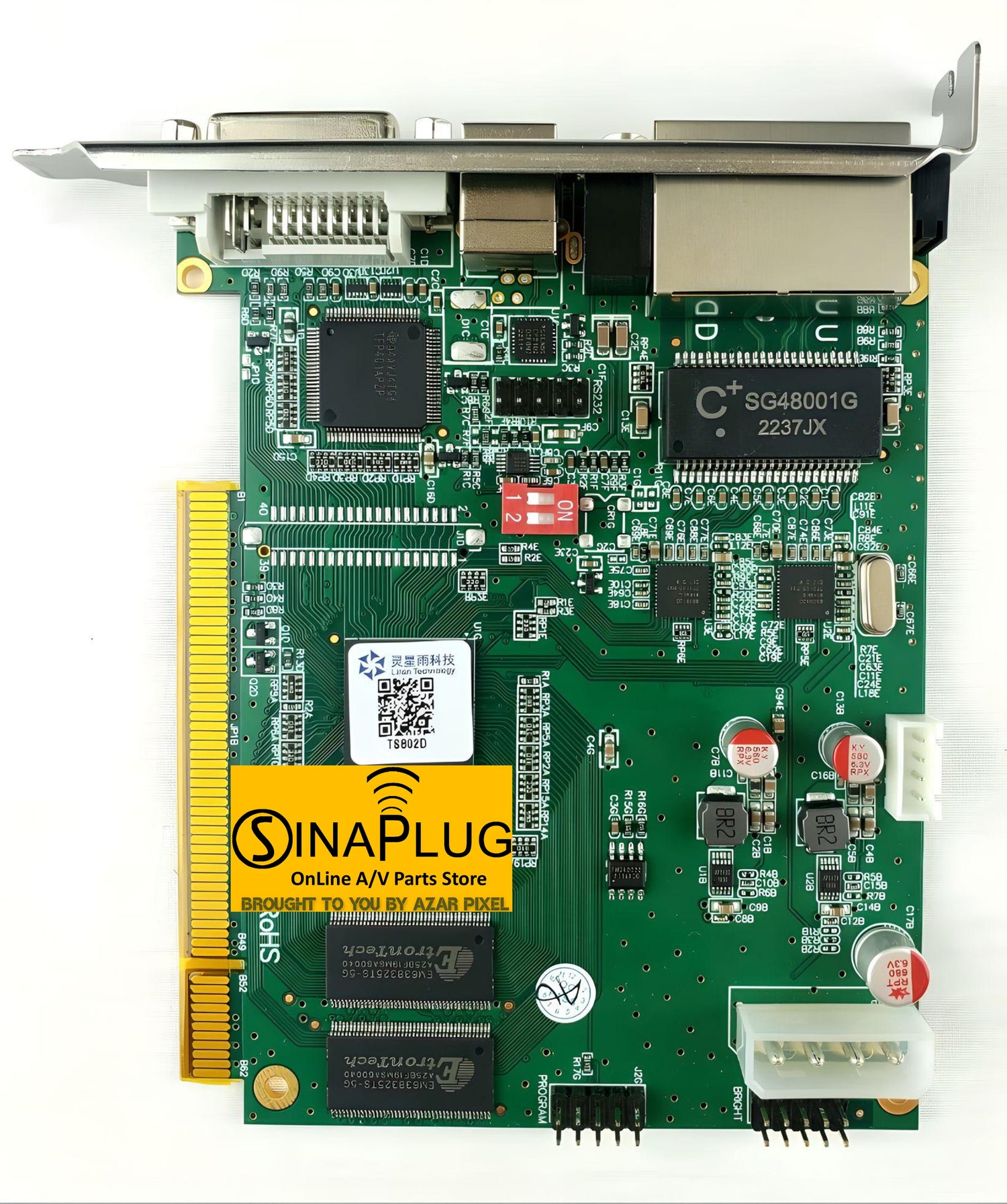

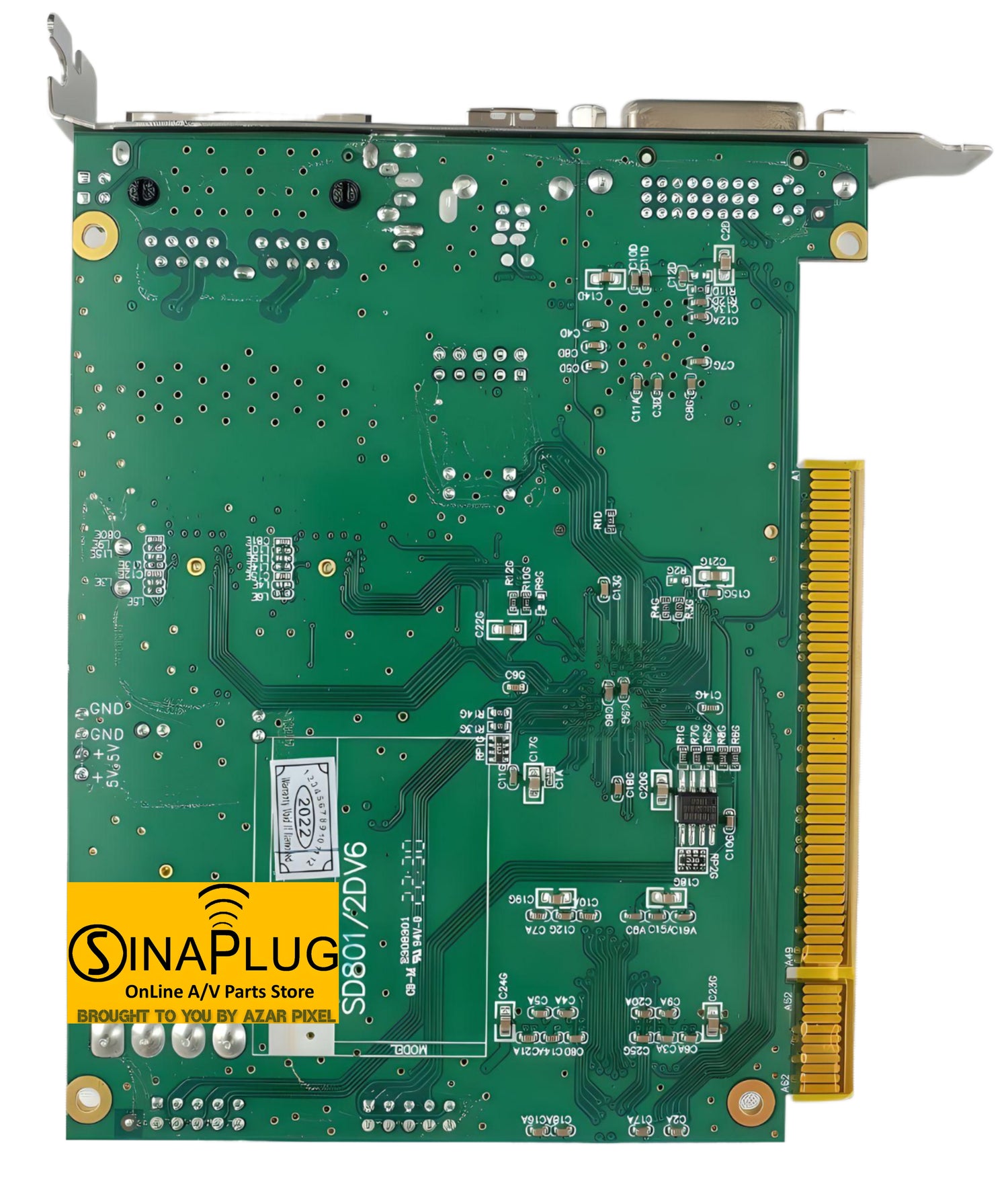

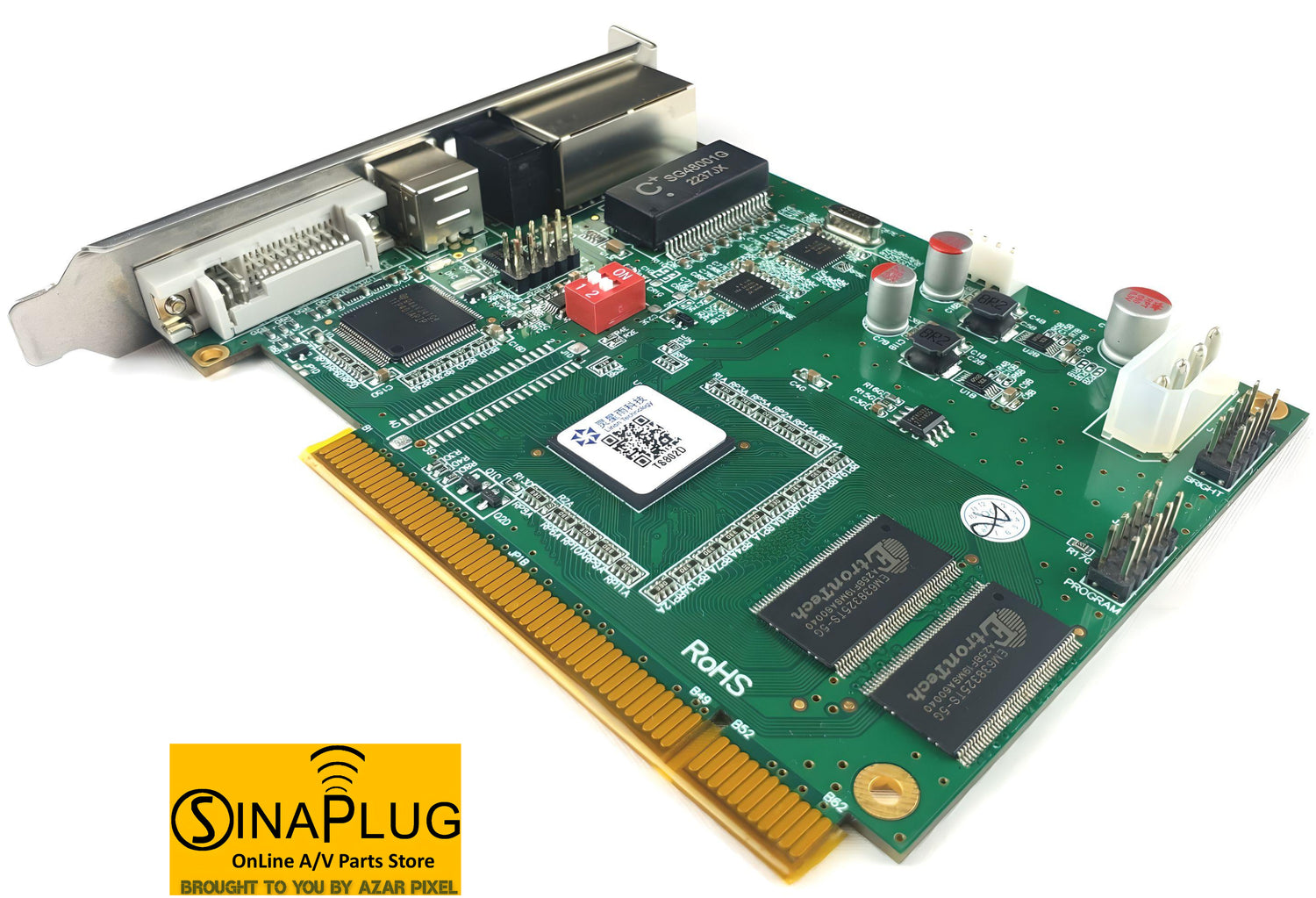

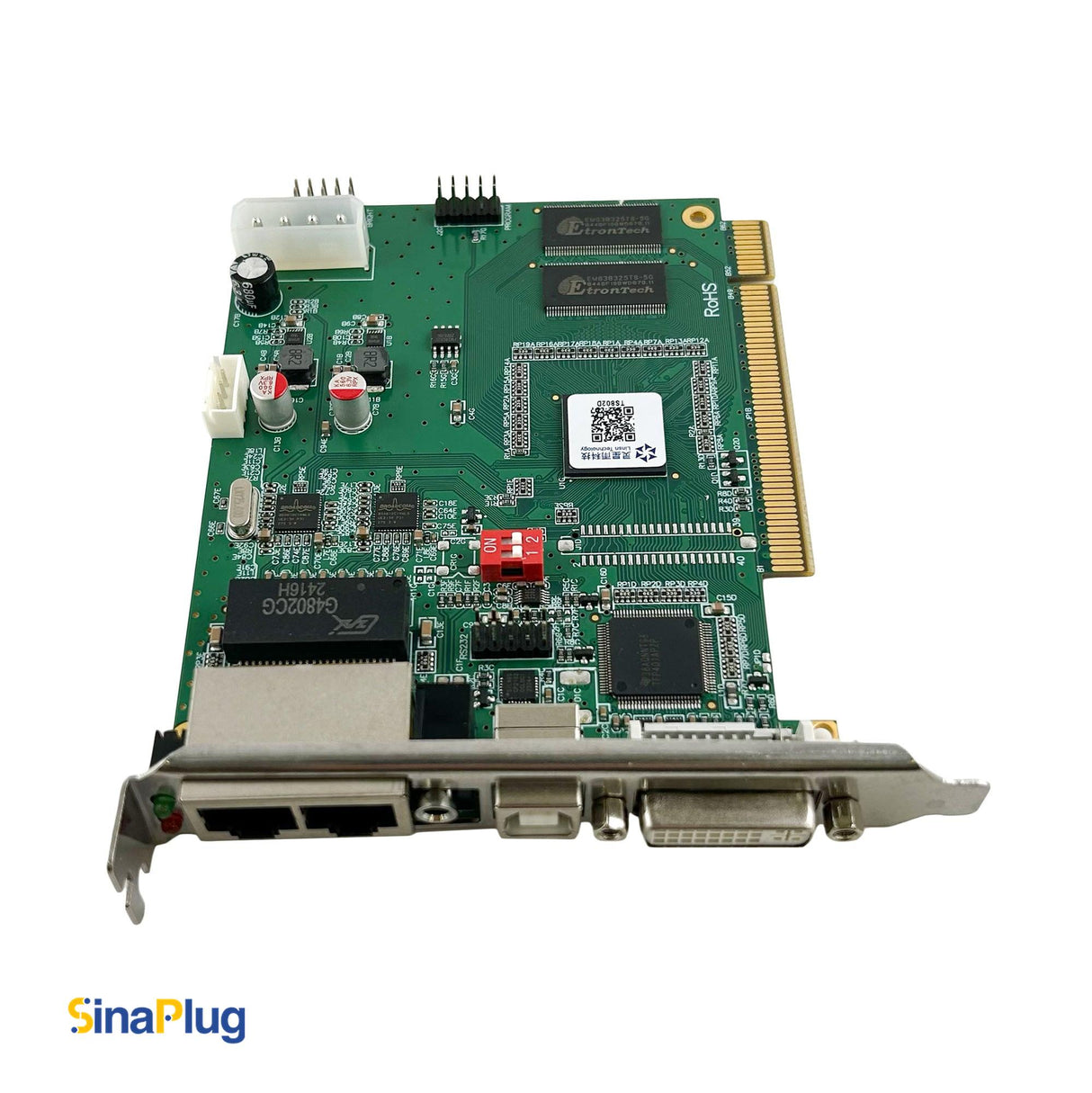

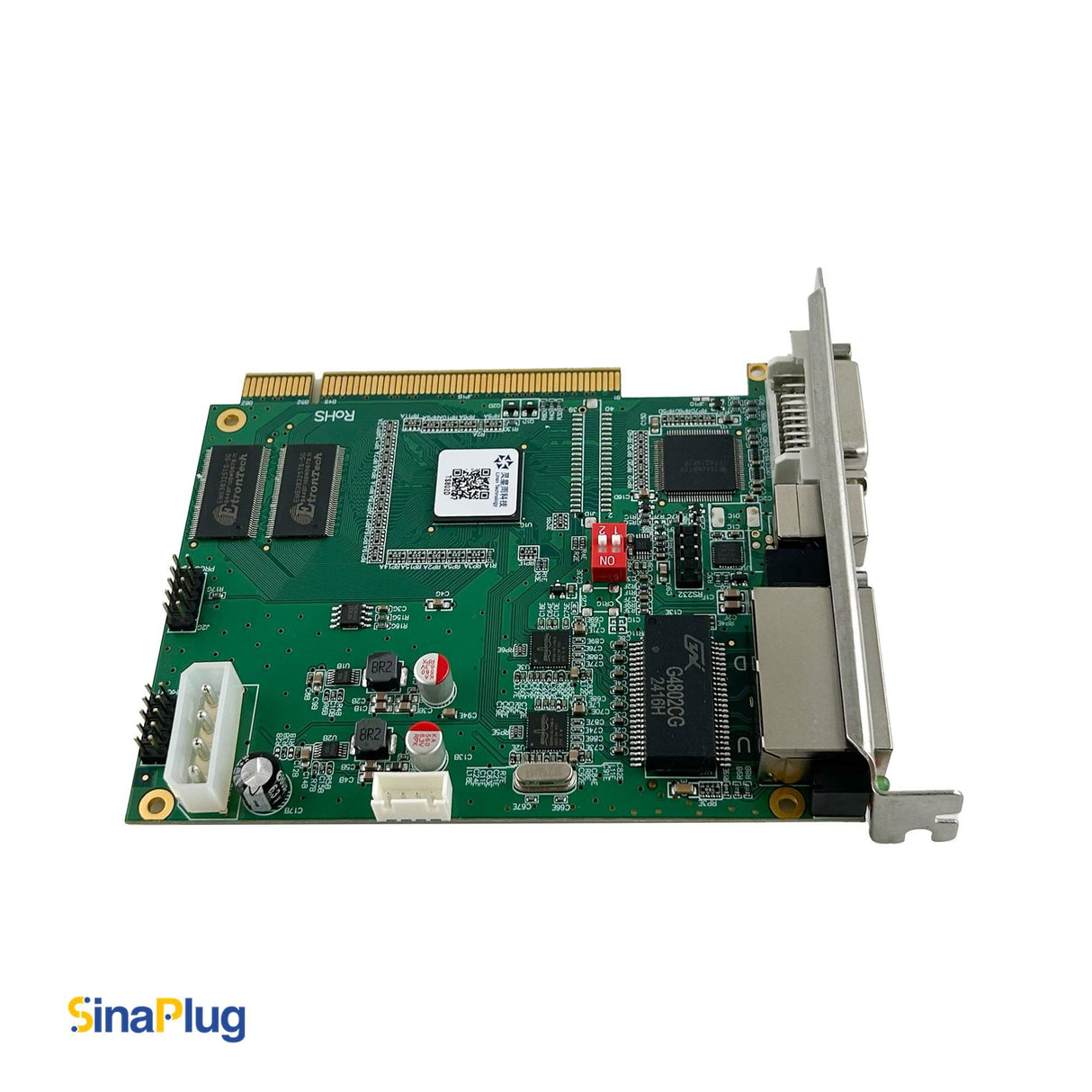

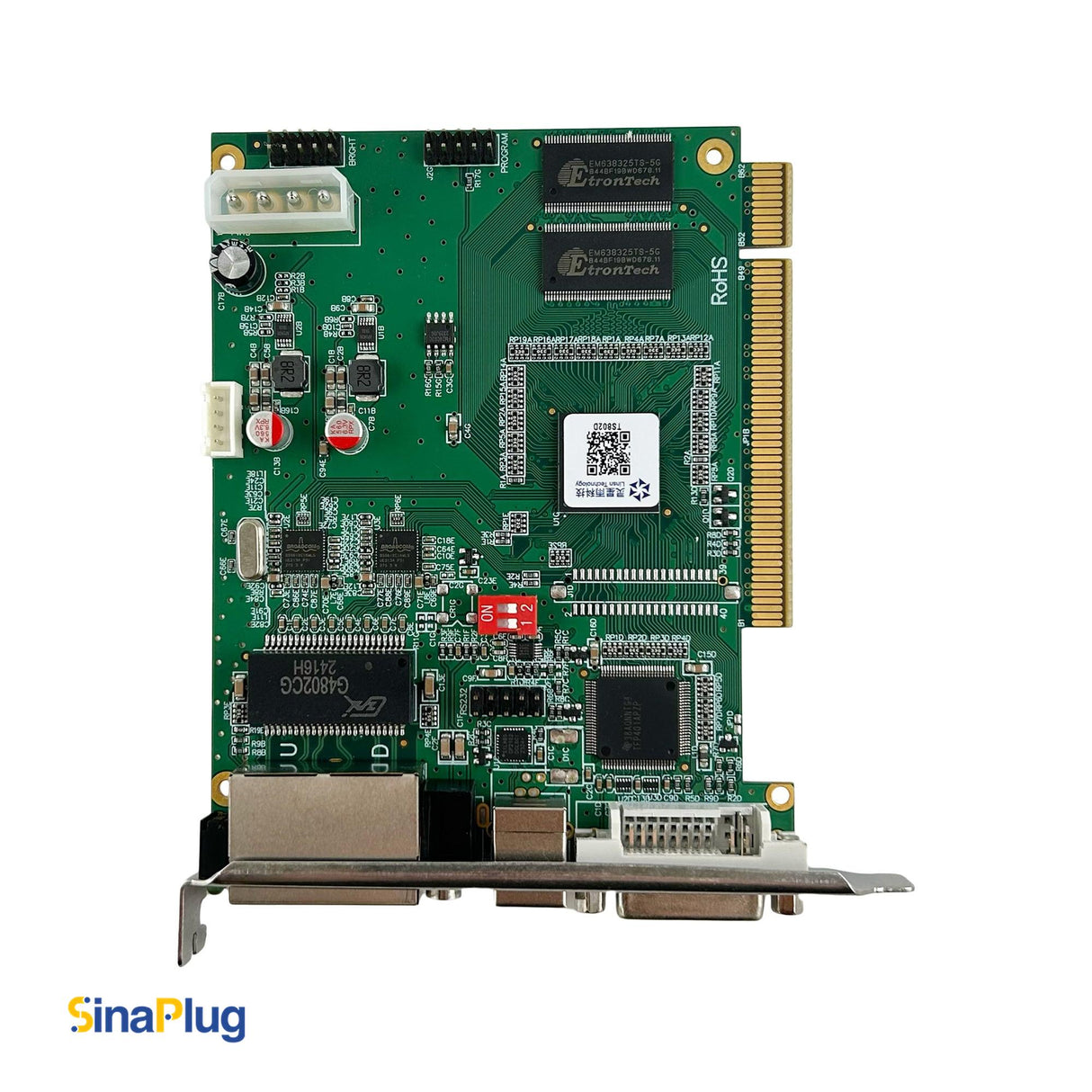

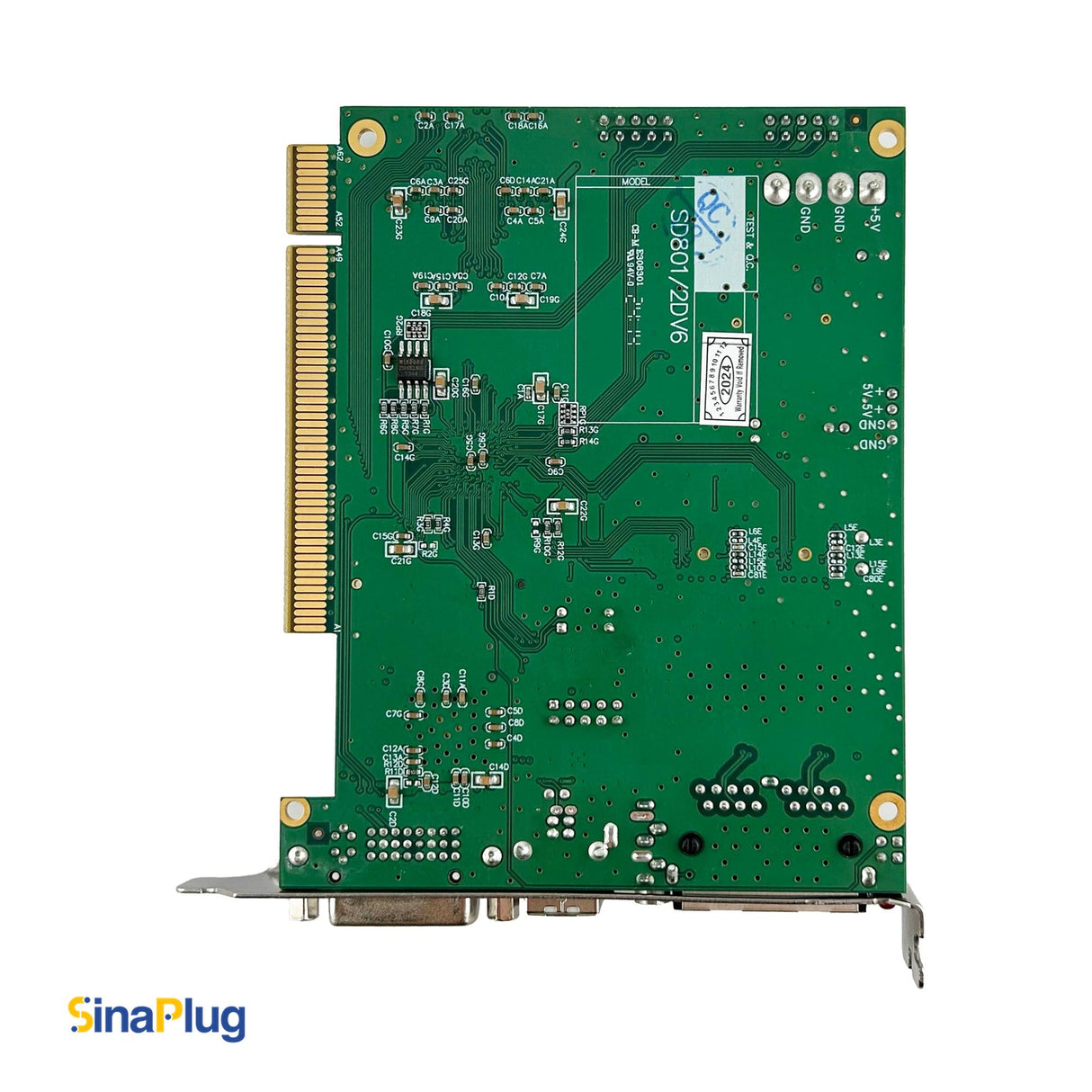

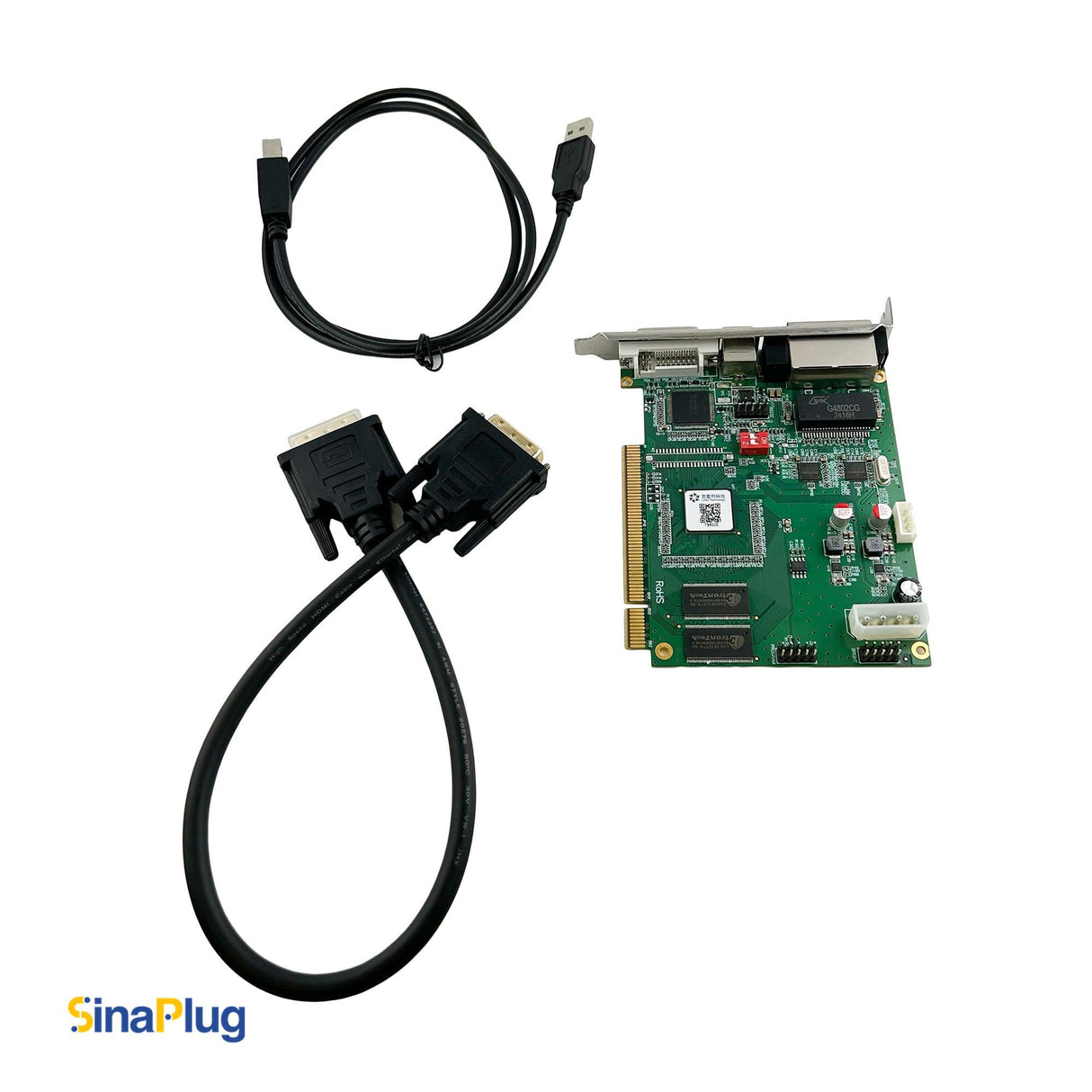

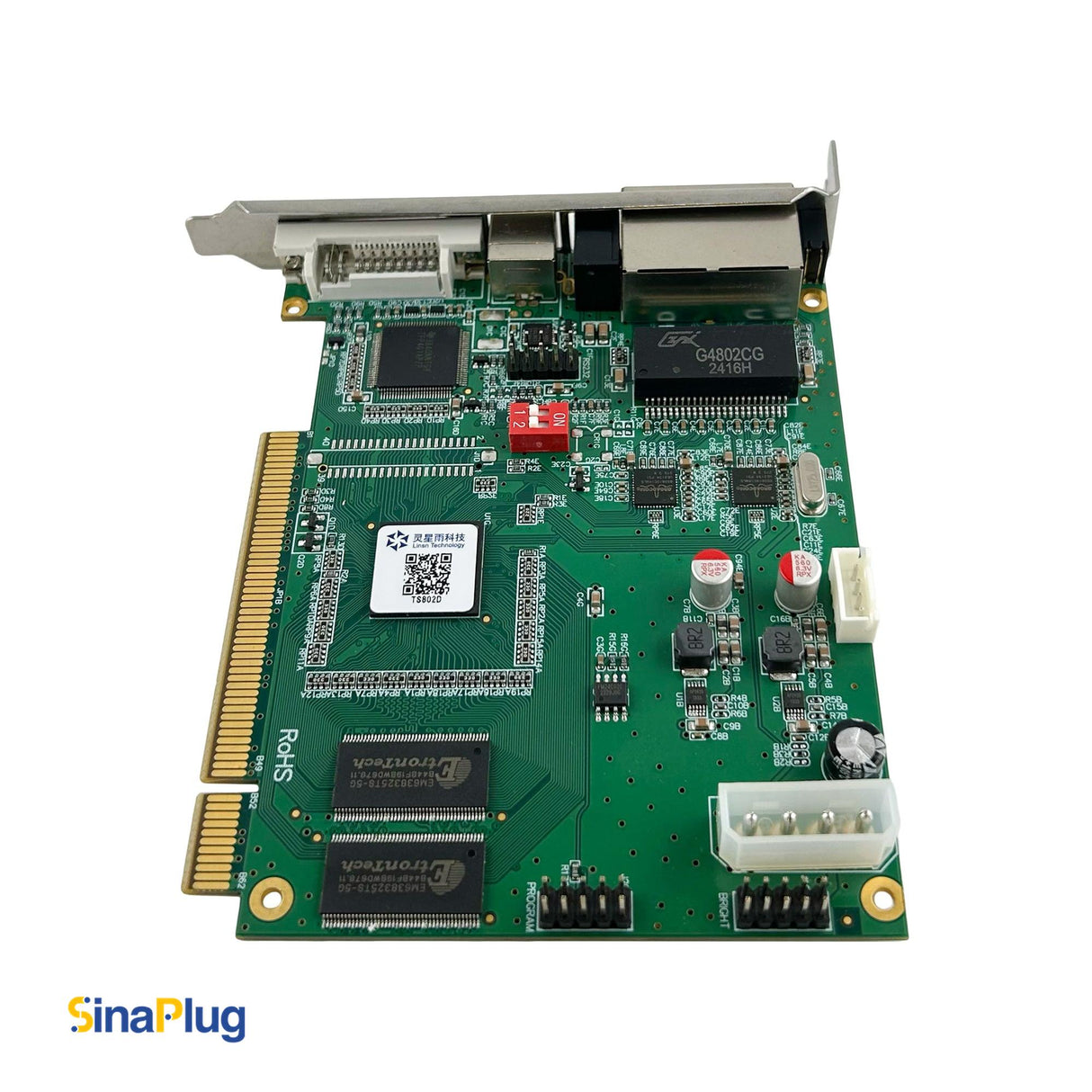

Linsn TS802D sending card



  • Full-color sending card supports full-color, dual-color and single color led display.TS802D sending card max supports 2048*640
  • Supporting display mode: 640*480 800*600 1024*768 1280*768 1280*800 1280*1024 1440*900 1440*1080 1600*1200 1680*1050 1728*1296 1920*1080 1920*1200 2048*1152 2048*1280
  • Audio Transmission Function802 sending card sends audio data using network cable, and Function board outputs audio signals to the display. Double 24bits 64KHZ hifi digital signal to analog signal or analog signal to digital signal, making display have the perfect video effect.
  • Cascade functionThrough the dig switch on TS802D sending card, several TS802D sending cards can be easily cascaded to support a super large led display
  • Sending card U/D port flexibility for carrying half width or half height For example, TS801 can max ; support 1280*1024 with two portsA single network output port supports 1280*512 or 640*1024 ;Sending card rotation functionIn Sender setting, sending card has 0, 90, 180, 270 degree rotation function ;Sending card zoom in/out functionIn Sender setting, the ratio of width and height can be set to realize zoom in or zoom out
