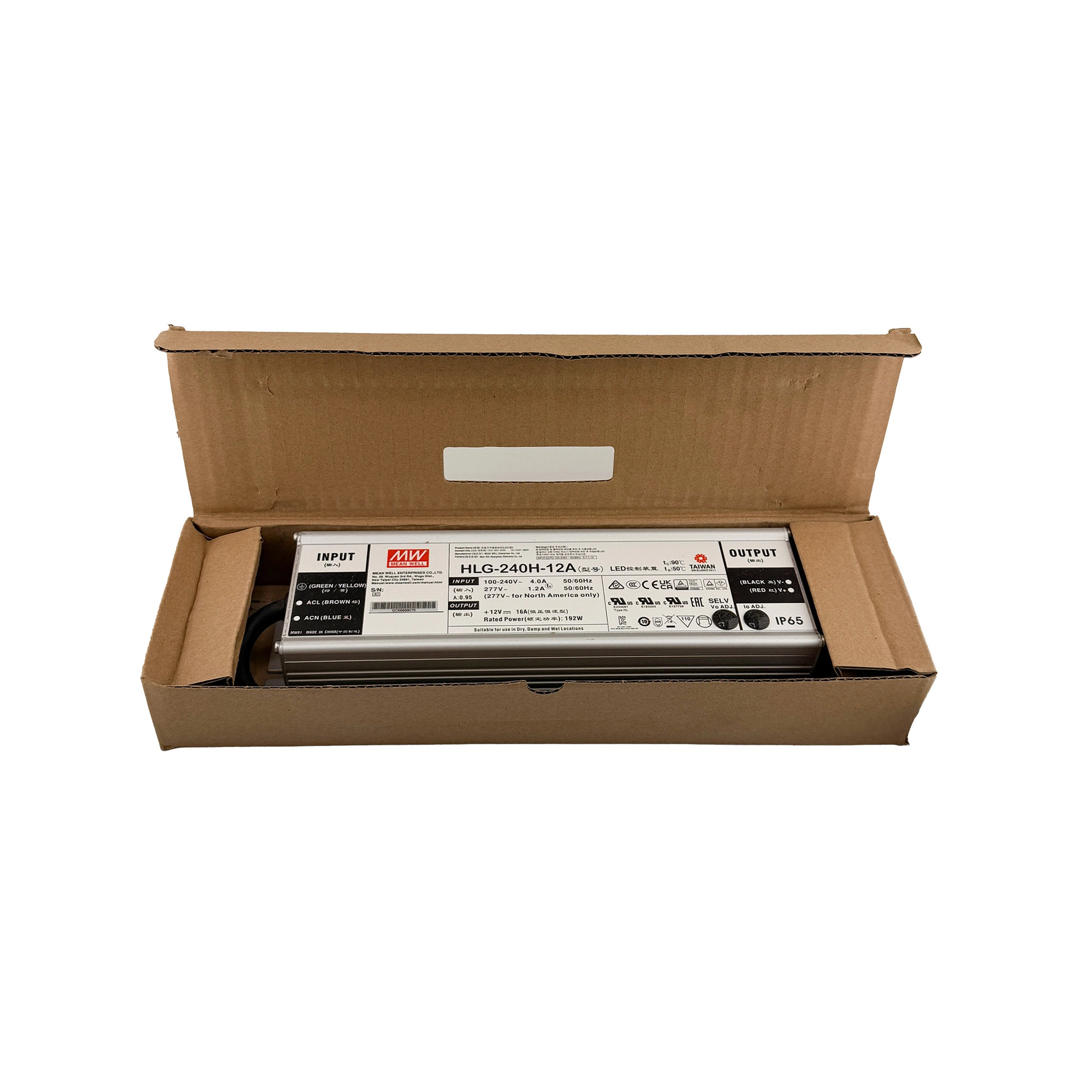

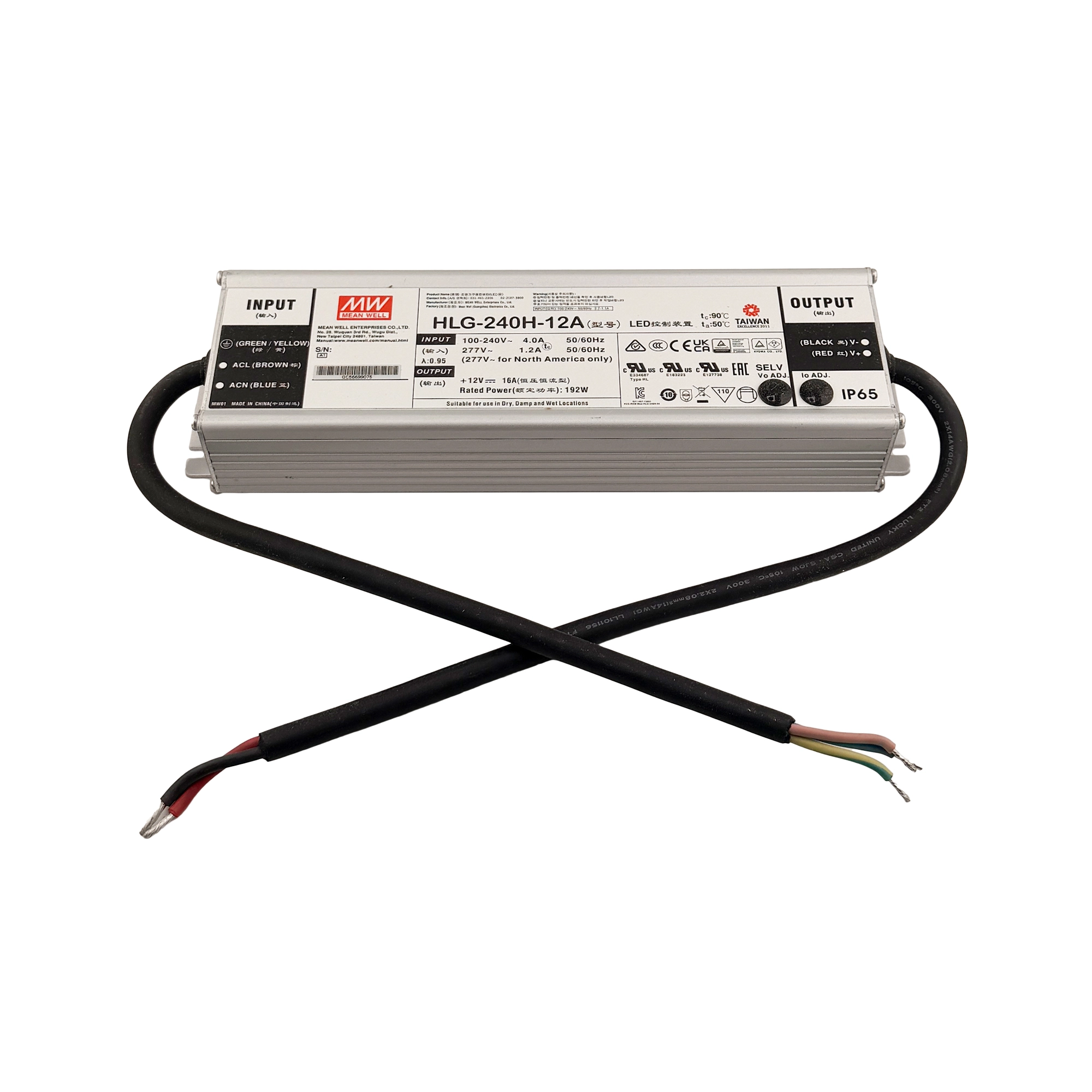

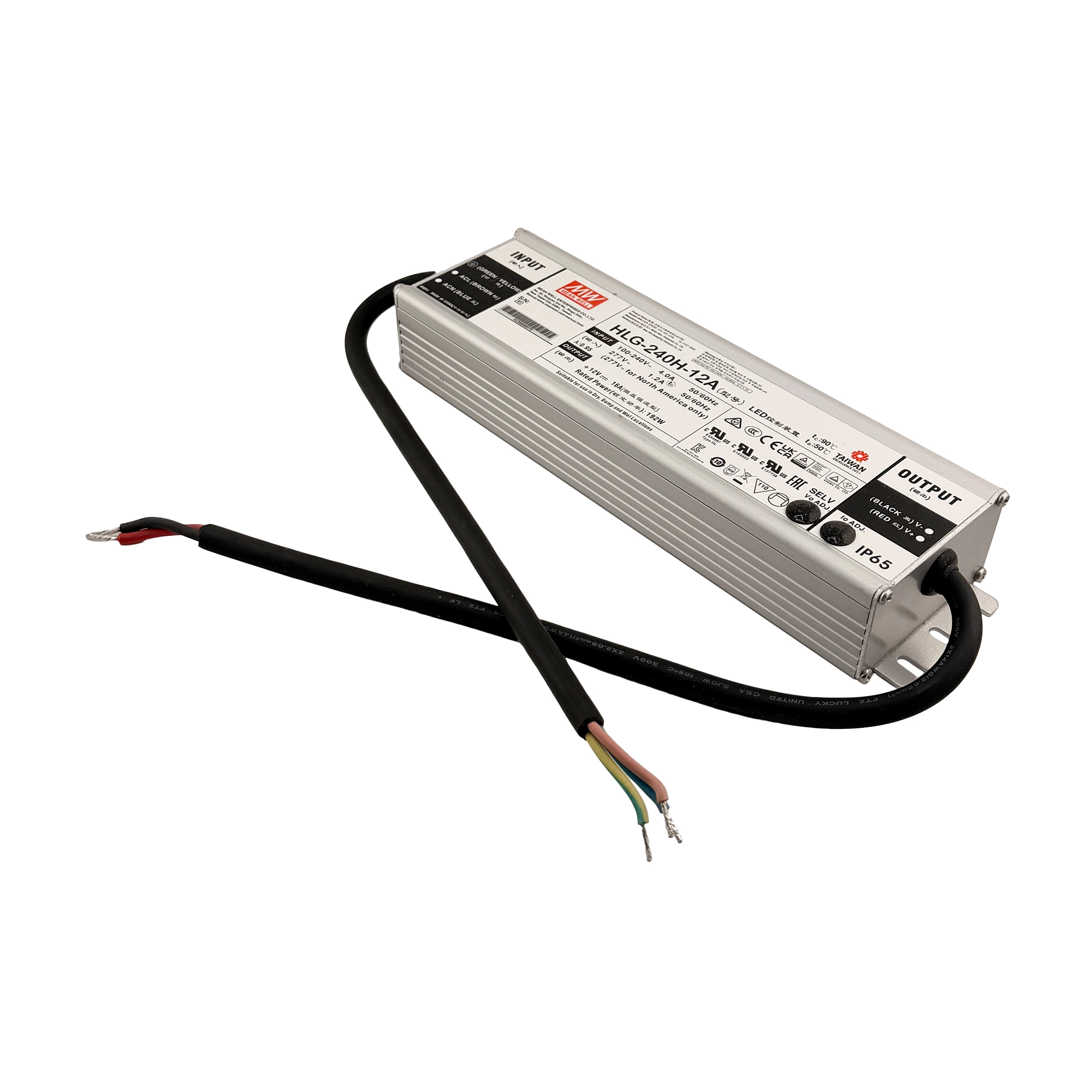

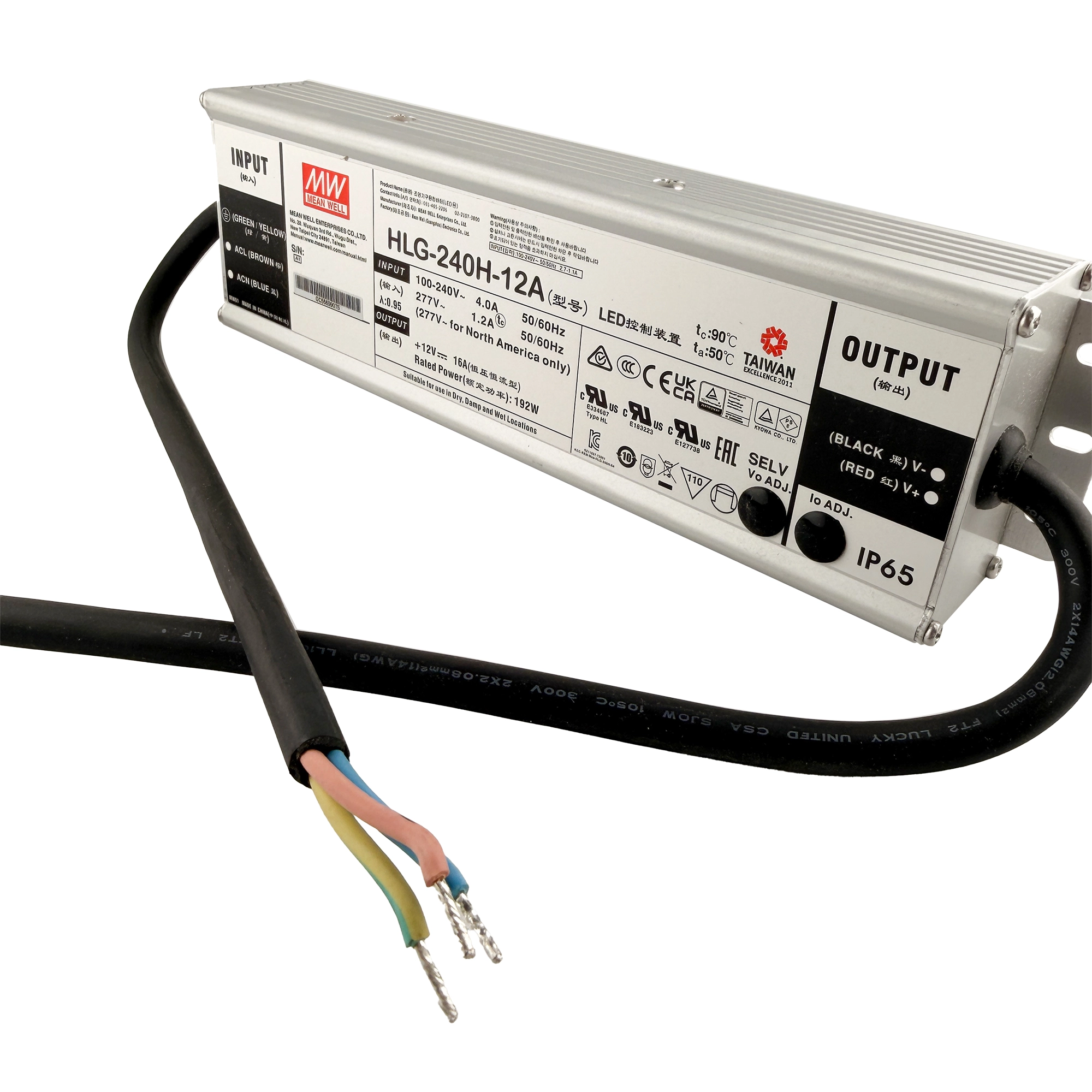

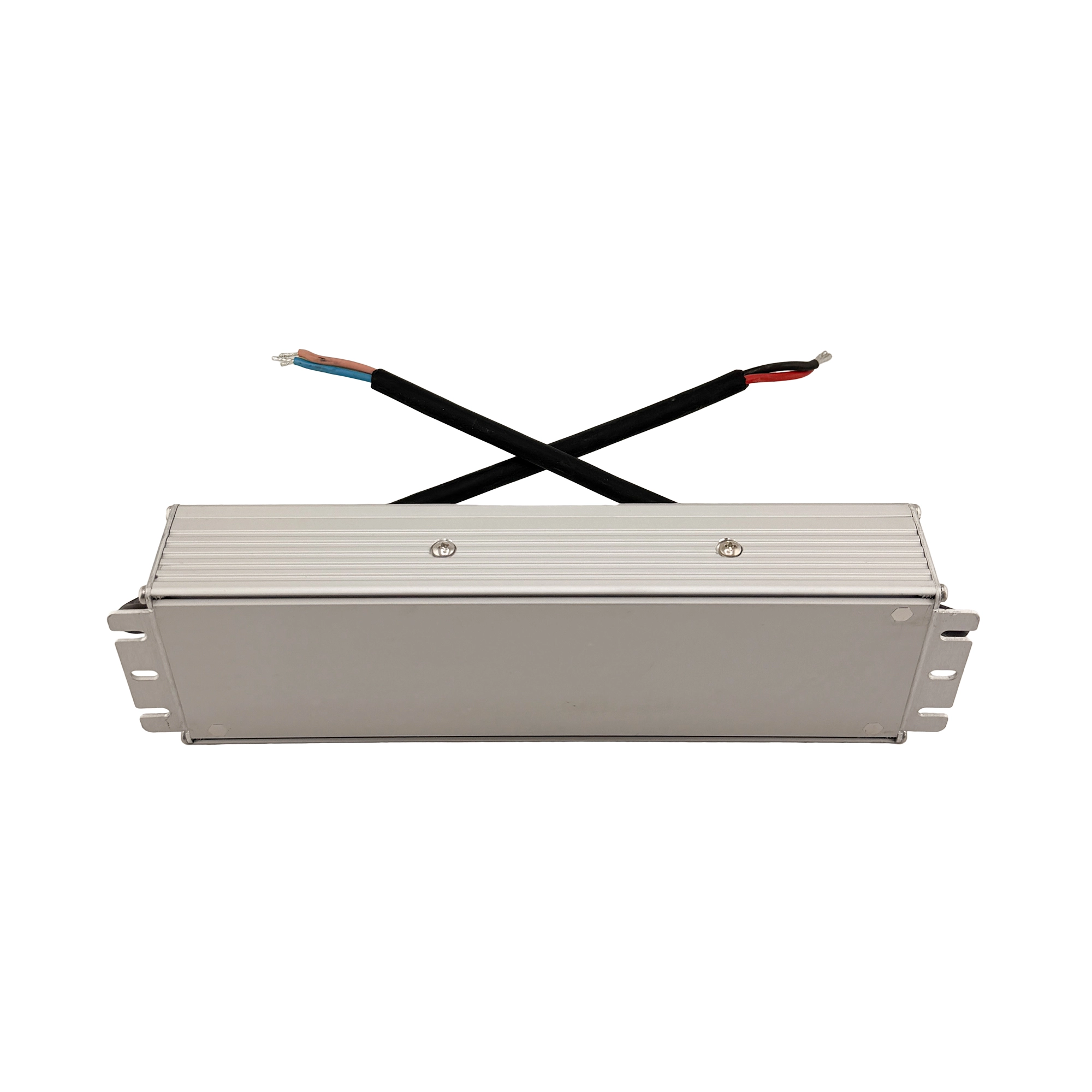

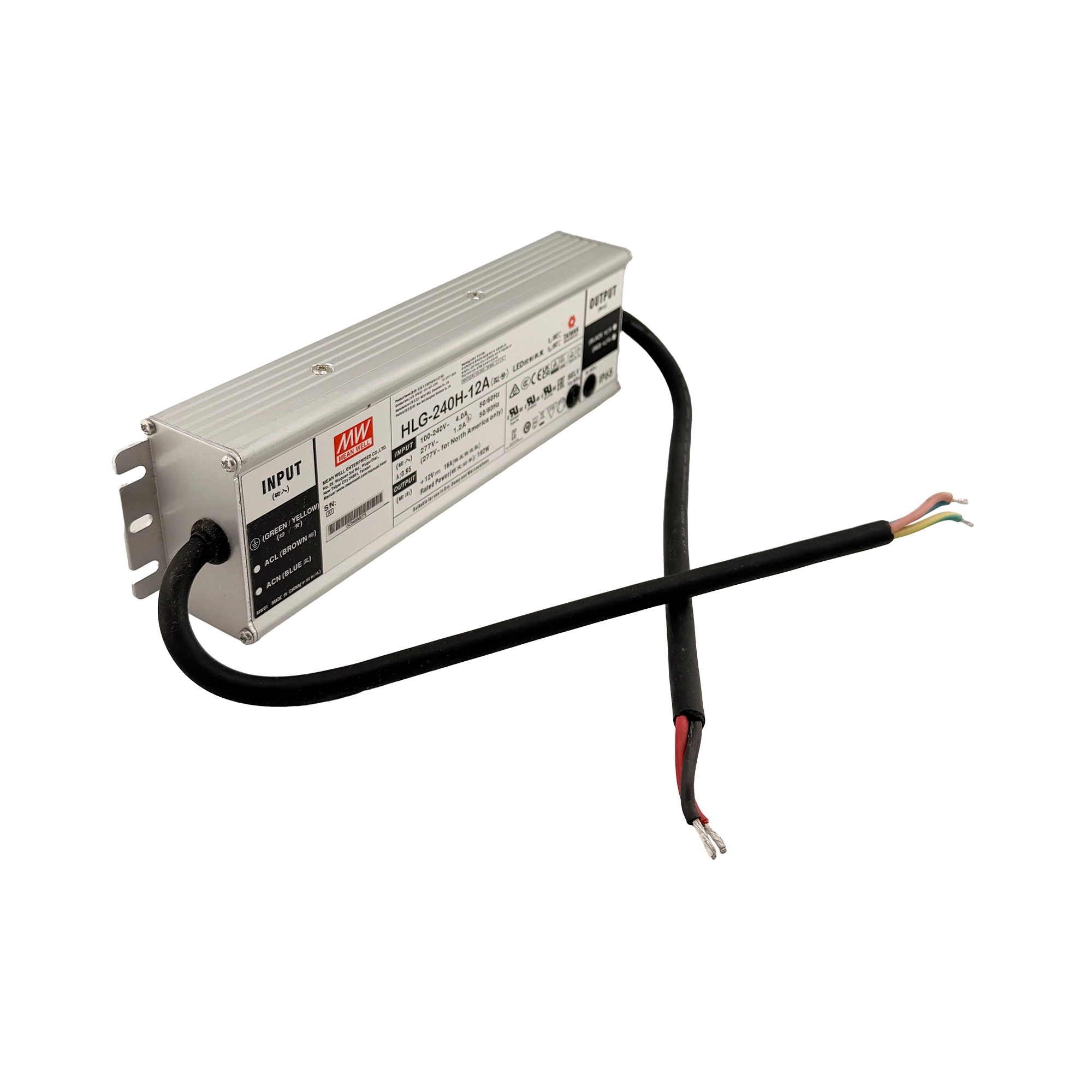

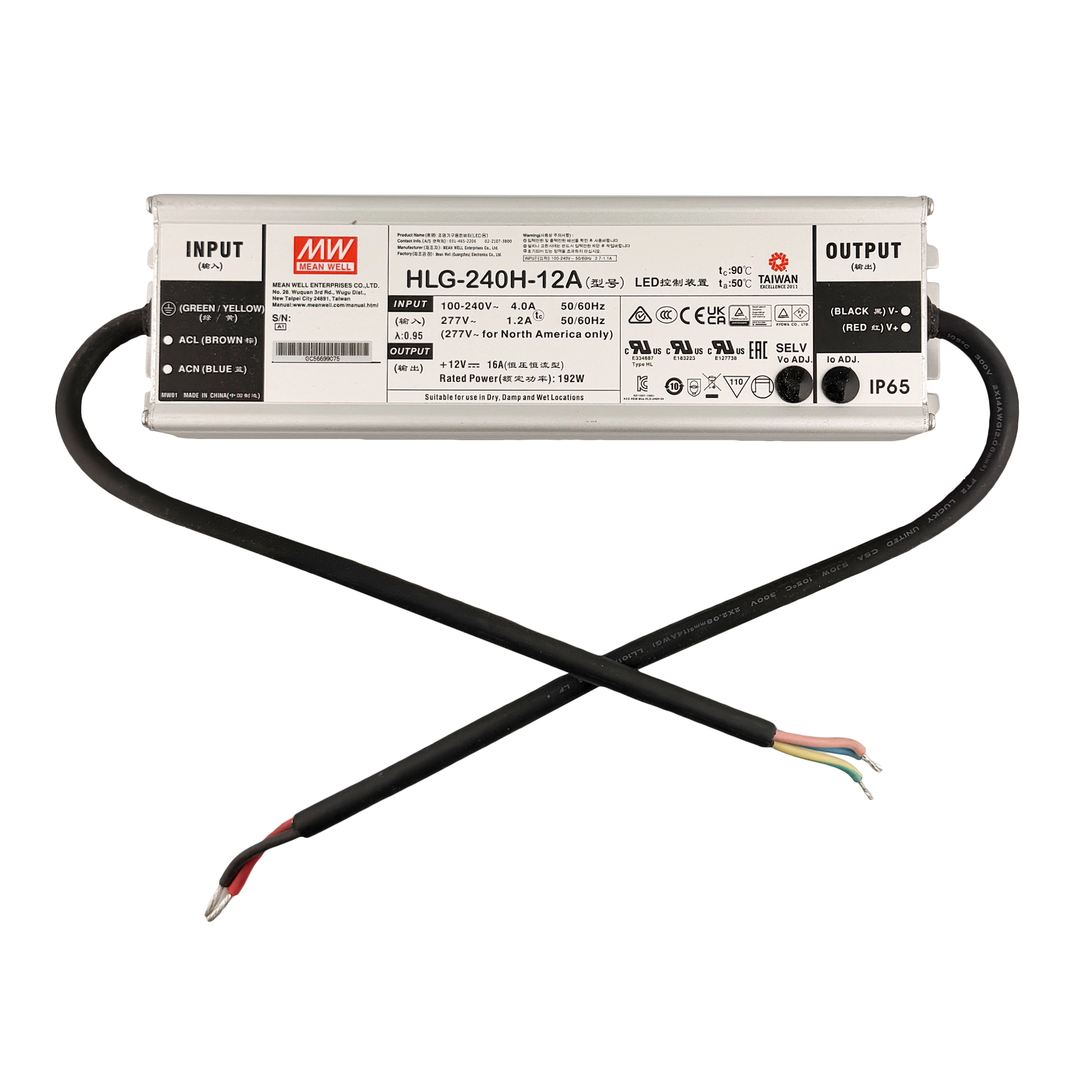

MEANWELL HLG-240H-12A LED Driver Switching Power Supply (12V, 16A)

AzarPixel introduces the MEANWELL HLG-240H-12A power supply as an industrial LED driver from the HLG-240H power supply series, which can convert a wide AC input voltage of 100 to 240V AC into a 12V output with 16A current, and both its output voltage and output current can be adjusted through built-in potentiometers, with the output voltage adjustable within 11.2 – 12.8V and the output current adjustable within 8 – 16A. This model provides 192W rated output power with 90% efficiency, which as a result makes it a suitable option for use in different municipal and industrial power conditions.

This power supply is designed with a Constant Voltage + Constant Current output structure in a way that makes it suitable for stable powering of LED lighting equipment. This structure allows this power supply, within the specified operating range, to provide both output voltage stability and current limiting for LED loads.

Some of the most important features of the MEAN WELL HLG-240H-12A include its durable metal housing, Class I design, and IP65 protection rating. Considering the protection rating of this product, it is clear that this device is protected against dust and water ingress, and it can be used in many indoor and outdoor LED lighting projects without any concern.

MEANWELL HLG-240H-12A power supply has proper heat dissipation which ensures stable and long-term performance in any demanding industrial or lighting situations thanks to its fanless design and cooling by free air convection. Depending on installation conditions and load level, this model provides reliable performance within a case temperature range of -40°C to +90°C and has a notable MTBF of 2015.1K hours minimum. Also, other features of this product include 5G vibration resistance within the 10-500Hz range, and a design suitable for industrial operation.

MEANWELL HLG-240H-12A is protected against short circuit (with Hiccup Mode), over current (with Constant Current Limiting), over voltage (within the range of 13.5 – 18V), and over temperature, which recover automatically after the fault is removed.

In addition to these mentioned protections, this product is compliant with safety and EMC standards including UL1012, EN61347-2, EN62368-1, UL8750, GB19510.213, EN55015, EN55032, EN61000-3-3, GB17743, GB17625.1, EN61547, and EN55024, which makes it possible to meet global energy requirements.

The HLG-240H-12A power supply is from the reputable and well-known Mean Well brand, with high build quality, stable performance, and suitable for applications including LED street lighting, LED high-bay lighting, parking space lighting, LED fishing Lamp and LED greenhouse lighting.
