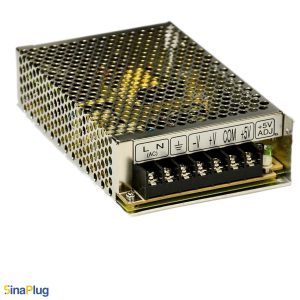

MEAN WELL T-60C Switching Power Supply (5V, 5A / 15V, 2A / -15V, 0.5A)

The MEAN WELL T-60C is an enclosed, unique, triple output switching power supply that offers three output channels at 5V 5A with an adjustable 4.75-5.5V range for channel1, 15V 2A for channel2, and -15V 0.5A for channel3 getting a full-range 100-240VAC input.

The T-60 series can be utilized in various applications like audio processing and instrumentation that involve analog circuits, especially operational amplifiers (Op-Amps), which require a negative voltage for proper operation.

The T-60C delivers 62.5W output power maintains a constant duty cycle to regulate the output voltage, and decreases load regulation error to ±1% (for channel1) due to its high switching frequency (50KHz).

In addition to the overload, over-voltage protections (with automatic recovery), and short circuit protection, it is certified by UL1012, UL60950-1, EN55022, EN61000-3-2, EN61000-4-2, and EN55024 standards that allow it to comply with worldwide energy requirement.

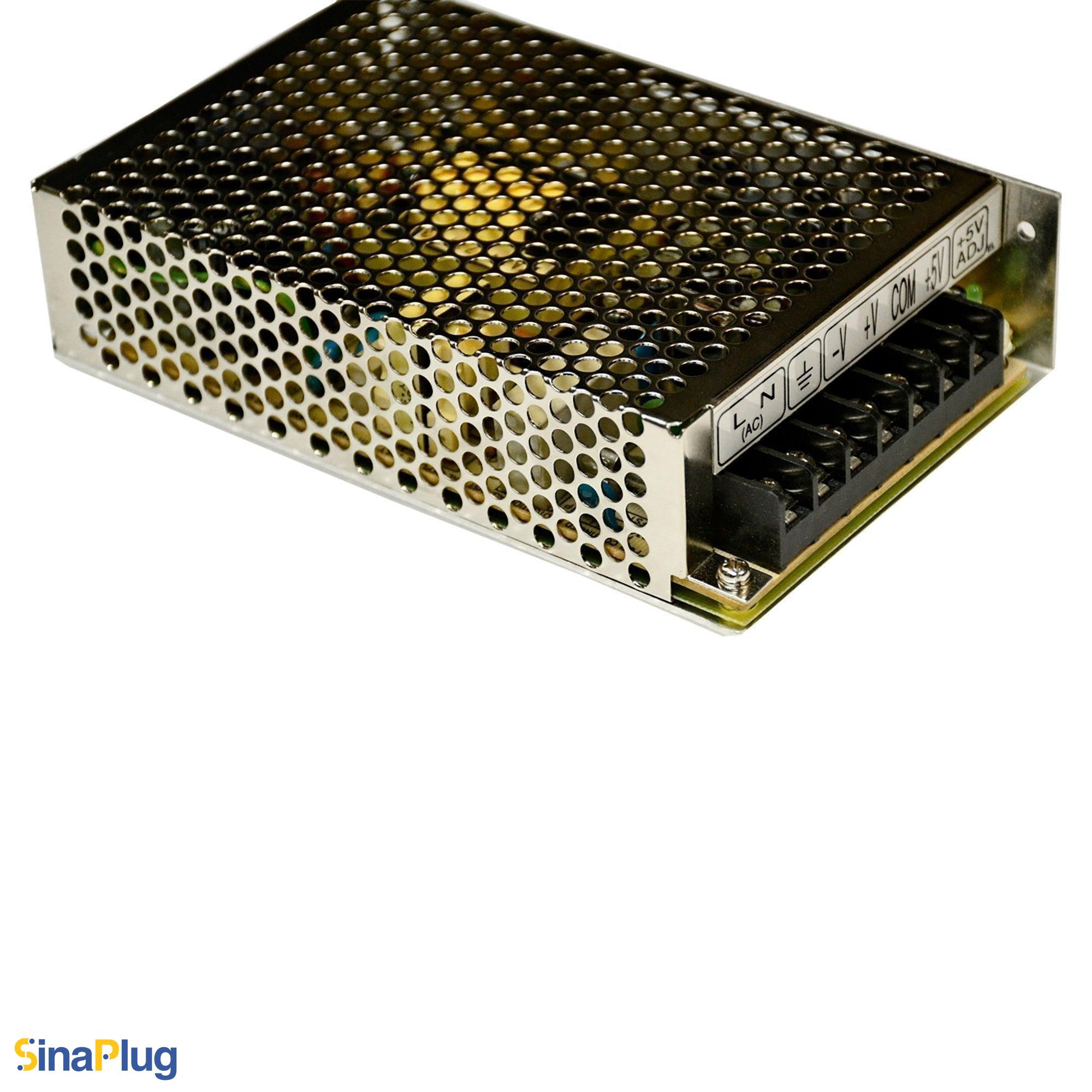

The T-60C’s low-profile design ensures reliable performance in demanding environments. Its metallic mesh housing enhances heat dissipation, allowing it to operate efficiently in temperatures from -10°C to +60°C when mounted vertically, and from -10°C to +55°C when mounted horizontally.

Meanwell’s AC/DC power supplies are a leading brand owed to their high reliability and stable operation due to their long lifespan, space-saving design, and 2G anti-vibration capability (range of 10-500Hz) along all three axes, which ensures compatible performance in expected conditions, all at a reasonable price.
