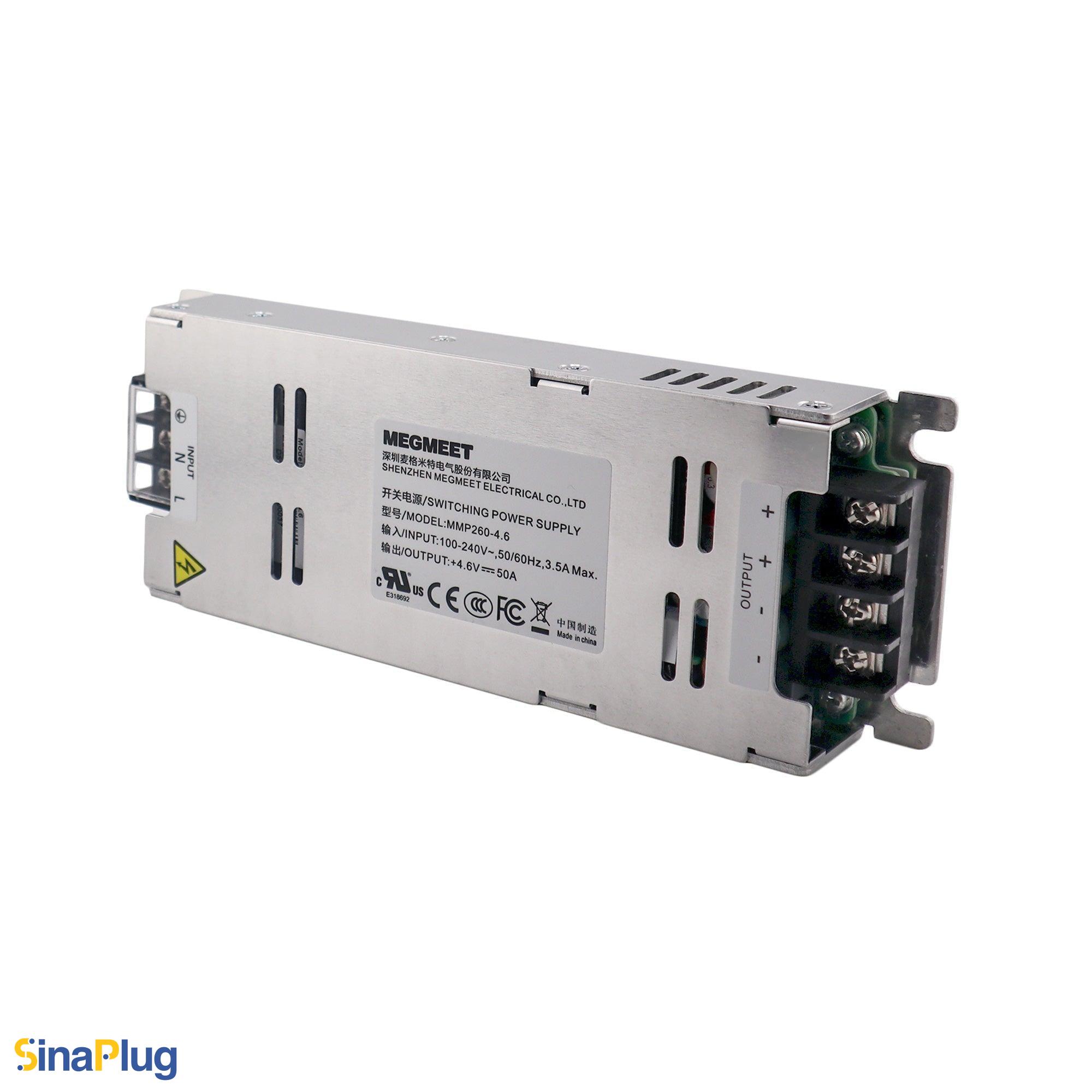

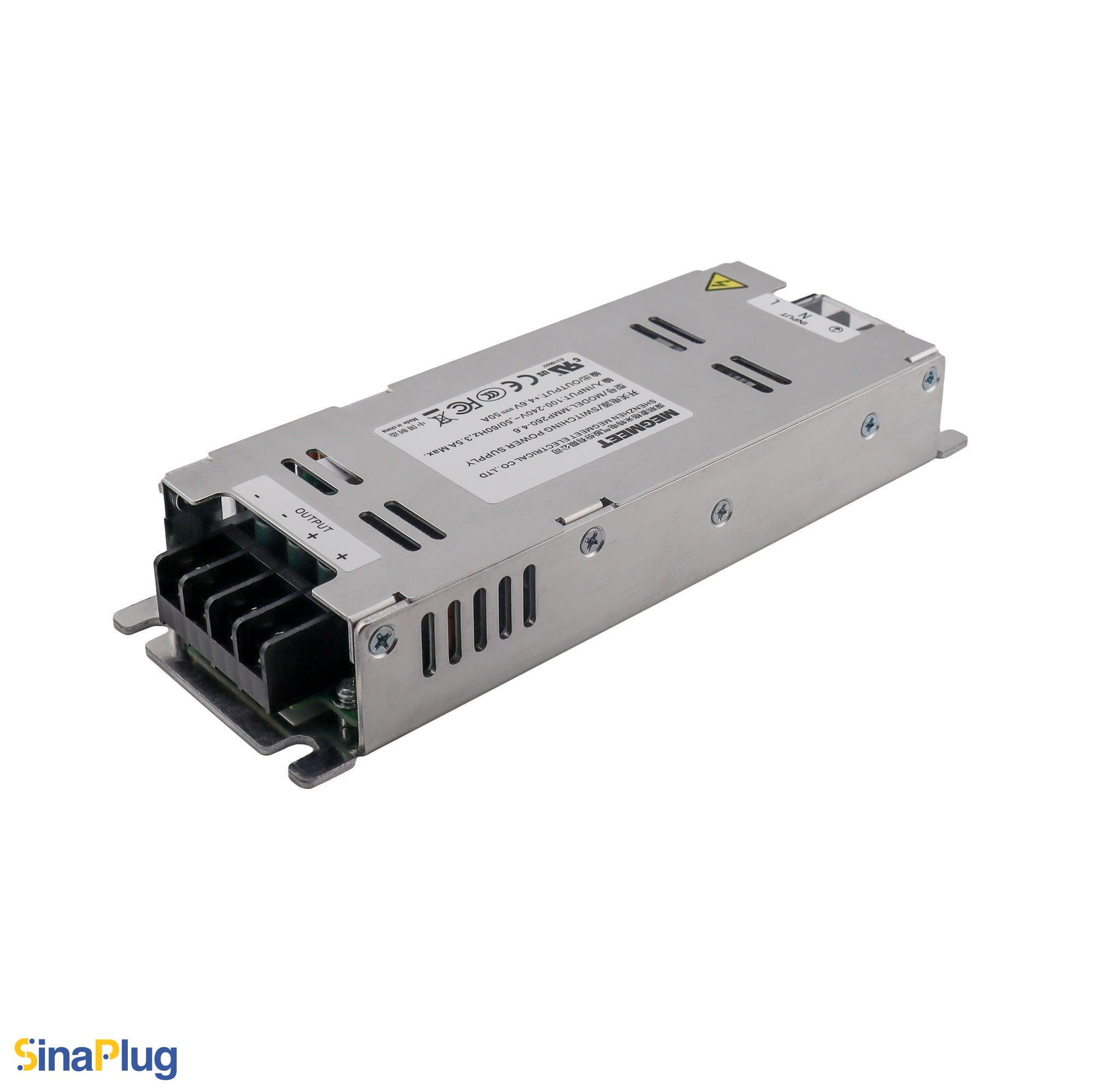

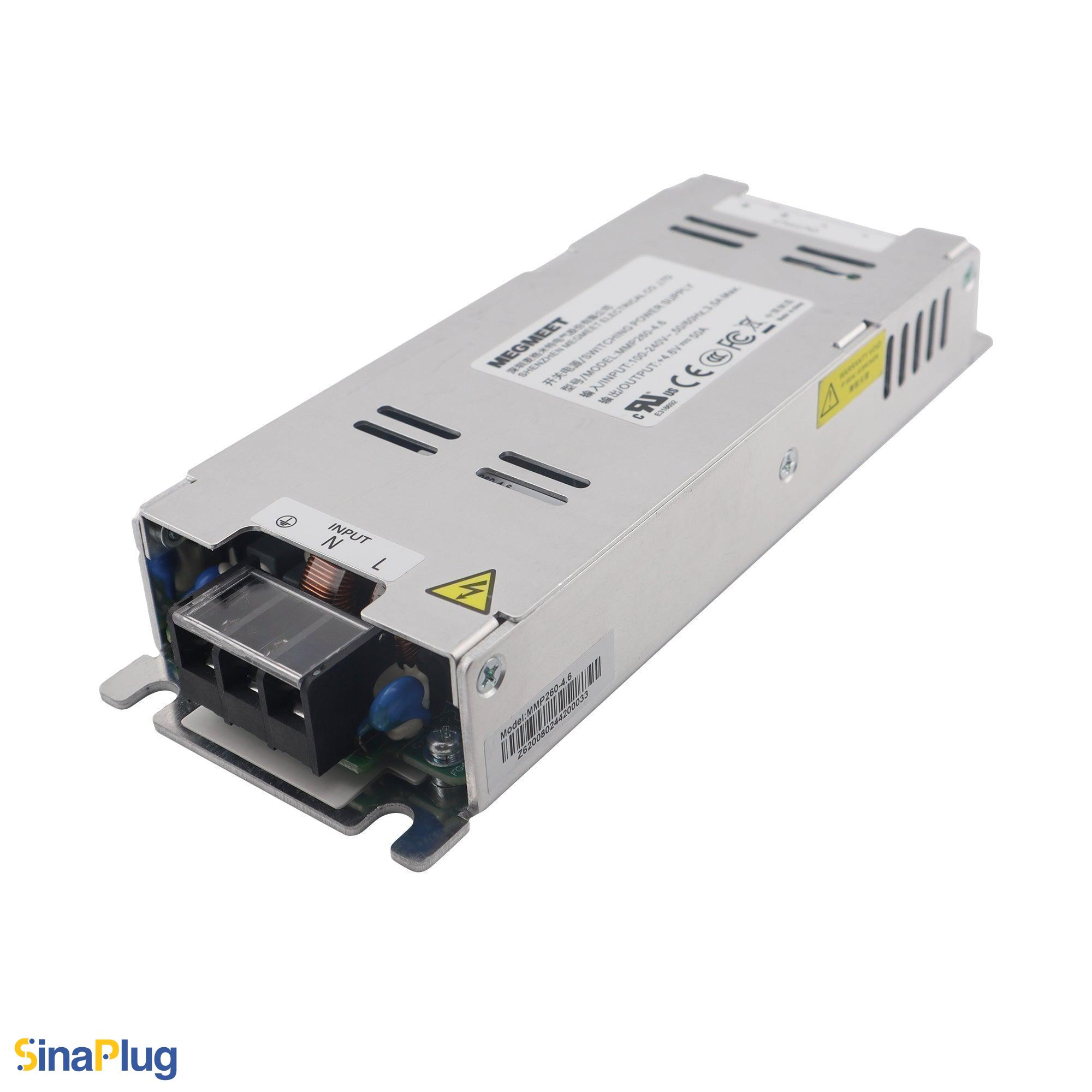

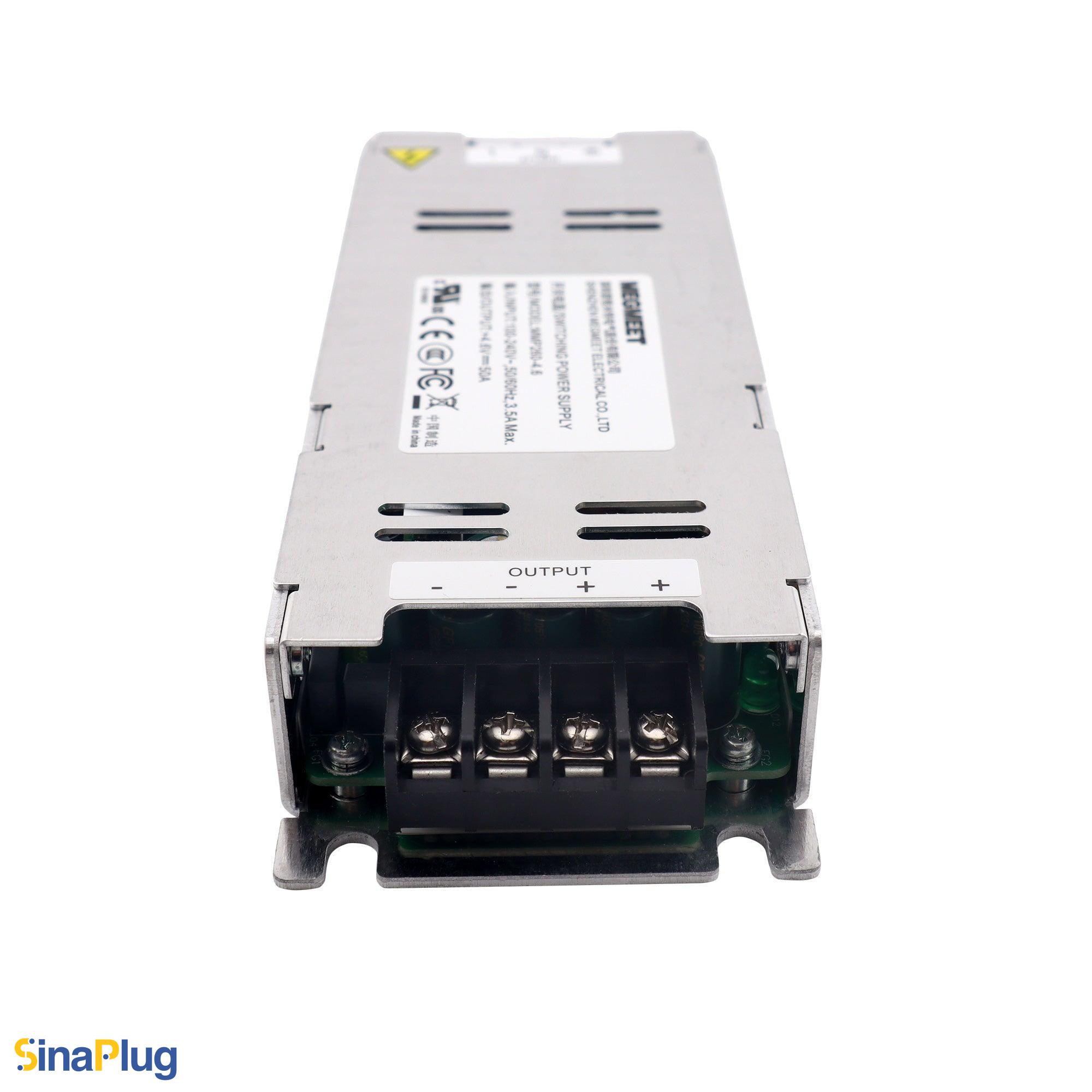

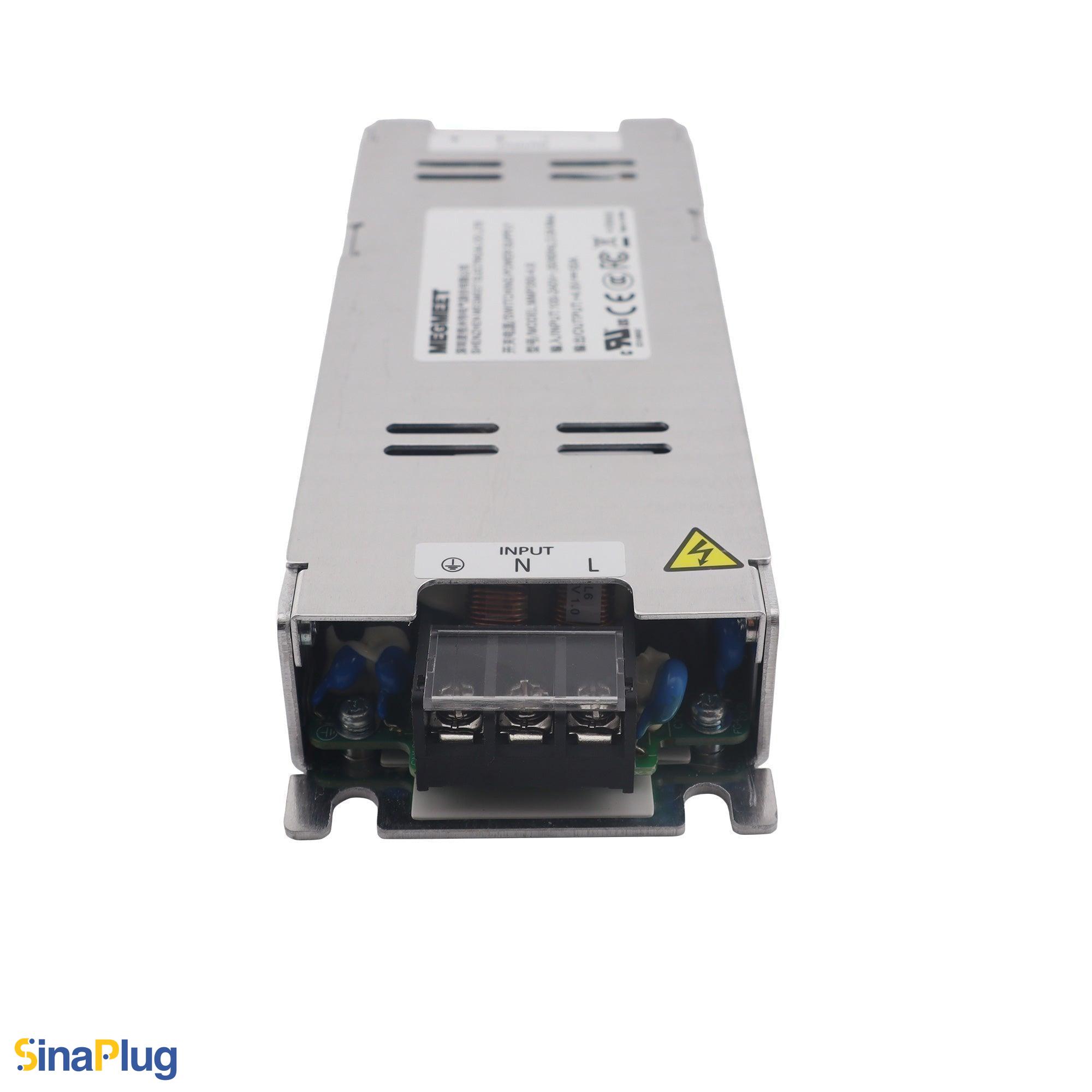

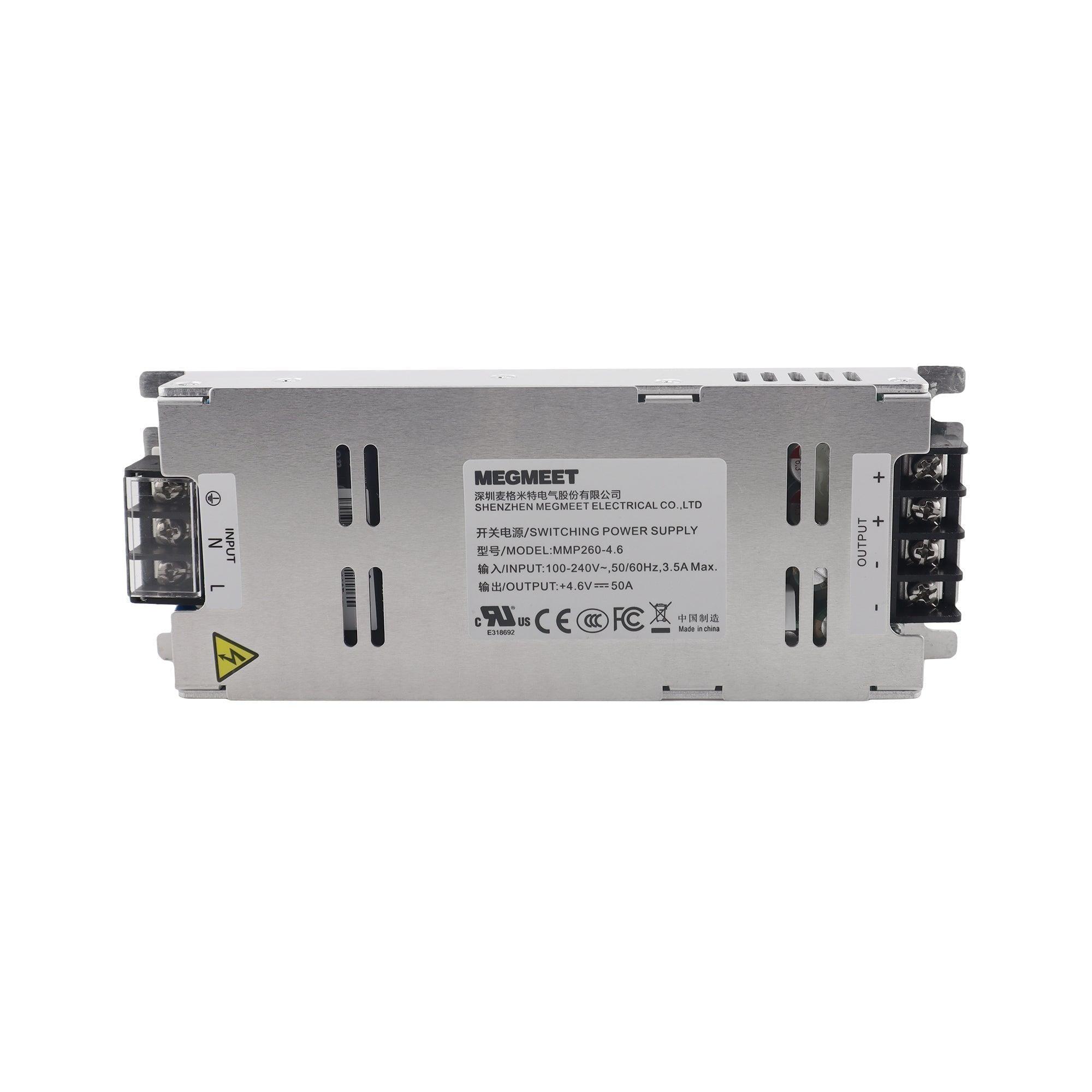

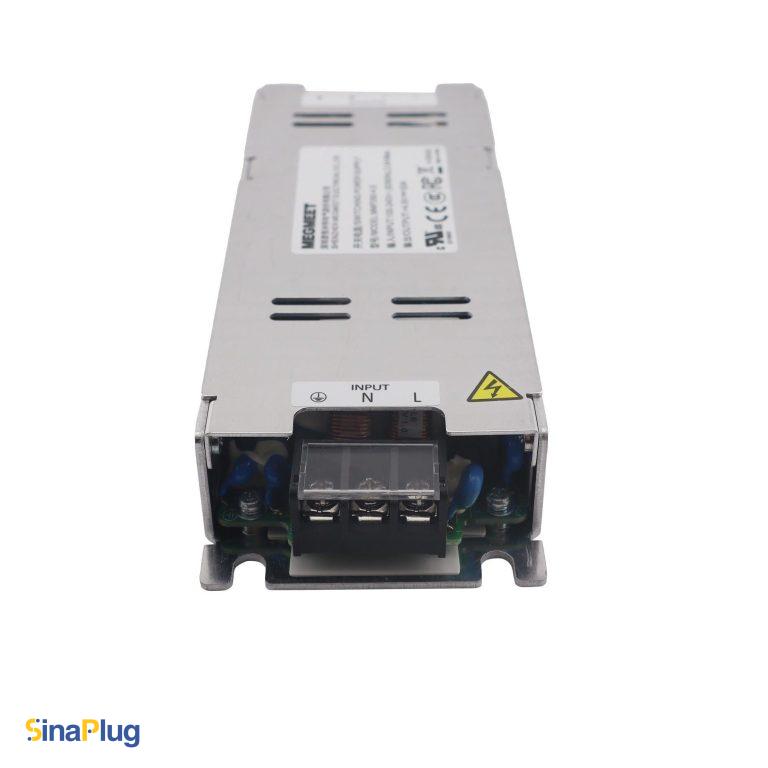

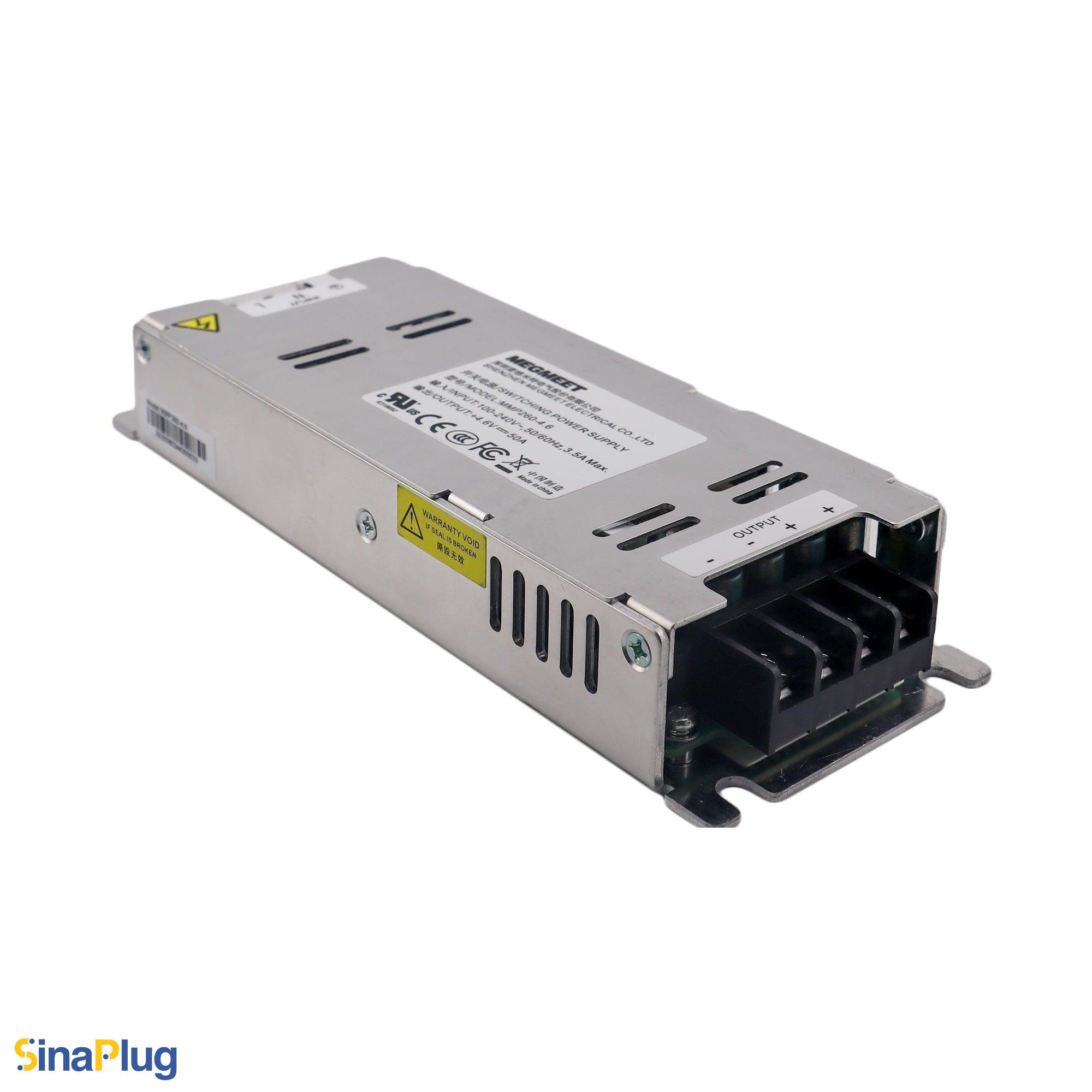

MEGMEET MMP260-4.6 LED Power Supply (4.6V, 50A)
$55.65
14 in stock
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The MEGMEET MMP260-4.6 (also known as MEGMEET 4.6V 50A) is a remarkable, enclosed power supply ideal for industrial applications, Audio Visual and LED equipment that require constant and reliable performance. The MEGMEET MMP260 series has significant features like EMC circuit, PFC circuit, 2G anti-vibration, and automatic recovery protections.
This AC/DC, compact MMP260-4.6 converts a wide range of 100-240 VAC inputs, to stable two output channels at 4.6V delivering up to 50A. It provides a rated 230W rated power with a PFC function and a 0.95 Power Factor that reduces the impact on the electrical grid and enhances efficiency up to 88% for optimal performance.
The small-sized MMP260-4.6 ensures long-term operation in demanding situations using natural air convection (recommended to be mounted on a heatsink), across a wide range of ambient temperatures from -25°C to +60°C with no whistling noise. (based on the official datasheet it can even work at lower temperatures down to -40°C)
In addition to the complete protections such as overload, over-voltage, short circuit (all with automatic recovery), it is certified by UL60950, GB4943, EN55022, EC61000-4-2/4/5/11, and GB17626.2/4/5/11 allowing it to meet worldwide energy requirements.
Key Features of MMP260-4.6
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100 – 240VAC
- Adjustable Output Voltage: No
- Output Voltage: 4.6V
- Output Rated Current: 50A
- Output Rated Power: 230W
- Protections: Short circuit protection, Over Voltage Protection, Over Current Protection
- Dimensions (L*W*H): 190mm * 70mm * 30mm
| Weight | 1.15 lbs |
|---|---|
| Dimensions | 7.48 × 2.76 × 1.18 in |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤3A |
| Efficiency | 86% |
| Output Voltage | 4.2V |
| Adjustable Output Voltage | No |
| Output Rated Current | 50A |
| Output Rated Power | 230W |
| Max Ripple And Noise | 200 mVp-p |
| Output Voltage Tolerance | 5% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | No |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | No |
| Working Temperature Range | -25 to +60 °C |
| Working Humidity Range | 10-90% |
| Storage Temperature Range | -40 to +85 °C |
| Standard Certification | EN 55022, GB17626.11, GB17626.2, GB17626.4, GB17626.5, GB4943, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, UL60950 |
