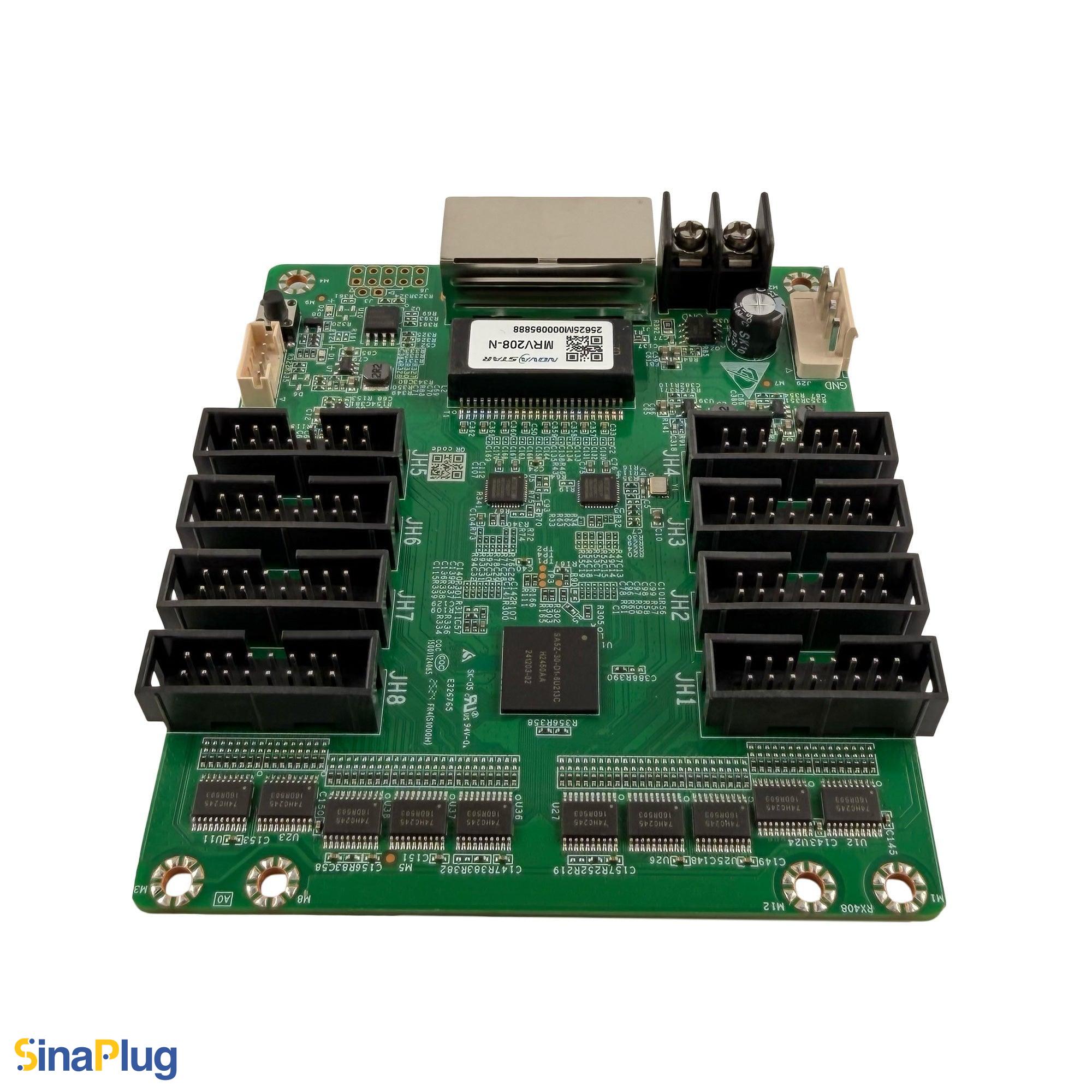

MRV208-N Receiving Card

AzarPixel proudly offers Novastar MRV208-N Receiving Card as the new and updated version to the discontinued MRV208-1. The updated model offers improved stability, refined image processing, and a more efficient overall design, making it a reliable choice for today’s advanced LED display systems. As an upgrade, the MRV208-N provides a major increase in maximum load capacity, supporting up to 512×512@60Hz for PWM driver ICs using 8-bit video sources, which is double the capacity of the MRV208-1’s stated maximum of 256×256@60Hz.

Advanced functions such as 18bit+ grayscale enhancement, color management, and low latency, help produce smooth, detailed, and vibrant visuals across a wide range of applications. With support for up to 16 groups of parallel RGB data via 8 HUB75E connectors (16-Pin), it offers flexible compatibility with high-density LED modules while keeping wiring reliable and organized.

Designed to operate in harsh environments, the MRV208-N works reliably from –20°C to +70°C with wide humidity tolerance, and it integrates real-time temperature and voltage monitoring without extra sensors for added protection.

Another feature of this product is pixel-level brightness and chroma calibration, individual gamma adjustment for each RGB channel. In addition, it supports 3D, 90° image rotation, and multi-batch brightness adjustment, making it well-suited for high-end installations that require accurate color, deep contrast, and consistent brightness.

For maintenance and diagnostics, this receiving card provides bit error detection, configuration and firmware readback, and a self-test button. Reliability is further improved through loop backup. It has compact dimensions, low power consumption around 2.5 W, and support for cabinet LCDs, making it easy to integrate into both new and existing LED installations.

The MRV208-N is ideal for fine-pitch indoor and high-end commercial LED applications such as retail videowalls, command centers, broadcast sets, and corporate signage where image quality, and stability are critical. Its RoHS and EMC Class A certificates make it a reliable backbone for LED integrators and manufacturers looking to standardize on a versatile, next-generation receiving card platform.

Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
