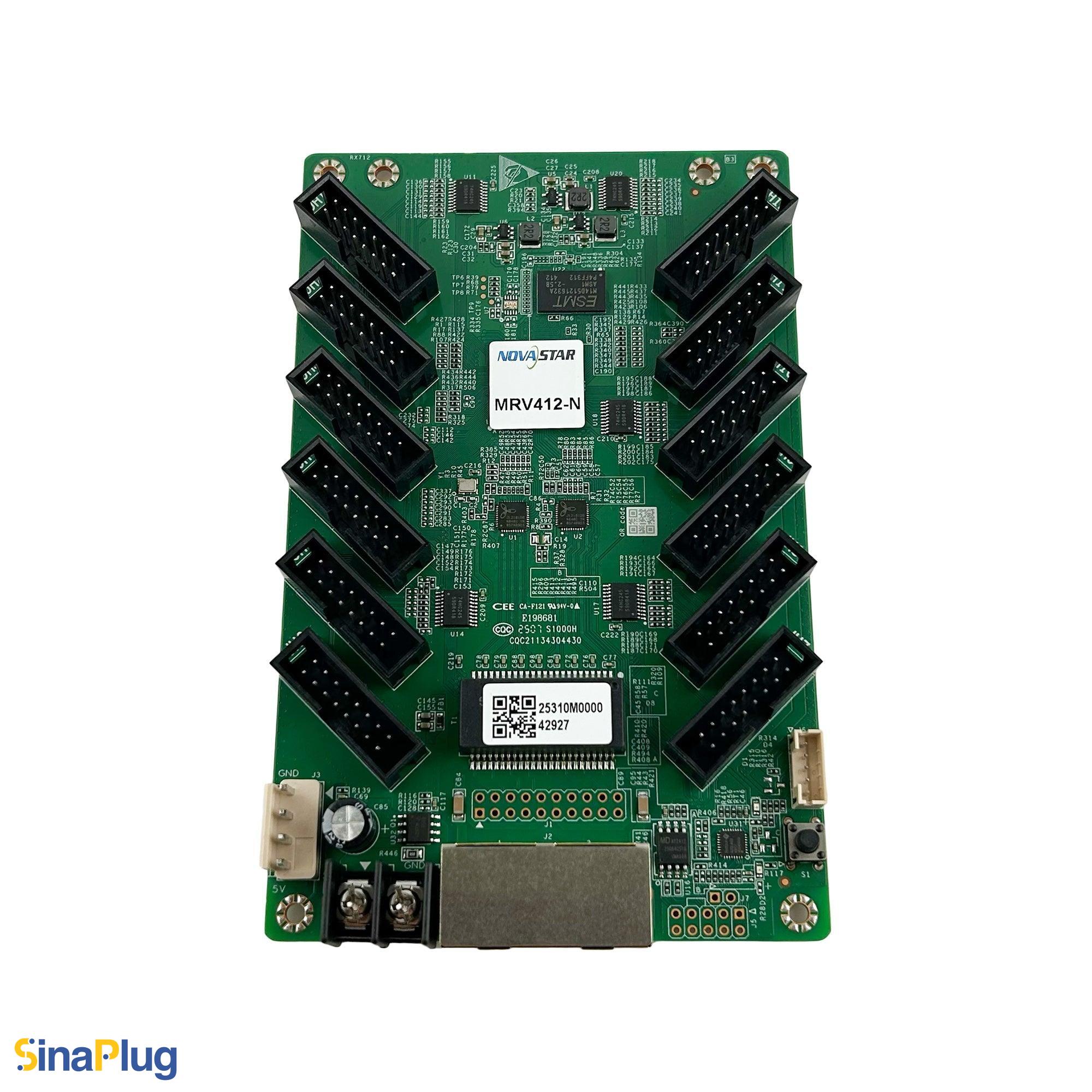

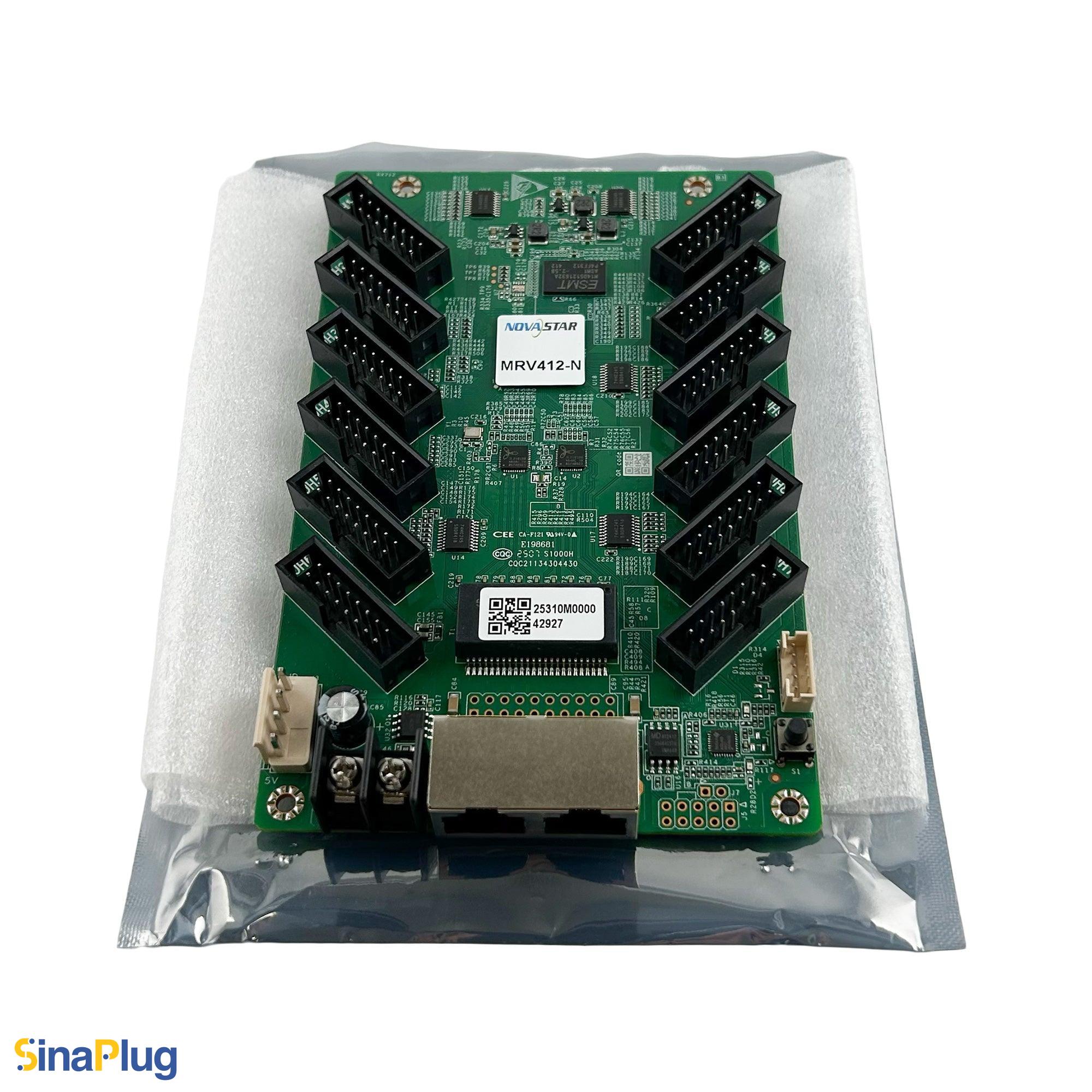

MRV412-N Receiving Card
$29.20
1 in stock
| Minimum Qty | Discount |
|---|---|
| 5 - 10 | 3% |
| 11 - 20 | 6% |
| 20 - 99 | 9% |
| 100 + | 10% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

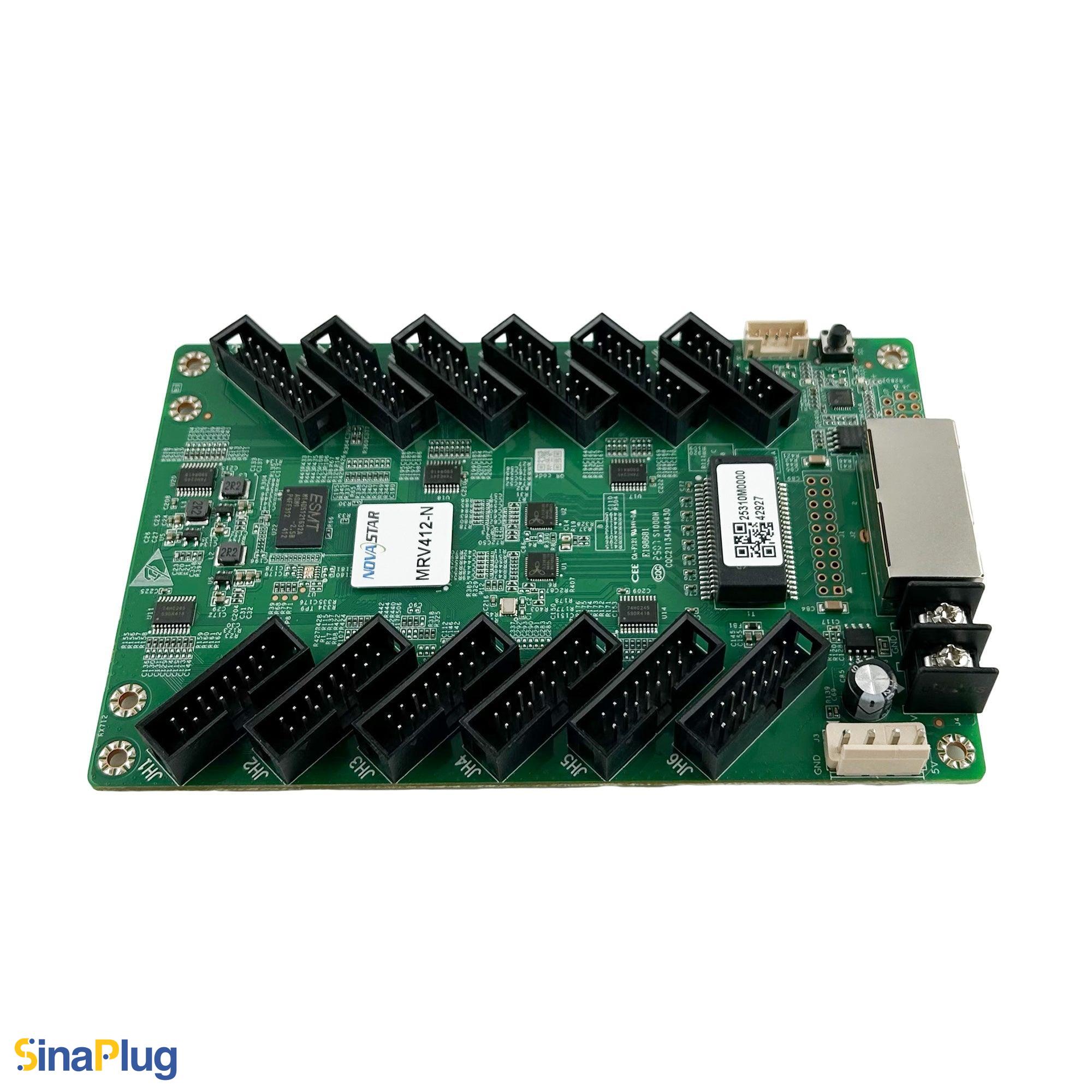

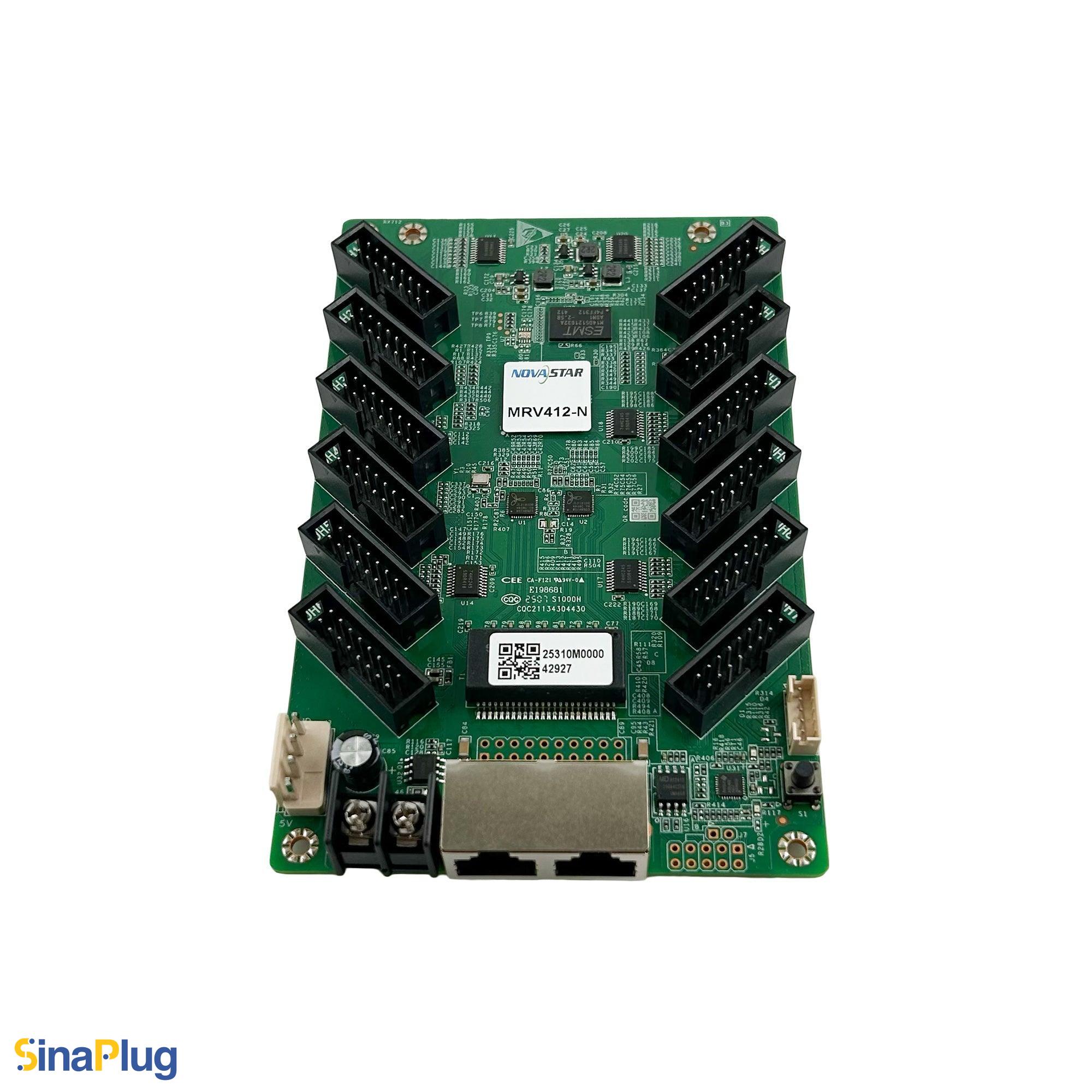

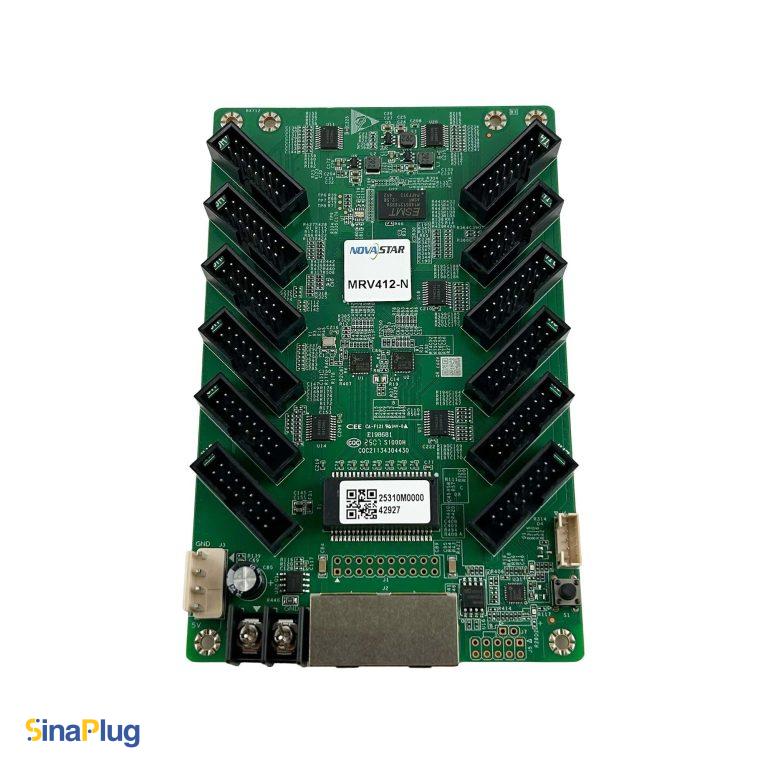

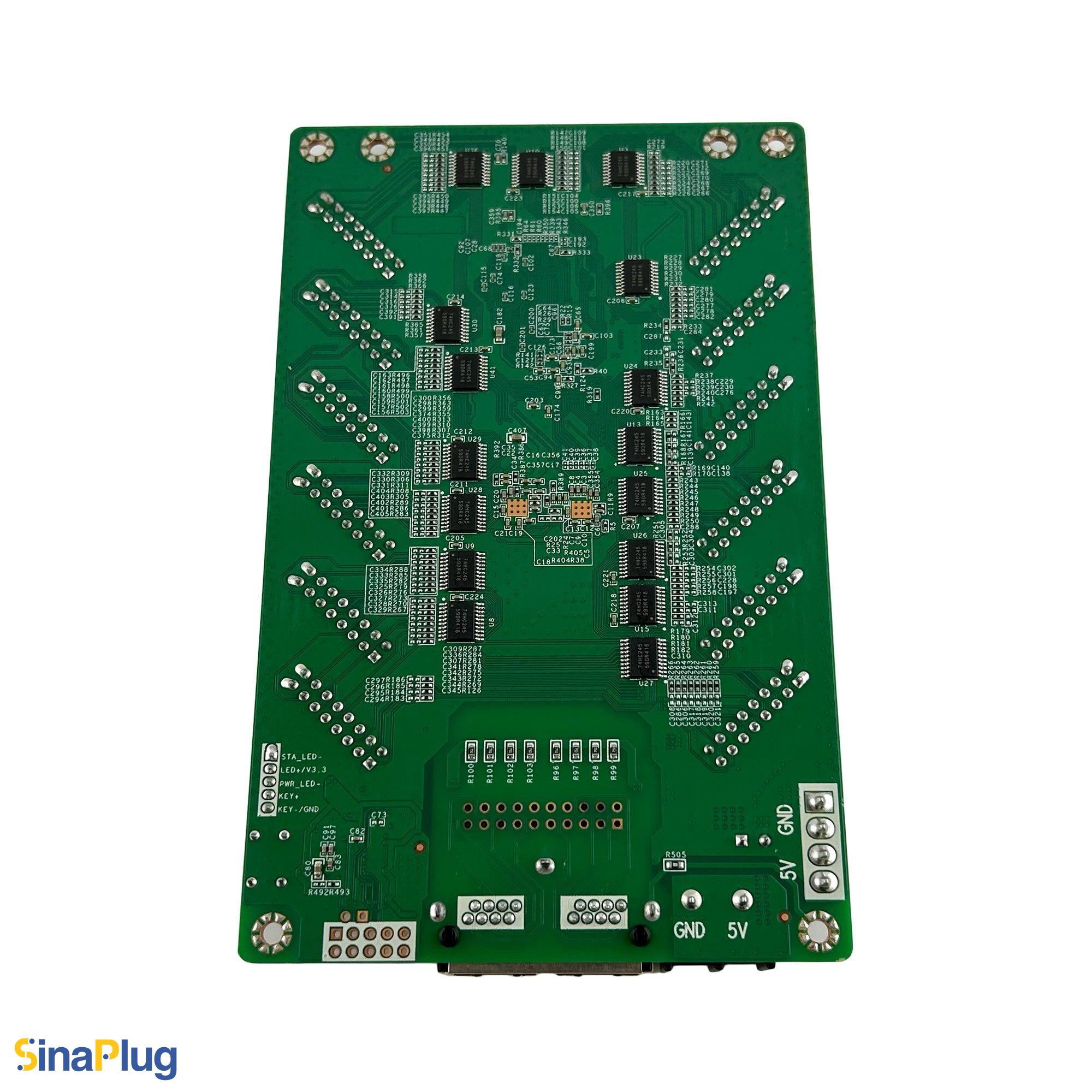

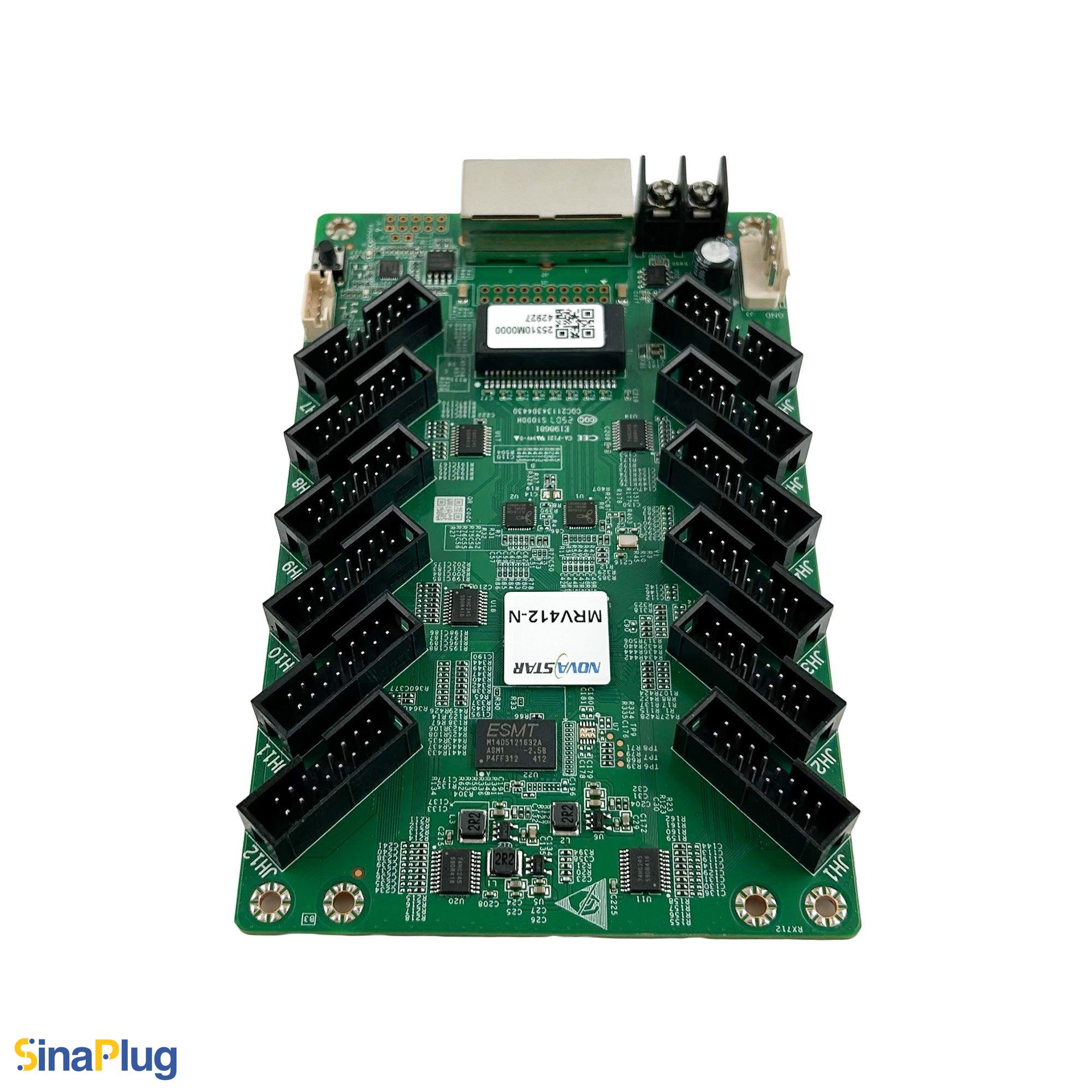

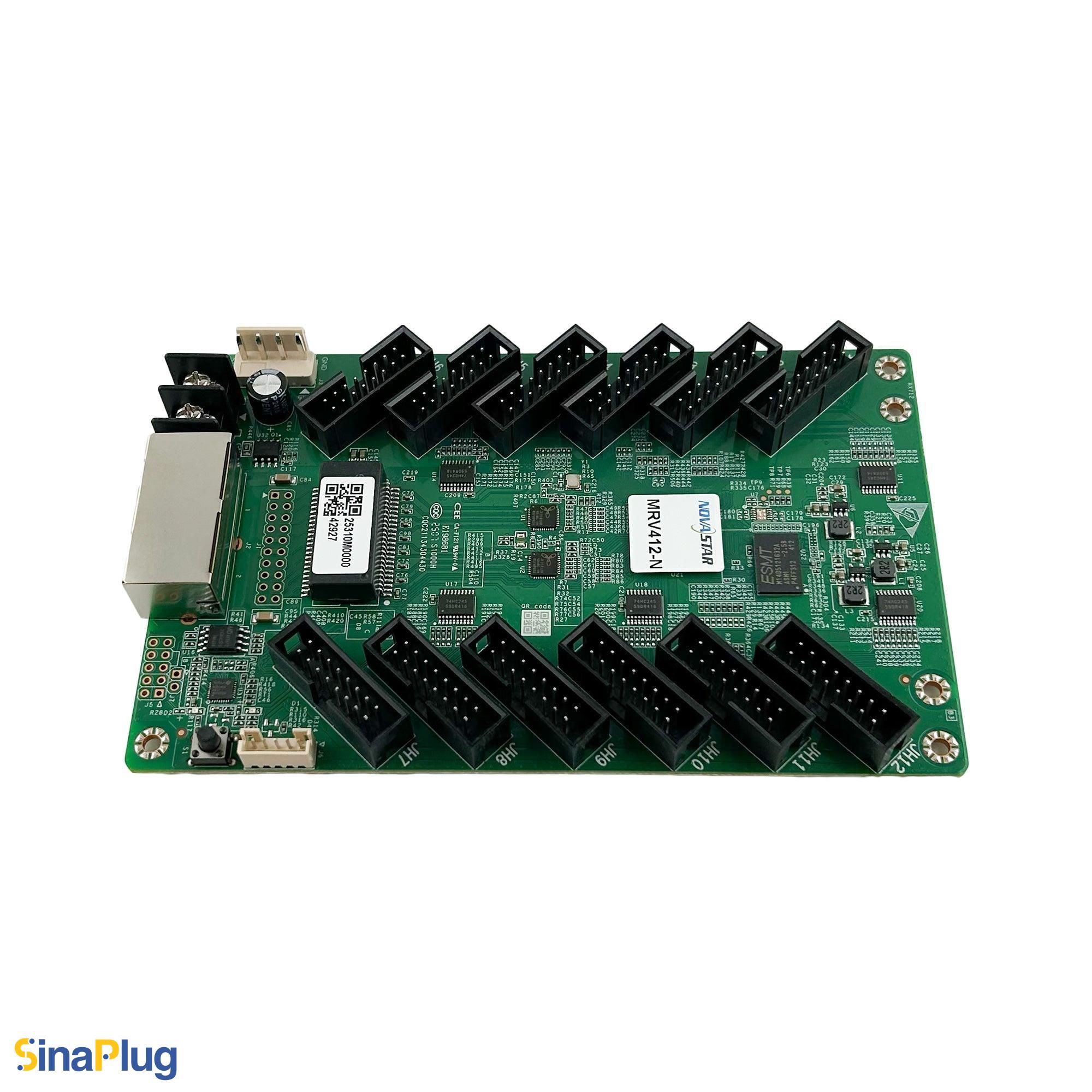

AzarPixel proudly offers the NovaStar MRV412-N Receiving Card, specifically crafted to deliver dependable stability and vibrant visual performance for LED display systems. This compact card supports a maximum resolution of up to 512×512@60Hz for PWM ICs and up to 512×384@60Hz for conventional ICs. It supports up to 24 groups of parallel RGB data with a standard 12 HUB75E connectors, making it suitable for diverse LED setups.
This high-demand product comes with brightness and chromaticity calibration and Independent 3-color (Red/Green/Blue) gamma adjustment, which is possible to control by NovaLCT and a controller that supports this function. Image flexibility is supported with 90° rotation and 3D function support. Fast dark and light line adjustment at module and cabinet edges enhances output uniformity in displays.
Constructed to withstand unbearable surroundings, the MRV412-N is indeed reliable and capable of withstanding temperatures from -20ºC ~ +70ºC without fail. In addition, it also supports RoHS and EMC Class A practices. Thanks to its mapping functions, as well as real-time temperature monitoring and voltage sweeping or Bit Error Detection, your experiment will work at its best. Loop back-up protection and dual feeding status detection enhance system reliability, and the functions of bit error detection and Ethernet status monitoring ensure steady operation.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of NovaStar MRV412-N
Loading Capacity
- 512×512 pixels @60Hz (Modules with PWM ICs)
- 512×384 pixels @60Hz (Modules with conventional ICs)
Input
- 1x Gigabit Ethernet Port
Output
- 12x standard HUB75E interfaces (up to 24 groups of RGB parallel data)
- 1x Gigabit Ethernet Port
Performance
- Pixel Level brightness and chroma calibration
- Independent gamma adjustment for RGB
- 3D function support (with applicable controller)
- Image rotation in 90° increments
- Immediate adjustment of dark or bright lines at module/cabinet joins
Maintainability
- Mapping 1.1 function
- Pre-stored image support
- Real-time temperature and voltage monitoring without extra devices
- Cabinet LCD support for temperature, voltage, and runtime display
- Bit error detection and Ethernet communication status monitoring
- Firmware and configuration parameter read-back for troubleshooting
Reliability
- Loop backup (ensures uninterrupted operation in case of line faults)
- Dual backup of program (two copies of firmware stored at the factory area)
- Dual backup of configuration parameters (stored in the application and factory area at the same time)
Dimensions (L*W*H)
- 146mm * 92mm * 19mm
| Weight | 0.22 lbs |
|---|---|
| Dimensions | 6.89 × 4.92 × 0.59 in |
| Max PWM IC Pixel Capacity | 512×512 |
| Max Common IC Pixel Capacity | 512×384 |
| Output Interface (QTY) | 12 |
| Max Parallel RGB Data Groups | 24 |
| Supported Video Source Bit Depth | 8bit |
| Brightness and Chroma Calibration | Supported |
| 90° Image Rotation | Supported |
| Loop Backup | Supported |
| Bit Error Detection | Supported |
| Firmware Redundancy and Readback | Supported |
| Input Voltage Range | 3.8-5.5VDC |
| Max Power Consumption | 2.5W |
| Working Temperature Range | -20 °C to +70 °C |
| Standard Certification | EMC Class A, RoHS |
| Others | Cabinet LCD support for temperature, voltage, and runtime display, Immediate adjustment of dark or bright lines at module/cabinet joins, Independent gamma adjustment for RGB, Pre-stored image support, Real-time temperature and voltage monitoring without extra devices |
