NS060 Light Sensor
$97.00 – $108.00Price range: $97.00 through $108.00
Can't find what you need or is it out of stock? Contact us!
We'll source whatever you need according to your timeline and provide our most competitive offer.
AzarPixel now carries the NovaStar NS060 Light Sensor. It is used for precise brightness adjustment for LED displays and supports various sending cards (such as MCTRL300), asynchronous cards, and multifunction cards that have light sensor connectors. The light sensor is being retailed in two different cable length variations that include the NS060-5A with a 5-meter cable and the other is the NS060-10A with a 10-meter cable.
This small, durable light sensor is made to work well in a variety of environments. In order to improve display comfort and save power, the light sensor can perform real-time brightness calibration. It has an IP65 level of protection and a robust design. The product satisfies requirements for a secure light sensor, with an operating temperature range of -20°C to +70°C and certifications including RoHS, EMC, and PFOS.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of NS060 Light Sensor

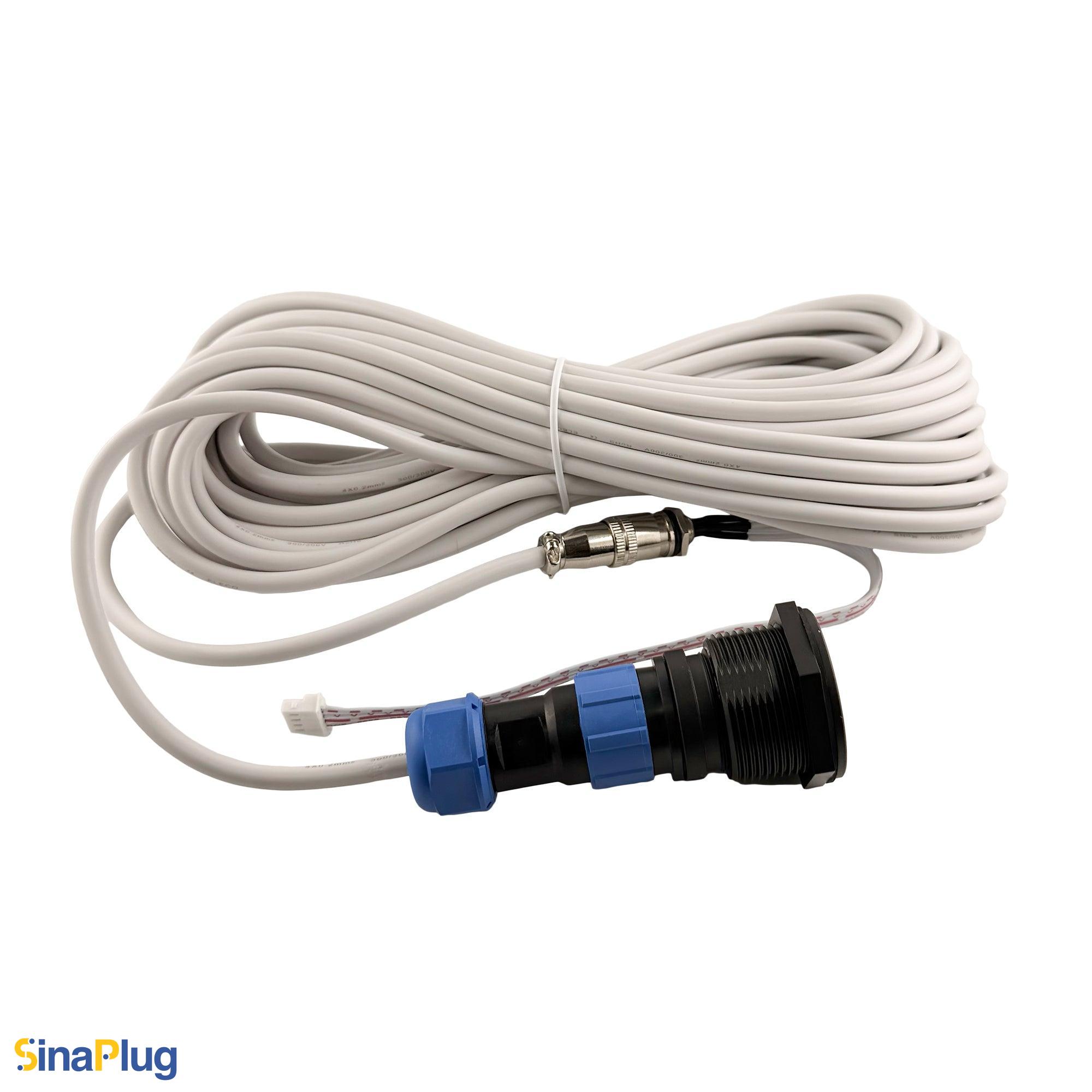

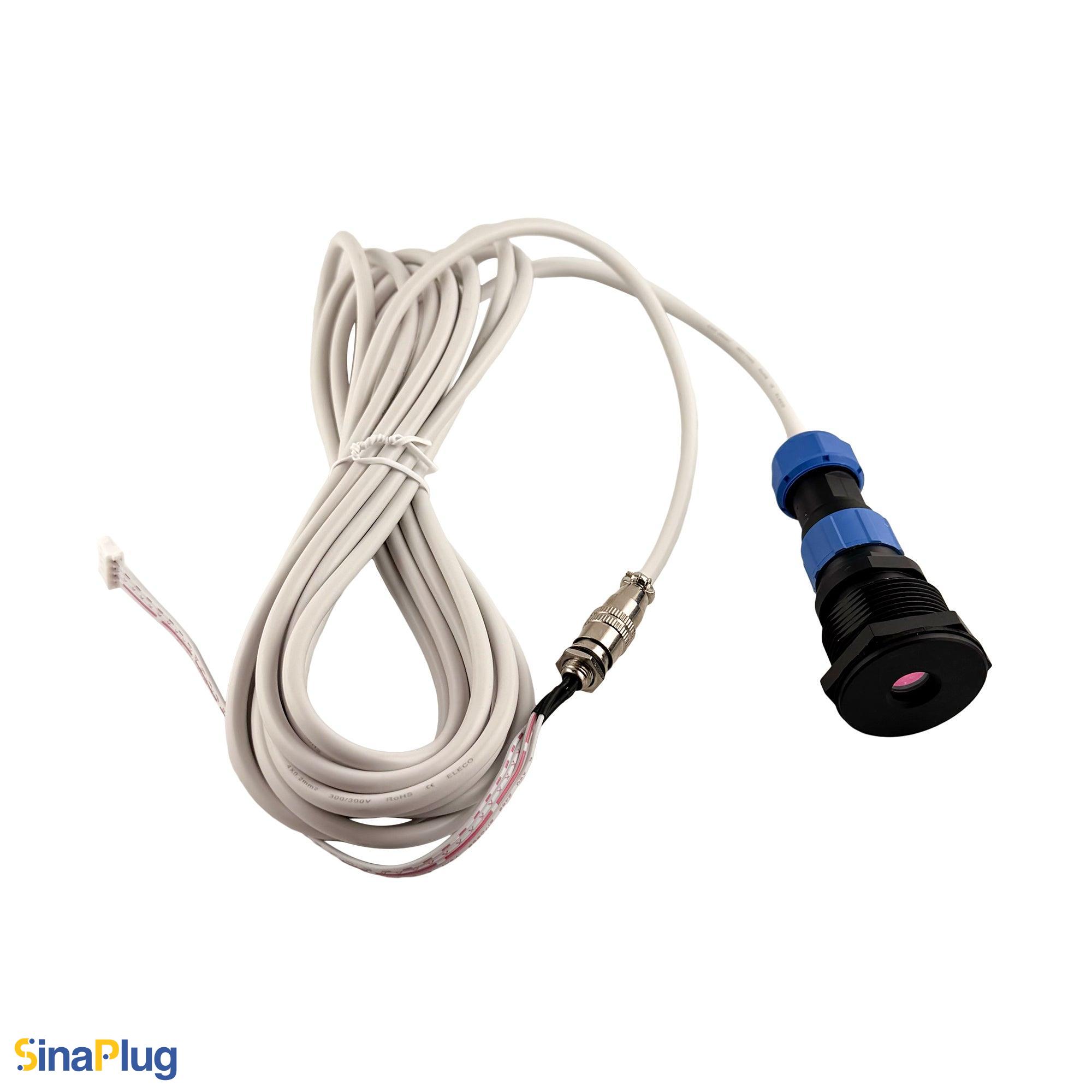

Cable Length Variations
- NS060-5A: 5 meters cable
- NS060-10A: 10 meters cable
Features
- Brightness Measurement Range: 0– 65,535 lux
- Supports direct connection to various sending cards (such as MCTRL300), asynchronous cards, and multifunction cards
- Operating Temperature: -20°C to +70°C
- Protection Rating: IP65 (dust and water resistant)
- Certificates: RoHS, EMC, PFOS
Power Supply
- Operating voltage: 5 VDC (No external power supply needed)
Dimensions (L*W*H)
- 83mm * 39mm * 39mm
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | NS060-5A(5m cable), NS060-10A(10m cable) |

Allen –
The 5-meter cable gave me enough flexibility for the installation.
