Linsen TS802D LED Sending Card
$119.90
10 in stock
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

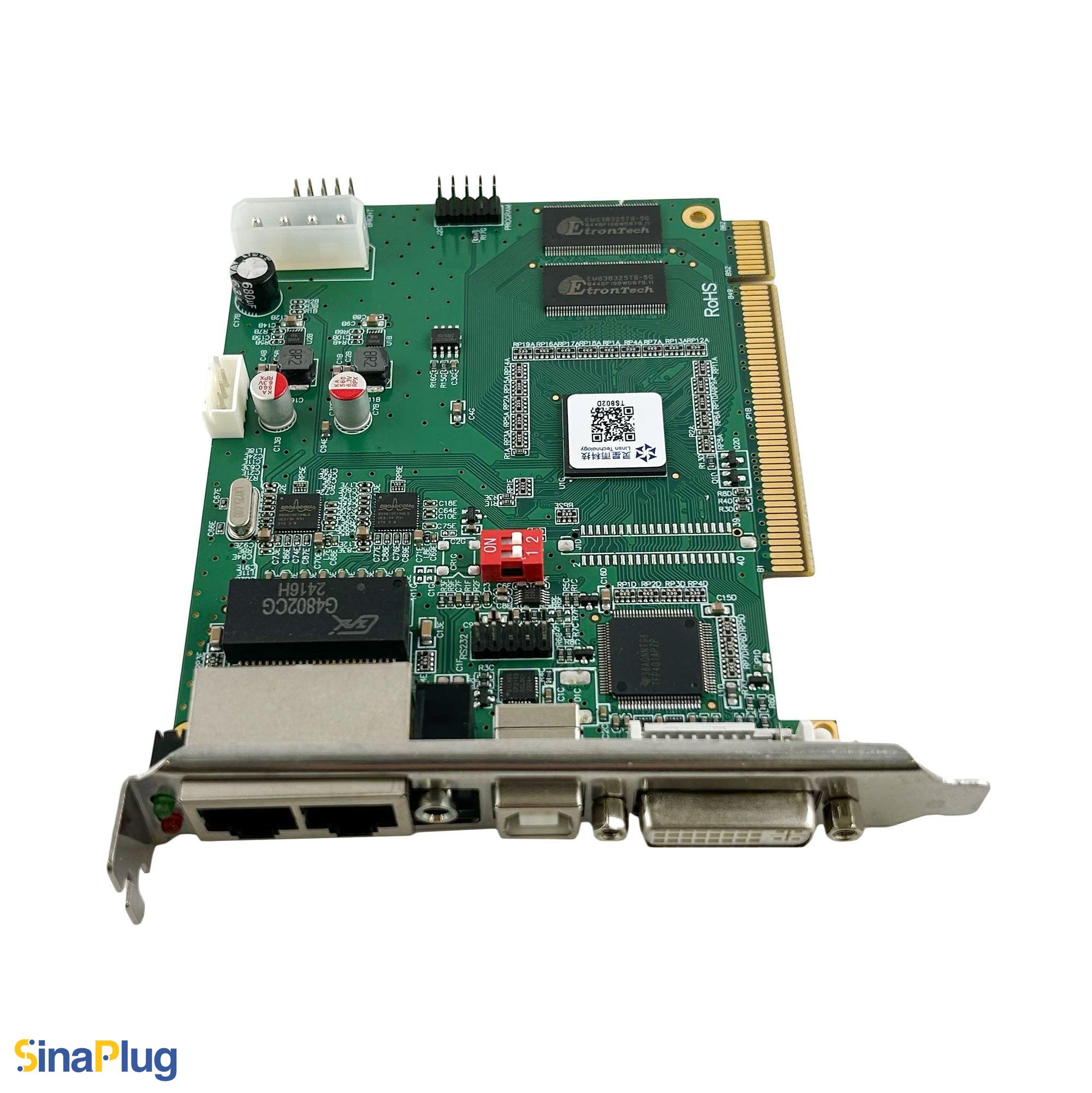

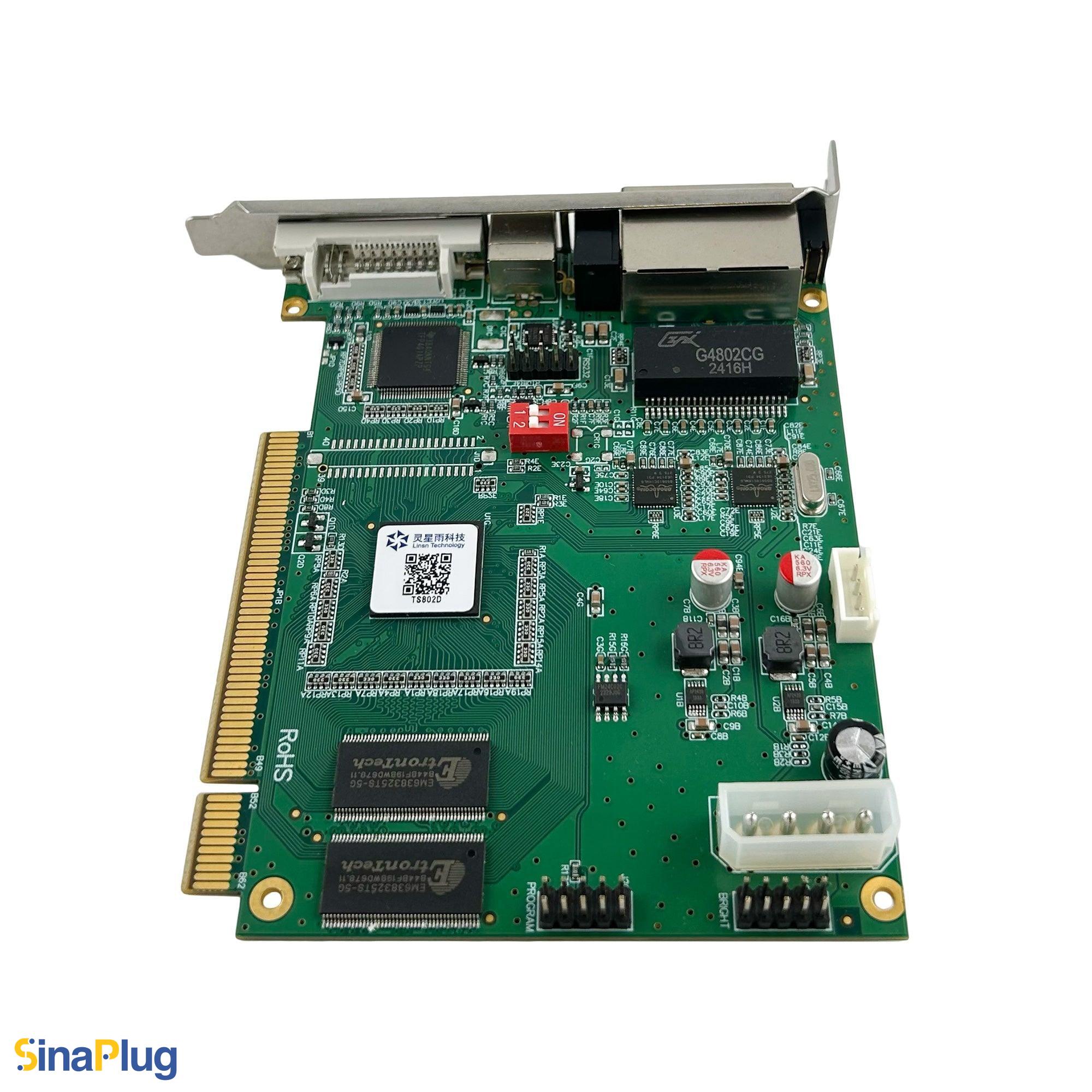

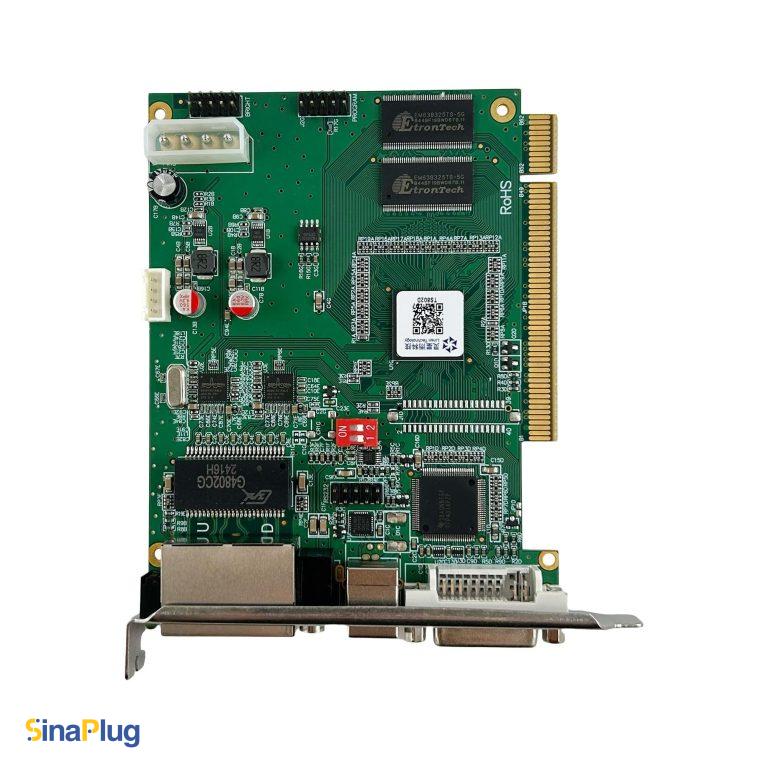

Azar Pixel introduces the Linsn TS802D, a flexible and high-capacity sending card tailored for full-color, single-color, and double-color LED screens. It supports up to 1,310,720 pixels, with a maximum width of 4,032 pixels or height of 2,048 pixels, making it well-suited for large-scale displays that demand adaptable and expandable configurations.
Equipped with a DVI video input and audio support, this card ensures high-quality audiovisual transmission. Configuration is done via USB. Dual Gigabit Ethernet outputs each handle up to 655,360 pixels, providing versatile options for display arrangement and scalability.
Brightness adjustment is managed via an external controller, providing manual scaling options of 16, 32, and 64 levels. It supports refresh rates of both 30Hz and 60Hz to accommodate different visual needs.
Designed to function reliably within a temperature range of -20°C to 75°C, this sending card is well-suited for indoor use as well as demanding outdoor conditions.
Thanks to its comprehensive features and adaptable performance, the Linsn TS802D delivers consistent and reliable operation for professional LED display applications across a wide variety of environments.
Key Features of Linsn TS802D
Loading Capacity
- Up to 1,300,000 pixels
- Maximum width: 4032 pixels
- Maximum height: 2048 pixels
Input
- 1x DVI interface
- 1x 3.5mm Audio interface
Output
- 2x Gigabit Ethernet ports (up to 1280×1024 resolutions)
Control
- 1x USB (Type B) interface
features
- Supports 30Hz and 60Hz refresh rates
- Manual brightness adjustment via external controller with 16, 32, and 64-level scaling
Power
- input voltage: 4.5V – 5.5VDC
- power consumption: 3.1W
Dimensions (L*W*H)
- 126mm * 100mm * 20mm
| Weight | 0.74 lbs |
|---|---|
| Dimensions | 9.45 × 5.98 × 2.24 in |
| Ethernet Port | 2 |
| Max Pixel Capacity | 1,300,000 |
| Supported Resolutions For Input | 1344×960@60Hz , 3072×672@30Hz 1280×1024@60Hz , 2880×704@30Hz 1024×1280@60Hz , 2560×800@30Hz 832×1280@60Hz , 2368×864@30Hz 640×1280@60Hz , 2048×1024@30Hz, 2048×640@60Hz , 4032×512@30Hz 1920×672@60Hz , 3840×544@30Hz 1792×720@60Hz , 3584×576@30Hz 1600×800@60Hz , 3392×608@30Hz 1472×880@60Hz , 3200×640@30Hz |
| DVI In | 1 |
| Audio In | 1 |
| USB Port Type B | 1 |
| Cascading | Supported |
| Input Voltage Range | 4.5-5.5VDC |
| Max Power Consumption | 3.1W |
| Working Temperature Range | -20℃ ~ 75℃ |
| Others | Manual brightness adjustment (the outer box required) 16-level, 32-level, and 64-level |
