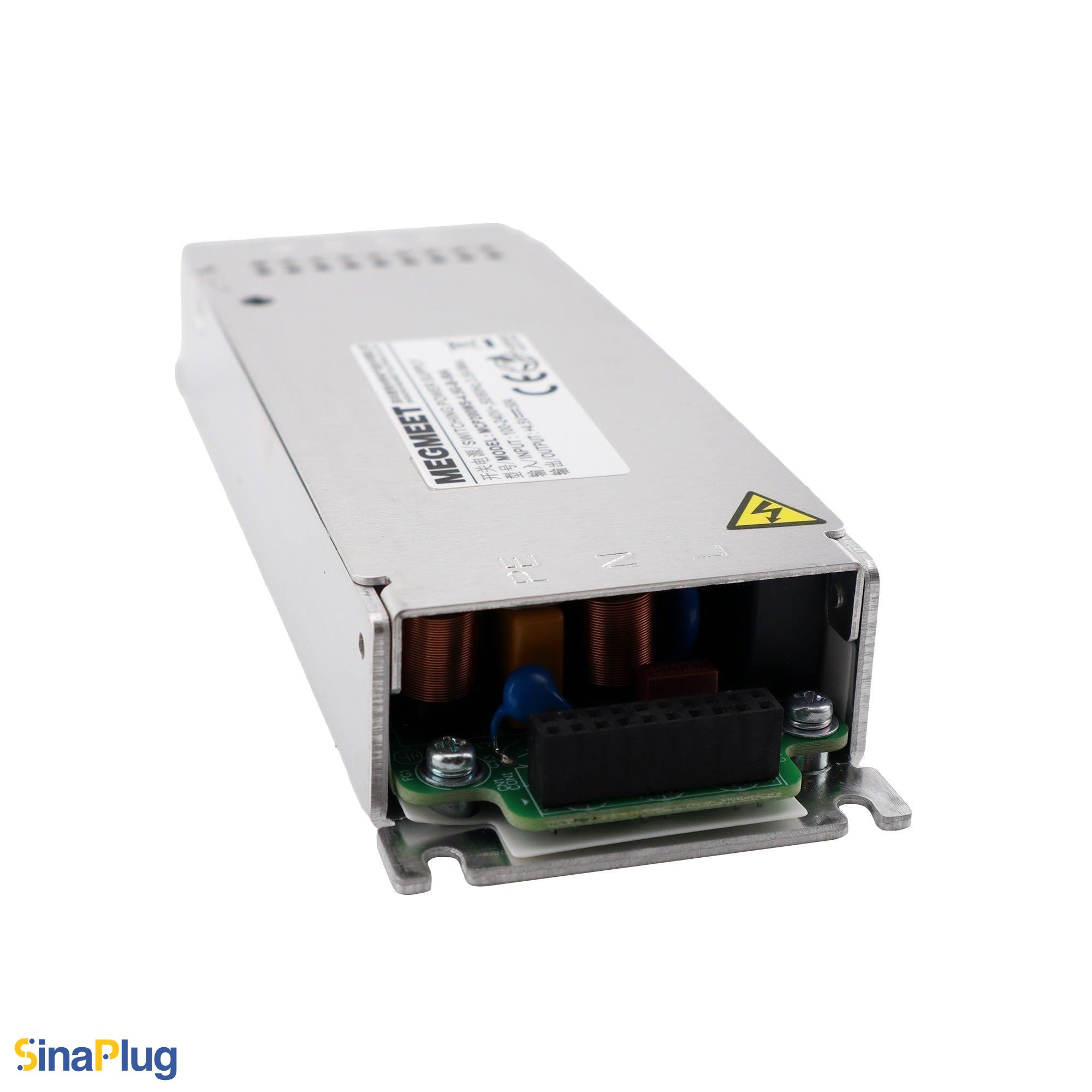

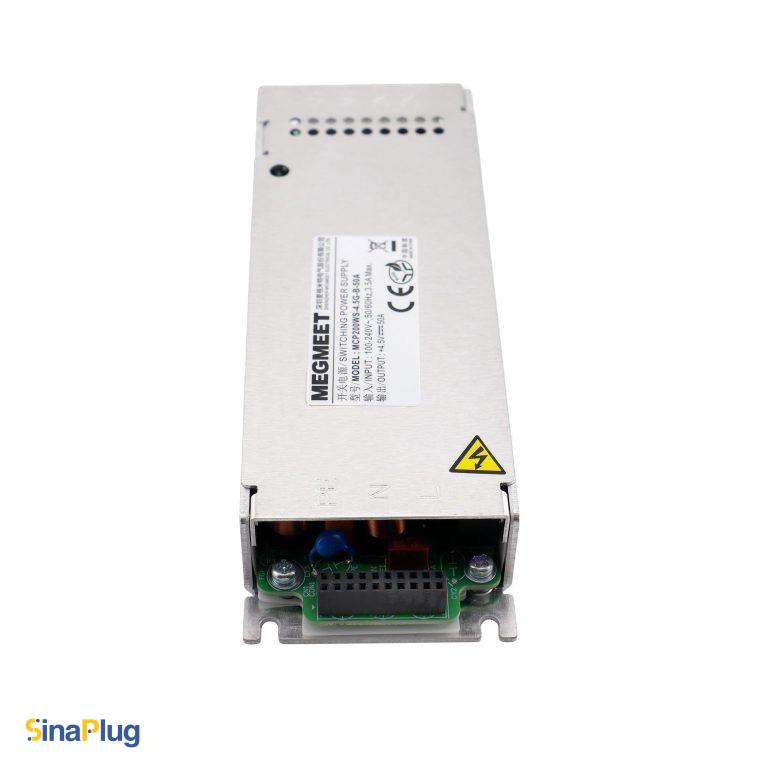

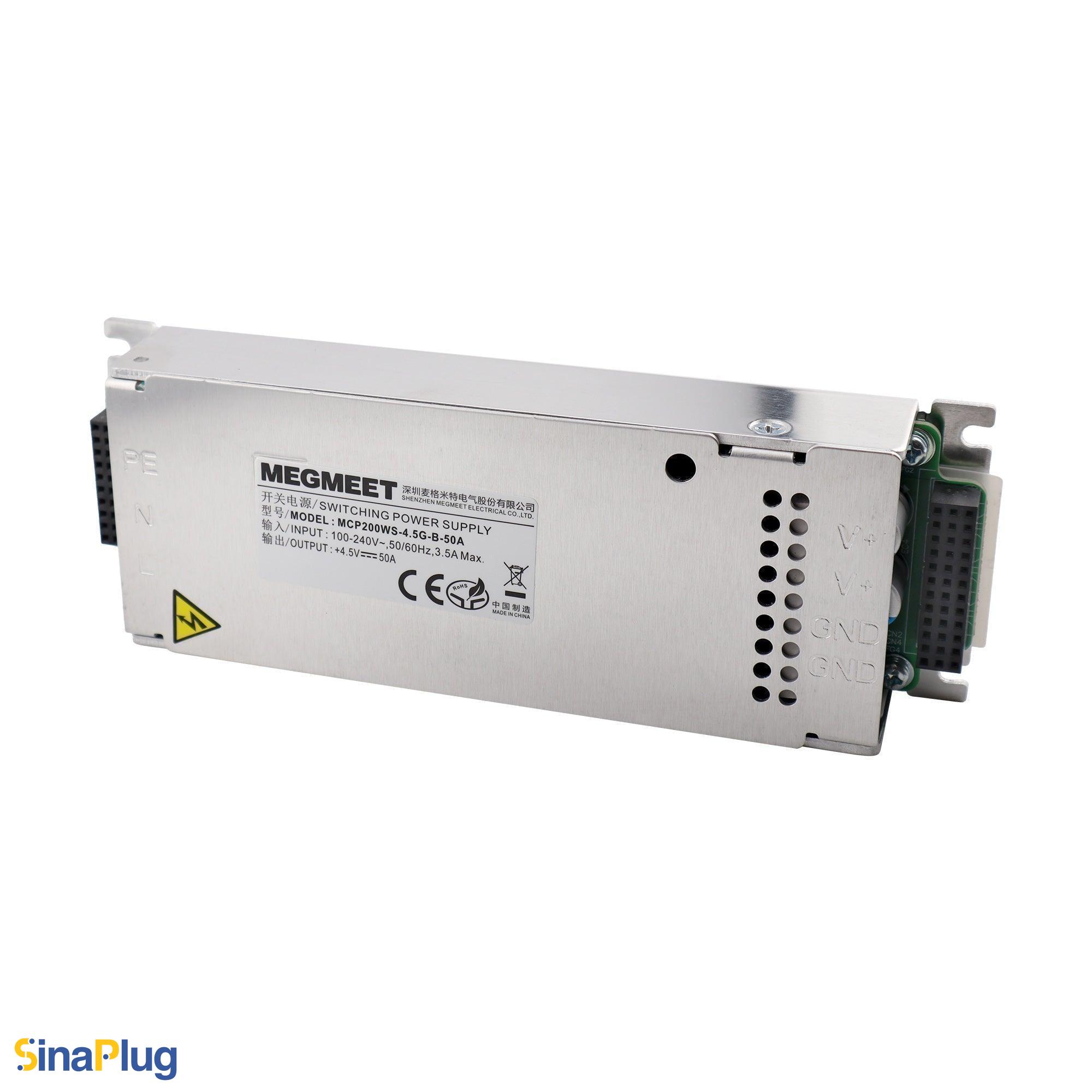

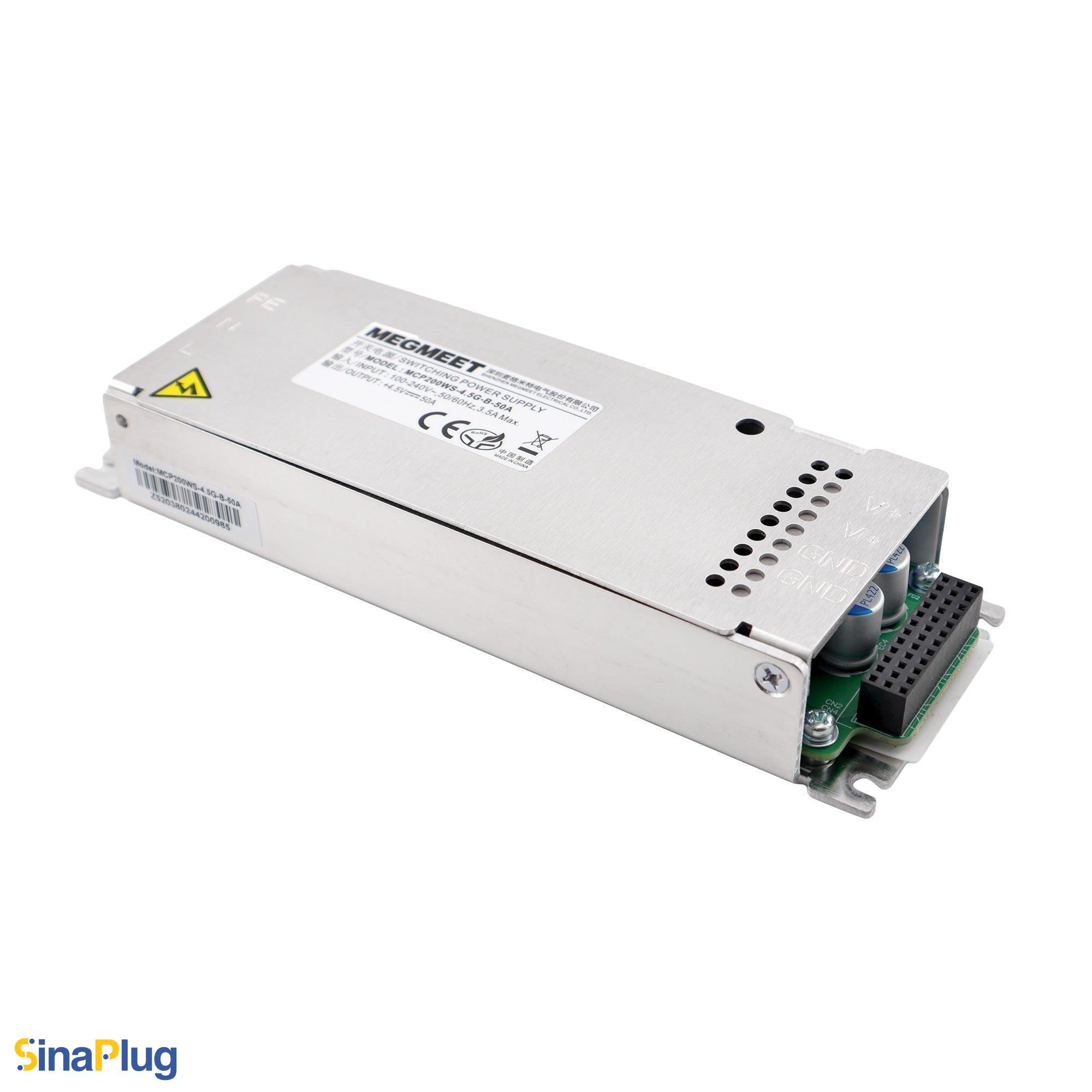

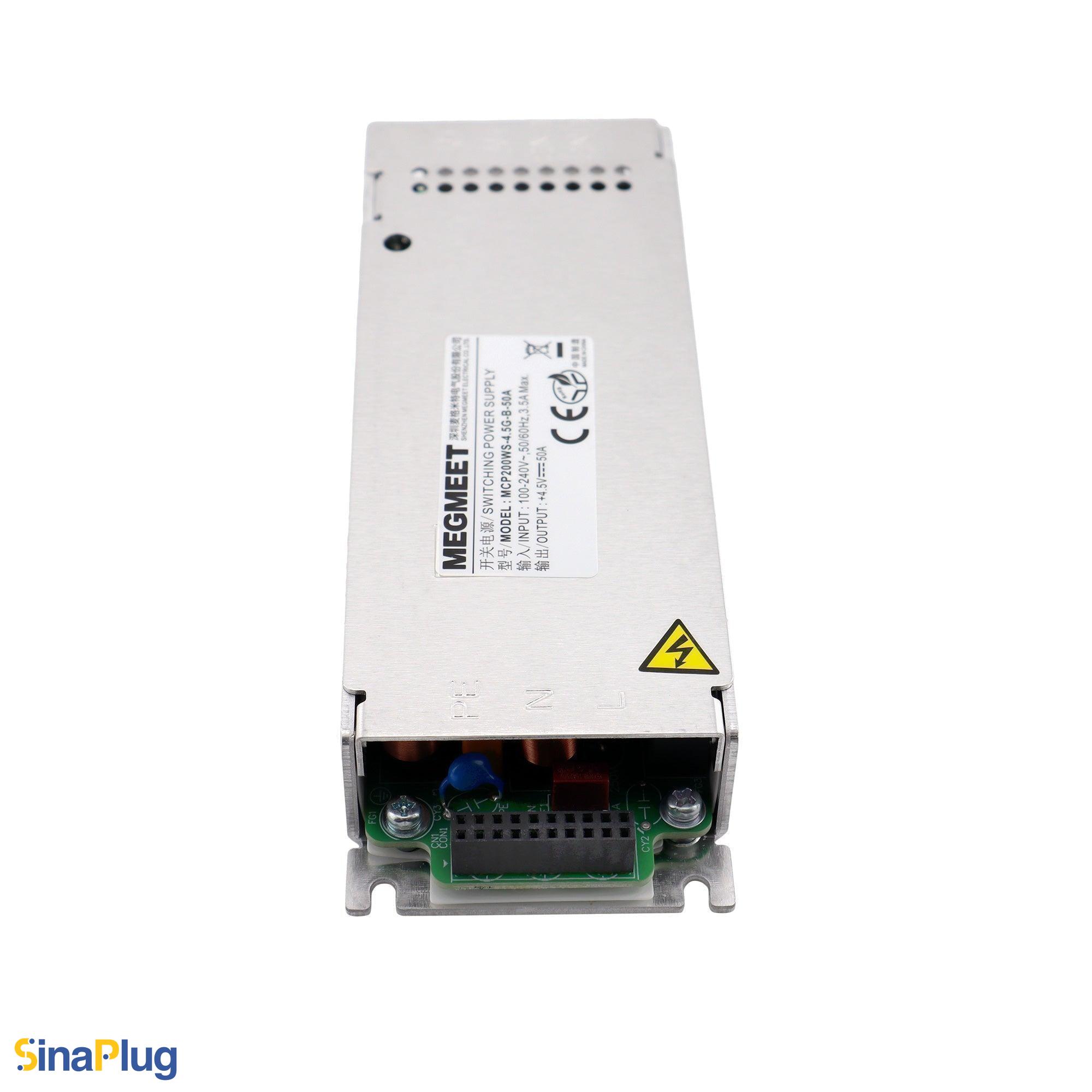

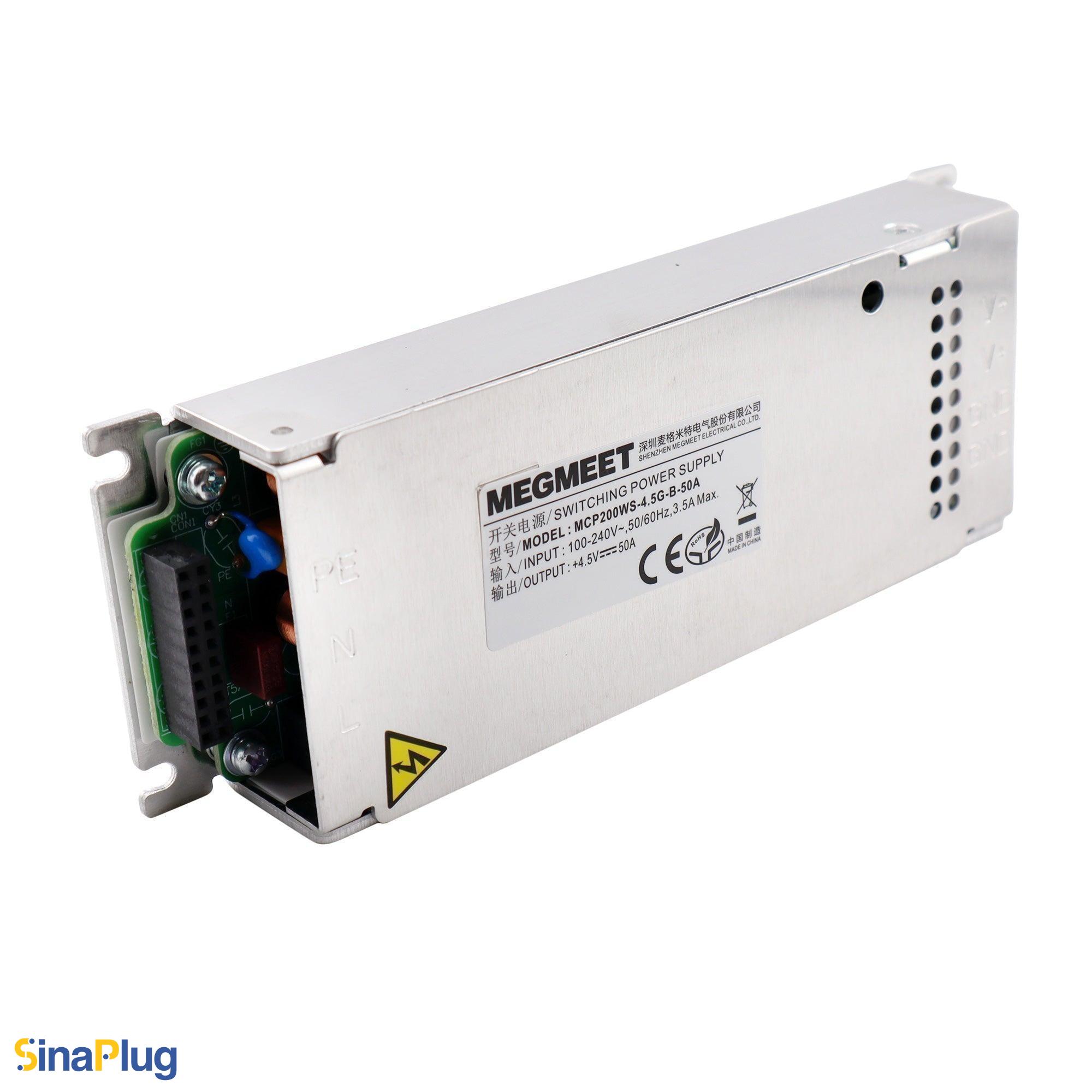

MEGMEET MCP200WS-4.5G-B-50A Power Supply (4.5V, 50A)
$40.25
5 in stock
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The MEGMEET MCP200WS-4.5G-B-50A in the family of MEGMEET MCP200 series (similar but updated and more powerful version of MCP200WS-4.5G-B or MCP200WS-4.5)is a renowned, enclosed power supply perfect for industrial applications, Audio/Visual and LED equipment that requires consistent and dependable performance.
This series includes major features like an EMC circuit, a PFC circuit, and 2G anti-vibration. It is certified by UL60950, GB4943, EN55032, EC61000-4-2/4/5/11, and GB17626.2/4/5/11, in addition to its advanced protections like overload, over-voltage, and short circuit (automatic recovery), permits it to comply with international energy requirements.
The small, AC/DC MCP200WS-4.5G-B-50A converts a wide range of 100-240 VAC inputs into two steady output channels that generate up to 50A at 4.5V. It offers a 225W rated power with a 0.95 power factor and PFC feature, which decreases the strain on the electrical grid and increases efficiency by up to 88% for optimal performance.
The small-sized Megmeet MCP200WS-4.5G-B-50A ensures long-term operation in demanding situations using natural air convection (recommended to be mounted on a heatsink), across a wide range of ambient temperatures from -40°C to +70°C with no whistling noise.
Key Features of MCP200WS-4.5G-B-50A Power Supply
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100 – 240VAC
- Adjustable Output Voltage: No
- Output Voltage: 4.5V
- Output Rated Current: 50A
- Output Rated Power: 225W
- Protections: Short circuit protection, Over Voltage Protection, Over Current Protection
- Dimensions (L*W*H): 165mm * 56mm * 26mm
| Weight | 0.77 lbs |
|---|---|
| Dimensions | 6.5 × 2.2 × 1.02 in |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤3.5A |
| Efficiency | 88% |
| Output Voltage | 4.5V |
| Adjustable Output Voltage | No |
| Output Rated Current | 50A |
| Output Rated Power | 225W |
| Max Ripple And Noise | 200 mVp-p |
| Output Voltage Tolerance | 5% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | No |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | No |
| Working Temperature Range | -40 to +70 °C |
| Working Humidity Range | 10-90% |
| Storage Temperature Range | -30 to +85 °C |
| Standard Certification | EN55032, GB17626.11, GB17626.2, GB17626.4, GB17626.5, GB4943, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, UL60950, UL62368 |
