Take control of your LED display with Taurus TB40, available exclusively at AzarPixel. This well-known multimedia player is a new-generation (upgraded version of TB4) multimedia player that becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, and retail store displays.

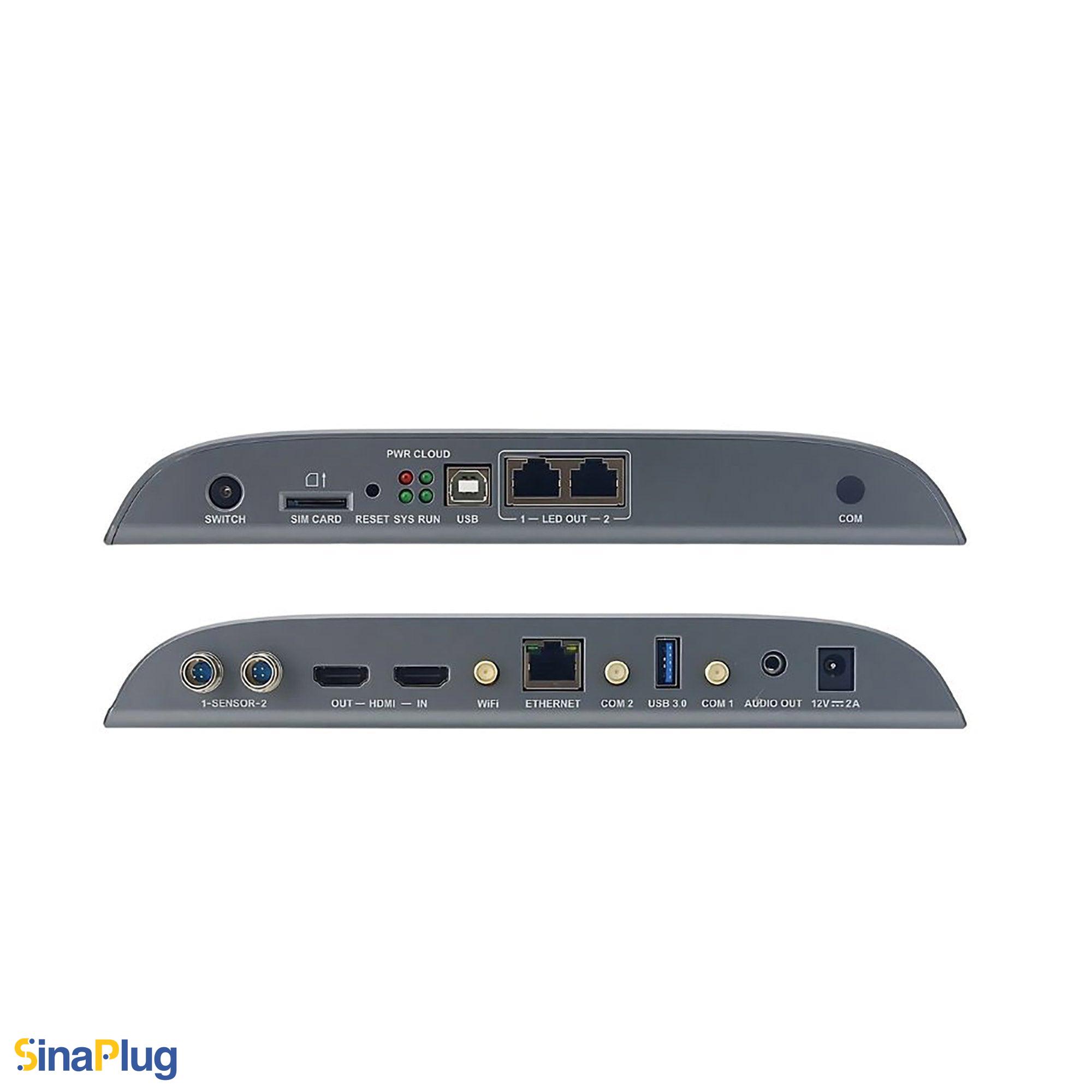

It has two Gigabit Ethernet ports (one configurable as a backup) for reliable high-speed transmission, HDMI 1.3 input/output ports (including synchronized mode), a 3.5mm audio interface, multiple USB ports (Type A and Type B), and connectors for Wi-Fi, and 4G (optional). Additionally, the sensor ports continuously monitor ambient temperature, humidity, and brightness.
The TB40’s significant 1.8 GHz quad-core ARM A55 processor, 1 GB of RAM, and maximum loading capacity of 1,300,000 pixels allow it to present the details impactful. Smooth 4K/FHD/HD/H.265 video decoding and flawless playback of up to 1x 4K, 2x 1080p, 4x 720p, 4x 480p, or 6x 360p are made possible by this powerful combination. It offers flexible playback options, including synchronous mode (with 1920×1200 @60Hz HDMI output) and asynchronous mode.
The TB40 is certified to CQC, SRRC, and RoHS standards, ensuring flawless, continuous operation and compliance with regional regulations. Powered by a 100-240VAC to DC 12V adapter, it operates efficiently with a maximum power consumption of 18W.
It supports plenty of networking configurations, including RJ45 Ethernet, Wi-Fi AP, Wi-Fi STA, and both Wi-Fi AP+STA modes for enhanced remote deployment capabilities. Furthermore, optional 4G/5G cellular connectivity expands the network’s capabilities for remote installations.
The Android-based TB40 provides users with All-round control plans feature, including remote management across various devices (PCs, smartphones, tablets) linked to the internet using VNNOX, ViPlex Express, ViPlex Handy, and NovaLCT. It supports flexible scheduling options, encompassing both local and internet-based commands. Notably, this player enables synchronized playback across multiple screens, leveraging precise time synchronization via GPS (with optional 4G/5G module), RF (with optional RF module), or NTP
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of Taurus TB40 Multimedia Player
Loading Capacity
- Up to 1,300,000 pixels (max width of 4096 pixels or max height of 4096 pixels)
Output:
- 2x Gigabit Ethernet LED out ports, configurable (two primary/ or one primary one backup)
- 1x Stereo audio connector with 48 kHz internal sample rate
- 1x HDMI 1.3 connector (supports 1920*1200@60Hz with HDMI loop)
Input
- 1x HDMI 1.3 connector for synchronous mode (video scaling)
- 2x sensor connectors (brightness, temperature, humidity)
- 1x USB 3.0 (Type A) port (USB playback and firmware upgrades, and storage expansion)
Control
- 1x USB (Type B) port (control computer connection and screen control)
- 1x Gigabit Ethernet port (control computer, LAN or network connection)
Performance
- quad-core ARM A55 processor @1.8 GHz
- Hardware H.265/4K/HD/FHD video decoding
- 1 GB RAM,
- 32 GB internal storage
- Flawless playback up to 1x 4K, 2x 1080p, 4x 720p, 4x 480p, or 6x 360p videos
Decoding
- Supports the following file formats:
- Image: JPG/JPEG/BMP/GIF/PNG/WEBP
- Video: DAT/MPG/VOB/TS/AVI/ MKV/MP4/MOV/3GP/FLV/WEBM
Functionality
- All-round control plans for content publishing and screen control from several devices
- Multiple connection solutions (wired and wireless)
- Both Wi-Fi AP and Wi-Fi STA modes are applicable at the same time (Wi-Fi AP/ Wi-Fi STA/ Wi-Fi AP+STA)
- Synchronous and asynchronous modes between internal and HDMI video sources
- Synchronous playback across multiple screens with NTP, GPS, and RF time synchronization methods (The specified modules must be installed)
- Support for optional 4G/5G modules
- Support for optional RF modules
- Ethernet LED out redundancy
Dimensions (L*W*H)
- 238.8mm * 140.5mm * 32mm
| Weight | 1.9 lbs |
|---|---|
| Dimensions | 15.47 × 10.98 × 2.99 in |
| Input Voltage Range | 12VDC |
| Max Power Consumption | 18W |
| Pixel Capacity | 13.000.000 |
| Ram Capacity | 1GB |
| Internal Storage | 32GB |
| HDMI Out | 1 |
| HDMI In | 1 |
| Ethernet LED Out | 2 |
| Ethernet LAN | 1 |
| USB Port Type B | 1 |
| WiFi STA | Yes |
| WiFi AP | Yes |
| WiFi STA AP | Yes |
| SIM Slot | 1 |
| Sensor Connectors | 2 |
| Time Synchronization | NTP (Optional GPS and RF) |
| IP Rating | IP20 |
| Working Temperature Range | -20 to +60 °C |
| Working Humidity Range | 0-80% |
| Storage Temperature Range | -40 to +80 °C |
| Image Decoding | JPG, JPEG, BMP, GIF, PNG, WEBP |
| Video Decoding | DAT/MPG/VOB/TS/AVI/ MKV/MP4/MOV/3GP/FLV/WEBM |
| Standard Certification | CQC, RoHS, SRRC |
| Others | “2x Gigabit Ethernet LED out 1x Gigabit Ethernet port 2x sensor connector (brightness / Temperature / humidity)” |
