Youyi YY-D-200-5 V-G 110/220V Power Supply (5V, 40A)
Price range: $29.80 through $33.32
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The Youyi YY-D-200-5, versions: G1 (110-220V) and G6 (110/220V) are remarkable G series enclosed power supplies (also known as: YY-D-200-5V-40A V-G, or You-Yi 5V40A) ideal for A/V and LED equipment, as well as industrial applications requiring consistent and reliable performance. This model also has advanced protections such as over temperature, short circuit, and overload (all with automatic recovery).

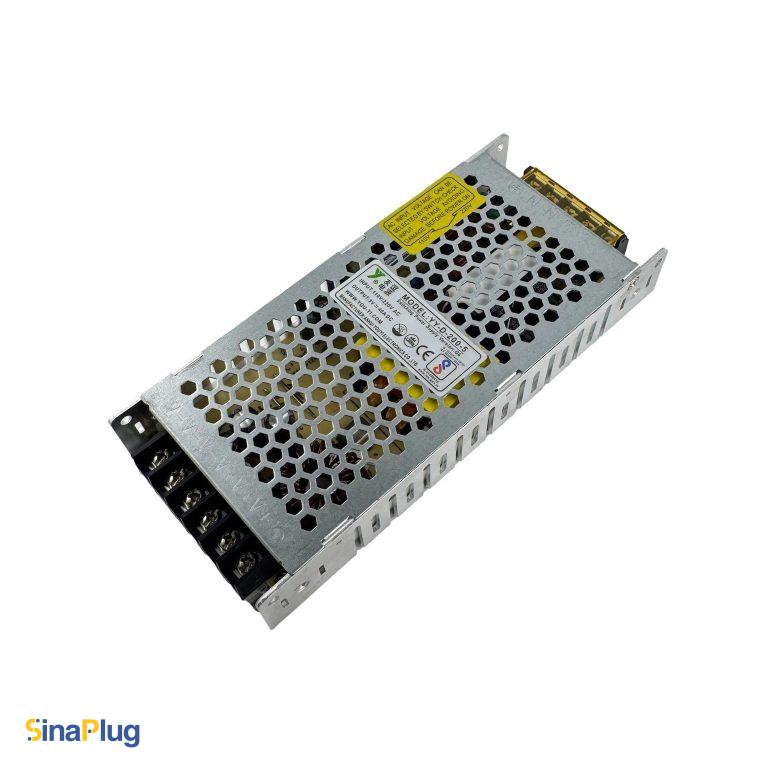

The Youyi YY-D-200-5 G6 (110/220V) operates with two selectable 110 VAC and 220 VAC inputs to provide 0-40A at 5V in three consistent output channels while its G1 version automatically adapts with any input voltage in range of 100-240VAC. Both offer rated 200W output power with a high efficiency (over 85%) for optimal performance. (Please note: The images are for reference only. Depending on stock, the frame may differ from the photos shown)
These small-sized AC/DC power supplies ensures continuous performance in challenging environments with 2G anti-vibration capability (range of 10-55Hz) along all three axes, excellent 50K hours MTBF, and natural air convection design (it is recommended to mount it on a heatsink or a metallic (conducting heat material) with a minimum space of 5cm around it), and operate properly throughout a wide temperature range of -10°C to +60°C.
Key Features of YY-D-200-5
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100-240VAC (G1) and 110 / 220VAC (G6)
- Adjustable Output Voltage: No
- Output Voltage: 5V
- Output Rated Current: 40A
- Output Rated Power: 200W
- Protections: over temperature protection, short circuit protection, over current protection
- Dimensions (L*W*H): 190mm * 82mm * 30mm
| Weight | 1.05 lbs |
|---|---|
| Dimensions | 7.48 × 3.43 × 1.18 in |
| Type | G1 (Automatic Switch), G6 (Manual Switch) |
| Input Voltage Range | 110/220V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤2.5A |
| Efficiency | 85% |
| Output Voltage | 5V |
| Adjustable Output Voltage | No |
| Output Rated Current | 40A |
| Output Rated Power | 200W |
| Max Ripple And Noise | 140 mVp-p |
| Output Voltage Tolerance | 1% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Over Current Protection | Yes |
| Over Voltage Protection | No |
| Under Voltage Protection | No |
| Working Temperature Range | -10 to +60 °C |
| Working Humidity Range | 15-90% |
| Storage Temperature Range | -40 to +70 °C |
2 reviews for Youyi YY-D-200-5 V-G 110/220V Power Supply (5V, 40A)
Clear filtersRELATED PRODUCTS
Hellen –
The automatic voltage switching was convenient and the unit worked as expected.
Ashley Williams –
These powers are thin and great for most of LED cabinets
