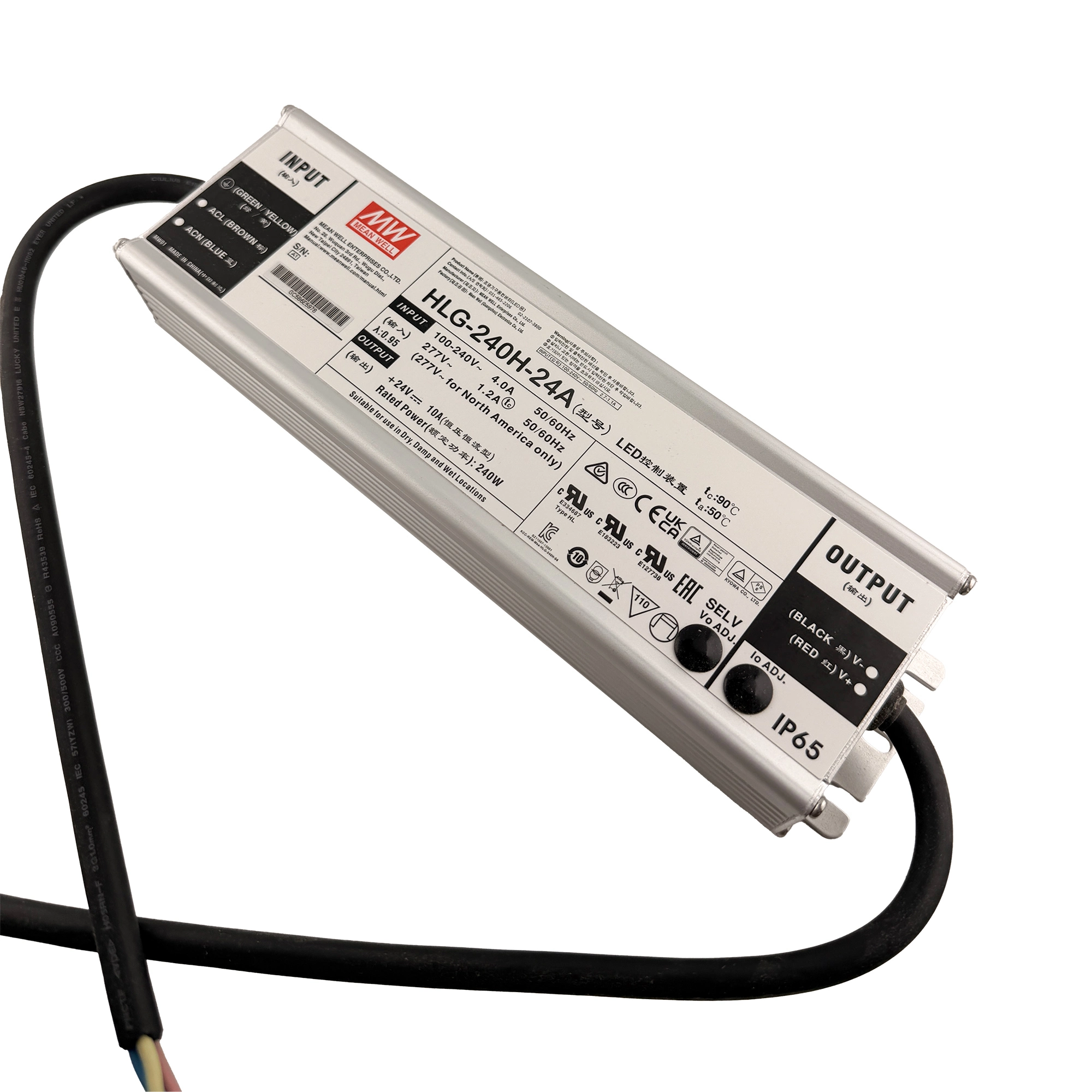

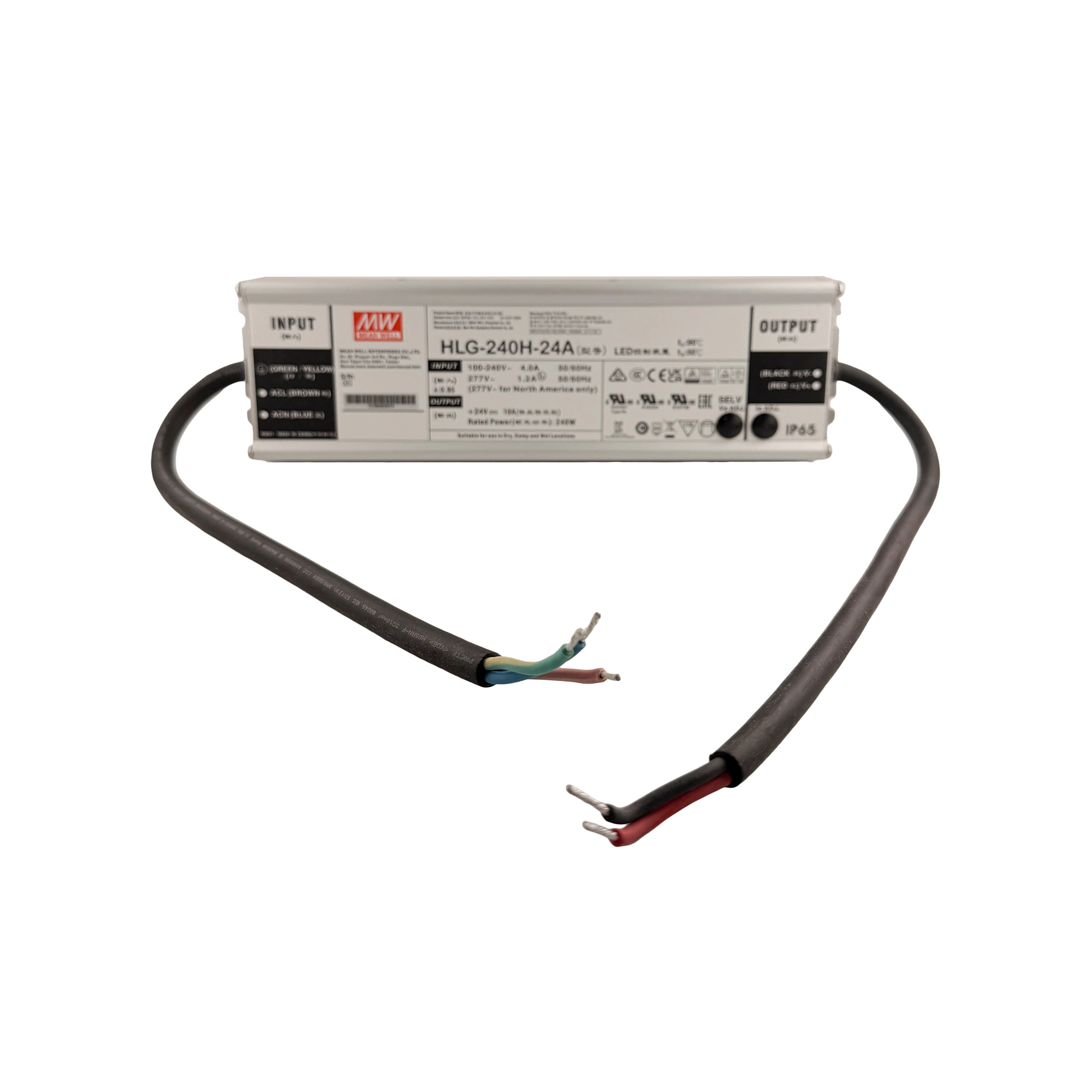

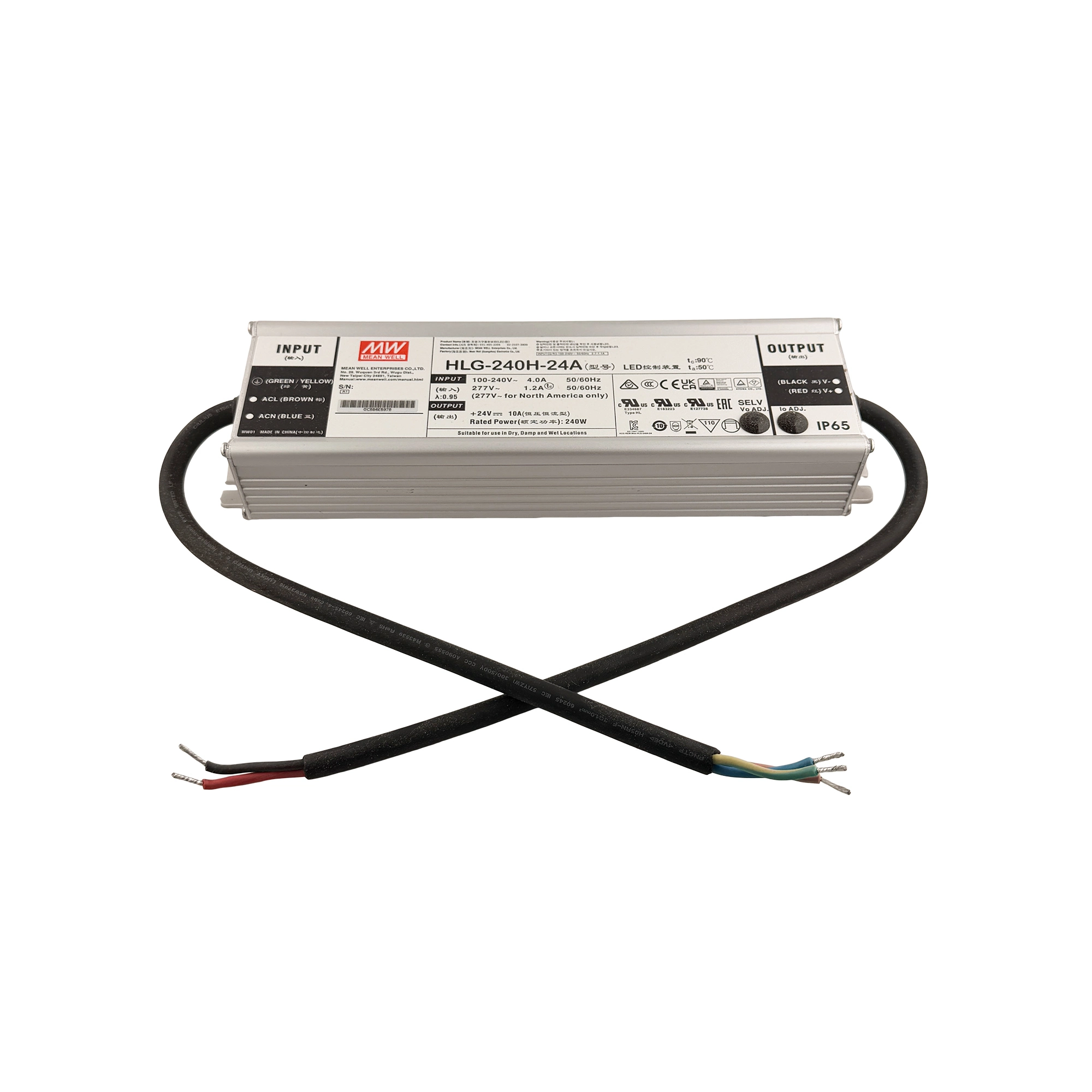

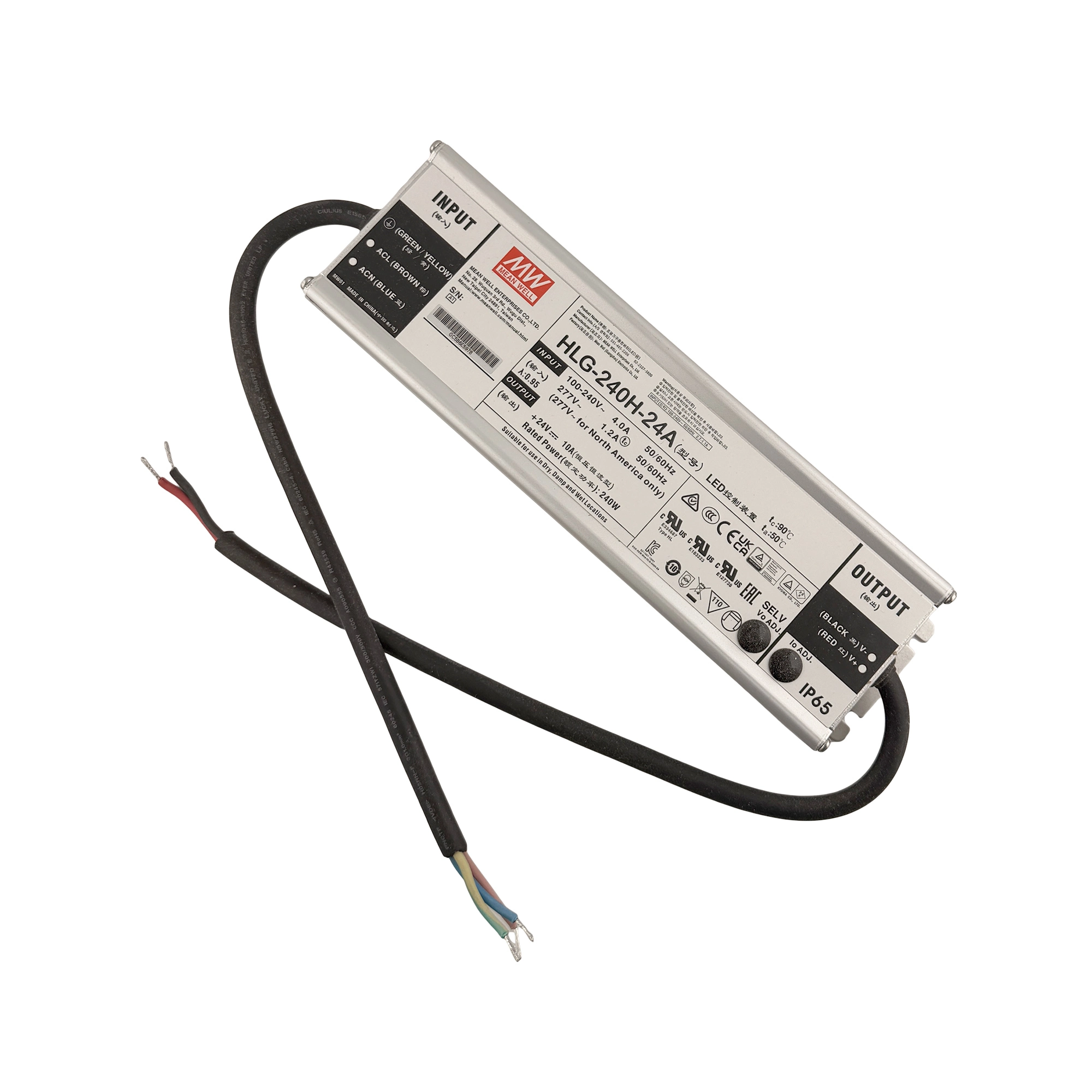

MEAN WELL HLG-240H-24A LED Driver Switching Power Supply (24V, 10A)

AzarPixel sells the genuine MEAN WELL HLG-240H-24A, a 240W constant voltage and constant current LED driver that delivers a stable 24VDC output at up to 10A with a typical efficiency of 92.5%. This waterproof, fanless LED power supply has earned its place as a dependable choice for demanding indoor and outdoor lighting installations.

It accepts a wide AC input of 100 to 240VAC and what sets this HLG-240H-24A version apart from the standard HLG-240H-24 is the pair of built-in potentiometers, letting installers fine-tune the output voltage (22.4 to 25.6V) and the output current (5 to 10A). Most customers prefer the HLG series over the fixed one because they can adjust the output to meet the specific requirements of the load.

There is no input voltage switch to set, which simplifies wiring down to just connecting the input leads. Built-in active PFC keeps the power factor high (0.95 or higher at full load), which makes a real difference when several drivers share the same circuit.

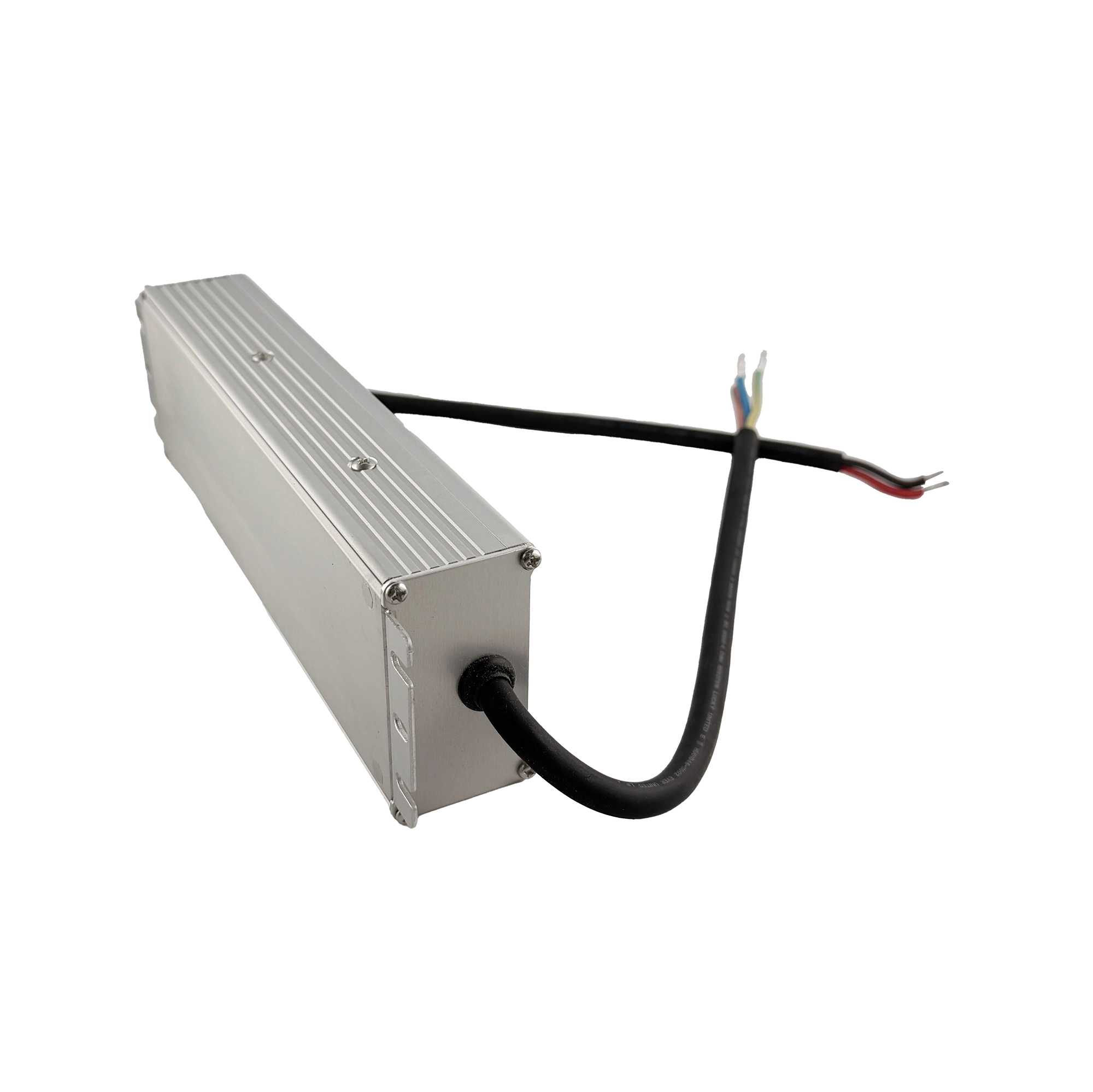

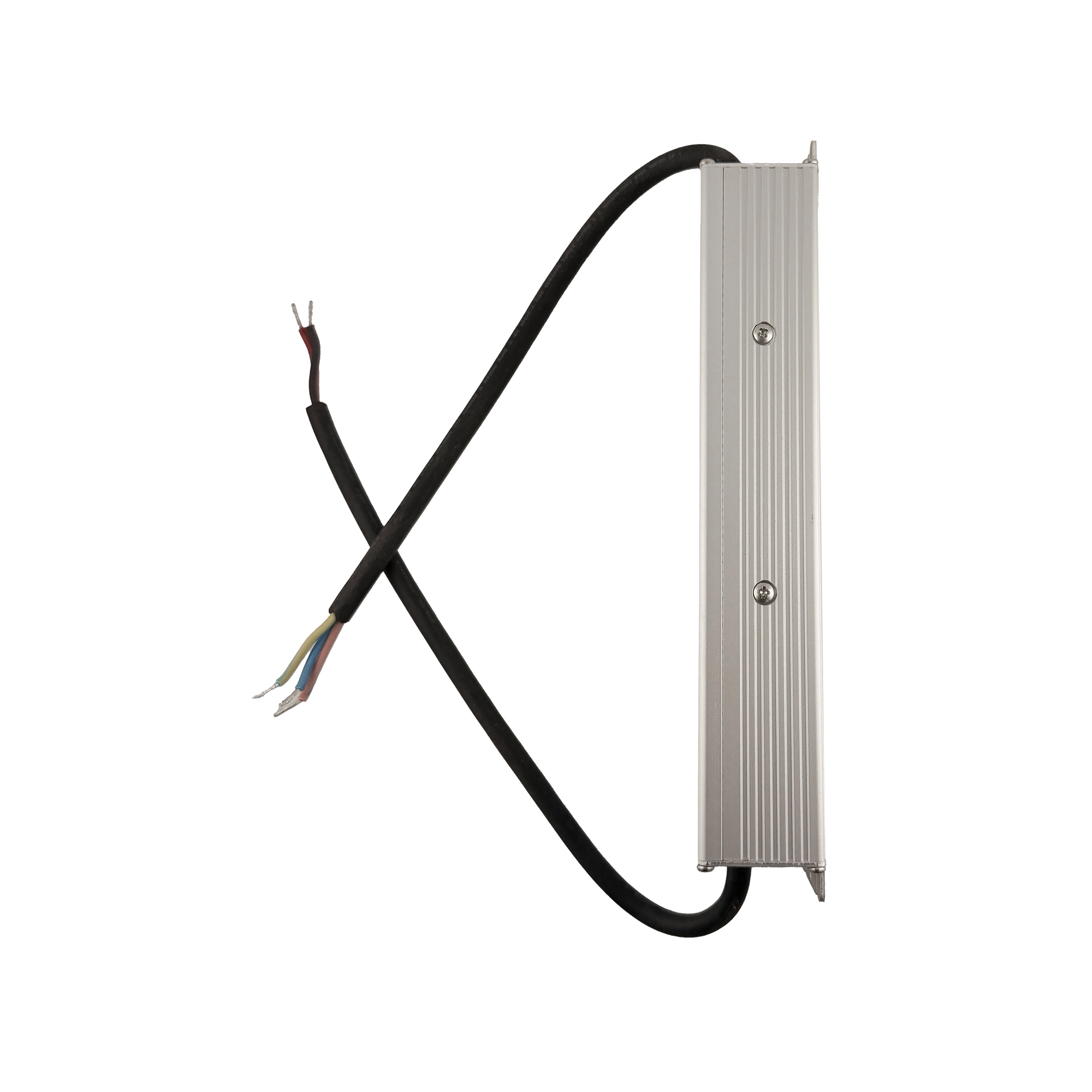

With its fanless design cooled by free air convection, the unit runs completely silent and even under moderate loads the aluminum case stays only warm to the touch; point long-term users often mention favorably. It operates across a wide case temperature range (-40°C to +90°C), and its IP65 rated metal housing is suitable for dry, damp and wet locations.

Protection covers short circuits and over current (95 to 108% of rated current), both of which recover automatically once the fault is removed, and over temperature, which shuts the output down and restores it on its own after the unit cools. Over voltage protection (27 to 34V) is the exception, latching the output off and requiring a re-power to resume operation, which is worth knowing before deployment.

This LED driver complies with safety standards including UL1012, UL8750, EN61347-1, EN61347-2-13, EN62368-1, GB19510.1, GB17625.1, EN61000-4-5. The HLG-240H-24A is a reliable solution for LED street lighting, high-bay lighting, parking space lighting, LED fishing lamps, greenhouse lighting and any 24V LED system that needs a sealed, outdoor-rated power source.
