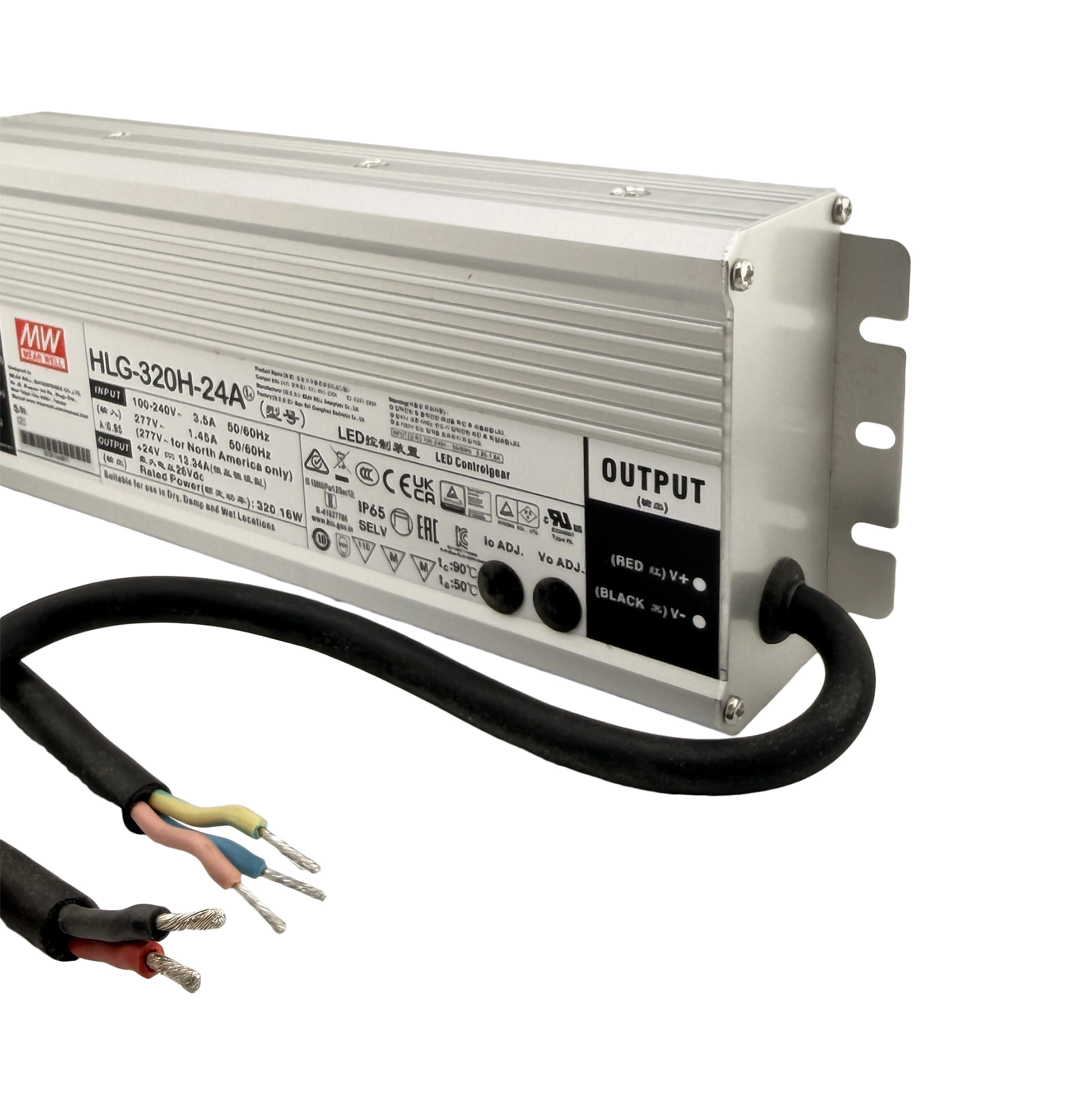

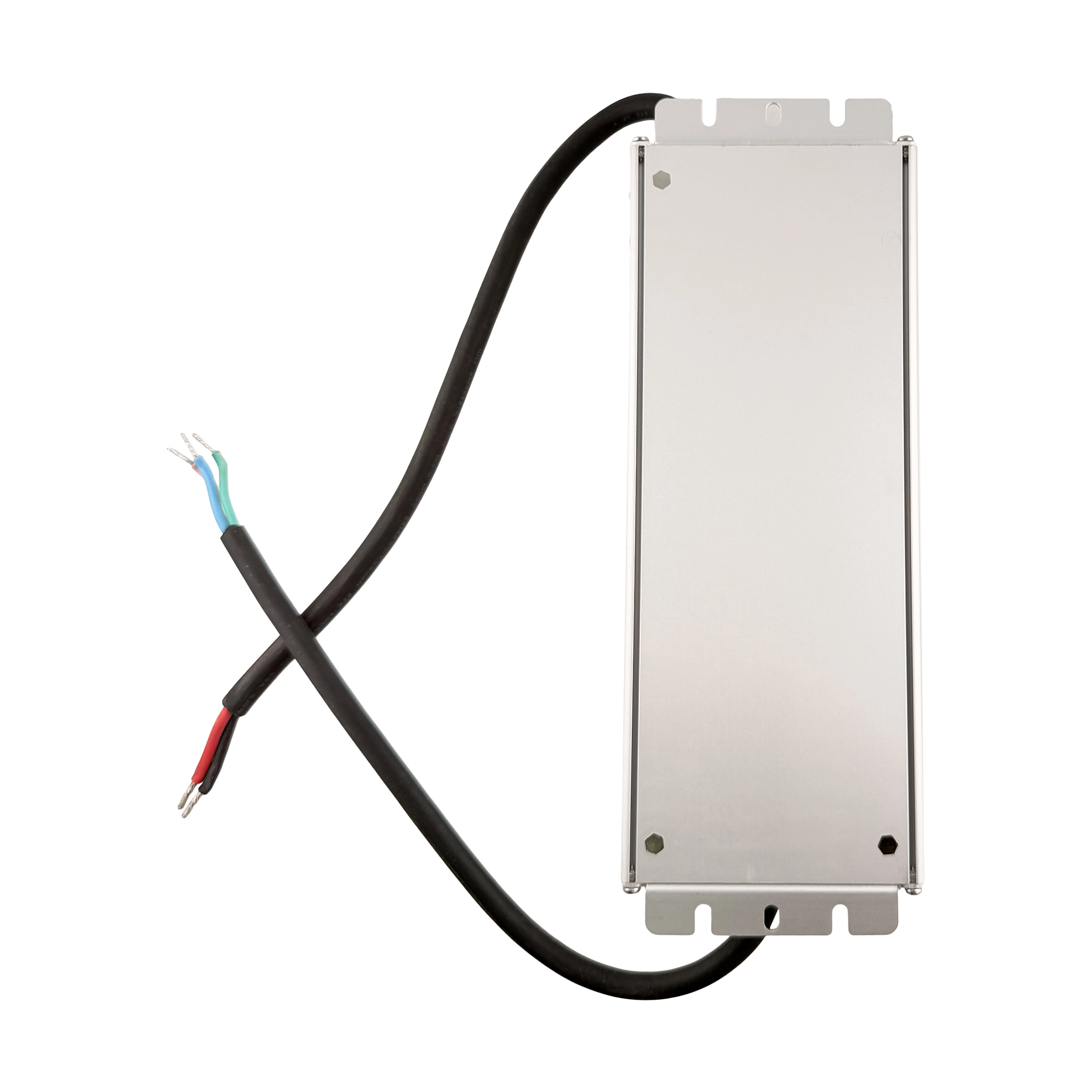

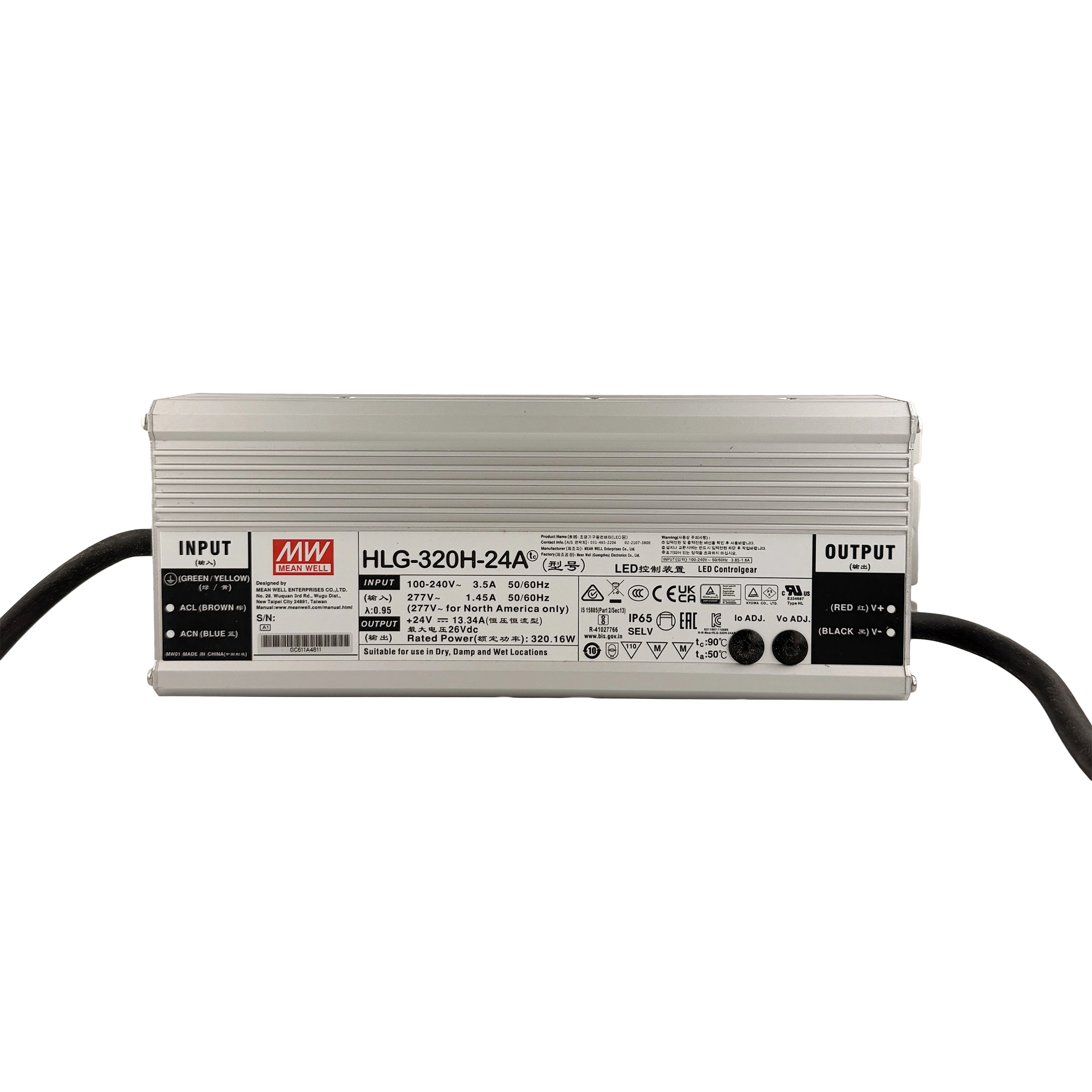

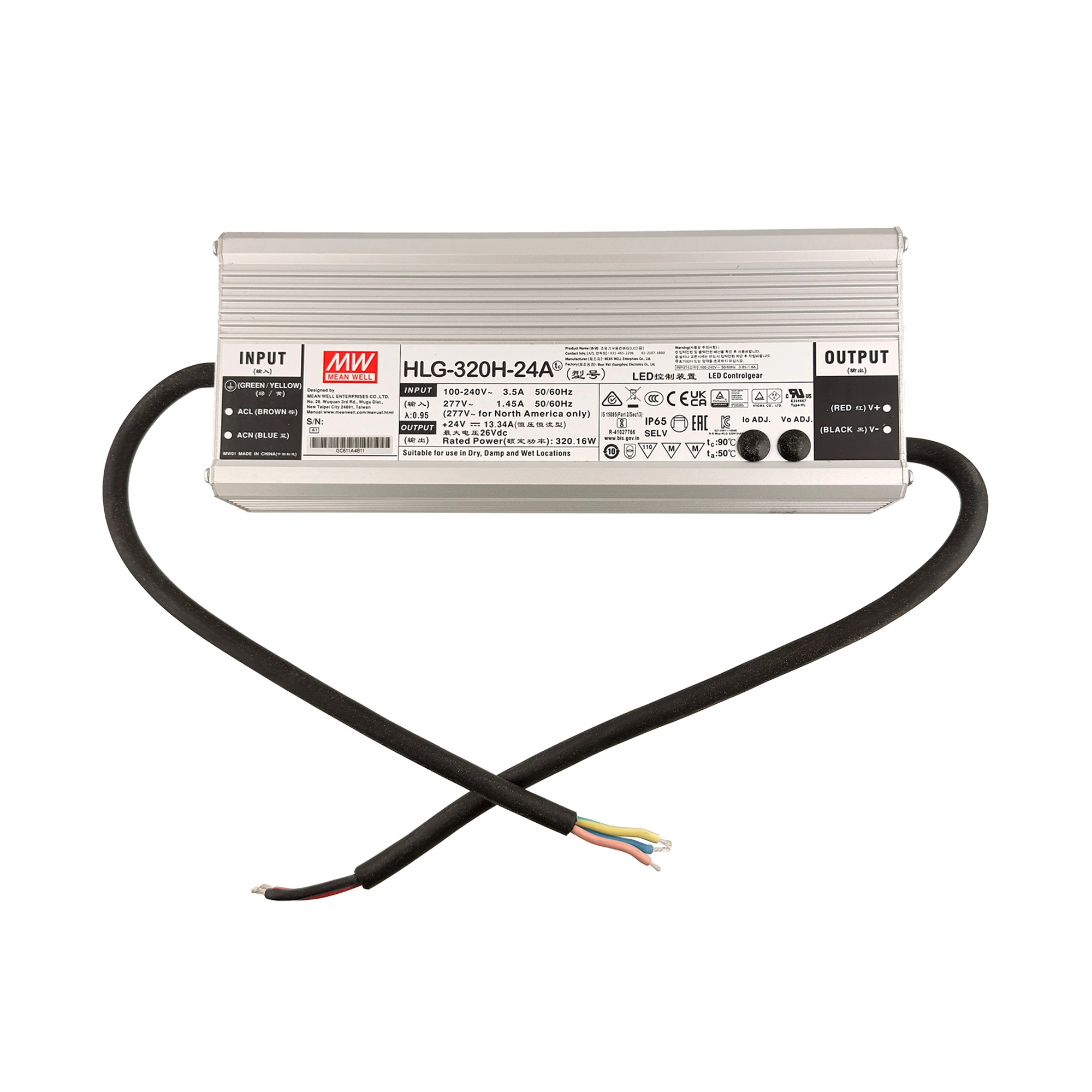

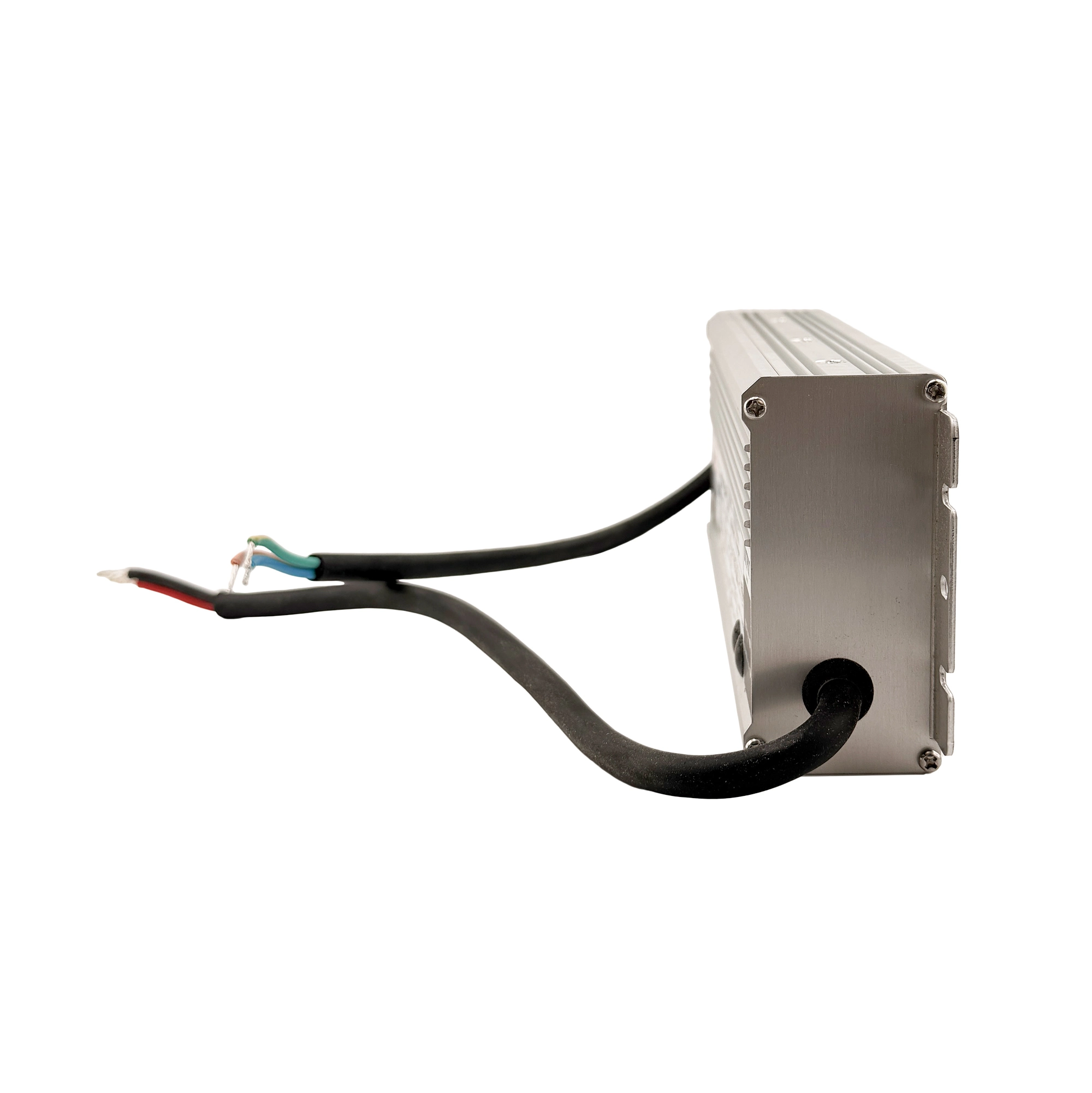

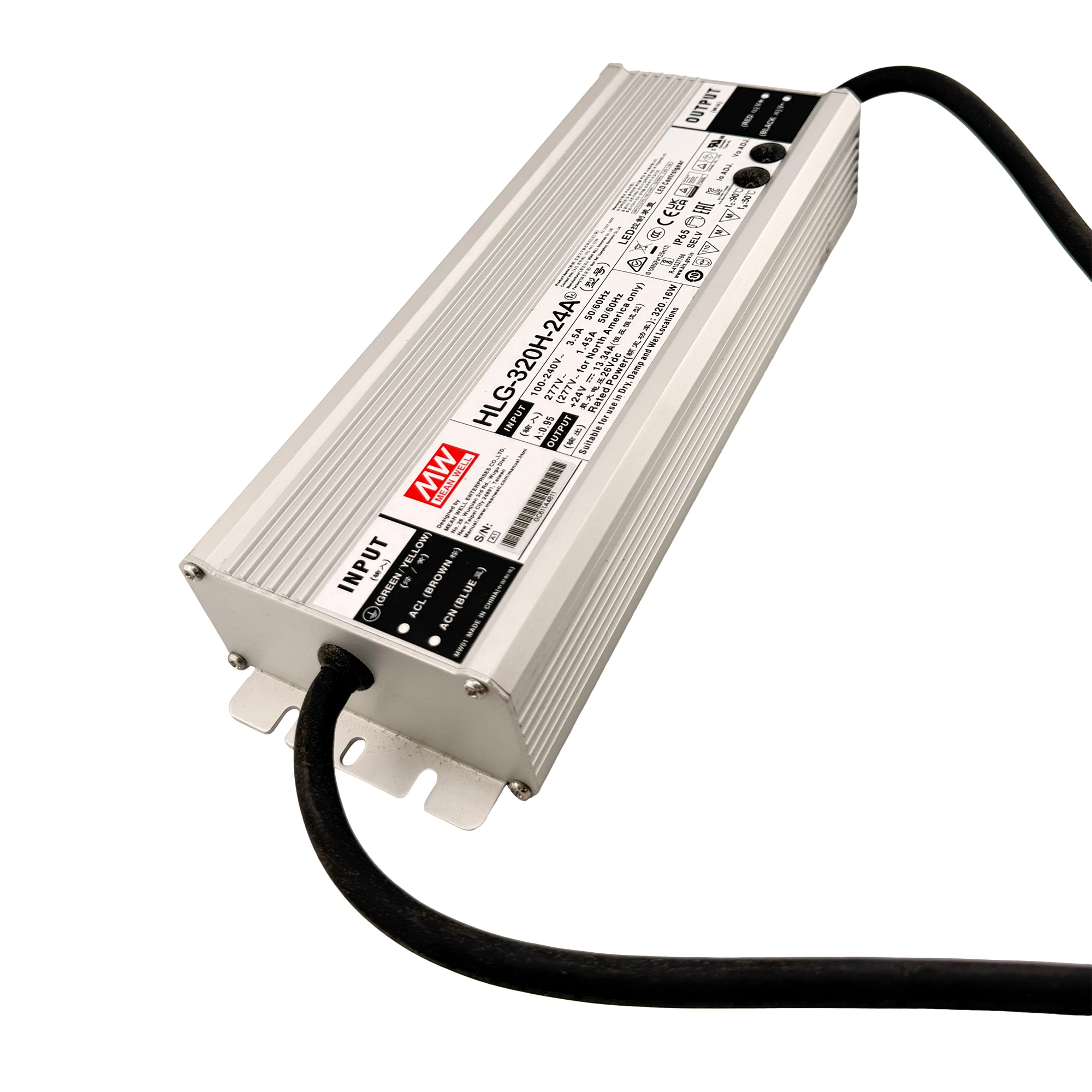

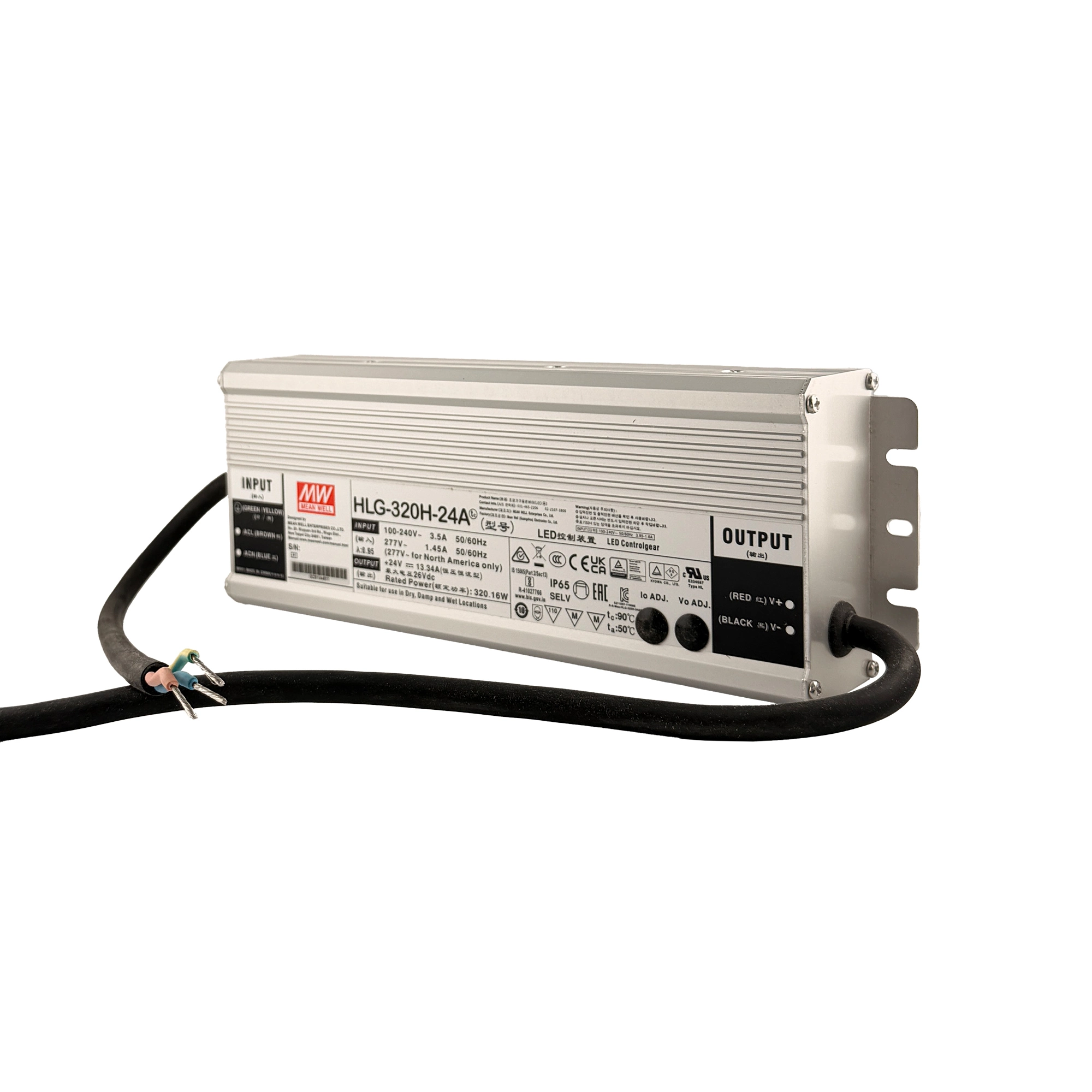

MEAN WELL HLG-320H-24A LED Driver Power Supply (24V, 13.34A)

AzarPixel proudly sells the genuine MEAN WELL HLG-320H-24A, a 320.16W constant voltage and constant current LED driver that delivers a stable 24VDC output at up to 13.34A with a typical efficiency of 94%. This waterproof, fanless LED power supply is built for demanding indoor and outdoor lighting installations where a 24V system needs serious current headroom.

As with the rest of the family, the HLG-320H-24A version differs from the standard HLG-320H-24 by adding two built-in potentiometers, letting installers fine-tune the output voltage (21 to 26V) and the output current (6.67 to 13.34A). For 24V loads that have outgrown the HLG-240H-24A (240W / 10A), this model delivers the same adjustable design with roughly a third more power on tap.

It accepts a wide AC input of 100 to 240VAC. Built-in active PFC keeps the power factor high (0.94 or higher at full load), though the 70A cold-start inrush limits ganging to one unit per 16A type B breaker (or two on a type C).

With its fanless design cooled by free air convection, the unit runs with no fan noise at all, and the finned aluminum body sheds heat across a wide case temperature range (-40°C to +90°C). Its IP65 rated metal housing is suitable for dry, damp and wet locations.

Protection covers short circuit and over current (95 to 108% of rated current), both of which recover automatically once the fault is removed. Over voltage (27 to 33V) and over temperature protection both latch the output off and require a re-power to resume operation, which is worth knowing before deployment.

MEAN WELL HLG-320H-24A LED driver carries a SELV rated output and complies with key safety and EMC standards including UL8750, EN61347-1, EN61347-2-13, EN61000-4-5, and GB19510.1. The HLG-320H-24A is a reliable solution for LED street lighting, high-bay lighting, parking space lighting, LED fishing lamps, greenhouse lighting and any 24V LED system that needs a sealed, outdoor-rated power source.
