MRV336 Receiving Card
$35.40
50 in stock
| Minimum Qty | Discount |
|---|---|
| 5 - 10 | 3% |
| 11 - 20 | 6% |
| 20 - 99 | 9% |
| 100 + | 10% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

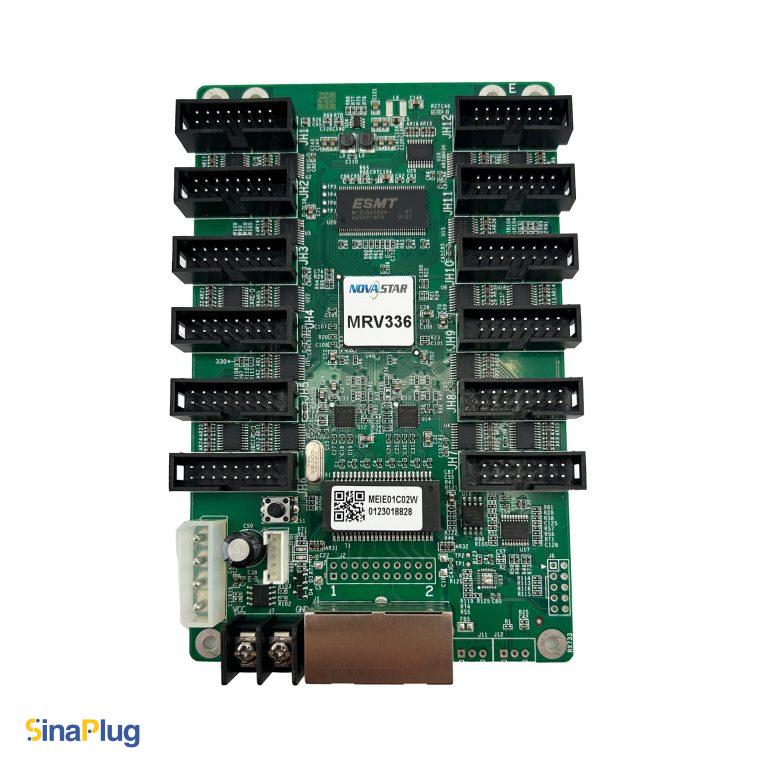

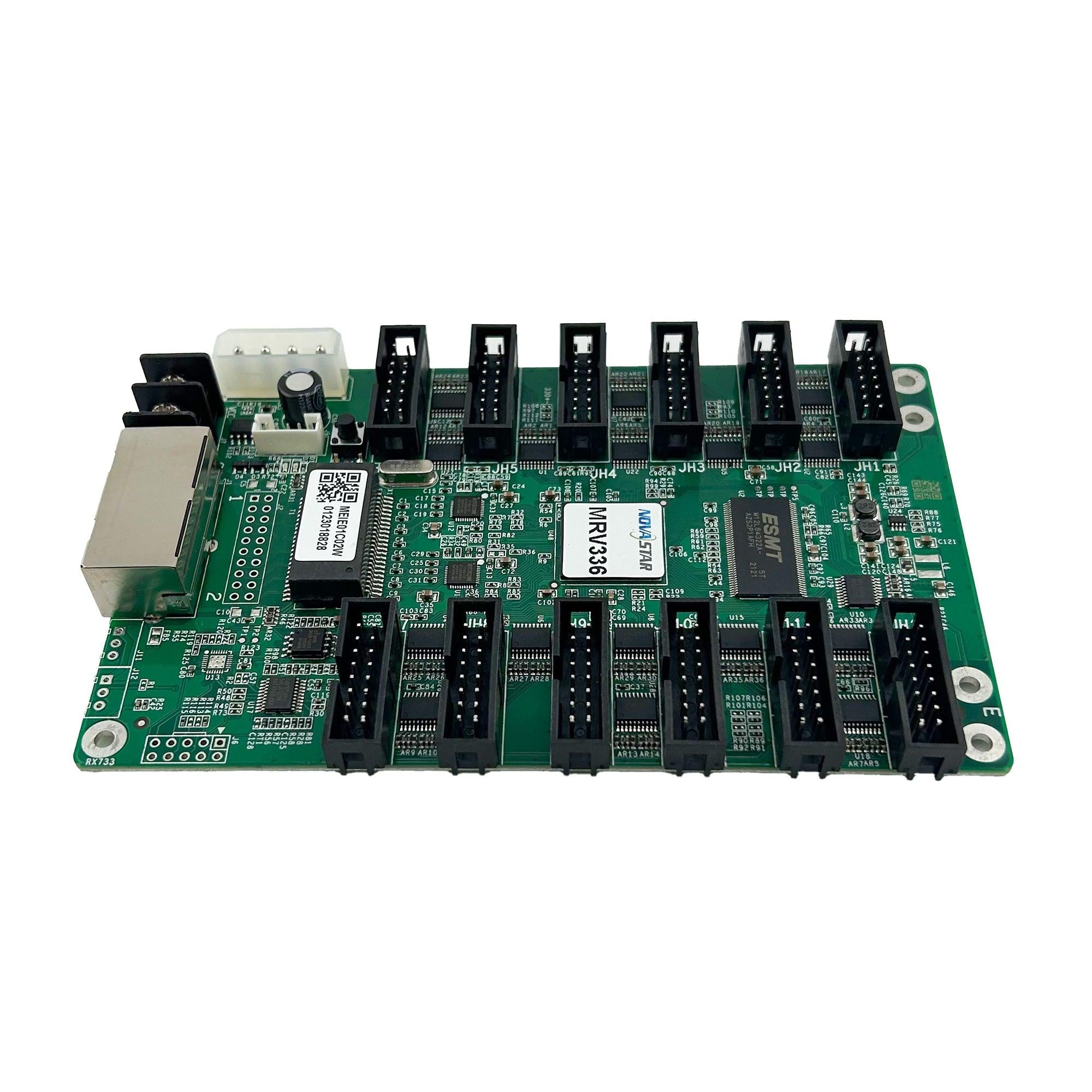

A popular item supplied by Azar Pixel is the NovaStar MRV336. It is a reliable and hot seller receiving card designed for LED display systems, offering stable performance and essential features for various applications. Supporting resolutions up to 256×256@60Hz, the MRV336 enhances the visual experience with pixel-level brightness and chroma calibration, ensuring consistent brightness and color uniformity across the display.
Equipped with 12 standard HUB75E connectors, this NovaStar card ensures robust communication and supports up to 24 groups of parallel RGB data. It’s hardware design complies with EMC Class B standards, providing improved electromagnetic compatibility for diverse on-site setups. Certified for RoHS compliance, it adheres to environmental protection standards.
Designed for efficiency and durability, the MRV336 operates within a temperature range of -20°C to +70°C. It can be powered on by an input voltage range of DC 3.8 V to 5.5 V and consumes a rated power of 2.5 W, making it energy-efficient without compromising performance. With advanced features such as temperature monitoring, Ethernet communication status monitoring, and pre-stored image settings, this powerful receiving card is ideal for applications requiring stable and high-quality LED display management.
The NovaStar MRV336 recieving card is a dependable solution for LED display systems, offering robust communication, efficient power consumption, and advanced display calibration capabilities for consistent performance in various environments.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of NovaStar MRV336 Receiving Card
Input
- 1x Gigabit Ethernet Port
Output
- 12x standard HUB75E connectors (to LED modules)
- 1x Gigabit Ethernet Port
Performance
- Maximum resolution: 256×256@60Hz
- Pixel Level brightness and chromaticity calibration
- Support for 1/32 scan
Improvements to Maintainability
- pre-saved screen settings
- Temperature monitoring
- Ethernet cable communication status monitoring
- Power supply voltage monitoring
- Configuration parameter readback
Dimensions (L*W*H)
- 145.6mm * 95.3mm * 18.4mm
| Weight | 0.22 lbs |
|---|---|
| Dimensions | 7.87 × 5.91 × 0.79 in |
| Max PWM IC Pixel Capacity | 256×256 |
| Scan Type | 1/32 |
| Output Interface (QTY) | 12 |
| Max Parallel RGB Data Groups | 24 |
| Brightness and Chroma Calibration | Supported |
| Input Voltage Range | 3.8-5.5VDC |
| Max Power Consumption | 2.5W |
| Working Temperature Range | -20 °C to +70 °C |
| Standard Certification | EMC Class B, RoHS |
| Others | Pre-saved screen settings, Supports temperature, voltage, and power supply monitoring |
Allen Baker –
I used several MRV336 cards in our rental cabinets, no issue so far, fast configuration in NovaLCT.
